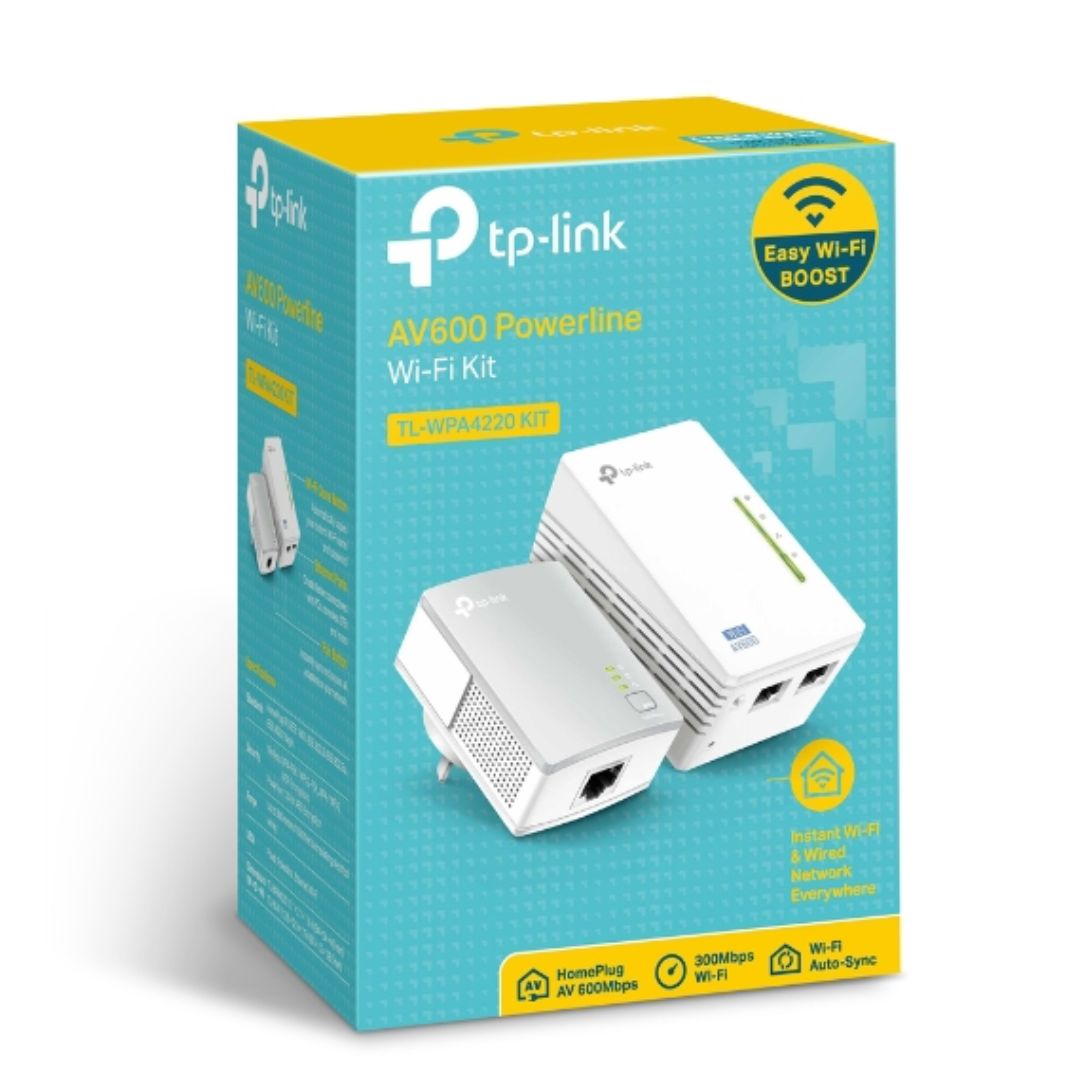

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring ideal for lag-free HD or 3D video streaming and online gaming Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

HARDWARE FEATURES Plug Type AU Standards and Protocols HomePlug AV IEEE802.3 IEEE802.3u IEEE802.11b/g/n Interface 2*10/100Mbps Ethernet Port Button Pair Reset Wi-Fi/Wi-Fi Clone Power Consumption Maximum: 7.608W (220V/50Hz) Typical: 7.216W (220V/50Hz) Standby: 4.610W (220V/50Hz) LED Indicator PWR PLC ETH Wi-Fi/Wi-Fi Clone Dimensions ( W x D x H ) TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm) TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) Range 300 Meters over electrical circuit WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Wireless Security 64/128-bit WEP / WPA / WPA2 WPA-PSK / WPA2-PSK Advanced Functions Enable/DisableWireless Radio WMM Wireless Statistics Transmission Power CE:<20dBm(2.4GHz) FCC:<30dBm SOFTWARE Modulation Technology OFDM (PLC) Encryption Powerline Security: 128-bit AES Wireless Security: WEP WPA/WPA2 WPA-PSK/WPA2-PSK Encryption OTHERS Certification CE RoHS Package Contents Package Contents: ● AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA411 ● Ethernet Cable × 2 ● Quick Installation Guide Certification: CE RoHS System Requirements Windows 2000/XP/2003/Vista Windows 7/8 Mac Linux

@30/24

* HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps* * AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz* * OneMeshTM - Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home * 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability * One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network * Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button uniformly sync settings such as SSID password Wi-Fi Schedule and LED Schedule for all network devices * Plug and Play - Set up your powerline network and start enjoying fast seamless wired/wireless connections in minutes * Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket * 3 × Gigabit Ports - Provide secure wired networks for desktops smart TVs or games consoles

HARDWARE FEATURES Plug Type AU Standards and Protocols HomePlug AV2 IEEE 1901 IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.11b/g/n (2.4 GHz) Interface 3 Gigabit Ethernet Ports 1 Power Socket Button Pair LED On/Off Wi-Fi Reset Power Consumption TL-WPA8631P: Maximum: 13W Typical: 11W TL-PA8010P: Maximum: 4.9W Typical: 4.6W LED Indicator Power Powerline Ethernet Wi-Fi (2.4 GHz) Wi-Fi (5 GHz) Dimensions ( W x D x H ) TL-WPA8631P: 75 × 42 × 152 mm TL-PA8010P: 72 × 42 × 131 mm Range Up to 300 meters over existing electrical wiring Compatibility Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters Transmission Speeds Powerline: up to 1300 Mbps Ethernet: 10/100/1000 Mbps

@65/57

*Faster Dual-Band AX1500 Wi-Fi 6: Experience next-level speeds up to 1.5 Gbps (1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz) perfect for lag-free AR/VR gaming seamless 4K streaming and crystal-clear video conferencing.†‡

*Full Gigabit Ports for Reliable Connections: 1× Gigabit WAN port + 1× Gigabit LAN port provide reliable warp-speed connections for high-intensive wired devices such as your smart TV game console NAS and more. △

*Ultra-Portable Travel-Ready Design: Engineered for life on the go TL-WR1512X features a compact lightweight build that fits easily into your travel bag—ideal for business trips or vacations.

*Flexible Wi-Fi Anywhere Anytime: With versatile modes including Router USB Tethering 3G/4G/5G USB Modem Hotspot Access Point Range Extender and Client TL-WR1512X enables flexible Wi-Fi setup for homes hotel stays and travel.

*Effortless File Sharing On the Trip: By plugging an external USB hard disc into the router you can easily share files between connected devices.

*24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard® TL-WR1512X can keep your network private and secure from anywhere in the world whether you‘re working remotely abroad or browsing on the public Wi-Fi.

*Power It with a [5V PD] Power Bank(Without Battery): With a Type-C interface you can flexibly turn it into a mobile router with a [5V PD] power bank.***

Warranty Period: 3-Year

@33/26

@61/52

300Mbps wireless data rates is ideal for video streaming online gaming and Internet calling Pocket-size – Ideal for home and travel use Supports Router Repeater Client AP and hotspot operation modes Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation Easy installation in minutes

HARDWARE FEATURES Interface 1 10/100Mbps WAN/LAN Port 1 Micro USB Port 1 Reset Button Wireless Standards IEEE 802.11n IEEE 802.11g IEEE 802.11b Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm) Antenna Type On-Board WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -65dBm@10% PER 130M: -70dBm@10% PER 108M: -82dBm@10% PER 54M: -73dBm@10% PER 11M: -82dBm@8% PER 6M: -86dBm@10% PER 1M: -90dBm@8% PER Transmit Power CE: <20dBm(2.4GHz) FCC: <30dBm Wireless Modes Router Mode Repeater Mode Client Mode AP Mode WISP Router Mode Wireless Functions Enable/Disable Wireless Radio WMM Wireless Statistics Wireless Security 64/128/152-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK SOFTWARE FEATURES Quality of Service WMM Bandwidth Control WAN Type Dynamic IP/Static IP/PPPoE/ PPTP/L2TP Management Access Control Local Management Remote Management DHCP Server Client DHCP Client List Address Reservation Port Forwarding Virtual Server Port Triggering UPnP DMZ Dynamic DNS DynDns Comexe NO-IP VPN Pass-Through PPTP L2TP IPSec (ESP Head) Access Control Local Management Control Host List Access Schedule Rule Management

@12/8

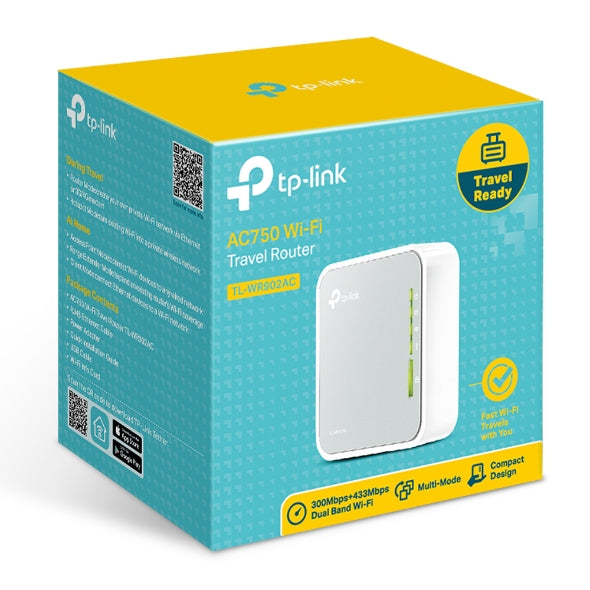

Travel-Sized Design – Conveniently small and light to pack and take on the road creating Wi-Fi network via Ethernet 3G/4G USB modem or WISP Dual Band AC750 Wi-Fi – Strong fast connection for HD streaming on all your devices One Switch for Multiple Modes – Perfect for Wi-Fi at home your hotel room or on the road Flexible Power – Micro USB port to an adapter portable charger or laptop Versatile USB – For file sharing or internet access from a 3G/4G USB modem

HARDWARE FEATURES Interface 1 10/100Mbps WAN/LAN Port 1 Reset Button 1 USB 2.0 Port 1 Mode Switch 1 WPS Button External Power Supply 5V/2A Dimensions ( W x D x H ) 2.91*2.64*0.87 in. (74*67*22mm) Antenna Type On-Board WIRELESS FEATURES Wireless Standards IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter 2.4GHz: Up to 300Mbps Reception Sensitivity 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm Transmit Power CE: <20dBm(2.4GHz) <23dBm(5GHz) Wireless Functions Enable/Disable Wireless Radio WDS Bridge WMM Wireless Statistics Wireless Security 64/128-bit WEP WPA / WPA2 WPA-PSK/ WPA2-PSK encryption

Portable and compact With the travel-sized and compact design TL-WR902AC is small enough to put into your pocket and make sure you can have internet access wherever you go. The mini USB power supply and built-in adapter make it perfect for travelers students and anyone else living life on the go.

Excellent Wireless Speed with 11AC Wi-Fi Coming with the next generation Wi-Fi standard – 802.11ac 3 times faster than wireless N speeds TL-WR902AC delivers a combined wireless data transfe

@16/12

2.5 Gbps Networking - 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks whether local data transfer or Internet access the TX201 is up to the task.† Versatile Compatibility - With extreme speed and ultra-low latency 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet automatically negotiating between higher and lower speed connections. Low-Profile and Full-Height Brackets - In addition to the standard bracket a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design. Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7 Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2 Linux.‡

@14/25

Warranty Period: 3-Year

@14/10

@30/24

2 10G SFP+ slots Applicable to multiple TP-LINK switch models/SFP+ transceivers/SFP+ cables

What This Product Does 10-Gigabit 2-Port SFP+ Module TX432 is an interface card providing two 10G SFP+ ports. It is applicable to multiple TP-LINK switch models/SFP+ transceivers/SFP+ cables.

MEDIA CONVERTER & MODULE Standards IEEE 802.3ae IEEE 802.3aq SFF-8431 Dimensions (W*D*H) 131*92*31mm Max Power Consumption 6.57w with Fiber LED M1 M2 Safety & Emission FCC CE Environment Operating Temp: 0℃~50℃ (32℉~122℉) Storage Temp: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH Non-condensing Storage Humidity: 5%~90% RH Non-condensing

@76

Warranty Period: 1-Year

@13/26

@13/26

@13/26

@12/8

Warranty Period: 1-Year

@14/26

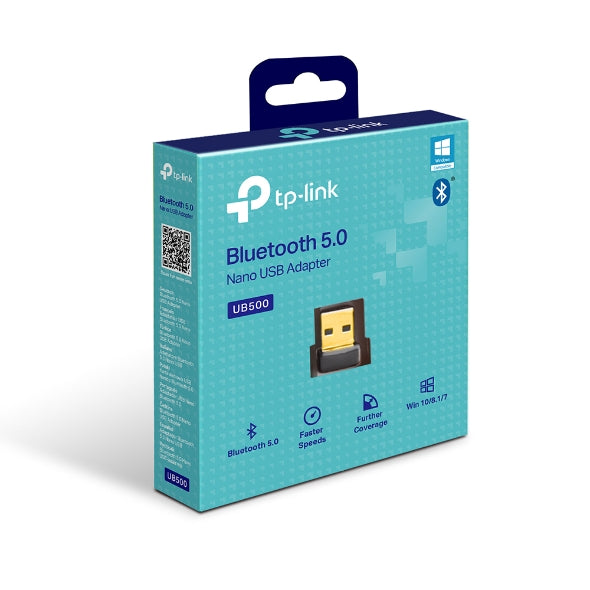

* Bluetooth 5.0 – Applies the latest Bluetooth 5.0 technology backward compatible with Bluetooth V4.0/3.0/2.1/2.0/1.1 * Wireless Connectivity – Provides stable and convenient communication between Bluetooth devices and your PC or laptop * Nano-Sized – Ultra-small for convenient portability with reliable high performance * Supported Operating System – Windows 10/8.1/7

HARDWARE FEATURES Standards and Protocols Bluetooth 5.0 Interface USB 2.0 Dimensions 0.58 × 0.27 × 0.74 in (14.8 × 6.8 × 18.9 mm)

OTHERS Package Contents Bluetooth 5.0 Nano USB Adapter UB500 Quick Installation Guide System Requirements Supported operating systems include Win 10/8.1/7 Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

@11/26

@11/25

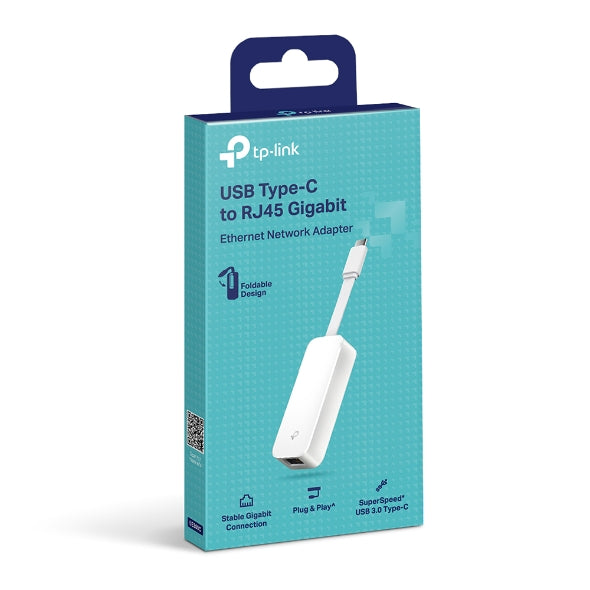

Specification: Dimensions 2.8 x 1.0 x 0.6 in. (71 x 26 x 16.2mm) Output Interface 1 10/100/1000Mbps RJ45 Ethernet Port Input Interface 1 USB 3.0 Port Chipset RTL8153 Supported Systems Windows 10/8.1/8/7 Mac OS Chrome OS Linux (Ubuntu) Package contents USB Type-C to Gigabit Ethernet Network Adapter User Guide
