Networking

Warranty Period: 3-Year

@15/22

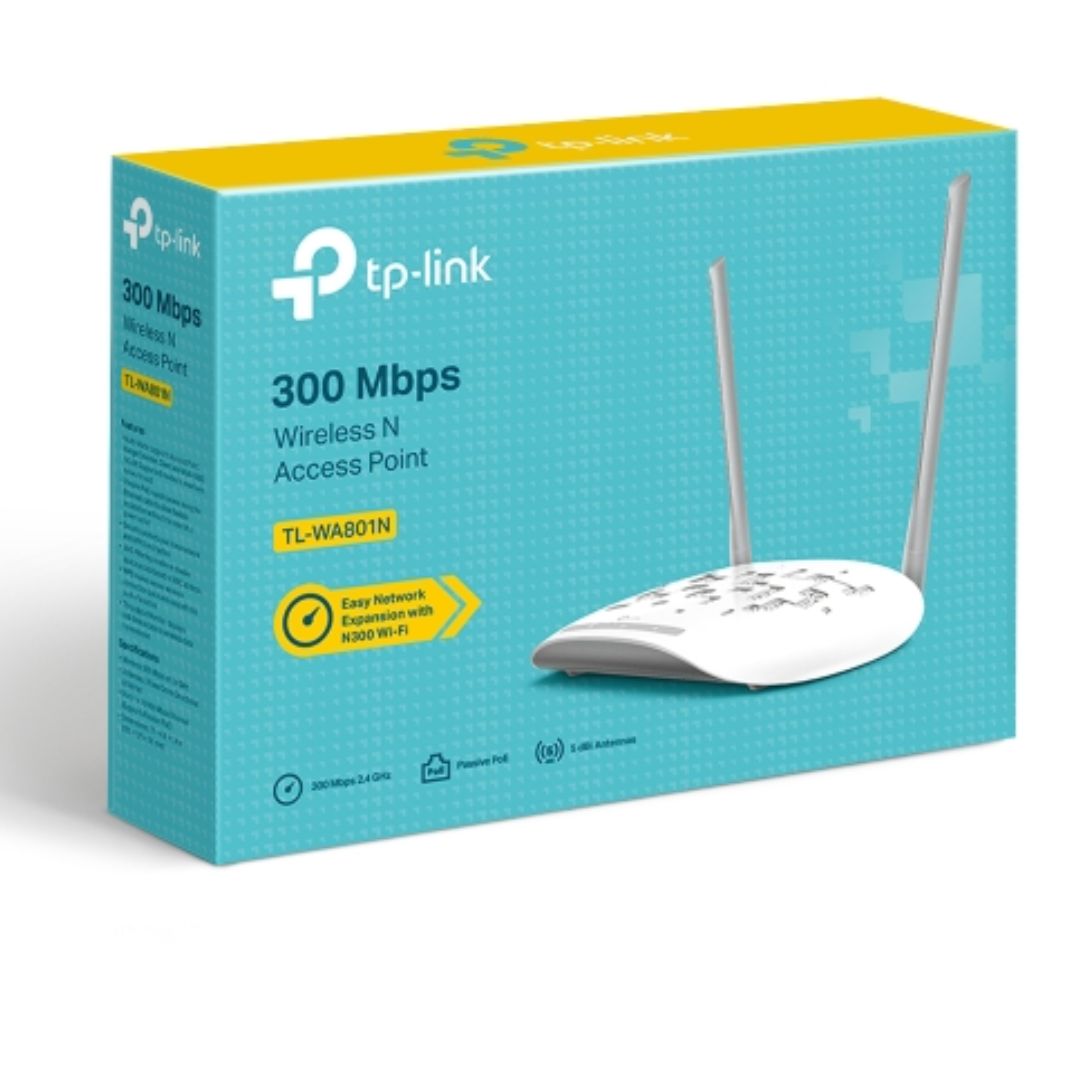

HARDWARE FEATURES Interface 1× 10/100 M Ethernet Port(RJ45) Support Passive PoE Button Power On/Off Button; WPS Button; Reset Button External Power Supply 9VDC / 0.6A Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Dimensions ( W x D x H ) 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm) Antenna Type 2 Fixed Omni-Directional Antennas WIRELESS FEATURES Frequency 2.4 GHz Signal Rate 300 Mbps at 2.4 GHz Reception Sensitivity 11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm Transmit Power CE: <15dBm; FCC: <20dBm Wireless Modes AP Mode Multi-SSID Mode Client Mode Range Extender Mode Wireless Functions Enable/Disable Wireless Radio; WMM; Short GI; AP Isolation; Wireless Statistics; Throughput Monitor Wireless Security WEP; WPA/WPA2; WPA/WPA2-PSK encryptions Quality of Service WMM Management SNMP Advanced Functions Up to 30 meters Passive PoE is supported OTHERS Certification CE; FCC; RoHS Package Contents Wireless Access Point TL-WA801N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10; MAC OS; NetWare; UNIX or Linux Internet Explorer 11; Firefox 12.0; Chrome 20.0; Safari 4.0; or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) Environment Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90

@6/21

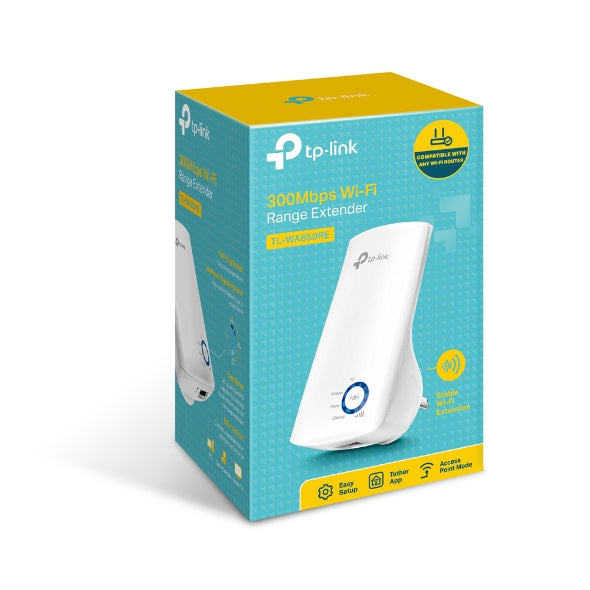

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly Miniature size and wall-mounted design make it easy to deploy and move flexibly Easily expand wireless coverage at a push of Range Extender button Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

HARDWARE FEATURES Plug Type EU; UK; US Interface 1 * 10/100M Ethernet Port (RJ45) Button RE (Range Extender) Button; Reset Button Power Consumption About 3W Antenna 2 * internal Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) WIRELESS FEATURES Frequency 2.4~2.4835GHz Signal Rate 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Transmit Power < 20 dBm (EIRP) Wireless Modes Range Extender Wireless Functions WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function Wireless Security 64/128/152-bit WEP WPA-PSK / WPA2-PSK OTHERS Certification CE; RoHS Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE RJ-45 Ethernet Cable Resource CD Quick Installation Guide System Requirements Microsoft® Windows® 98SE; NT; 2000; XP; Vista or Windows 7; 8; 10; Mac® OS; NetWare®; UNIX® or Linux. Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

@6/21

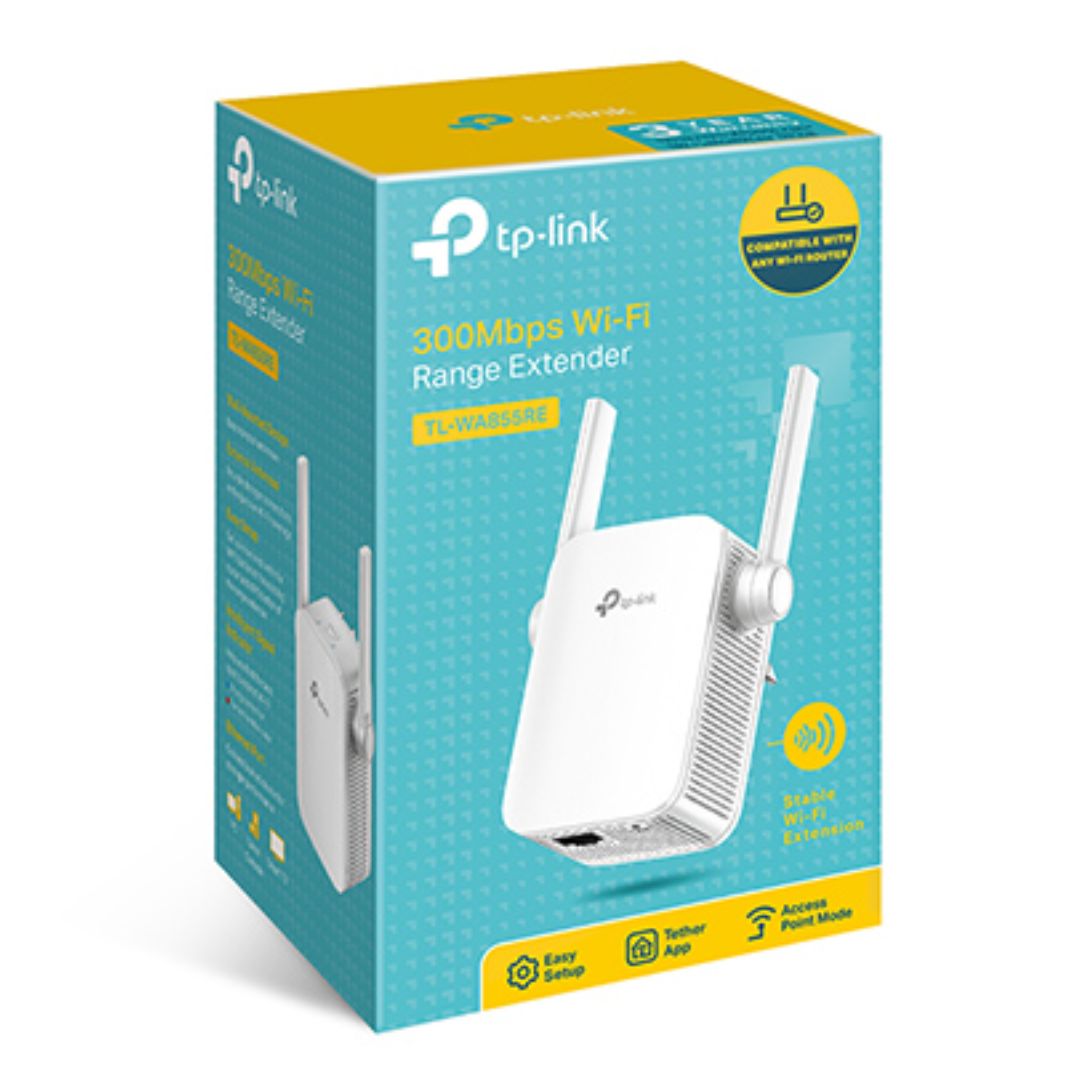

Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity External antennas for faster and more reliable Wi-Fi Supports AP mode which creates a new Wi-Fi Access point Easily expand wireless coverage at a push of the Range Extender button Set the Power Schedule for the range extender for power-saving Tether App allows easy access and management with your mobile devices remotely Works with Any Wi-Fi Router

HARDWARE FEATURES Plug Type AU Interface 1 x 10/100M Ethernet Port (RJ45) Button WPS Button; Reset Button Power Consumption 3.6W Antenna 2 x external Dimensions ( W x D x H ) 3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3mm) WIRELESS FEATURES Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Frequency 2.4~2.4835GHz Signal Rate 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) Reception Sensitivity 270M: <-68dBm@10% PER 130M: <-68dBm@10% PER 108M: <-68dBm@10% PER 54M: <-68dBm@10% PER 11M: <-68dBm@8% PER 6M: <-68dBm@10% PER 1M: <-68dBm@8% PER Transmit Power < 20 dBm (EIRP) Wireless Modes Range Extender/Access Point Wireless Functions Wireless MAC Address Filtering Domain Login Function Transmit Power Control Wireless Security 64/128/152-bit WEP WPA-PSK / WPA2-PSK OTHERS Certification CE; RoHS Package Contents 300Mbps Wi-Fi Range Extender TL-WA855RE Quick Installation Guide System Requirements Microsoft® Windows® 98SE; NT; 2000; XP; Vista or Windows 7; 8; 8.1; 10; Mac® OS; NetWare®; UNIX® or Linux. Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

@6/21

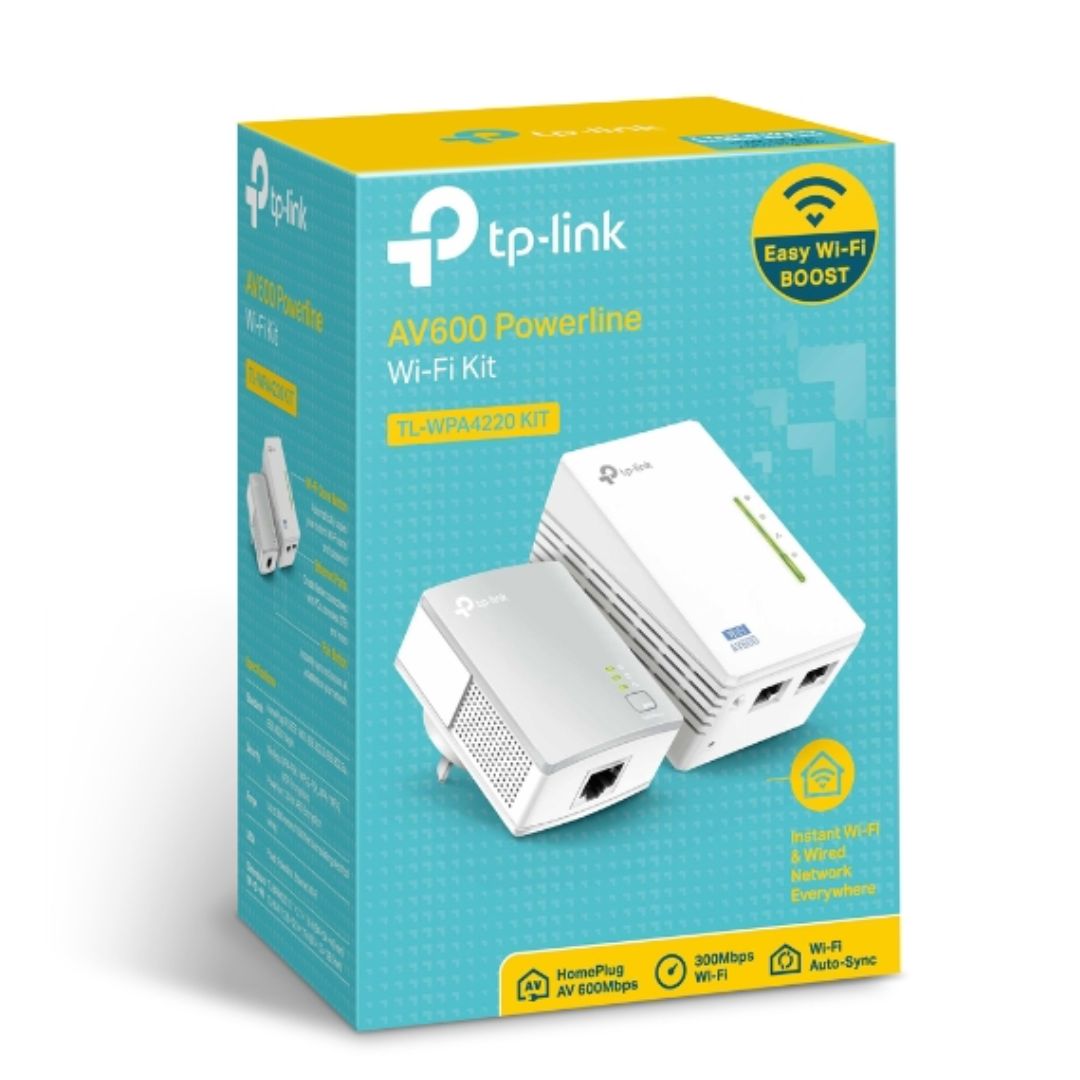

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring; ideal for lag-free HD or 3D video streaming and online gaming Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

HARDWARE FEATURES Plug Type AU Standards and Protocols HomePlug AV; IEEE802.3; IEEE802.3u; IEEE802.11b/g/n Interface 2*10/100Mbps Ethernet Port Button Pair; Reset; Wi-Fi/Wi-Fi Clone Power Consumption Maximum: 7.608W (220V/50Hz) Typical: 7.216W (220V/50Hz) Standby: 4.610W (220V/50Hz) LED Indicator PWR; PLC; ETH; Wi-Fi/Wi-Fi Clone Dimensions ( W x D x H ) TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm) TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) Range 300 Meters over electrical circuit WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Wireless Security 64/128-bit WEP / WPA / WPA2;WPA-PSK / WPA2-PSK Advanced Functions Enable/DisableWireless Radio;WMM; Wireless Statistics Transmission Power CE:<20dBm(2.4GHz) FCC:<30dBm SOFTWARE Modulation Technology OFDM (PLC) Encryption Powerline Security: 128-bit AES Wireless Security: WEP; WPA/WPA2; WPA-PSK/WPA2-PSK Encryption OTHERS Certification CE; RoHS Package Contents Package Contents: ● AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA411 ● Ethernet Cable × 2 ● Quick Installation Guide Certification: CE; RoHS System Requirements Windows 2000/XP/2003/Vista; Windows 7/8; Mac; Linux

@13/21

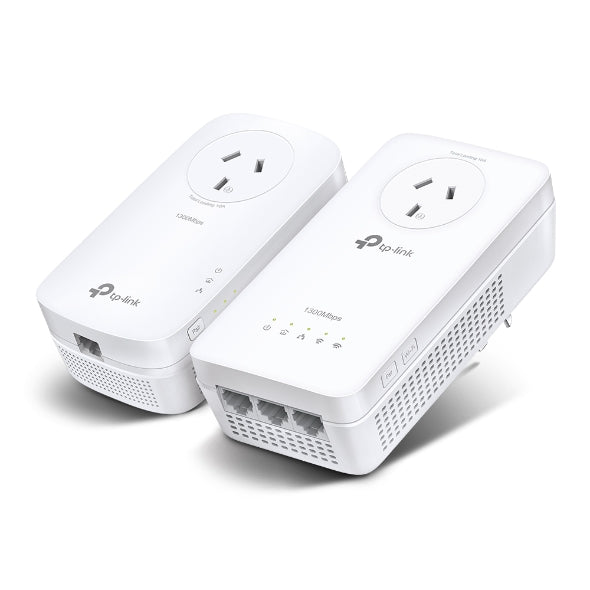

• HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps* • AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz* • OneMeshTM - Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home • 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability • One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network • Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button; uniformly sync settings such as SSID; password; Wi-Fi Schedule and LED Schedule for all network devices • Plug and Play - Set up your powerline network and start enjoying fast; seamless wired/wireless connections in minutes • Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket • 3 × Gigabit Ports - Provide secure wired networks for desktops; smart TVs or games consoles

HARDWARE FEATURES Plug Type AU Standards and Protocols HomePlug AV2; IEEE 1901; IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.11b/g/n (2.4 GHz) Interface 3 Gigabit Ethernet Ports; 1 Power Socket Button Pair; LED On/Off; Wi-Fi; Reset Power Consumption TL-WPA8631P: Maximum: 13W; Typical: 11W TL-PA8010P: Maximum: 4.9W; Typical: 4.6W LED Indicator Power; Powerline; Ethernet; Wi-Fi (2.4 GHz); Wi-Fi (5 GHz) Dimensions ( W x D x H ) TL-WPA8631P: 75 × 42 × 152 mm TL-PA8010P: 72 × 42 × 131 mm Range Up to 300 meters over existing electrical wiring Compatibility Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters Transmission Speeds Powerline: up to 1300 Mbps Ethernet: 10/100/1000 Mbps

@24/28

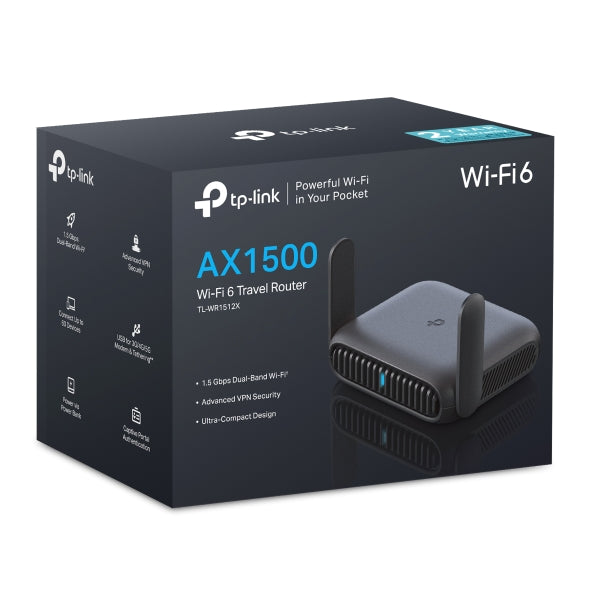

•Faster Dual-Band AX1500 Wi-Fi 6: Experience next-level speeds up to 1.5 Gbps (1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz); perfect for lag-free AR/VR gaming; seamless 4K streaming; and crystal-clear video conferencing.†‡

•Full Gigabit Ports for Reliable Connections: 1× Gigabit WAN port + 1× Gigabit LAN port provide reliable; warp-speed connections for high-intensive wired devices such as your smart TV; game console; NAS; and more. △

•Ultra-Portable; Travel-Ready Design: Engineered for life on the go; TL-WR1512X features a compact; lightweight build that fits easily into your travel bag—ideal for business trips or vacations.

•Flexible Wi-Fi Anywhere; Anytime: With versatile modes including Router; USB Tethering; 3G/4G/5G USB Modem; Hotspot; Access Point; Range Extender; and Client; TL-WR1512X enables flexible Wi-Fi setup for homes; hotel stays; and travel.

•Effortless File Sharing On the Trip: By plugging an external USB hard disc into the router; you can easily share files between connected devices.

•24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard®; TL-WR1512X can keep your network private and secure from anywhere in the world; whether you‘re working remotely abroad; or browsing on the public Wi-Fi.

•Power It with a [5V PD] Power Bank(Without Battery): With a Type-C interface; you can flexibly turn it into a mobile router with a [5V PD] power bank.**•

Warranty Period: 3-Year

@14/22

Warranty Period: 3-Year

@14/22

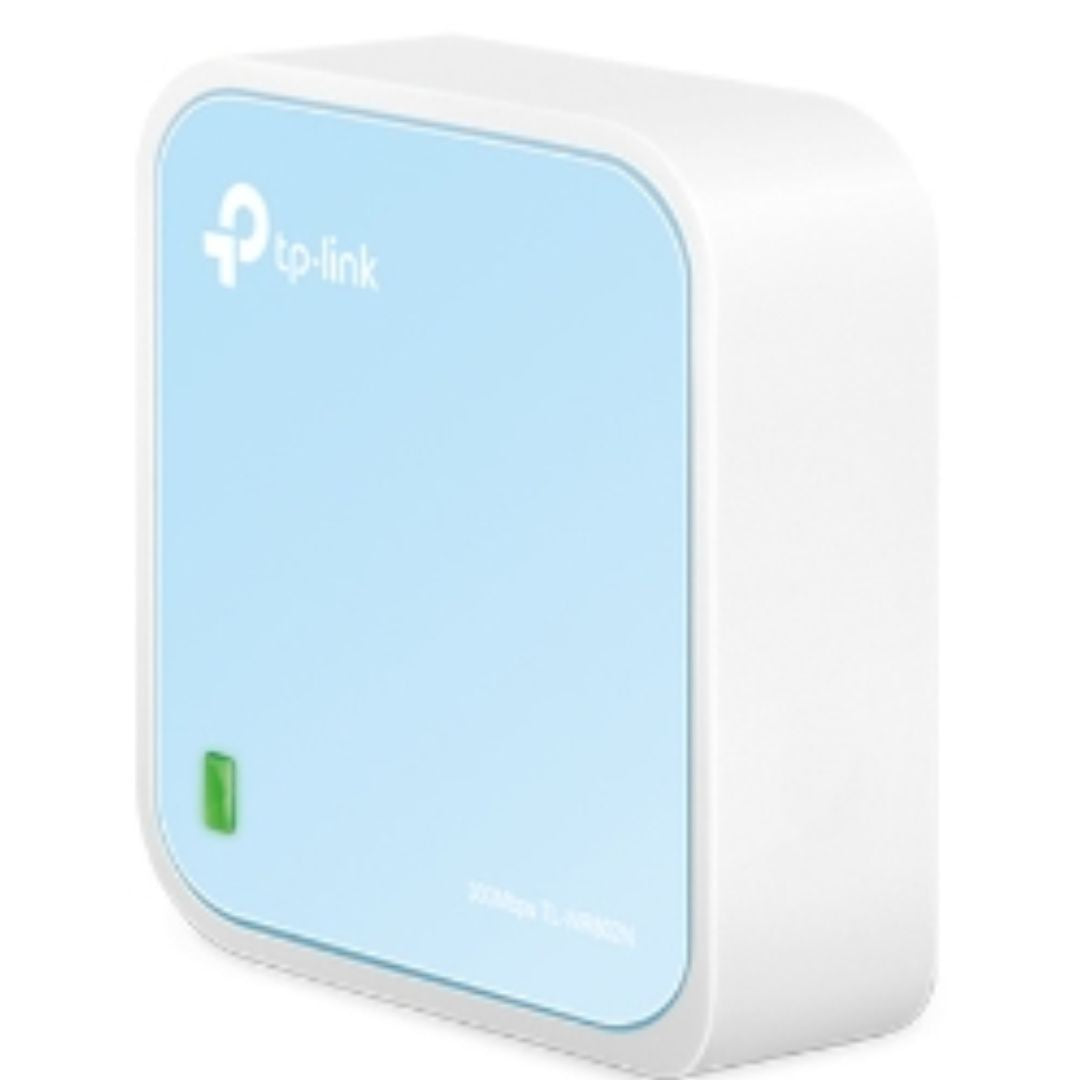

300Mbps wireless data rates is ideal for video streaming; online gaming and Internet calling Pocket-size – Ideal for home and travel use Supports Router; Repeater; Client; AP and hotspot operation modes Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation Easy installation in minutes

HARDWARE FEATURES Interface 1 10/100Mbps WAN/LAN Port 1 Micro USB Port 1 Reset Button Wireless Standards IEEE 802.11n; IEEE 802.11g; IEEE 802.11b Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm) Antenna Type On-Board WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -65dBm@10% PER 130M: -70dBm@10% PER 108M: -82dBm@10% PER 54M: -73dBm@10% PER 11M: -82dBm@8% PER 6M: -86dBm@10% PER 1M: -90dBm@8% PER Transmit Power CE: <20dBm(2.4GHz) FCC: <30dBm Wireless Modes Router Mode; Repeater Mode; Client Mode; AP Mode; WISP Router Mode Wireless Functions Enable/Disable Wireless Radio; WMM; Wireless Statistics Wireless Security 64/128/152-bit WEP; WPA/WPA2; WPA-PSK/WPA2-PSK SOFTWARE FEATURES Quality of Service WMM; Bandwidth Control WAN Type Dynamic IP/Static IP/PPPoE/ PPTP/L2TP Management Access Control Local Management Remote Management DHCP Server; Client; DHCP Client List; Address Reservation Port Forwarding Virtual Server; Port Triggering; UPnP; DMZ Dynamic DNS DynDns; Comexe; NO-IP VPN Pass-Through PPTP; L2TP; IPSec (ESP Head) Access Control Local Management Control; Host List; Access Schedule; Rule Management

@6/21

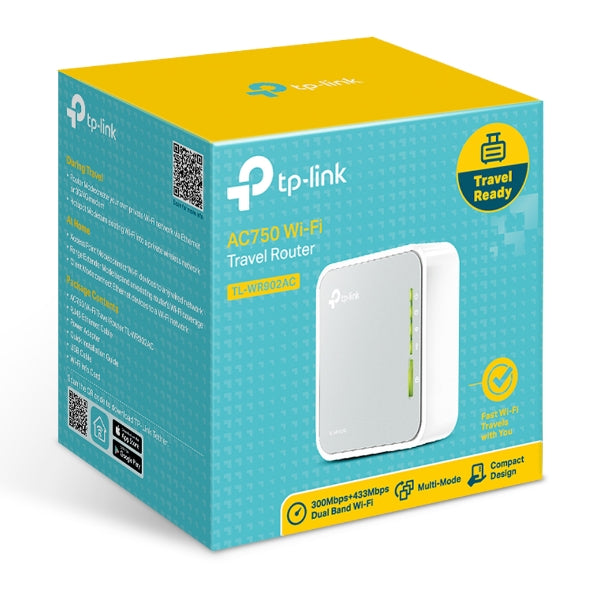

Travel-Sized Design – Conveniently small and light to pack and take on the road; creating Wi-Fi network via Ethernet; 3G/4G USB modem or WISP Dual Band AC750 Wi-Fi – Strong; fast connection for HD streaming on all your devices One Switch for Multiple Modes – Perfect for Wi-Fi at home; your hotel room or on the road Flexible Power – Micro USB port to an adapter; portable charger or laptop Versatile USB – For file sharing or internet access from a 3G/4G USB modem

HARDWARE FEATURES Interface 1 10/100Mbps WAN/LAN Port 1 Reset Button 1 USB 2.0 Port 1 Mode Switch 1 WPS Button External Power Supply 5V/2A Dimensions ( W x D x H ) 2.91*2.64*0.87 in. (74*67*22mm) Antenna Type On-Board WIRELESS FEATURES Wireless Standards IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter 2.4GHz: Up to 300Mbps Reception Sensitivity 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm Transmit Power CE: <20dBm(2.4GHz) <23dBm(5GHz) Wireless Functions Enable/Disable Wireless Radio; WDS Bridge; WMM; Wireless Statistics Wireless Security 64/128-bit WEP;WPA / WPA2;WPA-PSK/ WPA2-PSK encryption

Portable and compact With the travel-sized and compact design; TL-WR902AC is small enough to put into your pocket and make sure you can have internet access wherever you go. The mini USB power supply and built-in adapter make it perfect for travelers; students; and anyone else living life on the go.

Excellent Wireless Speed with 11AC Wi-Fi Coming with the next generation Wi-Fi standard – 802.11ac; 3 times faster than wireless N speeds; TL-WR902AC delivers a combined wireless data transfe

@8/20

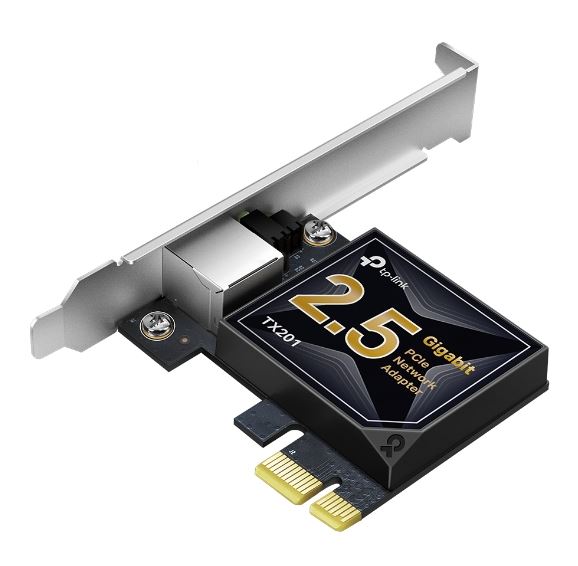

2.5 Gbps Networking - 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks; whether local data transfer or Internet access; the TX201 is up to the task.† Versatile Compatibility - With extreme speed and ultra-low latency; 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet; automatically negotiating between higher and lower speed connections. Low-Profile and Full-Height Brackets - In addition to the standard bracket; a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design. Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7; Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2; Linux.‡

@6/21

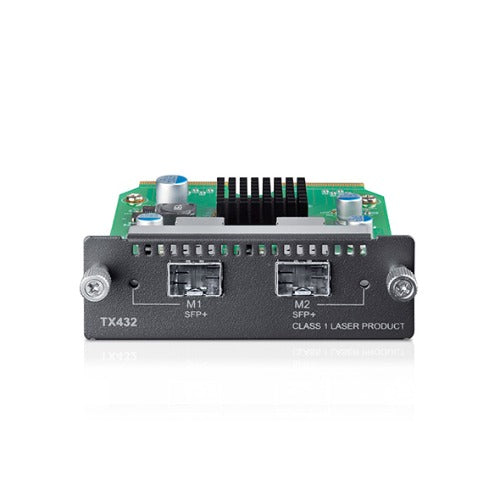

2 10G SFP+ slots Applicable to multiple TP-LINK switch models/SFP+ transceivers/SFP+ cables

What This Product Does 10-Gigabit 2-Port SFP+ Module TX432 is an interface card providing two 10G SFP+ ports. It is applicable to multiple TP-LINK switch models/SFP+ transceivers/SFP+ cables.

MEDIA CONVERTER & MODULE Standards IEEE 802.3ae; IEEE 802.3aq; SFF-8431 Dimensions (W*D*H) 131*92*31mm Max Power Consumption 6.57w with Fiber LED M1;M2 Safety & Emission FCC; CE Environment Operating Temp: 0℃~50℃ (32℉~122℉) Storage Temp: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH; Non-condensing Storage Humidity: 5%~90% RH; Non-condensing

@34/32

Warranty Period: 1-Year

@5/20
