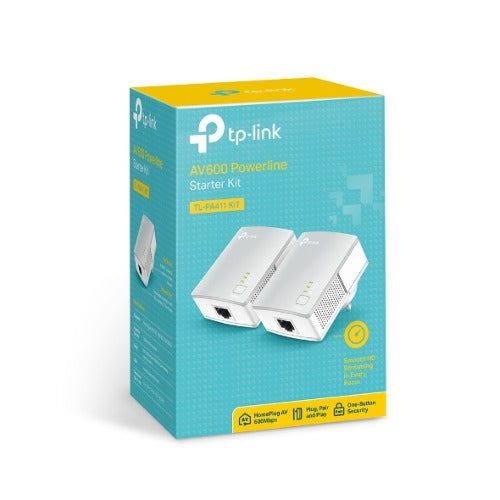

@44/37
Data transmission rates up to 600Mbps1 over electrical wires ideal for HD video streaming Integrated power socket making sure that no power outlet is going to waste Plug and play design and easy encryption on a push of pair button Power-Saving Mode automatically reduces power consumption by up to 85%
HARDWARE FEATURES Plug Type AU Standards and Protocols HomePlug AV IEEE802.3 IEEE802.3u Interface 1* 10/100Mbps Ethernet Port Power Socket Button Pair Button Power Consumption Maximum: 5.00W (220V/50Hz) Typical: 4.60W (220V/50Hz) Standby: 0.72W (220V/50Hz) LED Power Powerline Ethernet Dimensions ( W x D x H ) 3.7 x 2.3 x 1.7 in. (95 x 58 x 42 mm) Range 300 meters in house SOFTWARE FEATURES Modulation Technology OFDM Encryption 128-bit AES Encryption OTHERS Certification CE FCC RoHS Package Contents Powerline Ethernet Adapter *2 Ethernet cable (RJ45) *2 Resource CD Quick Installation Guide System Requirements Windows 8/7/Vista/XP/2000 Mac OS Linux* Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Warranty Limited 3-Year Warranty
@26/19
HomePlug AV standard compliant high-speed data transfer rates of up to 500Mbps Miniature design smaller than most powerline adapters at the market blends discreetly in front of any power outlet No new wires Easy Plug and Play operation No configuration required Patented Power-Saving Mode automatically reduces power consumption by up to 85%*
HARDWARE FEATURES Plug Type EU UK AU Standards and Protocols HomePlug AV IEEE802.3 IEEE802.3u Interface 1*10/100Mbps Ethernet Port Button Pair Button Power Consumption Maximum: 4.0W (220V/50Hz) Typical: 3.2W (220V/50Hz) Standby: 0.7W (220V/50Hz) LED Indicator PWR PLC ETH Dimensions ( W x D x H ) 2.6 x 2.0 x 1.1 in.(65×52×28.5mm) Range 300M in house SOFTWARE FEATURES Modulation Technology OFDM Encryption 128-bit AES Encryption OTHERS Certification CE FCC RoHS Package Contents Powerline Ethernet Adapter Ethernet cable (RJ45) Resource CD Quick Installation Guide System Requirements Windows 8/7/Vista/XP/2000 Mac Linux Environment Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@21/17
* HomePlug AV2 standard compliant high-speed data transfer rates of up to 1300Mbps supports all your online needs * Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range higher transmission capacity and more stable connections * 3 gigabit ports create secure wired networks for desktops smart TVs or games consoles * Integrated power socket ensures no power outlet goes to waste * Plug and play no configuration required * Patented Power-Saving Mode automatically reduces power consumption by up to 85%
@49/41
NETWORK Standards and Protocols IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at
GENERAL Certification FCC CE RoHS Environment Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
HARDWARE FEATURES Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5 5e 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption Input: 100-240 V 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play LED Indicator ON: Supplying power normally OFF: No power supply
Dimensions ( W x D x H ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
@13/21
* 2 Gigabit ports ensure faster transmission * Complies with IEEE802.3af/at/bt standards supplies up to 60 W * Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable * Automatically determines and supplies the exact power to meet the device"s need * Wall-mounting and desktop design accommodates most installation scenarios * Plug & Play installation requires no configuration * Integrated power supply * Durable metal casing
NETWORK Standards and Protocols IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at IEEE802.3bt
HARDWARE FEATURES Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5 5e 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption Input: 100-240 V 50/60 Hz 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
@19/14
@12/8
HARDWARE FEATURES Interface * 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A) Packet Forwarding Rate 0.744 Mpps PoE Ports (RJ45) * Standard: 802.3 af compliant * PoE Ports: Ports 1–4 * Power Supply: 41 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm) Max Power Consumption * 1.9 W (220 V / 50 Hz no PD connected) * 47 W (220 V / 50 Hz with 41 W PD connected) Max Heat Dissipation * 6.48 BTU/h(no PD connected) * 160.27 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4) * Priority Mode Button (Ports 1–2) * Mac Address Auto-Learning And Auto-Aging * IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC CE RoHS Package Contents * TL-SF1005LP * Power Adapter * Installation Guide Environment * Operating Temperature: 0–40 ℃ (32–104 ℉) * Storage Temperature: -40–70 ℃ (-40–158 ℉) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH
@14/11
HARDWARE FEATURES Interface 8 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Consumption Maximum (PoE on): 60.2W (220V/50Hz) Maximum (PoE off): 3.2W (220V/50Hz) External Power Supply External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 57W Backbound Bandwidth 1.6Gbps Mac Address Table 2K Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm)
@19/14
16 10/100Mbps RJ45 ports Innovative energy-efficient technology saves power up to 75% Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
What This Product Does The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance low-cost easy-to-use seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX no need to worry about the cable type simply plug and play. Moreover with the innovative energy-efficient technology the TL-SF1016 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled making it an eco-friendly solution for your business network.
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3x Interface 16 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) 100BASE-TX: UTP category 5 5e or above cable (maximum 100m) Fan Quantity Fanless Power Supply 100-240VAC 50/60Hz Power Consumption Maximum: 2.23W (220V/50Hz) Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm) PERFORMANCE Switching Capacity 3.2Gbps Packet Forwarding Rate 2.38Mpps MAC Address Table 8K Buffer Memory 2Mb Green Technology Innovative energy-efficient technology saves power up to 70% Transfer Method Store-and-Forward OTHERS Certification FCC CE RoHS Package Contents 16-Port 10/100Mbps Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

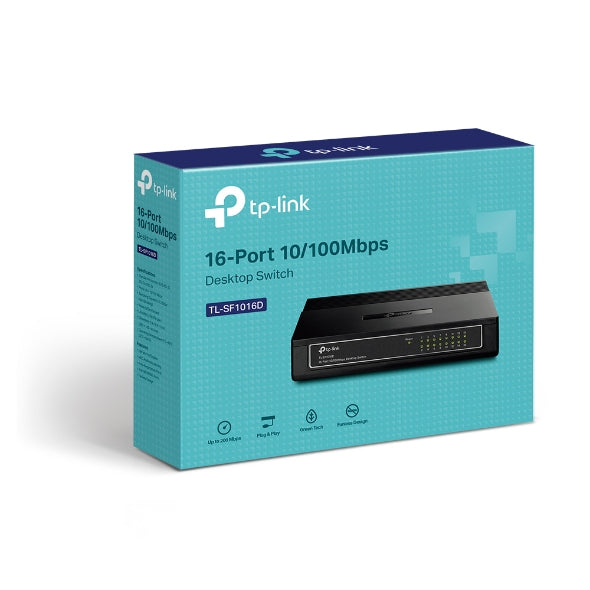

@24/19
HARDWARE FEATURES Interface 16× 10/100 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Physical Security Lock No External Power Supply External Power Adapter(Output: 5.0VDC / 0.6A) Mac Address Table 2K Dimensions ( W x D x H ) 7.9*5.6*1.6 in. (200*142*40 mm) Max Power Consumption 3.23 W (220V/50Hz) Max Heat Dissipation 11.01 BTU/h
SOFTWARE FEATURES Transfer Method Store and Forward Advanced Functions Green Technology 802.3X Flow Control
OTHERS Certification FCC CE RoHs Package Contents 16-Port 10/100Mbps Desktop Switch TL-SF1016D Power Adapter User Guide System Requirements Microsoft® Windows® 98SE NT 2000 XP Vista™ or Windows 7 MAC® OS NetWare® UNIX® or Linux.
@14/11
@21/17
@26/19
@56/48
@11/20
HARDWARE FEATURES Interface * 5× 10/100/1000Mbps RJ45 Ports * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–4 * Power Supply: 40 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption * 4.12 W (220/50 Hz. no PD connected) * 47.5 W (220/50 Hz. with 40 W PD connected) Max Heat Dissipation * 14.05 BTU/h (no PD connected) * 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES Advanced Features * Compatible With IEEE 802.3af/at Compliant PDs * Mac Address Auto-Learning And Auto-Aging * IEEE 802.3x Flow Control * 802.1p/DSCP QoS * IGMP Snooping Transfer Method Store-And-Forward
OTHERS Certification FCC CE RoHS Package Contents * TL-SG1005LP * Power Adapter * Installation Guide Environment * Operating Temperature: 0–40 ℃ (32–104 ℉); * Storage Temperature: -40–70 ℃ (-40–158 ℉) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH non-condensing
@19/14
Warranty Period: 5-Year
