NETWORK Standards and Protocols IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at
GENERAL Certification FCC CE RoHS Environment Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
HARDWARE FEATURES Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5 5e 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption Input: 100-240 V 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play LED Indicator ON: Supplying power normally OFF: No power supply
Dimensions ( W x D x H ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
@14/26
* 2 Gigabit ports ensure faster transmission * Complies with IEEE802.3af/at/bt standards supplies up to 60 W * Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable * Automatically determines and supplies the exact power to meet the device"s need * Wall-mounting and desktop design accommodates most installation scenarios * Plug & Play installation requires no configuration * Integrated power supply * Durable metal casing
NETWORK Standards and Protocols IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at IEEE802.3bt
HARDWARE FEATURES Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5 5e 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption Input: 100-240 V 50/60 Hz 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
@19/14
@12/8
HARDWARE FEATURES Interface * 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A) Packet Forwarding Rate 0.744 Mpps PoE Ports (RJ45) * Standard: 802.3 af compliant * PoE Ports: Ports 1–4 * Power Supply: 41 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm) Max Power Consumption * 1.9 W (220 V / 50 Hz no PD connected) * 47 W (220 V / 50 Hz with 41 W PD connected) Max Heat Dissipation * 6.48 BTU/h(no PD connected) * 160.27 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4) * Priority Mode Button (Ports 1–2) * Mac Address Auto-Learning And Auto-Aging * IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC CE RoHS Package Contents * TL-SF1005LP * Power Adapter * Installation Guide Environment * Operating Temperature: 0–40 ℃ (32–104 ℉) * Storage Temperature: -40–70 ℃ (-40–158 ℉) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH
@14/11
HARDWARE FEATURES Interface 8 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Consumption Maximum (PoE on): 60.2W (220V/50Hz) Maximum (PoE off): 3.2W (220V/50Hz) External Power Supply External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 57W Backbound Bandwidth 1.6Gbps Mac Address Table 2K Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm)
@19/14
@12/26
HARDWARE FEATURES Interface * 5× 10/100/1000Mbps RJ45 Ports * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–4 * Power Supply: 40 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption * 4.12 W (220/50 Hz. no PD connected) * 47.5 W (220/50 Hz. with 40 W PD connected) Max Heat Dissipation * 14.05 BTU/h (no PD connected) * 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES Advanced Features * Compatible With IEEE 802.3af/at Compliant PDs * Mac Address Auto-Learning And Auto-Aging * IEEE 802.3x Flow Control * 802.1p/DSCP QoS * IGMP Snooping Transfer Method Store-And-Forward
OTHERS Certification FCC CE RoHS Package Contents * TL-SG1005LP * Power Adapter * Installation Guide Environment * Operating Temperature: 0–40 ℃ (32–104 ℉); * Storage Temperature: -40–70 ℃ (-40–158 ℉) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH non-condensing
@19/14
Warranty Period: 5-Year
@16/12
Warranty Period: 5-Year
@30/24
@21/17
HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Physical Security Lock No External Power Supply External Power Adapter (Output: 9VDC/0.6A) Jumbo Frame 15 KB Switching Capacity 16 Gbps Dimensions ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) Max Power Consumption 4.63W(220V/50Hz) Max Heat Dissipation 15.80BTU/h
SOFTWARE FEATURES Transfer Method Store and Forward MAC Address Table 4K Advanced Functions Green Technology 802.3X Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version)
OTHERS Certification FCC CE RoHs Package Contents 8-Port Gigabit Desktop Switch TL-SG1008D Power Adapter Installation Guide System Requirements Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty
@14/26
@24/19

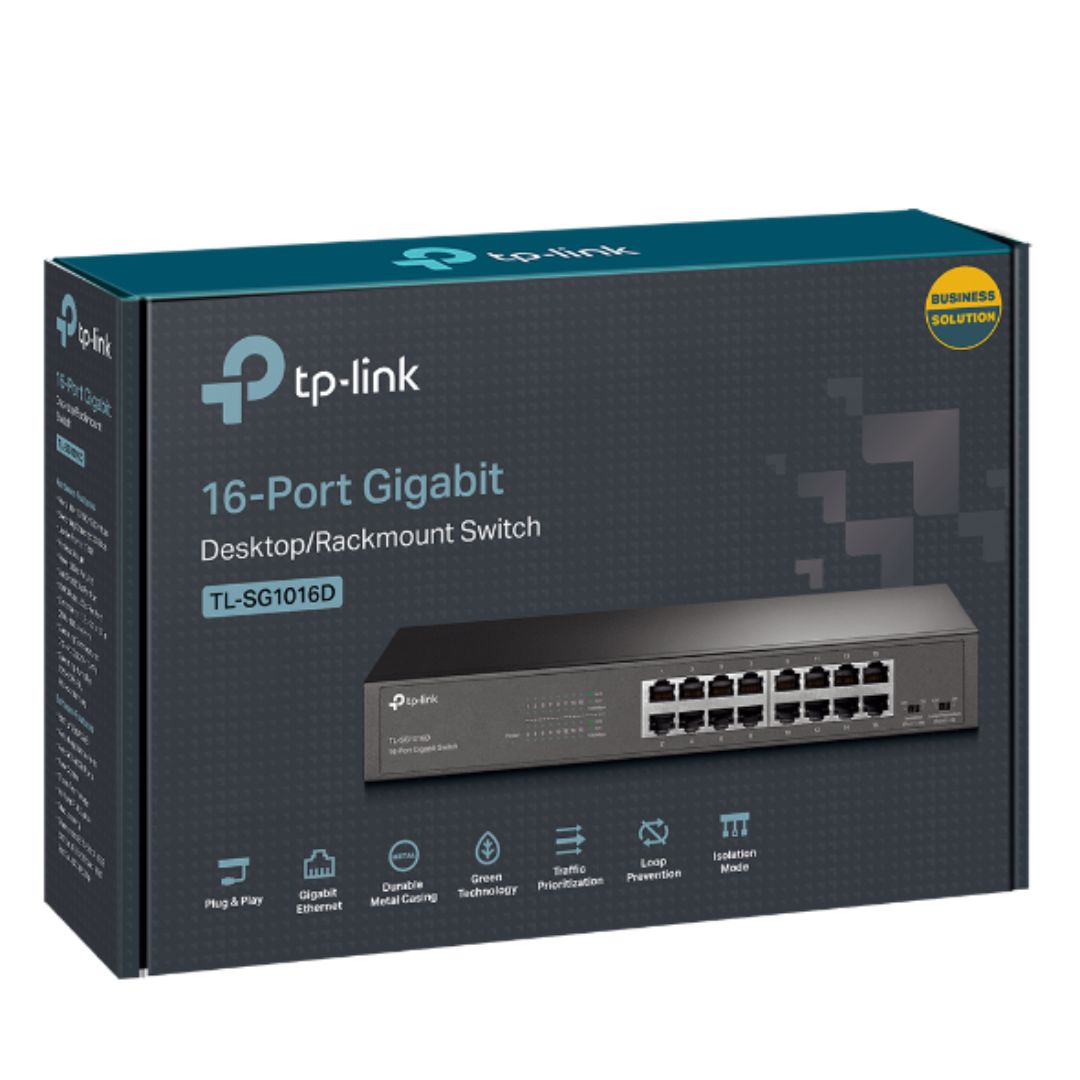

16 10/100/1000Mbps RJ45 ports Innovative energy-efficient technology saves power consumption Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC 50/60Hz Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm) Mounting Rack Mountable Max Power Consumption 10.44W Max Heat Dissipation 35.60BTU/h
PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.8Mpps MAC Address Table 8K Jumbo Frame 10KB QoS 802.1p/DSCP QoS*
*Only for V12 and later version Green Technology Yes Transfer Method Store-and-Forward
@30/24
16 10/100/1000Mbps ports Innovative energy-efficient technology saves power up to 15%* Supports MAC address self-learning Auto MDI/MDIX and Auto negotiation Plug & play design
@28/21
@33/26
16 10/100/1000Mbps RJ45 ports Equipped with 8 PoE+ supported ports to transfer data and power over a single cable Works with IEEE 802.3af/at compliant devices expanding home and office networks Innovative energy-efficient technology reduces power output by up to 75%* Plug and play design no configuration required *Actual data may vary in different usage environment.
HARDWARE FEATURES Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Power Supply 100-240VAC 50/60Hz Power Consumption Maximum (PoE on): 124.4W (220V/50Hz) Maximum (PoE off): 14.4W (220V/50Hz) PoE+ Ports(RJ45) 8 Ports Backbound Bandwidth 32 Gbps Mac Address Table 8K Buffer Size 1.5 Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) SOFTWARE FEATURES Transfer Method Store-And-Forward Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode OTHERS Certification FCC CE RoHS Package Contents TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet Consumption 9.5 watts (max. no PD connected) 140.1 watts (max. with 126w PD connected) Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@49/41

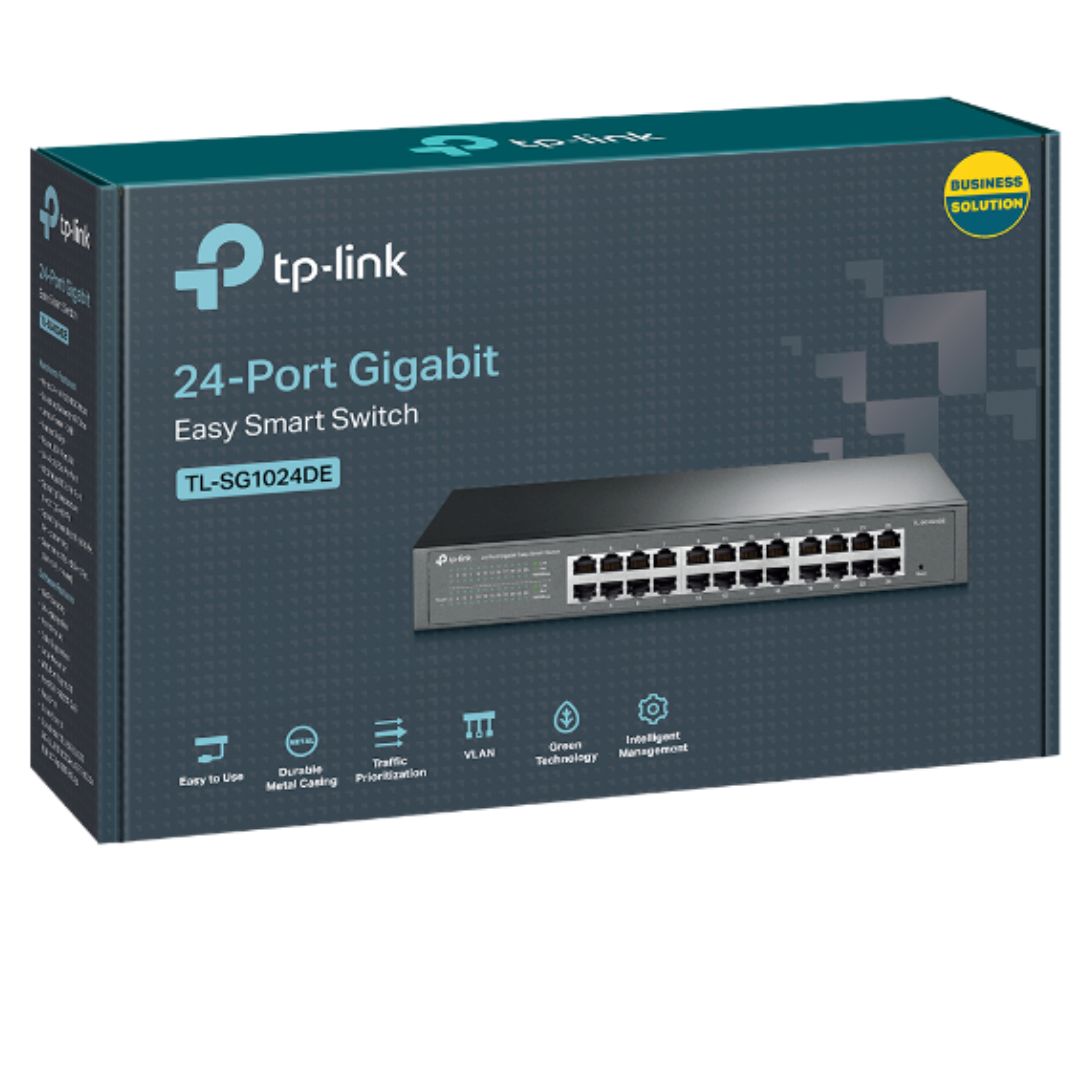

HARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC 50/60Hz Power Consumption Maximum: 13.1W (220V/50Hz) Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 13.62W(220V/50Hz) Max Heat Dissipation 46.44BTU/h
PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Jumbo Frame 10KB Green Technology Yes Transfer Method Store-and-Forward
