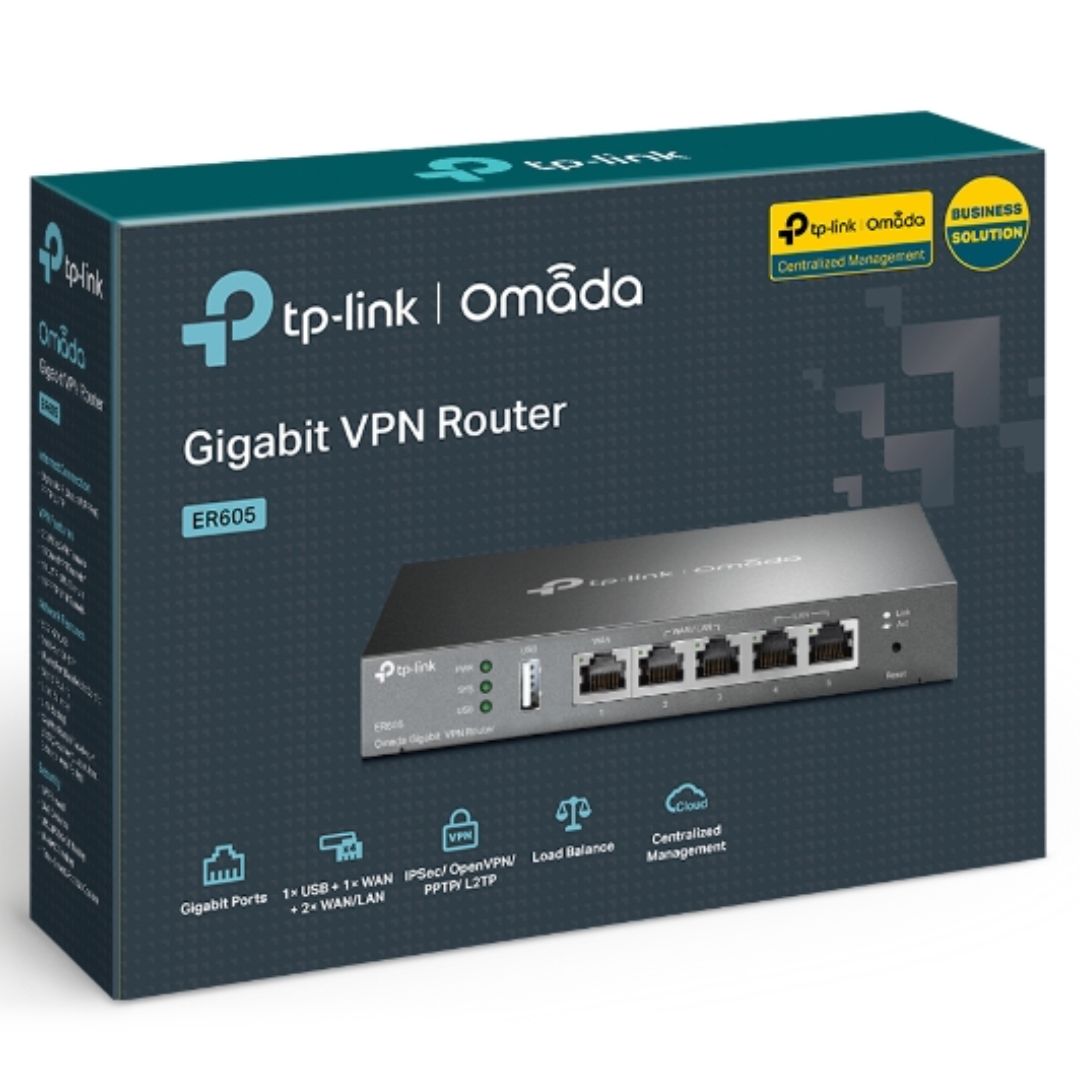

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡; Centralized Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Five Gigabit Ports: High-speed wired connectivity. • Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage. • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec; 16× OpenVPN*; 16× L2TP; and 16× PPTP VPN connections. • Abundant Security Features: Advanced firewall policies; DoS defence;IP/MAC/URL filtering; and more security functions protect your network and data.
HARDWARE FEATURES Standards and Protocols • IEEE 802.3; 802.3u; 802.3ab; IEEE 802.3x; IEEE 802.1q • TCP/IP; DHCP; ICMP; NAT; PPPoE; NTP; HTTP; HTTPS; DNS; IPSec; PPTP; L2TP; OpenVPN; SNMP Interface • 1 Fixed Gigabit WAN Port • 1 Fixed Gigabit LAN Port • 3 Changeable Gigabit WAN/LAN Ports Network Media • 10BASE-T: UTP category 3; 4; 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5; 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5; 5e; 6 cable (Max 100m) Button Reset Button Power Supply External 9V/0.85A DC Adapter Flash SPI 16MB DRAM 128 MB LED PWR; SYS; WAN; LAN Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
PERFORMANCE Concurrent Session 25;000 IPsec VPN Throughput 41.5 Mbps BASIC FUNCTIONS WAN Connection Type • Static/Dynamic IP • PPPoE • PPTP • L2TP DHCP • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces*
*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode MAC Clone Modify WAN/LAN MAC Address*
@11/21

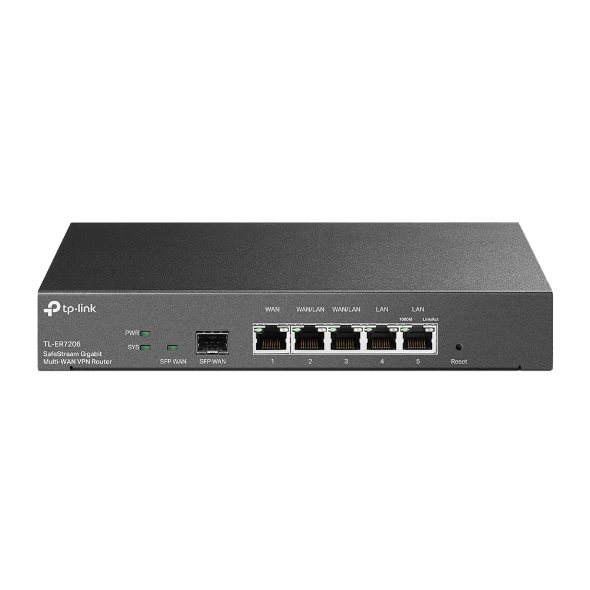

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**; Centralized Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity. • Up to 4 WAN Ports: 1 gigabit SFP WAN port; 1 gigabit RJ45 WAN port; 2 gigabit WAN/LAN ports optimize bandwidth usage. • Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec; 50× OpenVPN*; 50× L2TP; and 50× PPTP VPN connections. • Abundant Security Features: Advanced firewall policies; DoS defense; IP/MAC/URL filtering; and more security functions protect your network and data.
HARDWARE FEATURES Standards and Protocols • IEEE 802.3; 802.3u; 802.3ab • TCP/IP; DHCP; ICMP; NAT; PPPoE; SNTP; HTTP; DNS; IPsec; PPTP; L2TP Interface • 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports Network Media • 10BASE-T: UTP category 3; 4; 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5; 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5; 5e; 6 cable (Max 100m) Button Reset Button Power Supply 100–240 V~50/60 Hz Flash SPI 4MB + NAND 128MB DRAM 512MB LED PWR; SYS; SFP WAN; Speed; Link/Act Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
@20/23

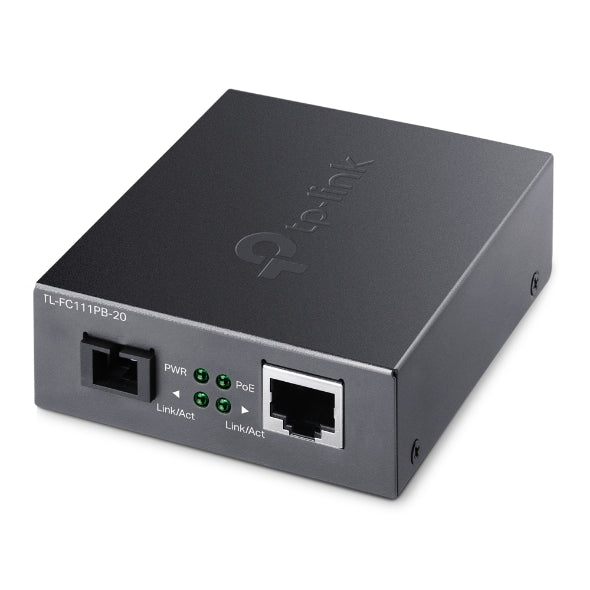

• Converts the data between fiber (optical signal) and copper (electric signal). • Extends fiber distance up to 20 km. • The 802.3af PoE output makes remote camera deployment easier and more convenient. • WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two. • Wide operating temperature (0–50 ℃) with reliability. • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
NETWORK Standards and Protocols IEEE802.3; IEEE802.3i; IEEE802.3u
ENVIRONMENT Operating Temperature 0–50 °C (32–122 °F) Storage Temperature -40–70 °C (-40–158 °F) Operating Humidity 10–90% RH non-condensing Storage Humidity 5–90% RH non-condensing
HARDWARE FEATURES Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) Power Supply 48 V/0.5 A LED PWR; Link/Act; PoE Dimensions ( W x D x H ) (94.5×73.0×27.0 mm) Wave Length 1310 nm TX; 1550 nm RX
ANTENNA Connector Type • 1× 10/100 Mbps PoE RJ45 port • 1× 100 Mbps SC fiber port MEDIA CONVERTER & MODULE Fiber Type 9/125 μm single-mode fber (≤20 km)
@6/21
@11/21
@17/22

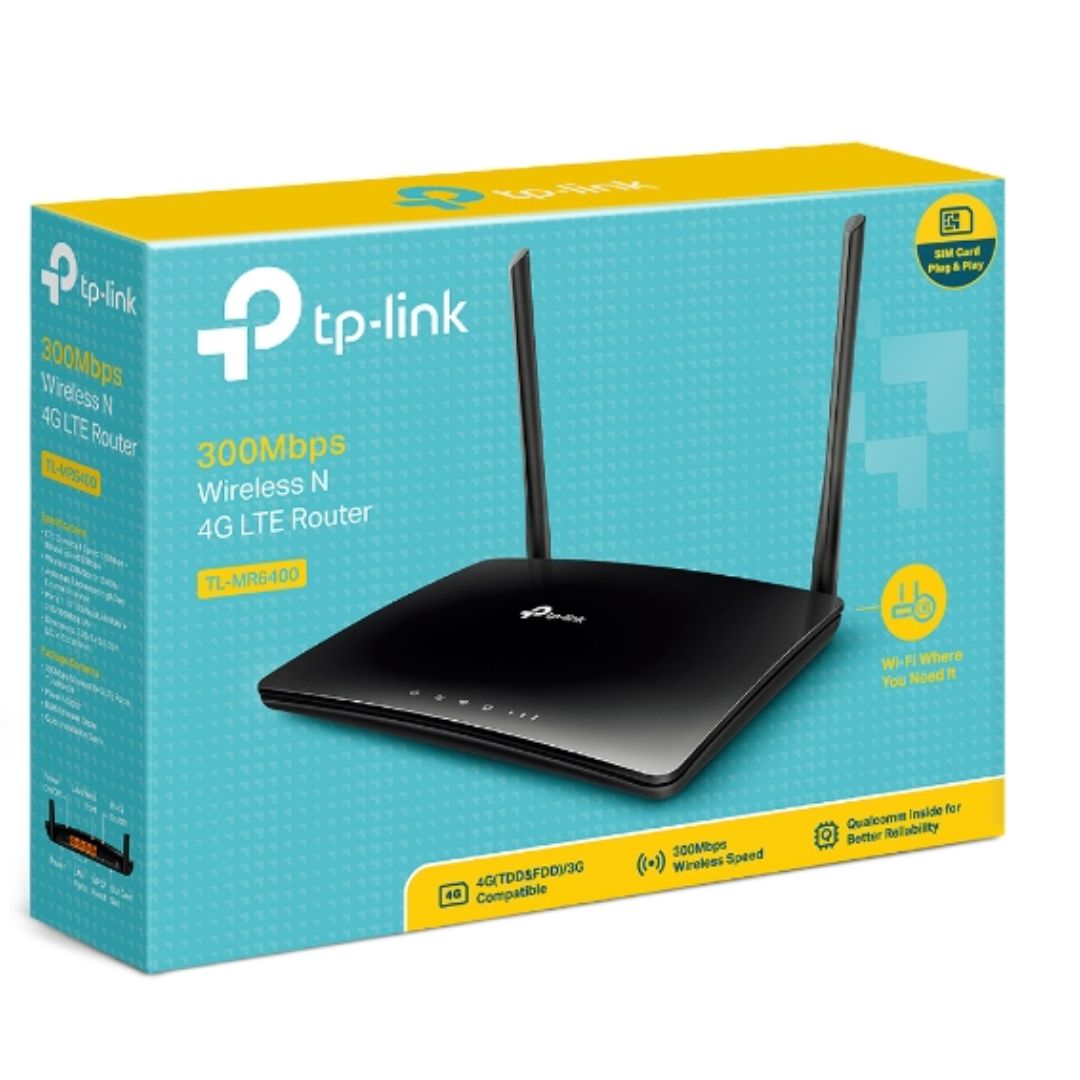

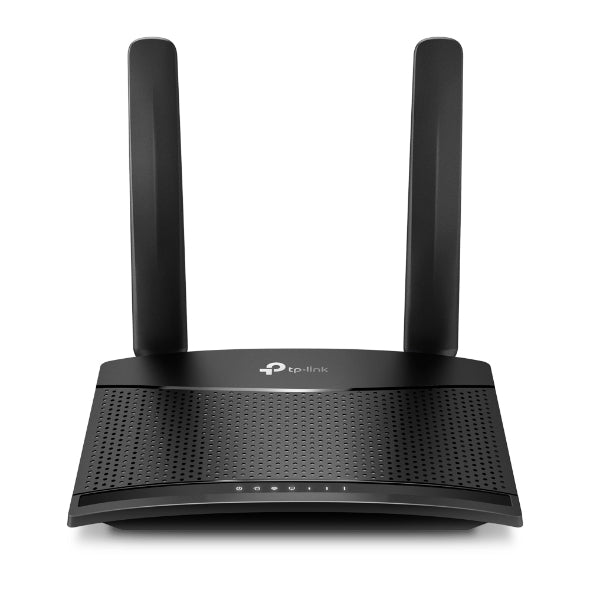

HARDWARE FEATURES Ports 3× 10/100 Mbps LAN ports; 1× 10/100 Mbps LAN/WAN Port; 1× Micro SIM Card Slot Button WPS/RESET Button; WiFi ON/OFF Button External Power Supply(EU) 9V/0.85A Dimensions ( W x D x H ) 6.85 × 4.9 × 1.32 in. (174 × 124.5 × 33.5 mm) Antenna Type 2× Detachable External 4G LTE Antennas
@14/22

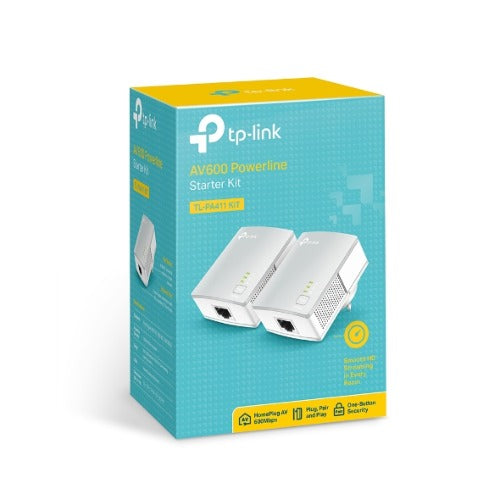

HomePlug AV standard compliant; high-speed data transfer rates of up to 500Mbps Miniature design; smaller than most powerline adapters at the market; blends discreetly in front of any power outlet No new wires; Easy Plug and Play operation; No configuration required Patented Power-Saving Mode automatically reduces power consumption by up to 85%*
HARDWARE FEATURES Plug Type EU;UK;AU Standards and Protocols HomePlug AV; IEEE802.3; IEEE802.3u Interface 1*10/100Mbps Ethernet Port Button Pair Button Power Consumption Maximum: 4.0W (220V/50Hz) Typical: 3.2W (220V/50Hz) Standby: 0.7W (220V/50Hz) LED Indicator PWR; PLC; ETH Dimensions ( W x D x H ) 2.6 x 2.0 x 1.1 in.(65×52×28.5mm) Range 300M in house SOFTWARE FEATURES Modulation Technology OFDM Encryption 128-bit AES Encryption OTHERS Certification CE; FCC; RoHS Package Contents Powerline Ethernet Adapter Ethernet cable (RJ45) Resource CD; Quick Installation Guide System Requirements Windows 8/7/Vista/XP/2000; Mac; Linux Environment Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
@9/21

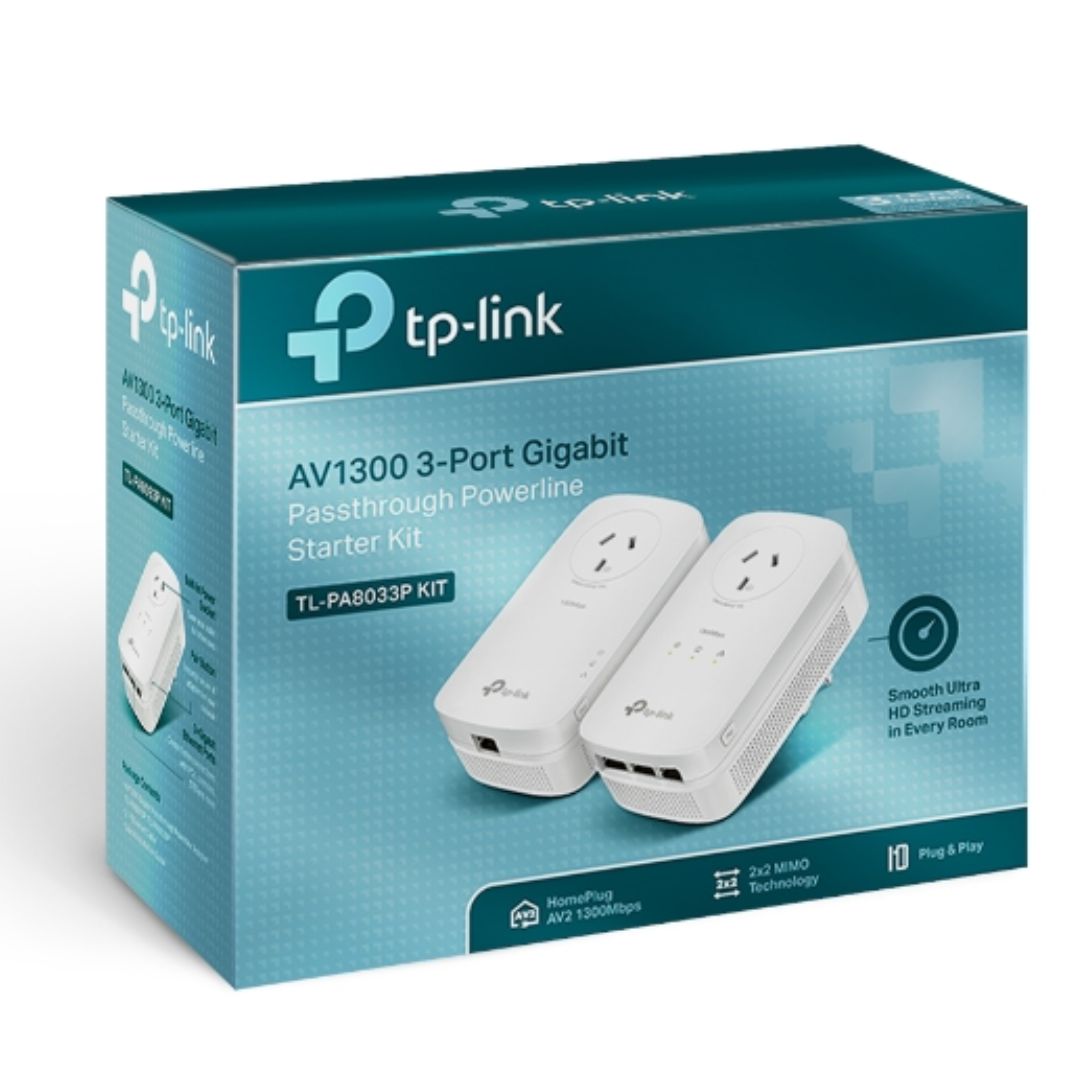

• HomePlug AV2 standard compliant; high-speed data transfer rates of up to 1300Mbps; supports all your online needs • Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range; higher transmission capacity and more stable connections • 3 gigabit ports create secure wired networks for desktops; smart TVs or games consoles • Integrated power socket ensures no power outlet goes to waste • Plug and play; no configuration required • Patented Power-Saving Mode automatically reduces power consumption by up to 85%
@18/23
NETWORK Standards and Protocols IEEE802.3i; IEEE802.3u; IEEE802.3ab; IEEE802.3af; IEEE802.3at
GENERAL Certification FCC; CE; RoHS Environment Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing
HARDWARE FEATURES Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5; 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5; 5e; 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption Input: 100-240 V; 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play LED Indicator ON: Supplying power normally OFF: No power supply
Dimensions ( W x D x H ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
@5/20

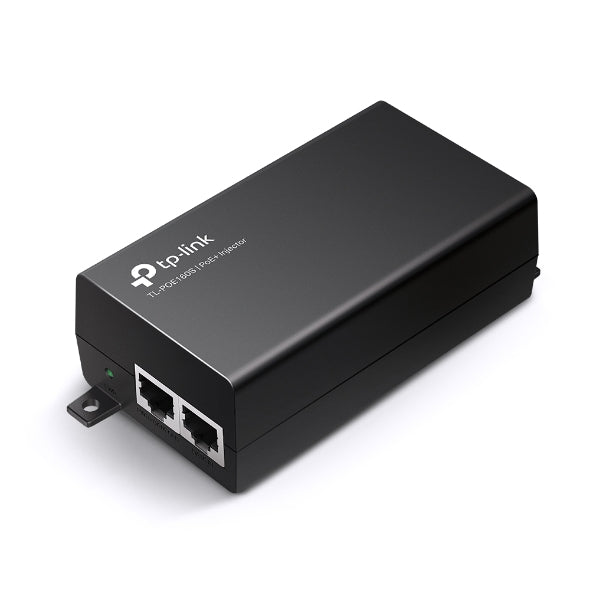

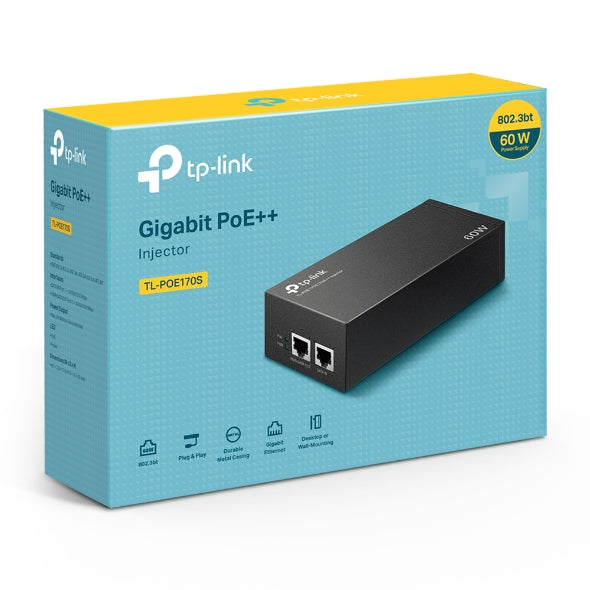

• 2 Gigabit ports ensure faster transmission • Complies with IEEE802.3af/at/bt standards; supplies up to 60 W • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable • Automatically determines and supplies the exact power to meet the device"s need • Wall-mounting and desktop design accommodates most installation scenarios • Plug & Play installation requires no configuration • Integrated power supply • Durable metal casing
NETWORK Standards and Protocols IEEE802.3i; IEEE802.3u; IEEE802.3ab; IEEE802.3af; IEEE802.3at; IEEE802.3bt
HARDWARE FEATURES Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5; 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5; 5e; 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket Power Consumption Input: 100-240 V; 50/60 Hz; 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play
Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
@8/20
@6/21
@4/20
HARDWARE FEATURES Interface • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A) Packet Forwarding Rate 0.744 Mpps PoE Ports (RJ45) • Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm) Max Power Consumption • 1.9 W (220 V / 50 Hz; no PD connected) • 47 W (220 V / 50 Hz; with 41 W PD connected) Max Heat Dissipation • 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC; CE; RoHS Package Contents • TL-SF1005LP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH
@7/20

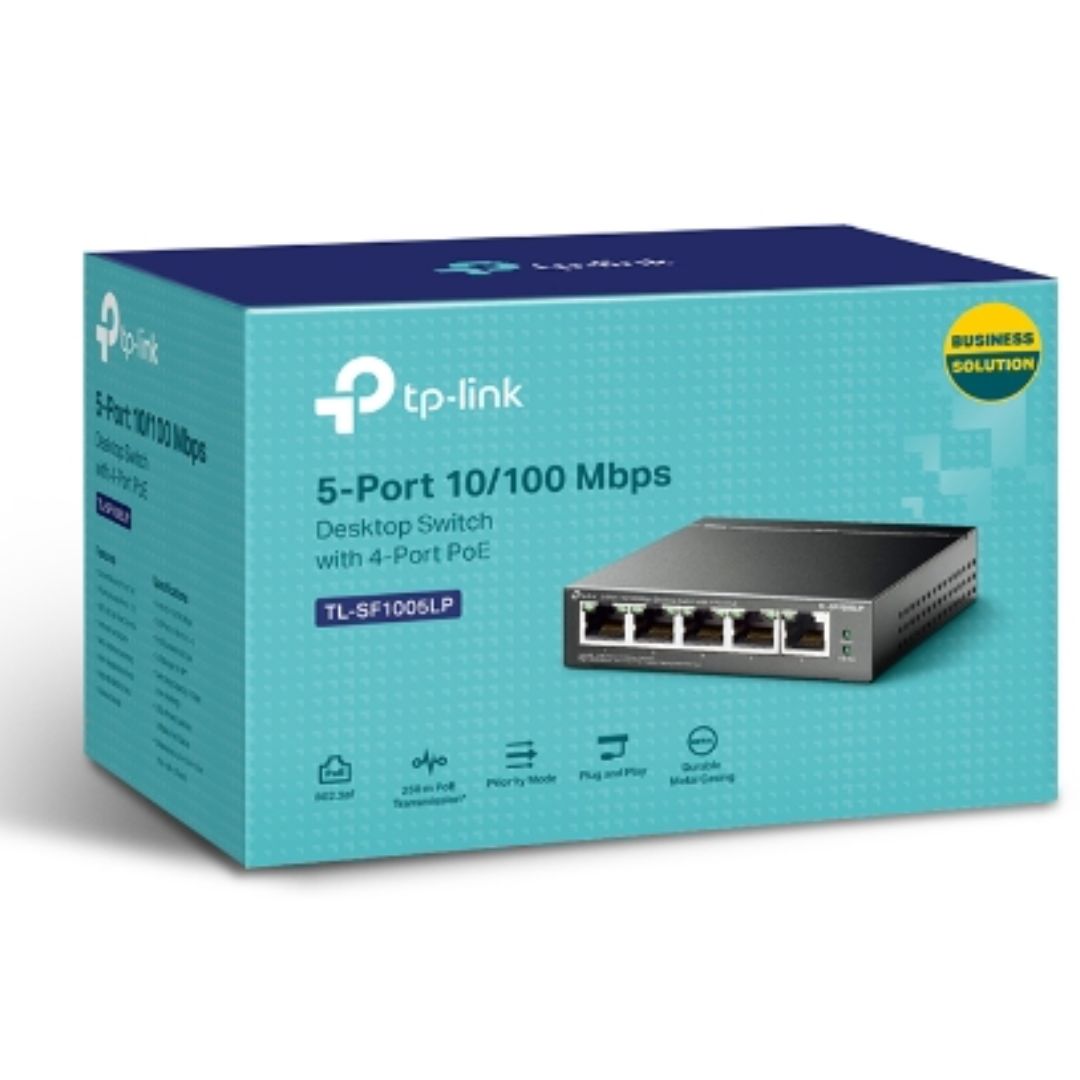

5 10/100Mbps RJ45 ports With four PoE ports; transfers data and power on one single cable Working with IEEE 802.3af compliant PDs; expands home and office network Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 58W for all PoE ports Requires no configuration and installation
HARDWARE FEATURES Interface 5 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 58W Mac Address Table 2K Switching Capacity 1Gbps Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) Transmission Distance Store-And-Forward Max Power Consumption 63.51W (max. with 58w PD connected) 1.70W (max. no PD connected)
What This Product Does TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation; the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets; where you wish to fix devices such as APs; IP Cameras or IP Phones; etc.
Power over Ethernet 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
@7/20

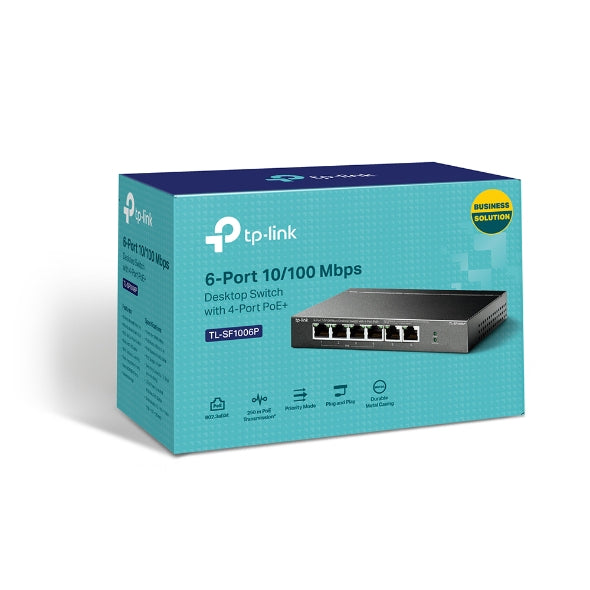

HARDWARE FEATURES Interface • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A) Packet Forwarding Rate 0.8928 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.2 Gbps Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) Max Power Consumption • 1.9 W (220 V / 50 Hz; no PD connected) • 74 W (220 V / 50 Hz; with 67 W PD connected) Max Heat Dissipation • 6.48 BTU/h(no PD connected) • 252.34 BTU/h(with 67 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC; CE; RoHS Package Contents • TL-SF1006P • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉)
