Networking

Warranty Period: 5-Year

@0/59

Warranty Period: 5-Year

@0/81

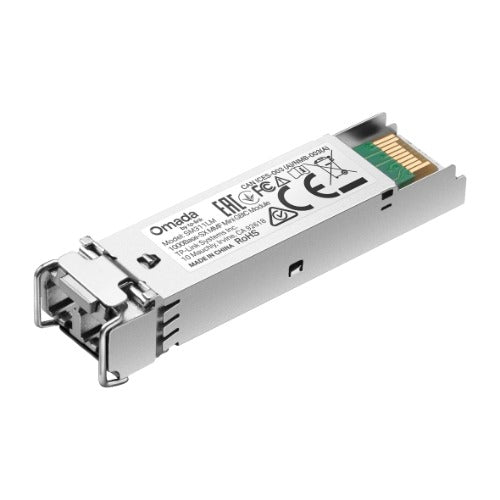

Multi-mode MiniGBIC module Applied to T3700G-28TQ; TL-SG5412F/TL-SG5428; TL-SL5428E;TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P;TL-SL3428/TL-SL3452; TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452; TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L

What This Product Does The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches; they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Features Supports full-duplex Plug-and-Play Supports Pull-or-Plug with power on switches Power: internal power from switches Suitable Products: TL-SG5428; TL-SL5428E; TL-SG3210/3216/3424/3424P; TL-SL3428/3452; TL-SG2216/2424; TL-SL2210WEB/2218WEB/2428WEB/2452WEB; TL-SL1351 and MC220L

Supports full-duplex Plug-and-Play Supports Pull-or-Plug with power on switches Power: internal power from switches Suitable Products: TL-SG5428; TL-SL5428E; TL-SG3210/3216/3424/3424P; TL-SL3428/3452; TL-SG2216/2424; TL-SL2210WEB/2218WEB/2428WEB/2452WEB; TL-SL1351 and MC220L

MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3z; CSMA/CD; TCP/IP Wave Length 850nm Power Supply 3.3V Safety & Emission FCC; CE Cabel Multi-mode Fiber Fiber Type 50/125μm or 62.5/125μm Multi-mode Max. Cable Length 550m Data Rate 1.25Gbps Port Type LC/UPC Environment Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

@5/20

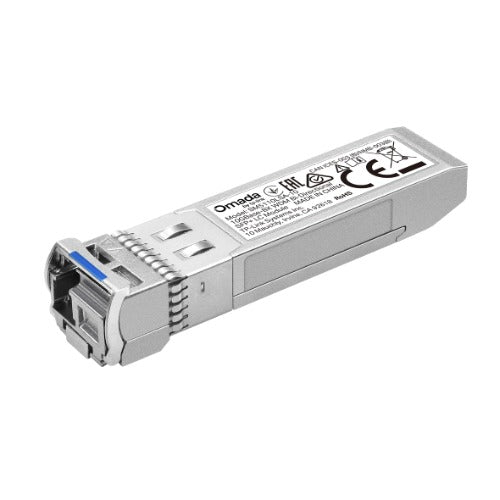

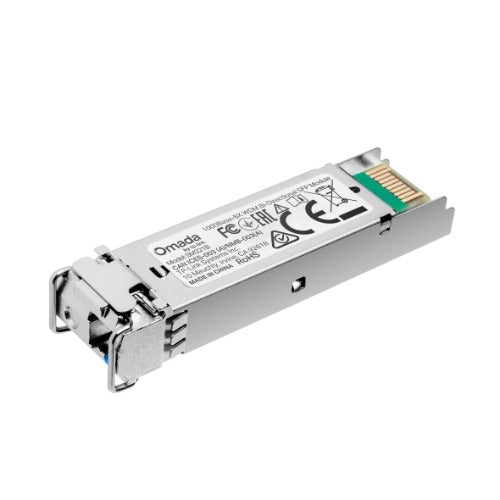

Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber) Compatible with all SFP ports on TP-Link products including JetStream switches; and media converter MC220L. Work with MC210CS with a single-mode fiber connection

@5/20

@5/20

@5/20

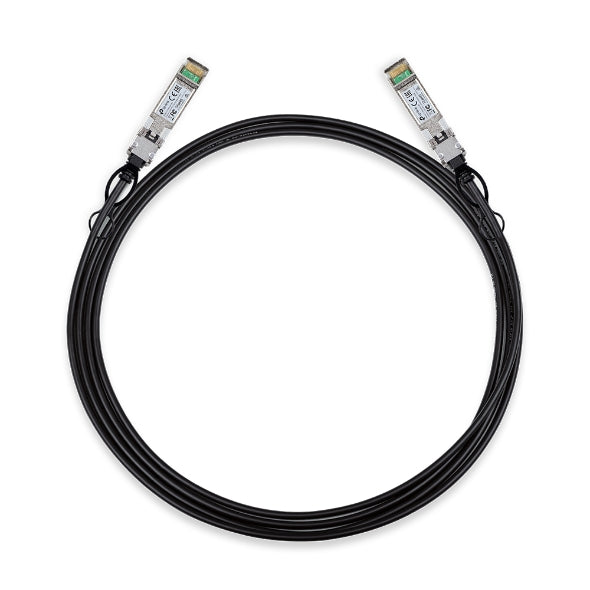

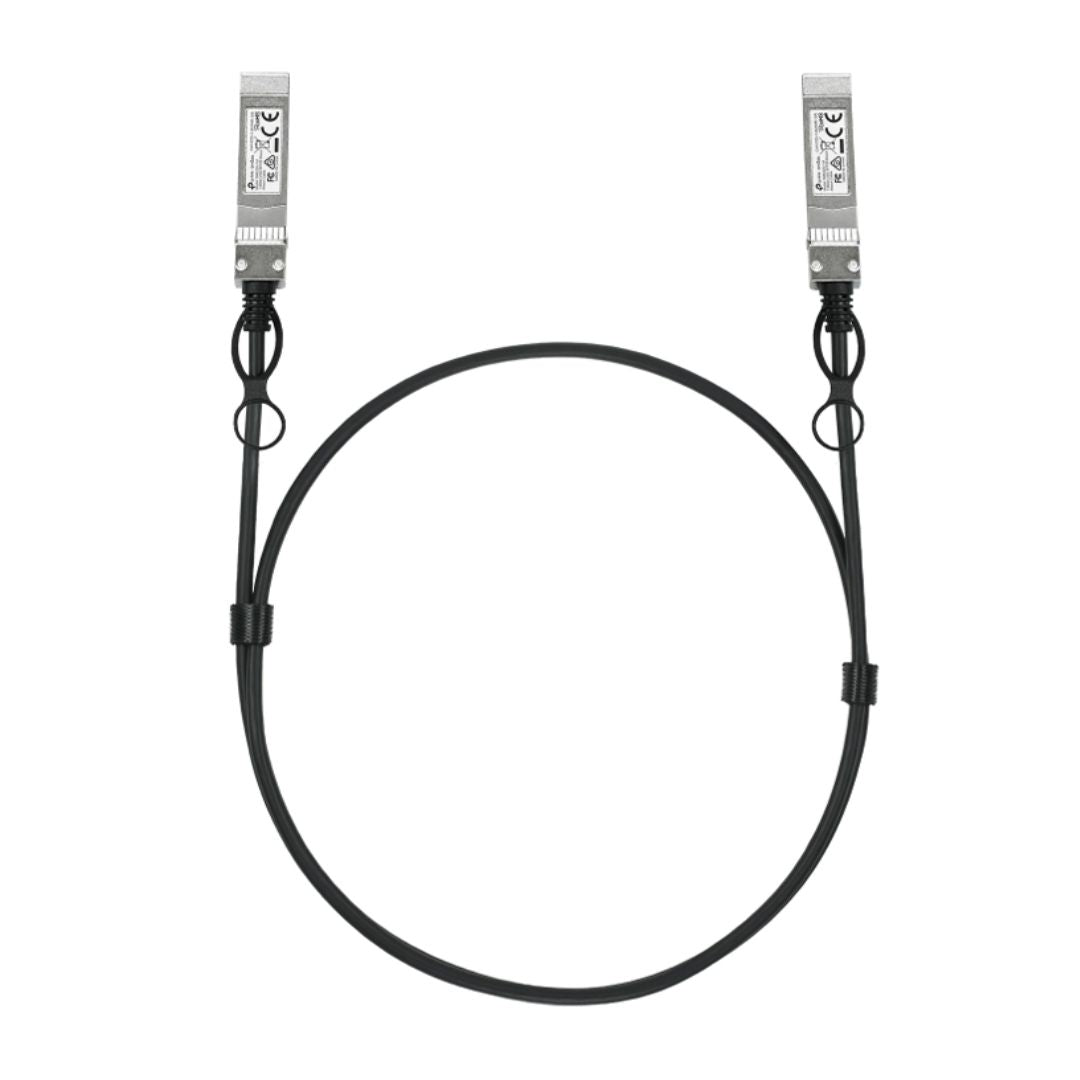

SFP+ CABLE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing Data Rate 10 Gbps Cable Length 3 m

@7/20

Warranty Period: 3-Year

@14/22

Warranty Period: 3-Year

@12/21

JetStream 8-Port 10GE SFP+ L2+ Managed Switch 10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*; Centralized Cloud Management; and Intelligent Monitoring. Centralised Management: Easy and convenient management with cloud access and Omada app. Static Routing: Route internal traffic for the efficient use of network resources. Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm control; DHCP Snooping; 802.1X; and Radius Authentication. Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping. Standalone Management: Web; CLI (Console Port; Telnet; SSH); SNMP; RMON; and Dual Image bring powerful management capabilities HARDWARE FEATURES Interface • 8× 10GE SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Quantity Fanless Power Supply 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption 15.46 W (220 V / 50 Hz) Max Heat Dissipation 52.75 BTU/hr (220 V / 50 Hz) PERFORMANCE Switching Capacity 160 Gbps Packet Forwarding Rate 119.04 Mpps MAC Address Table 32 K Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark L2 and L2+ Features • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups; containing 8 ports per g

@46/37

• 16× Full 10 Gbps SFP+ Slots - Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity • Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management • Abundant L2 and L2+ Features - Supports a complete lineup of L2 and L2+ features including Static Routing; enterprise-level QoS; IGMP Snooping; and more • Robust Security Strategies - Helps protect LAN area investment with integrated IP-MAC-Port Binding; ACL; Port Security; 802.1X Authentication; and more • Robust Hardware Design - Its fanless design ensures silent operation; while its durable metal casing and up to 45 ℃ operation temperature ensures reliability

General Interface 8 10GE SFP+ Slots 16 10GE SFP+ Slots Console 1 RJ45 Console Port; 1 Micro-USB Console Port Flash 32 MB DRAM 256 MB Port Standard IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae: 10 Gigabit Ethernet over fiber

Performance Switching Capacity 160 Gbps 320 Gbps Packet Forwarding Rate 119.04 Mpps 238.08 Mpps MAC Address Table 32K Packet Buffer 16 Mbit 24 Mbit Transmission Method Store and Forward Number of IP Interfaces 16 Number of Static Routers 48 (IPv4; IPv6) Jumbo Frame 9 KB

Physical & Environment Dual Redundant Power Supply - 2 Fixed AC Power Supply Power Supply 100-240 V AC~50/60 Hz Max Power Consumption 15.46 W (220 V/50 Hz) 32.74 W (220 V/50 Hz) Max Heat Dissipation 52.75 BTU/hr (220 V/50 Hz) 111.71 BTU/hr (220 V/50 Hz) Standby Power Consumption 5.91 W (110 V/60 Hz) 13.33 W (110 V/60 Hz)

Dimensions (W x D x H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) Fan Quantity Fanless 1 Installation Rack Mountable

@98/58

@98/58
