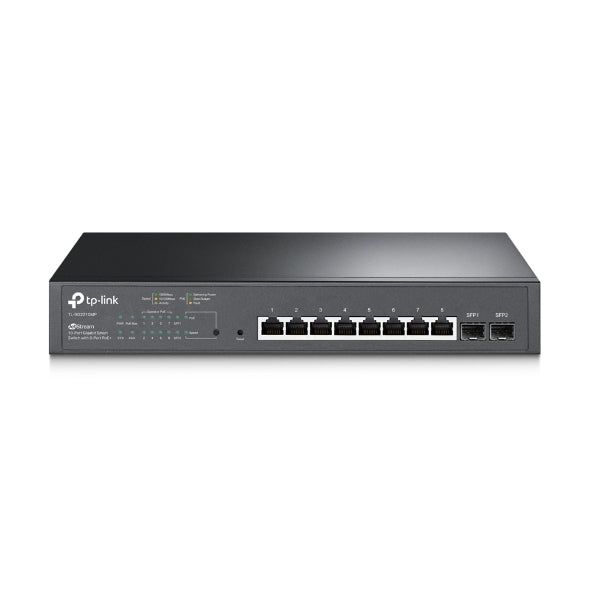

• Features 8 802.3af/at compliant PoE+ ports; with total PoE power budget of 150 W and useful PoE power management features • Omada SDN platform integration provides 100% centralised cloud management to create a highly scalable network • Gigabit Ethernet connections on all ports provide full speed of data transferring • Advanced security features include IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm Control; DHCP Snooping; 802.1X; and Radius Authentication • L2/L3/L4 QoS and IGMP snooping optimise voice and video applications • WEB/CLI managed modes; SNMP; RMON bring abundant management features

HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE802.3z; IEEE 802.3ad; IEEE 802.3x; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1x; IEEE 802.1p Interface • 8× 10/100/1000 Mbps RJ45 Ports; all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots Network Media • 10BASE-T: UTP/STP category 3; 4; 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP/STP category 5; 5e or above cable (maximum 100m) • 100BASE-FX: MMF; SMF • 1000BASE-X: MMF; SMF Fan Quantity 1 Physical Security Lock Yes PoE+ Ports(RJ45) • Standard: 802.3at/af compliant • PoE+ Ports: 8 Ports • Power Supply: 150 W Dimensions ( W x D x H ) (294 x 180 x 44 mm) Mounting Rackmount/Desktop Max Power Consumption • 12.2 W (110 V / 60 Hz with no PD connected) • 173.9 W (110 V / 60 Hz with 150 W PD connected) Max Heat Dissipation • 41.63 BTU/h (with no PD connected) • 539.35 BTU/h (with 150 W PD connected) PERFORMANCE Switching Capacity 20 Gbps Packet Forwarding Rate 14.9 Mpps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB

@26/29

Features 8 PoE ports; with total PoE power budget of 53W and useful PoE power management features Gigabit Ethernet connections on all ports provide full speed of data transferring Advanced security features include IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm Control; DHCP Snooping; 802.1X; and Radius Authentication L2/L3/L4 QoS and IGMP snooping optimize voice and video applications WEB/CLI managed modes; SNMP; RMON bring abundant management features Dual Firmware Image improves reliability and up-time of your network

ARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE802.3z; IEEE 802.3ad; IEEE 802.3x; IEEE 802.3af; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1x; IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports Port8 obtain power from PoE source (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100~240VAC; 50/60Hz External Power Adapter(Output: 48VDC/1.25A) Power Consumption Maximum (PoE on): 64.9W Maximum (PoE off): 9.9W PoE Ports (RJ45) Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W Dimensions ( W x D x H ) 209 * 126 * 26mm Max Power Consumption 9.92W (220V/50Hz with no PD connected) 64.89W (110V/60Hz with 53W PD connected) Max Heat Dissipation 33.85 BTU/h (with no PD connected) 221.40 BTU/h (with 53W PD connected)

PERFORMANCE Bandwidth/Backplane 20Gbps Packet Forwarding Rate 14.9Mpps MAC Address Table 8K Jumbo Frame 9KB

@18/23

Warranty Period: 5-Year

@41/35

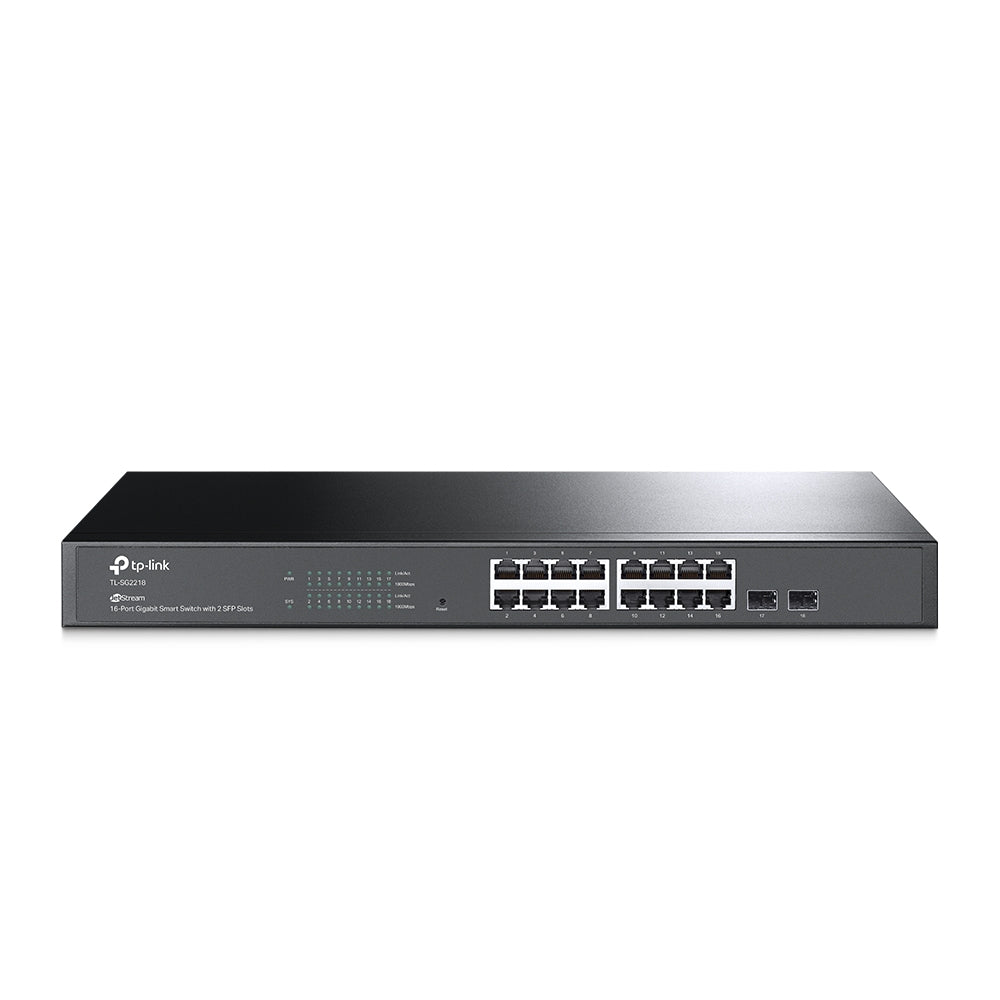

Full Gigabit Ports: 16× gigabit RJ45 ports and 2× gigabit SFP Slots provide high-speed connections. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*; Centralized Cloud Management; and Intelligent Monitoring. Centralised Management: Cloud access and Omada app for ultra convenience and easy management. Static Routing: Helps route internal traffic for more efficient use of network resources. Robust Security Strategies: IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm control; DHCP Snooping; 802.1X; Radius Authentication; and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. Standalone Management: Web; CLI (Telnet; SSH); SNMP; RMON; and Dual Image bring powerful management capabilities

HARDWARE FEATURES Interface • 16× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots Fan Quantity Fanless Power Supply 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption 12.3 W (220 V/50 Hz) Max Heat Dissipation 41.97 BTU/hr

PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 26.8 Mpps MAC Address Table 8K Jumbo Frame 9 KB

@22/27

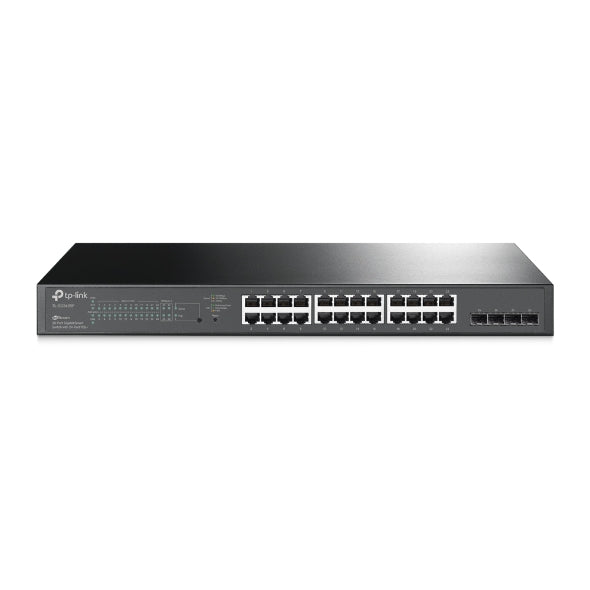

• 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*. • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections. • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**; Centralized Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Static Routing: Helps route internal traffic for more efficient use of network resources. • Robust Security Strategies: IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm control; DHCP Snooping; 802.1X; Radius Authentication; and more. • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. • IPv6: IPv6 support with dual IPv4/IPv6 stack; MLD snooping; IPv6 neighbour discovery.

HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE802.3z; IEEE 802.3ad; IEEE 802.3x; IEEE 802.3az; IEEE 802.1d; IEEE 802.1s; IEEE 802.1w; IEEE 802.1q; IEEE 802.1p; IEEE 802.1x Interface • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5; 5e or above cable (maximum 100m) • 1000BASE-X: MMF; SMF Fan Quantity 2 PoE+ Ports(RJ45) • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • Power Supply: 250 W Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) Mounting Rack Mountable Max Power Consumption • 32.1 W (110 V/ 60 Hz with no PD connected) • 308.6 W (110 V/ 60 Hz with 250 W PD connected) Max Heat Dissipation • 109.53 BTU/h (with no PD connected) • 1052.94 BTU/h (with 250 W PD connected)

PERFORMANCE Bandwidth/Backplane 56 Gbps Packet Forwarding Rate 41.7 Mpps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB

@46/37

IP-MAC-Port-VID Binding; ACL; Port Security; DoS Defend; Storm control; DHCP Snooping; 802.1X Authentication and Radius provide you robust security strategies L2/L3/L4 QoS and IGMP snooping optimize voice and video application WEB/CLI managed modes; SNMP; RMON bring abundant management features

HARDWARE FEATURES Standards and Protocols IEEE 802.3i;IEEE 802.3u;IEEE 802.3ab;IEEE802.3z;IEEE 802.3ad; IEEE 802.3x;IEEE 802.1d;IEEE 802.1s;IEEE 802.1w;IEEE 802.1q; IEEE 802.1x;IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 1000Mbps SFP Slots 1 Console Port Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5; 5e; 6 or above cable (maximum 100m) 1000BASE-X: MMF; SMF Fan Quantity Fanless Power Supply 100～240VAC; 50/60Hz Power Consumption Maximum: 10.7W (220V/50Hz) Dimensions ( W x D x H ) 11.6*7.9*1.7in. (294*200*44 mm) PERFORMANCE Bandwidth/Backplane 20Gbps Packet Forwarding Rate 14.9Mpps MAC Address Table 8k Packet Buffer Memory 4Mb Jumbo Frame 10240 Bytes SOFTWARE FEATURES Quality of Service Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP; WRR; SP+WRR Port/Flow- based Rate Limiting Voice VLAN L2 Features IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups; containing 8 ports per group) Spanning Tree STP/RSTP/MSTP Port isolation BPDU filtering/guard TC/Root protect Loop back detection 802.3x Flow Control VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based VLAN GARP/GVRP Management VLAN configuration Access Control List L2～L4 package filtering based on source and destination MAC address; IP address; TCP/UDP ports; 802.1p; DSCP; protocol and VLAN ID; Time Range Based Security IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication; Radius;Guest VLAN DoS Defence Dynamic ARP

@18/23

@37/33

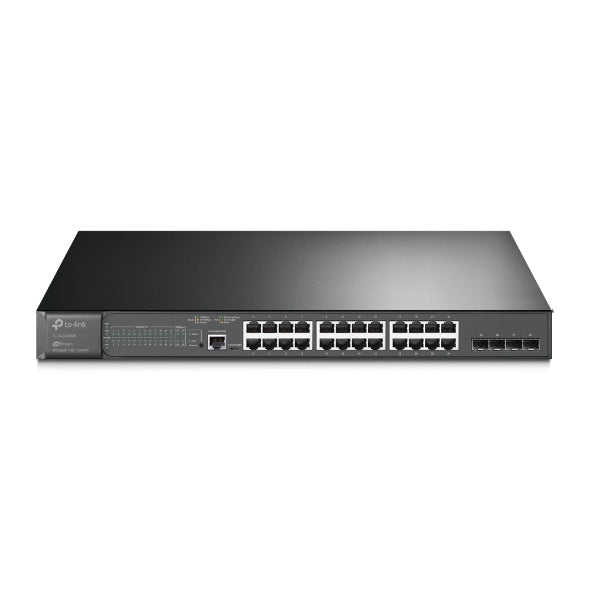

• 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*. • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections. • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**; Centralised Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Static Routing: Helps route internal traffic for more efficient use of network resources. • Robust Security Strategies: IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm control; DHCP Snooping; 802.1X; Radius Authentication; and more. • Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. • Standalone Management: Web; CLI (Console Port; Telnet; SSH); SNMP; RMON; and Dual Image bring powerful management capabilities

HARDWARE FEATURES Interface • 24× 10/100/1000Mbps RJ45 Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Quantity 2 Power Supply 100-240 V AC~50/60 Hz PoE+ Ports(RJ45) • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports; up to 30 W per port • Power Budget: 384 W Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) Mounting Rack Mountable Max Power Consumption • 31.0 W (110 V/60 Hz) (no PD connected) • 463.8 W (110 V/60 Hz) (with 384 W PD connected) Max Heat Dissipation • 105.78 BTU/h (110 V/60 Hz) (no PD connected) • 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)

PERFORMANCE Switching Capacity 56 Gbps Packet Forwarding Rate 41.66 Mpps MAC Address Table 8K Jumbo Frame 9 KB

@67/45

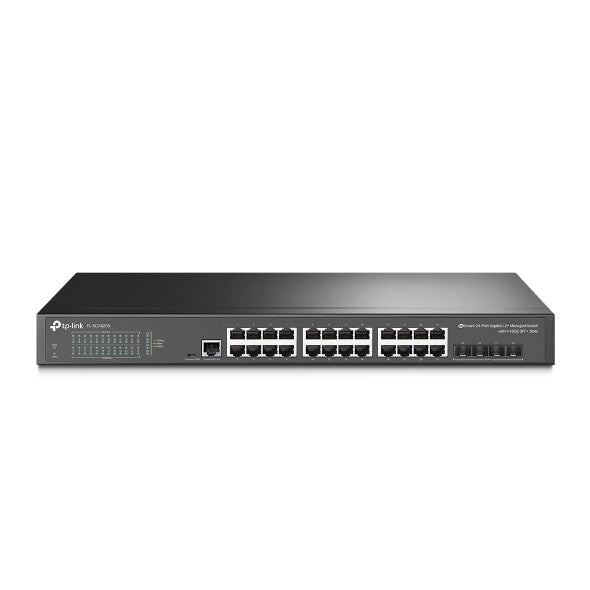

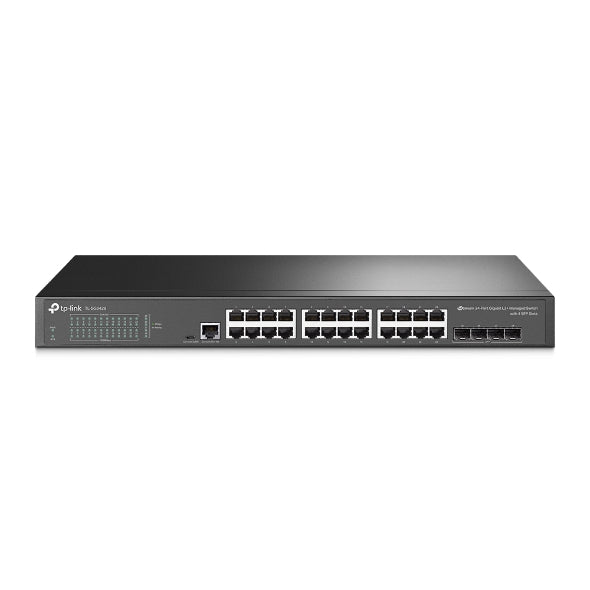

• 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. • Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices. • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*; Centralized Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • Static Routing: Helps route internal traffic for more efficient use of network resources. • Robust Security Strategies: IP-MAC-Port Binding; ACL; Port Security; DoS Defend; Storm control; DHCP Snooping; 802.1X; Radius Authentication; and more. • Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. • Standalone Management: Web; CLI (Console Port; Telnet; SSH); SNMP; RMON; and Dual Image bring powerful management capabilities

HARDWARE FEATURES Interface • 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port Fan Quantity Fanless Power Supply 100-240 V AC~50/60 Hz Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Mounting Rack Mountable Max Power Consumption 23.6 W (110V/60Hz) Max Heat Dissipation 80.353 BTU/h (110 V/60 Hz)

PERFORMANCE Switching Capacity 128 Gbps Packet Forwarding Rate 95.23 Mpps MAC Address Table 16 K Jumbo Frame 9 KB

SOFTWARE FEATURES Quality of Service • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark

@46/37

@98/58

Warranty Period: 5-Year

@0/53

Warranty Period: 5-Year
