Networking

Up to 102 watts output power Output over-voltage/short circuit/over-current protection

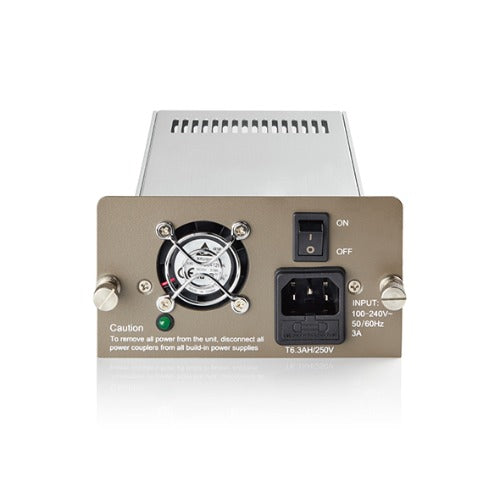

What this product does The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 9.5VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.

REDUNDANT POWER SUPPLY AC Power Input 100-240V~ 50/60Hz 3A DC Power Output 9.5V/9.5A Dimensions 210*130*70 mm Environment Operating Temperature: 0℃~60℃ (32℉~140℉) Storage Temperature: -35℃~85℃ (-31℉~185℉) Operating Humidity: 20%~90%RH non-condensing Storage Humidity: 10%~95%RH non-condensing

@14/22

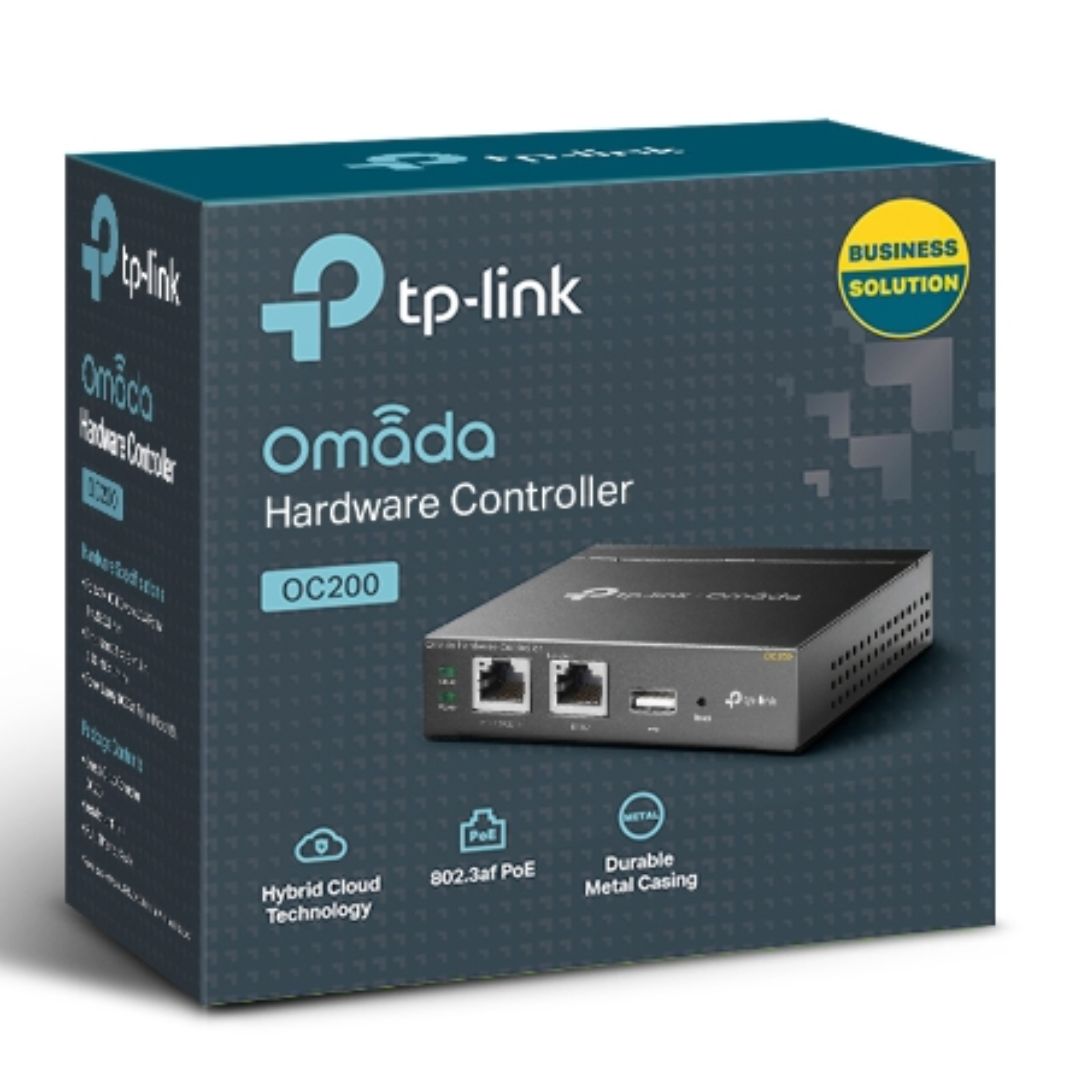

Dedicated Network for Centralised Management The OC200 Omada Cloud Controller provides centralised management of the whole Omada network. Monitor statistics in real-time; view a graphical analysis of network traffic; create a captive portal; upgrade and reboot your system; and effortlessly scale your network to boost your business.

Professional centralised management for Wi-Fi network Cloud access to manage from anywhere; anytime PoE (802.3af/802.3at) supported for easy installation Industry-leading hardware design with a powerful chipset; durable metal casing; and USB port for auto backup Omada App for a convenient management Secure guest network with multiple login options(Facebook Wi-Fi; SMS login; Voucher)

HARDWARE FEATURES Interface 10/100Mbps Ethernet Port*2 USB 2.0 Port*1 Micro USB Port*1 Power Supply 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A） Dimensions 3.9×3.9×1.0 in (100×98×25 mm)

FEATURES Wireless Fuction L3 Management Multi-SSID Load Balance Band Steering Airtime Fariness Beamforming Rate Limit Wireless Schedule QoS Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection AP Management Automatic Discovery Unified Configuration Reboot Schedule Batch Firmware Upgrade LED ON/OFF Authentication Captive Porta

MANAGEMENT Omada App Yes Centralized Management Up to 100 Omada access points; JetStream switches; and SafeStream routers Cloud Access Yes L3 Management Yes Multi-site Management Yes

@18/23

HARDWARE FEATURES Interface • 2× 10/100/1000 Mbps Ethernet Ports • 1× USB 3.0 Port Power Supply 100–240 V~50/60 Hz; 0.6 A Dimensions 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) MANAGEMENT Omada App Yes Centralized Management • Up to 500 Omada access points; JetStream switches; and SafeStream routers* • Up to 15;000 clients

*Only some JetStream switches and Safestream gateways can be centrally managed by OC300; please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300 Cloud Access Yes L3 Management Yes Multi-site Management Yes Management Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS Certification CE; FCC; RoHS Package Contents • Omada Hardware Controller OC300 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit System Requirements Microsoft® Windows®10; 8; 7;Vista™; XP or MAC® OS; NetWare®; UNIX® or Linux Environment • Operating Temperature: 0–50 ℃ (32–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90%

@54/40

Warranty Period: 3-Year

@4/20

Warranty Period: 3-Year

@28/30

@33/32

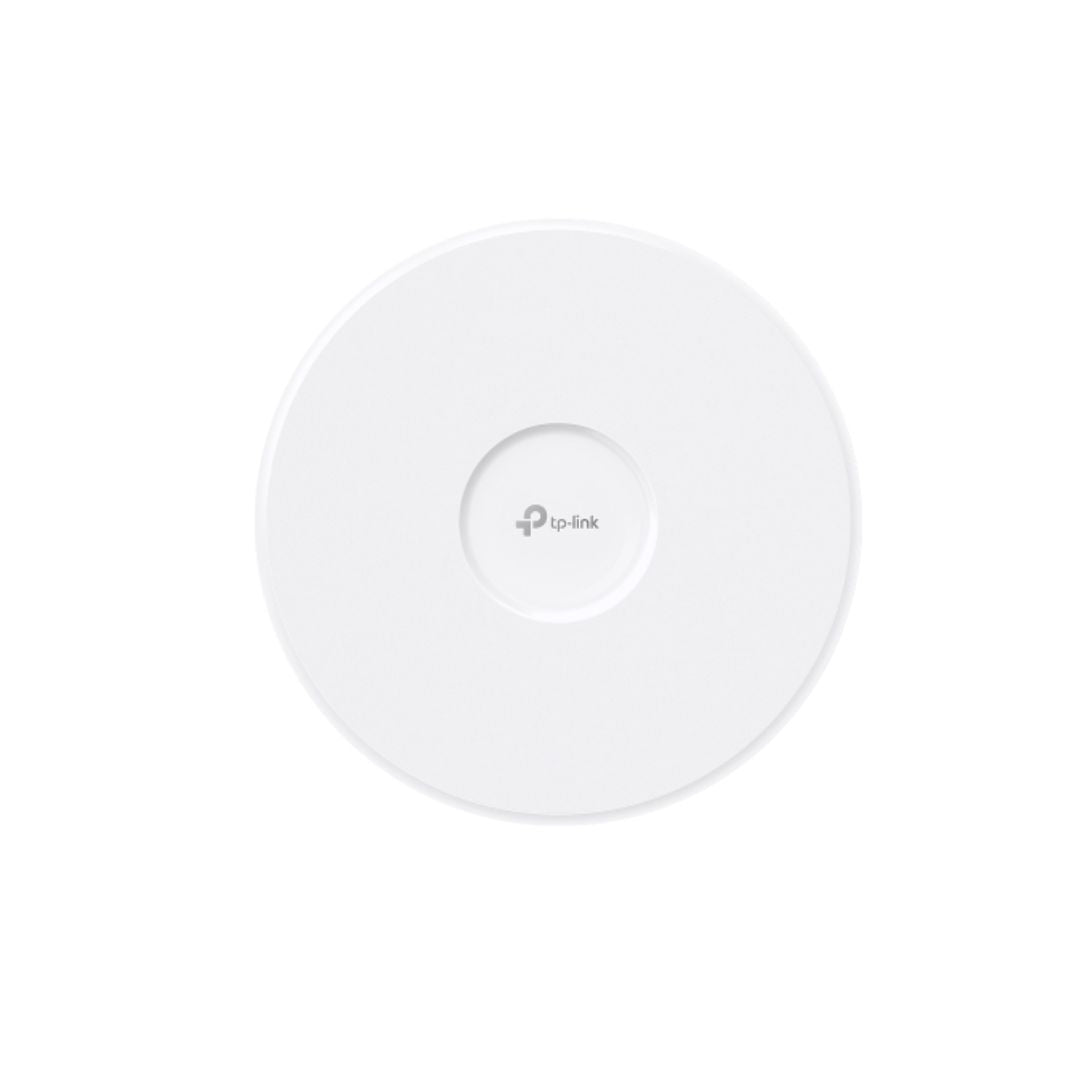

• BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).† • 1× 2.5G port unlocks the full potential of Wi-Fi 7. • 160 MHz bandwidth enables many more simultaneous transmissions.‡ • Multi-RUs ensure the high performance of your network.‡ • Advanced Functions: Centralised management; Mesh; and Seamless Roaming.

Warranty Period: 5-Year

@20/23

Warranty Period: 3-Year

@6/21

Warranty Period: 3-Year

@6/21

Warranty Period: 3-Year

@6/21

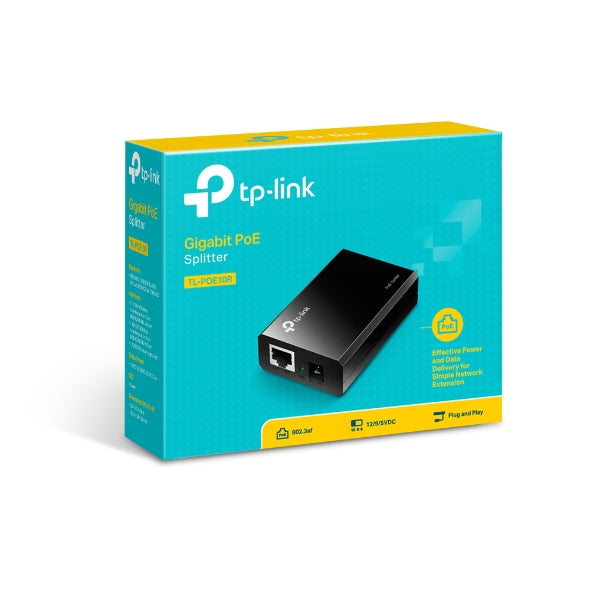

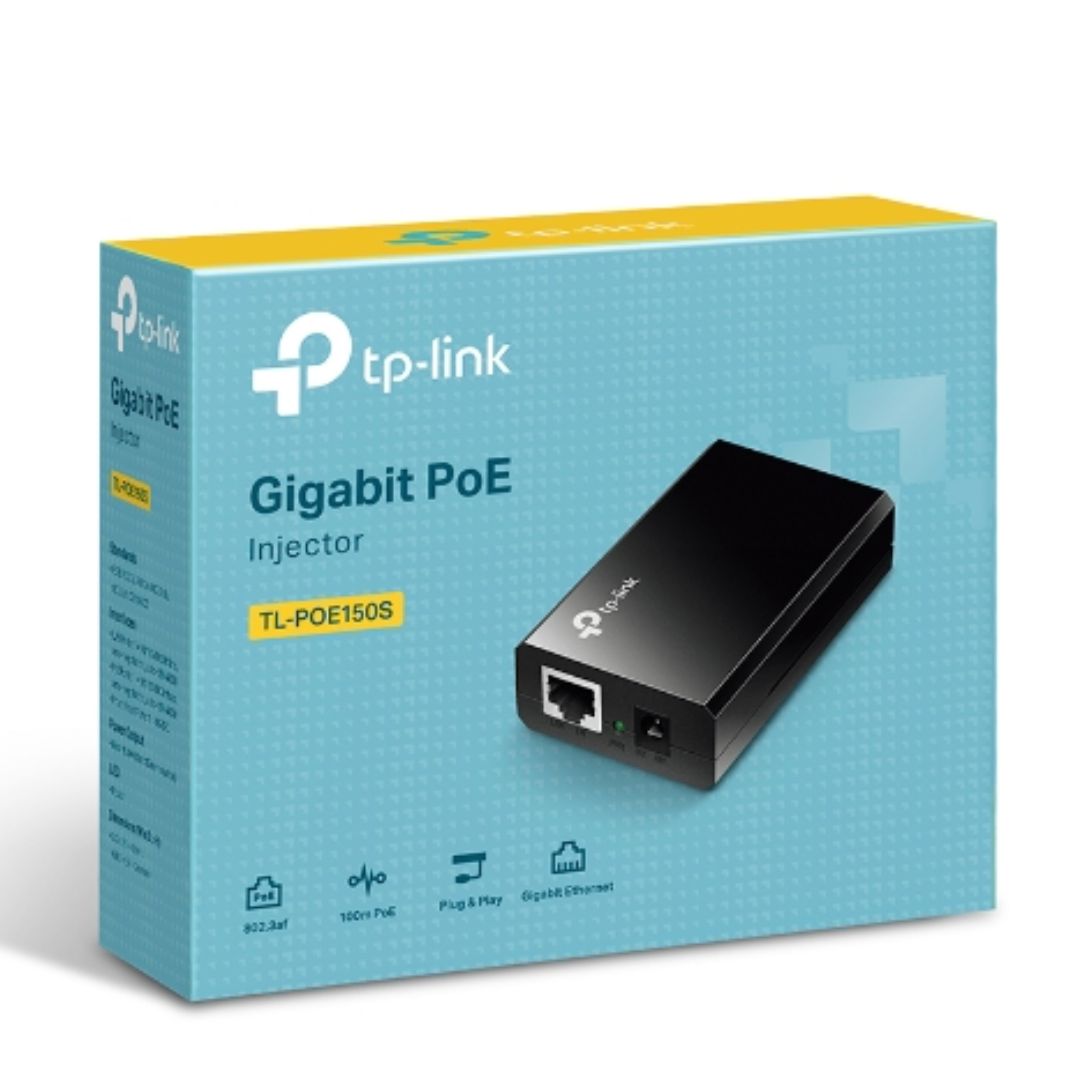

IEEE 802.3af compliant Delivers power up to 100 meters Gigabit speed support Optional 12V DC 9V DC or 5V DC power supply Plug-and-Play; requires no configuration

HARDWARE FEATURES Interface 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT Network Media 10BASE-T: UTP category 3; 4; 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5; 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5; 5e; 6 cable (Max 100m) Power Supply 12VDC 1A; 9VDC 1A; 5VDC 2A Basic Function Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC; 9VDC or 5VDC Power Output LED Indicator PWR Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)

SOFTWARE FEATURES Basic Function Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC; 9VDC or 5VDC Power Supply

@4/20

@5/20

Warranty Period: 3-Year

@6/20

@4/20

Warranty Period: 3-Year

@5/20
