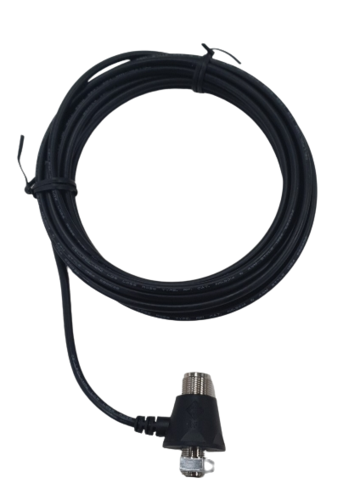

RFI MBCM-10M-NC Moulded Base; 10m No Connector
MBC (UHF) base with 10m 9006 cable - no connector
Availability
RFI Omni Directional Antenna Low Profile Stud LTE/4G 698-960 & 1710-2700Mhz
RFI Omni Directional Antenna Low Profile Stud LTE/4G 698-960 & 1710-2700Mhz
RFI Omni Directional Antenna Low Profile Stud LTE/4G 698-960 & 1710-2700Mhz
The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz.
The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 16mm stud mount incorporating an integrated rubber O-ring seal, and is IP65 rated.d trucks.
Features:
- Polycarbonate radome is ideal for outdoor use
- Attractive, low profile design for maximum overhead clearance
- Stud mounting offers ease of installation in the field
- Ingress protection to IP65
- Available in 2 standard versions:
- With 1.25m cable and FME connector
- Other cable/connector configurations available upon request
Specifications:
| Band | 698-960 MHz / 1710-2170 MHz / 2300-2700 MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 2dBi / 3.5 dBi / 5.0 dBi |
| Power W | 10 |
| Cable and Connector | Either 1.25m RG58 terminated with SMA (M) connector or 5m RG58 with no connector |
| Whip Length mm | 80mm |
| Radome Diameter mm | 50mm |
| Packaging | Clear Bag |
| VSWR | 2.0:1 |
| Height mm | 95mm |
| Mounting | 16mm Threaded Stud |

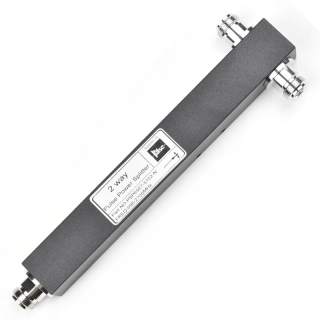

RFI PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W N Type
RFI PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W N Type
RFI Pulse PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W N Type
RFI Pulse Power Dividers / Combiners are used in a variety of RF power dividing and combining applications. Typically used in DAS (Distributed Antenna Systems) for distributing power throughout feeder cable networks.
PSP6927-5102-N Features:
- Low PIM performance
- 150dBc -Broadband performance covering full 698-2700MHz
- Suitable for use with analogue or digital RF communications.
Specifications
| Splits | 2 |
| PIM 3rd Order 2x43dBm | <150dBc |
| Finish | Black - Painted |
| Connector Types All Termiantion Ports | N (F) |
| Power Rating Watts | 300W |
| Operational Temperature Range | -25° C to +75° C |
| Connector | N(F) |
| Frequency Range | 698 - 2700 |
| Weight [kg] | 0.5 |
| Component Type | Splitter/Combiner |
Documentation

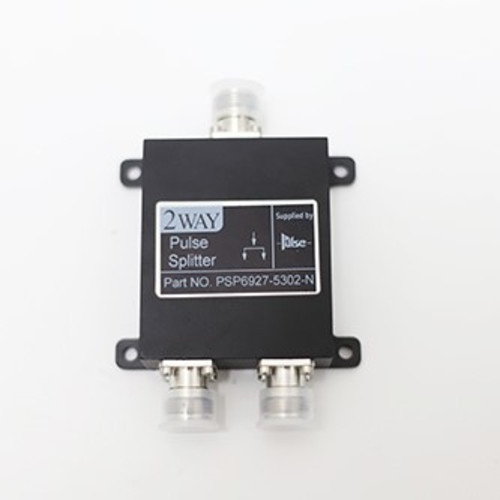

RFI Pulse 2 Way Splitter / Combiner 698-2700MHz N type connection
These 2-way devices may be used in a range of RF signal splitting (divider) and combining applications and are designed to split RF source power into an equal ratio of power outputs or combine multiple inputs to a single output with isolation between the ports.
These products feature broad operating frequency bandwidth and multi-carrier PIM rating and are widely used in Distributed Antenna Systems (DAS) receiver distribution networks and low-power RF signal dividing and combining designs.
Specifications:
| Splits | 2 |
| Port To Port Isolation | 20dB typ. |
| Finish | Black - Painted |
| Connector Types All Termiantion Ports | N (F) |
| Insertion Loss dB | <3.3dB |
| Operational Temperature Range | -25° C to +65° C |
| Connector | N(F) |
| Frequency Range | 698 - 2700 |
| Weight [kg] | 0.25 |
| Component Type | Splitter/Combiner |
Documentation
View to PSP6827-5302-N Specifications

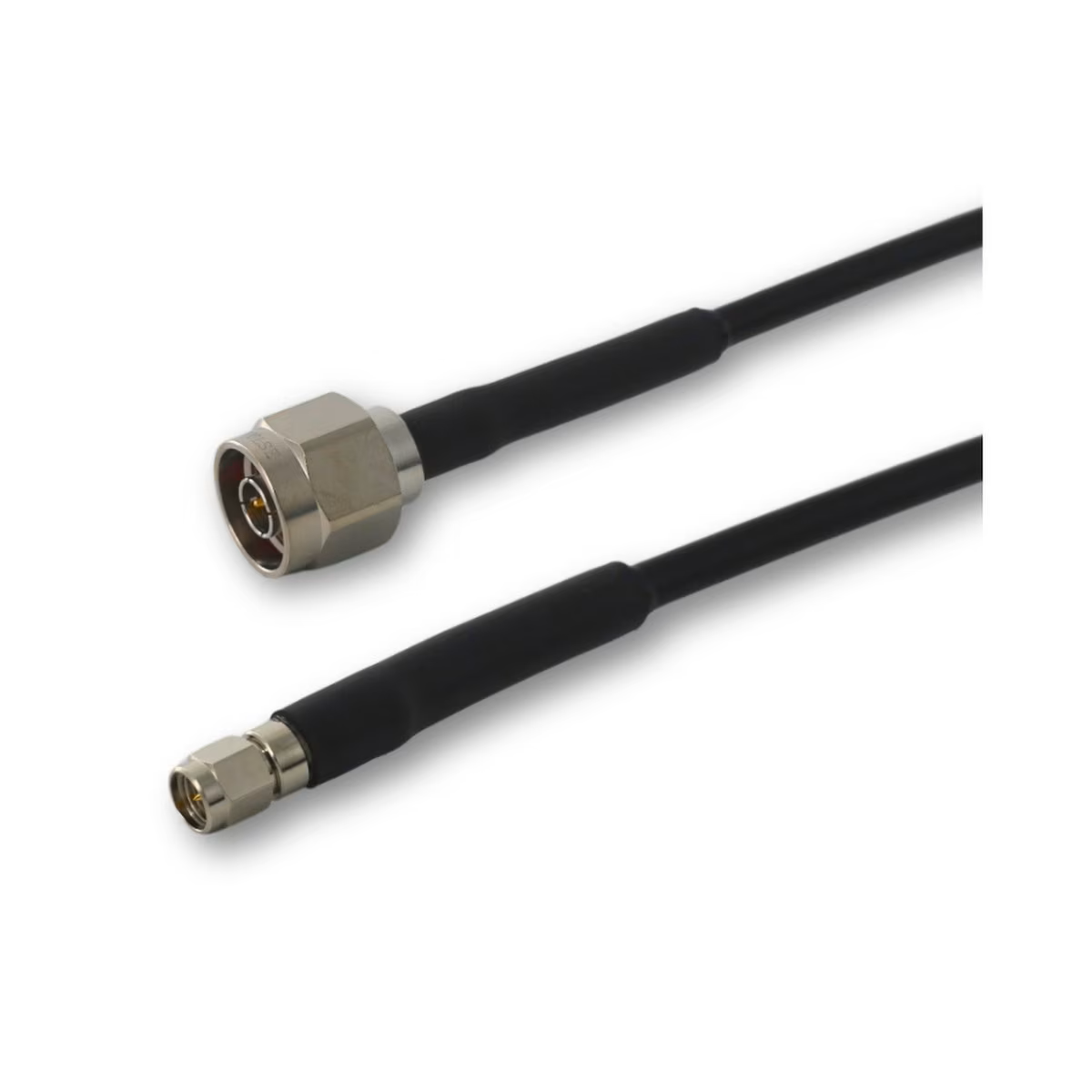

RFI Pulse-240 Cable Assembly Type-N Plug (Male) to SMA Plug (Male) 20m
(Replacement for RFI Pulse 9207N-20)
20m Cable Assembly
Pulse-240 Flexible Low Loss Communications Coax
Type-N Straight Male to Type-N Straight Male
PRODUCT DETAILS
| Brand | Pulse |
| Connector | N(M) SMA(M) |
| Component Type | Cable Assembly |
| Cable Length (M) | 20 |
Related Products
RFI DAS6938-SDP150-N antenna
RFI TLA4100 antenna

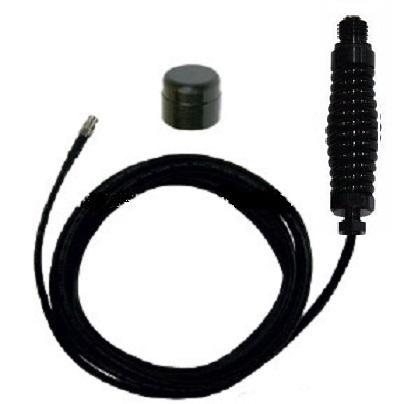

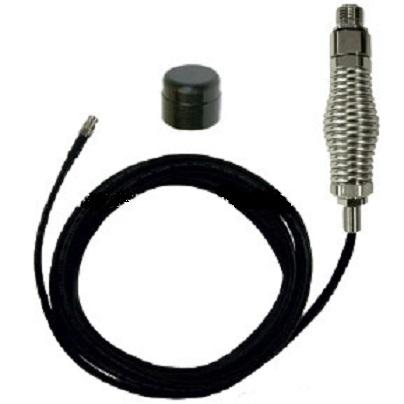

RFI Replacement Spring for CDQ Series Broomstick Antennas
This replacement spring assembly is compatible with the RFI CDQ series whips....CDQ7194, CDQ7195 & CDQ7199.
This Q-Fit® system is for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Chrome plated spring
- Supplied with 5m of 9006 low loss cable terminated with FME female connector
- Protective cap included
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security

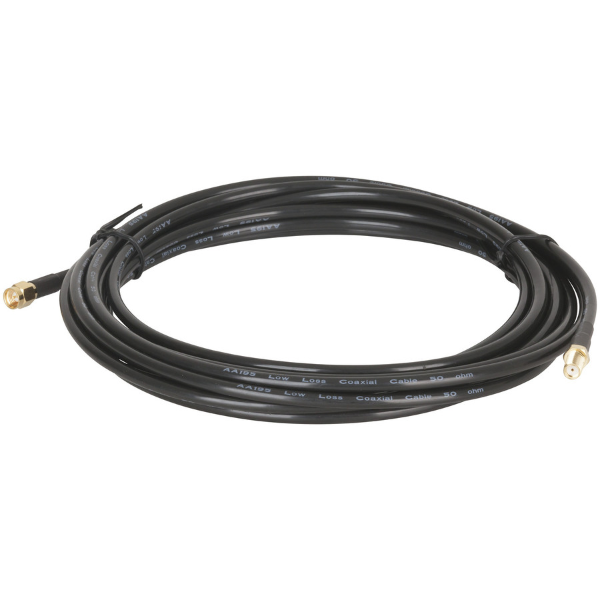

RFI RFI-5M-SMA 5Mtr RG58 Cable Extension - SMA Male to SMA Female
This RFI-5M-SMA; 5Mtr extension cable is the simplest way to extend the length of your SMA terminated antenna cable to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
Cable: RFI RG58 9006 Cellfoil 50 Ohm Coax Cable; Low Loss
Termination: SMA-104 one end SMA-186 other end

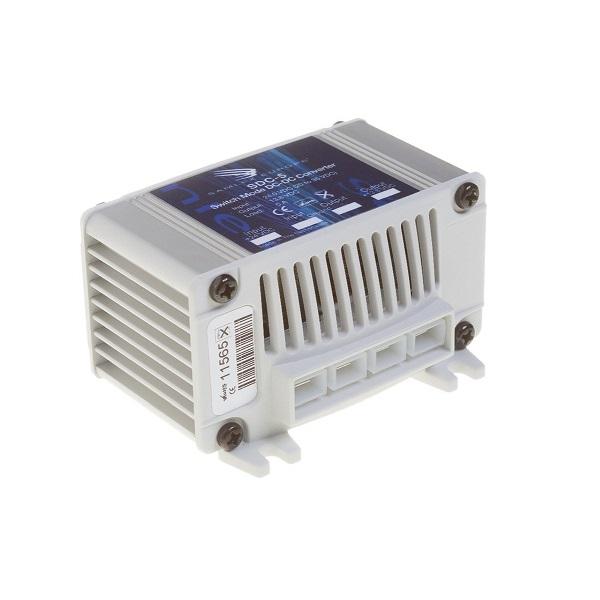

RFI SDC-05 SWITCH MODE VOLTAGE CONVERTER - 24 TO 12V - 5AMP
The SDC range of DC-DC converters (SDC-5) are ideal for use in trucks buses or any 24 volt vehicle application where you need to step down the voltage to drive radios mobile phone car kits or auxiliary devices at 12 volts.
In communications sites were the many services are now powered by 24 volts these DC-DC converters can be used to power other devices that require 12 Volts.
These ultra-compact converters are available in various current ratings and combined with easy wiring connections this product can fit in a vast number of mounting locations within vehicles. Built in protection circuitry will give you peace of mind and provide long lasting performance.
SDC-05 Features:
Available in current capacities of 5 8 12 20 and 30 Amps these DC-DC converters offer industry leading low noise and output stability and efficiencies of up to 92% making these DC-DC converters cool to run. With its wide voltage input window the SDC range will always give you that steady constant output required for all kinds of sensitive equipment.
Features:
- High Efficiency with over voltage over temperature and short circuit protection
- Provides protection against voltage spikes for sensitive equipment.
- Compact and light weight
- Suited to negative ground installations
| Input Voltage Range V | 20-35 |
| Output Voltage V | 13.8 |
| Max. Output Current A | 5 |
| Cooling | Convection |
| Output Ripple and Noise | Less than 50mV RMS |
| Input Current no Load mA | <5mA |
| Operating Ambient Temperature | -20°C to + 30°C (derate linearly to zero at 70°C) |
| Dimensions | H=49 x W=88 x D=68mm |
| Protection | Overload: By current limiting Over Heating: Drop in output voltage Reverse Polarity: Fuse Protection Over Voltage: Varistor (also protects against load dump) |
| Input side Fuse (Internal) A | 5 |
| Output voltage stability % | 3% |
| Efficiency % | Up to 92% |
| Weight (kg) | 0.17 |
| Connections | 6.3mm push-on flat blade connectors |
| Casework | Anodised aluminium and ABS plastic endcaps |
Also Available...
Documentation
RFI SDC DC/DC Converter Technical Data Sheet - click here
Related Products
Availability

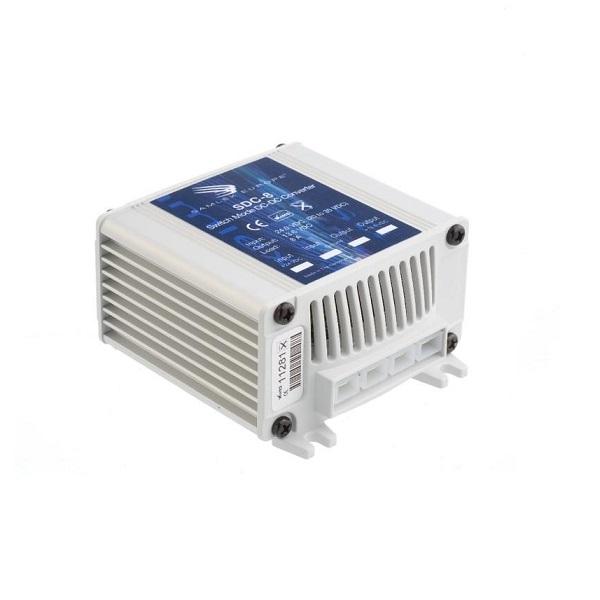

RFI SWITCH MODE VOLTAGE CONVERTER - 24 TO 12V 8AMP
The SDC range of DC-DC converters (SDC-8) are ideal for use in trucks buses or any 24 volt vehicle application where you need to step down the voltage to drive radios mobile phone car kits or auxiliary devices at 12 volts.
In communications sites were the many services are now powered by 24 volts these DC-DC converters can be used to power other devices that require 12 Volts.
These ultra-compact converters are available in various current ratings and combined with easy wiring connections this product can fit in a vast number of mounting locations within vehicles. Built in protection circuitry will give you peace of mind and provide long lasting performance.
Available in current capacities of 5 8 12 20 and 30 Amps these DC-DC converters offer industry leading low noise and output stability and efficiencies of up to 92% making these DC-DC converters cool to run. With its wide voltage input window the SDC range will always give you that steady constant output required for all kinds of sensitive equipment.
SDC-08 Features:
- High Efficiency with over voltage over temperature and short circuit protection
- Provides protection against voltage spikes for sensitive equipment.
- Compact and light weight
- Suited to negative ground installations
| Input Voltage Range V | 20-35 |
| Output Voltage V | 13.8 |
| Max. Output Current A | 8 |
| Cooling | Convection |
| Output Ripple and Noise | Less than 50mV RMS |
| Input Current no Load mA | <5mA |
| Operating Ambient Temperature | -20°C to + 30°C (derate linearly to zero at 70°C) |
| Dimensions | H=49 x W=88 x D=98mm |
| Protection | Overload: By current limiting Over Heating: Drop in output voltage Reverse Polarity: Fuse Protection Over Voltage: Varistor (also protects against load dump |
| Input side Fuse (Internal) A | 8 |
| Output voltage stability % | 3% |
| Efficiency % | Up to 92% |
| Weight (kg) | 0.25 |
| Connections | 6.3mm push-on flat blade connectors |
| Casework | Anodised aluminium and ABS plastic endcaps |
Also Available...
Documentation
RFI SDC DC/DC Converter Technical Data Sheet - click here
Related Products
Availability

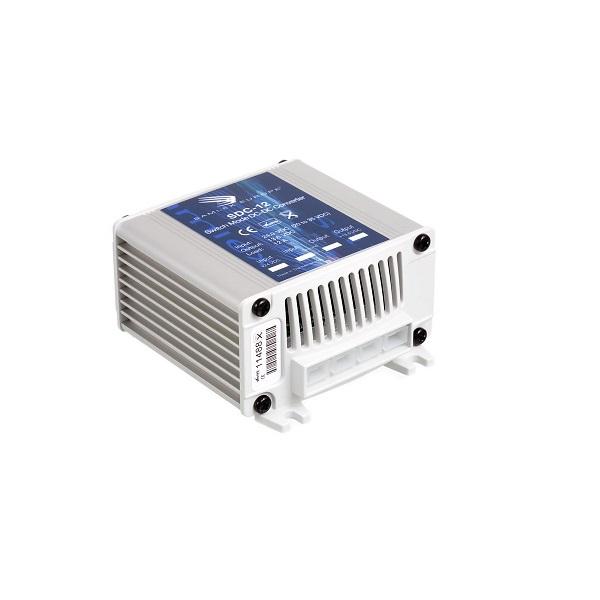

RFI SWITCH MODE VOLTAGE CONVERTER - 24 TO 12V 12AMP
The SDC range of DC-DC converters (SDC-12) are ideal for use in trucks buses or any 24 volt vehicle application where you need to step down the voltage to drive radios mobile phone car kits or auxiliary devices at 12 volts.
In communications sites were the many services are now powered by 24 volts these DC-DC converters can be used to power other devices that require 12 Volts.
These ultra-compact converters are available in various current ratings and combined with easy wiring connections this product can fit in a vast number of mounting locations within vehicles. Built in protection circuitry will give you peace of mind and provide long lasting performance.
Available in current capacities of 5 8 12 20 and 30 Amps these DC-DC converters offer industry leading low noise and output stability and efficiencies of up to 92% making these DC-DC converters cool to run. With its wide voltage input window the SDC range will always give you that steady constant output required for all kinds of sensitive equipment.
SDC-12 Features:
- High Efficiency with over voltage over temperature and short circuit protection
- Provides protection against voltage spikes for sensitive equipment.
- Compact and light weight
- Suited to negative ground installations
| Input Voltage Range V | 20-35 |
| Output Voltage V | 13.6 |
| Max. Output Current A | 12 |
| Cooling | Convection |
| Output Ripple and Noise | Less than 50mV RMS |
| Input Current no Load mA | <5mA |
| Operating Ambient Temperature | -20°C to + 30°C (derate linearly to zero at 70°C) |
| Dimensions | H=49 x W=88 x D=98mm |
| Protection | Overload: By current limiting Over Heating: Drop in output voltage Reverse Polarity: Fuse Protection Over Voltage: Varistor (also protects against load dump) |
| Input side Fuse (Internal) A | 12 |
| Output voltage stability % | 3% |
| Efficiency % | Up to 92% |
| Weight (kg) | 0.26 |
| Connections | 6.3mm push-on flat blade connectors |
| Casework | Anodised aluminium and ABS plastic endcaps |
Also Available...
Documentation
RFI SDC DC/DC Converter Technical Data Sheet - click here
Related Products
Availability

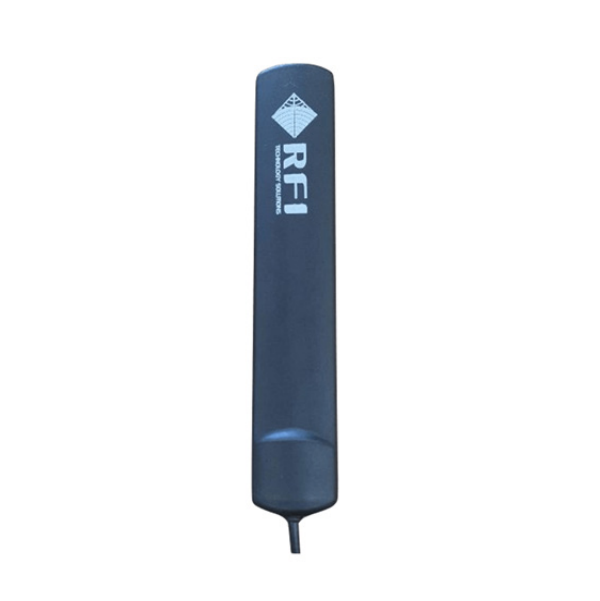

RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI T5-3M-FME 5G LTE Internal Glass Mount Antenna (617-5925MHz); 3m FME(F)
RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR 4G LTE 3G 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial industrial and consumer industries.
The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility. In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.
Key Features:•
- Wideband frequency range; 617 to 5925MHz
- Adhesive mount
- Ground Plane Independent
-
Compact size: 116 x 22 x 6.7 mm
Specifications:
| Cable And Connector | 3m LL100 FME female |
| Tuning | Supplied pre-tuned |
| Band | 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Connector | FME(F) |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.2 / 3.6 / 1.0 / 1.6 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Termination | FME Female |
| Tuned bandwidth | Full |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)
RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR 4G LTE 3G 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial industrial and consumer industries.
The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibilities. In addition this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs
Key Features: •
- Wideband frequency range; 617 to 5925 MHz
- Adhesive mount
- Ground Plane Independent
- Compact size: 116 x 22 x 6.7 mm
Specification:
| Cable And Connector | 3m LL100 FME female |
| Tuning | Supplied pre-tuned |
| Band | 617-960 / 1427-2690 / 3300-5000 / 5150-5925 MHz698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Connector | FME(F) |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.2 / 3.6 / 1.0 / 1.6 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Termination | FME Female |
| Tuned bandwidth | Full |
| Length [mm] | 116 |
| Width [mm] | 22 |
| Brand | RFI |
Documentation

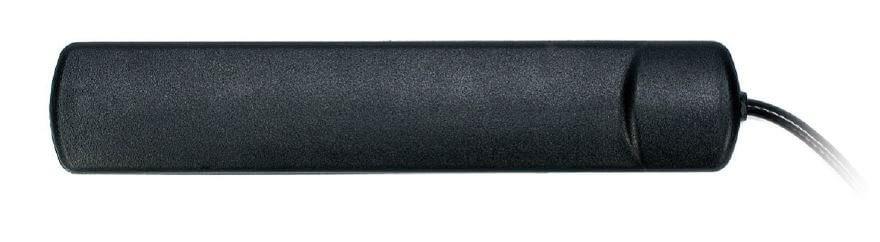

RFI T7-3M-F LTE Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME female connector
$39.95
Unit price perRFI T7-3M-F LTE Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME female connector
$39.95
Unit price perLTE T7-3M-F Cellular Patch Antenna - 698-2700MHz - 3M RG174/FME Female connector
This antenna is suited to applications where a disguised or compact solution is required and are suitable for car mobile phone kits monitoring and M2M/telematics.
Features:
• Covers all LTE cellular bands including the new 700MHz (4GX/4G+) band
• Adhesive mount
• Ground plane independent
• 3Mt - RG174 cable terminated with FME female connector
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
| Band | 698-960MHz / 1710-2170MHz / 2500-2700MHz |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 3.0 / 2.2 / 4.0 |
| Radiator Material: | PCB |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 3m RG174 FME female |
| Suggested Installation | On Glass |
| VSWR | <2.5:1 |
| Height mm | 6.7 |
| Width mm | 22 |
| Length mm | 116 |
| Mounting | Adhesive |

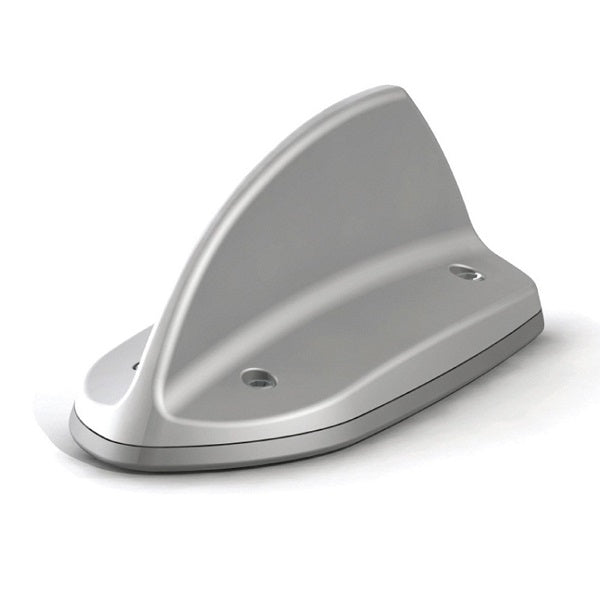

RFI TLA4100 Multiband Transit Antenna 698-2700 MHz and 5.8 GHz
The TLA4100/4200 Antenna is designed specifically for rail light rail and bus applications and other similarly demanding transit or stationary applications.
With a VSWR less than 2:1 covering 800-5800 MHz (off a ground plane) and 2.5:1 (full band on a ground plane) the TLA4100/4200 operates in all cellular bands globally plus the 2.4 & 5.8 GHz ISM bands. In addition the TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications.
Designed utilising a high impact UV stabilised low Flame Smoke and Toxicity (FST) radome the TLA4100/4200 is IP68 rated to fully protect against the ingress of dust and water.
Designed to meet the following European Traction Industry Standards:
• NF-F-16-101/102 (materials standard)
• EN50155 (vibration standard)
• EN50124-1 (electrical isolation standard)
• Functions with or without a ground plane*
* Nominated gain achieved using a 1m2 ground plane
Features TLA4100:
• Wide band coverage from 698MHz to 890MHz
• All welded construction for reliability
• Excellent front-to-back ratio
• Alodined conductive plating for performance reliability
• Designed to minimize the generation of PIM
Specifications TLA4100:
| Band | 698-960MHz / 1710-2700MHz / 2400-2700MHz & 5700-5800MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 @ 698 - 960MHz / 6 @ 1710 - 2700MHz / 3 @ 2400-2700MHz / 7 @ 5700-5800MHz |
| Power W | 50 |
| VSWR | <2:1 |
| Height mm | 90 including gasket |
| Termination | Antenna Port: Fixed N-female |
Antenna Connection: TLA4100
This antenna has an N female connector integrated into the underside of the antenna body.
****There is no cable supplied with this antenna.
N Female Connector (pictured)
Also available is a 10.0Mtr cable extension N Plug to SMA Plug - 9207N-10
Related Products
10Mtr Cable - N Plug to SMA Plug - 9207N-10
Availability

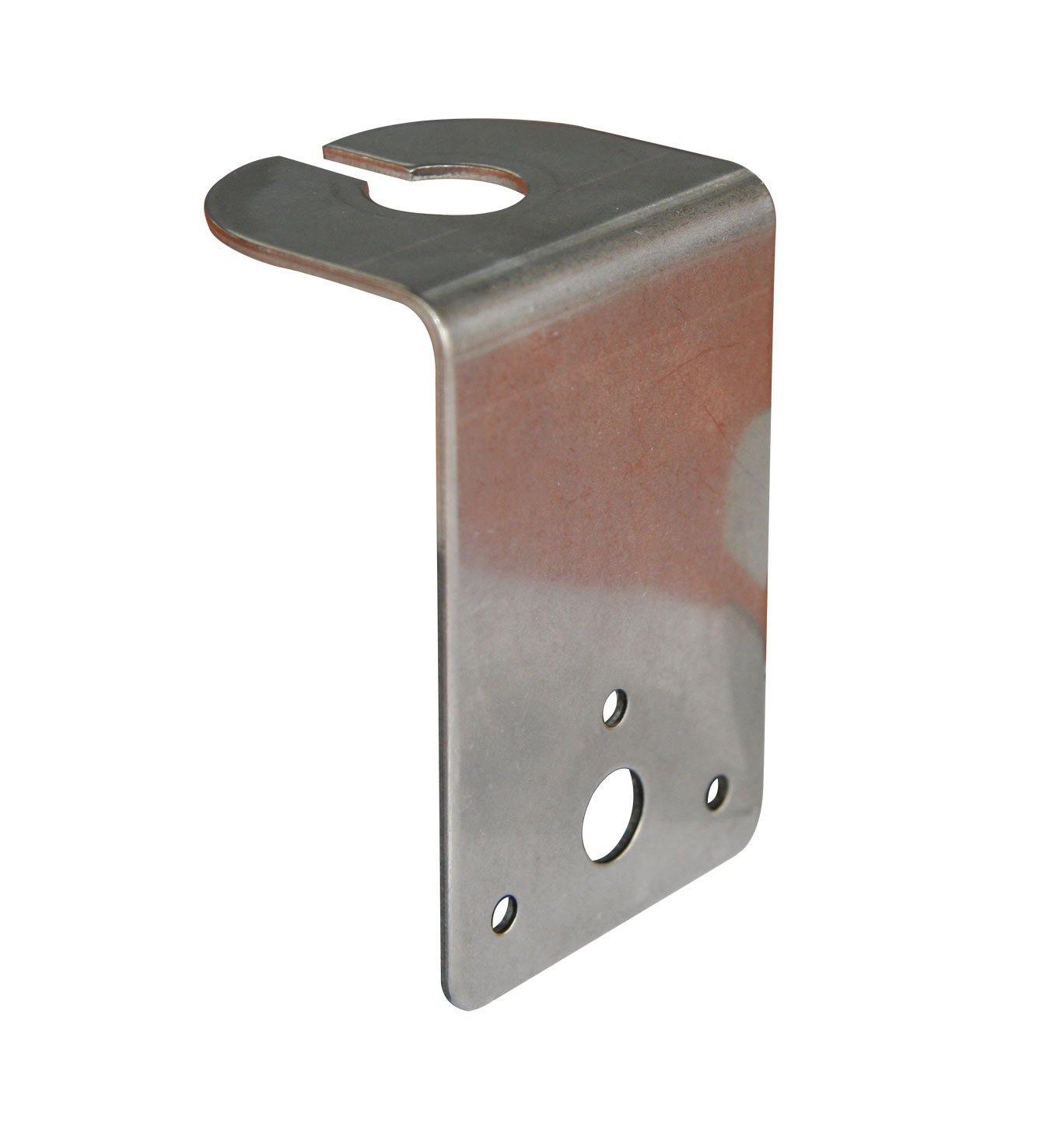

RFI TLM-1S Fender Mount Bracket - Heavy Duty 'L' Shape - 75mm long
Heavy duty fender mount bracket. 'L' shape with cable slot.
TLM-1S Features:
This heavy duty 1.6mm stainless steel 'L' shape fender mount bracket includes 6mm cable slot for easy antenna installation plus 3 x self drilling screws. Bracket is 75mm long with 16mm hole.
Documentation
RFI Mobile Antenna Mounting Accessories - click here
RFI Installation Sheet - click here

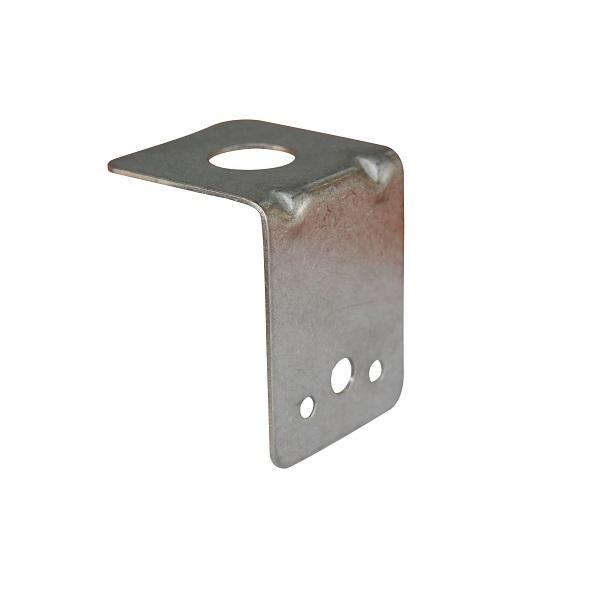

RFI TLM-3 "L" Shape Wall Bracket
This 1.5mm stainless steel 'L' shape wall bracket.
Features:
- Stainless Steel "L" bracket
- Bracket is 50mm long with 16mm hole
- Includes 2 x self drilling screws
Documentation
RFI Mobile Antenna Mounting Accessories - click here
RFI XG884 - X-glass™ Cellular Multiband 824-960MHz/1710-2170MHz
The XG884 utilises a slot radiator in the coupling box with a patch element housed in the mounting foot. The patch element is x-shaped to allow the coupling of multiple bands very effectively. The whip element is fully moulded with dual phasing coils the result being an antenna that provides abundant gain in all bands.
Featuring a new-look mounting foot and coupling box XG884 is supplied complete with a 5Mtr pre-terminated lead of low loss fully shielded coaxial cable.
Features:
• True multi band performance at 3G-850 GSM-900/GSM-1800 and 3G-2100
• Fully shielded low loss FME pre-terminated 5Mtr cable with A-87 (FME-MPL) adapter supplied
• Available with additional adapters on request
• XG884 supplied with 3dB gain whip & Unity gain stubby whip
Specifications:
| Band | 824-960MHz / 1710-2170MHz |
| Tunable Bandwidth | Entire specified band <2.5:1MHz |
| Nominal Gain dBi | 0 or 3 depending on whip used |
| Tuning | Supplied pre-tuned |
| Power W | 50 |
| Cable and Connector | Pre-terminated lead with 5m flexible foam dielectric low loss fully shielded cable pre-terminated with FME nipple connector for transceiver connector and SMA male to suit coupling box. A-87 FME-MPL adaptor supplied. |
| Whip Material | One piece black chrome plated stainless steel with plastic over moulding |
| Whip Length mm | 155 (0dB) / 352 (3dB) |
| VSWR | <2.5:1 |
Documentation
View the XG884 Technical Data Sheet
Availability
FEATURES
- 15 dBi gain on Telstra Next-G and Telstra 4GX
- High quality Australian made antenna
- Ruggedised construction for Australian conditions
- Fully welded alodined aluminium design
- Galvanised UNV2 mounting clamp included
- Short tail with pre-fitted N Female connector.

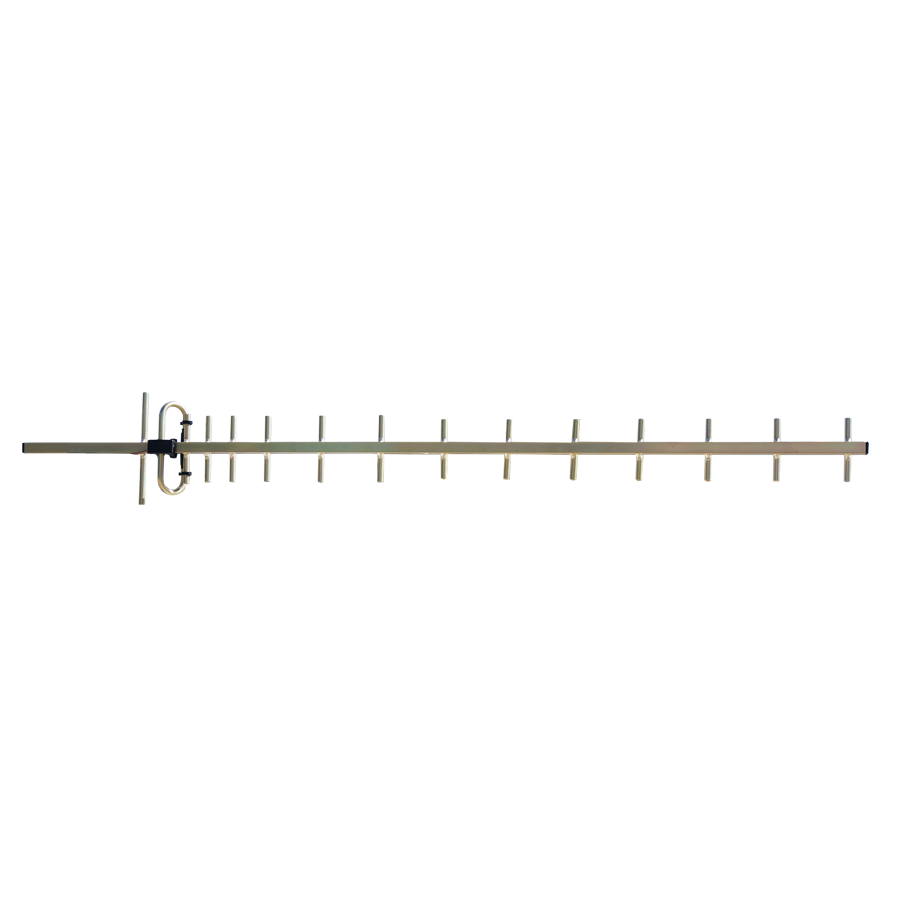

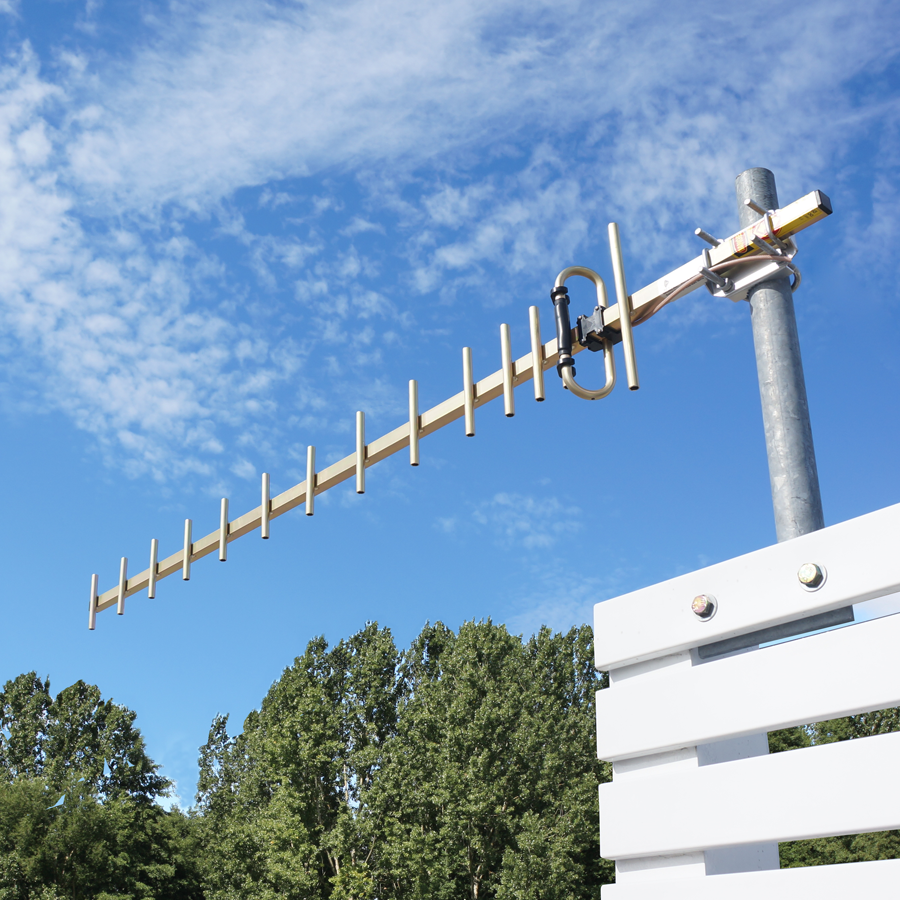

Operating on both Telstra Next-G (850 MHz) and 700 MHz 4GX frequencies, this uniquely designed yagi antenna is the ideal companion to Cel-Fi repeater systems in rural and remote areas.
The RFI YW15-6989 is a game changer. Traditionally yagi antennas have been limited to one specific frequency, however with the introduction of the Telstra 4GX network RFI's engineers have produced a brilliant design where the antenna has been intentionally detuned to cover down to the 700 MHz band.
So why the big fuss over 4GX? The answer is speed and range - the low 700 MHz frequency travels incredibly far, through trees, and deep inside buildings, meaning high speed internet service (often faster than the NBN) is now available practically anywhere your phone can pick up signal.
The antenna is an ideal pairing to the Cel-Fi GO or PRO unit when used for voice and text over the Telstra Next-G, and high speed internet over the 4GX network. As a lengthy antenna measuring 1.55 m long, the antenna is supplied with a heavy duty galvanised UNV bracket at no extra cost.
ELECTRICAL SPECIFICATIONS
| Frequency Range | 698 - 890 MHz |
| Input Impedance | 50 Ω |
| Peak Gain | 15.1 dBi |
| VSWR | ≤1.8:1 |
| Polarisation | Vertical, linear |
| Horizontal Beamwidth | 38° |
| Vertical Beamwidth | 35° |
| Front-to-Back Ratio | >20 dB |
| Maximum Input Power | 100 W |
MECHANICAL SPECIFICATIONS
| Input Connector | N Female |
| Cable | 50 cm RG142 cable tail |
| Lightning Protection | DC Ground |
| Radiator Material | Fully welded aluminium, alodine finish |
| Mounting | Galvanised UNV clamp, pole mount 30-50 mm |
| Dimensions | 1552 mm (length) |
| Weight | 1.0 kg |
| Rated Wind Velocity | 184 km/h |
| Operating Temperature | -20 to +70°C |
