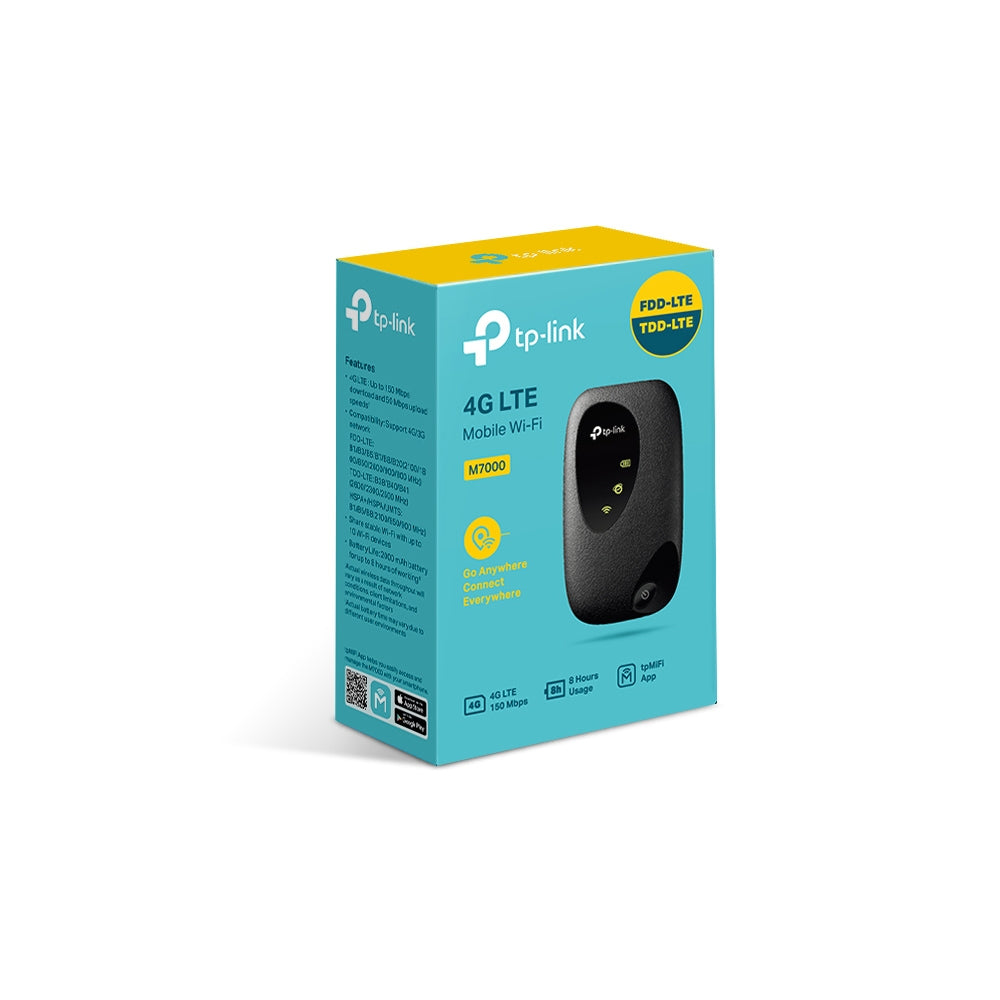

HARDWARE FEATURES Interface 1 micro USB port for power supply 1 SIM card slot Button Power Button; Reset Button Power Supply Internal 2000 mAh Rechargeable Battery External 5V/1A Network Type 4G: FDD-LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA+/HSPA/UMTS: B1/B5/B8(2100/850/900 MHz Data Rates DL: 150 Mbps; UL: 50 Mbps Dimensions ( W x D x H ) 3.7×2.2×0.8 in. (94×56.7×19.8 mm) Antenna Internal Antennas LED Display Wi-Fi status; Internet connection status; Battery status WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n Wireless Speeds Up to 300 Mbps Frequency 2.4 GHz Reception Sensitivity 11b 11Mbps: -87.5dBm; 11g 54Mbps: -74dBm; 11n HT20 MCS7: -70dBm; 11n HT40 MCS7: -68dBm; Transmit Power <20dBm Wireless Security Support WPA-PSK/WPA2-PSK;Wireless MAC Filtering; Enable/Disable SSID Broadcast DHCP Server; Client; DHCP Client List OTHERS Package Contents Mobile Wi-Fi M7000 Micro USB Cable 2000 mAh Battery Quick Installation Guide System Requirements Windows 10/8/7/vista/XP; Mac OS; Android; iOS; Windows Phone Certifications CE; RoHS Environment Operating Temperature: 0℃~35℃ (32℉ ~95℉) Storage Temperature: -20℃~60℃ (-4℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

@11/21

4G LTE supported with up to 150 Mbps download and 50 Mbps upload speeds Supports up to 10 devices simultaneously All useful information at a glance with screen display 2000mAh battery for up to 8 hours of working Equipped with a micro SD card slot for up to 32GB of optional storage Micro SD Card Wireless Sharing Easily Share Wi-Fi with up to 10 devices

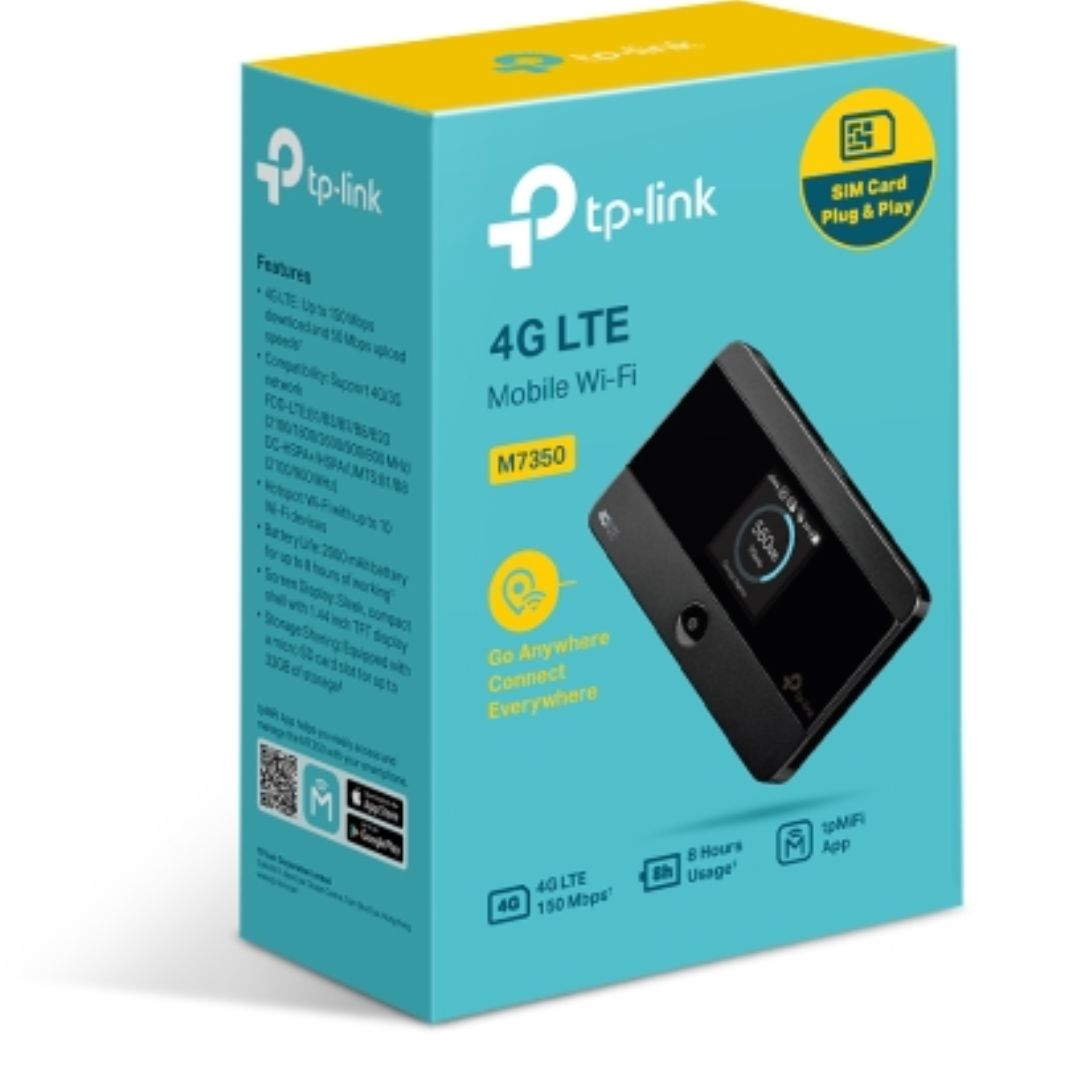

8 Hours of 4G Sharing - Made to Move With its powerful 2000mAh battery; the M7350 is able to operate for 8 hours at full capacity and 480 hours of standby. For added flexibility the device can be recharged via a micro USB cable connected to a laptop; portable charger or using its included adapter for endless hours of 4G sharing.

Easy Management with the tpMiFi App With the tpMiFi App; you can easily access and manage the M7350 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits; control which devices can access your Wi-Fi; send messages; and share media files to/from a removable Micro SD card.

HARDWARE FEATURES Interface 1 micro USB port for power supply SIM card slot Micro SD card slot Button Power On/Off Button Menu Button Power Supply Internal 2000mAh Rechargeable Battery Network Type 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) 3G: DC-HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) Data Rates DL: 150Mbps; UL: 50Mbps Dimensions ( W x D x H )106 × 66 × 16mm Carton Box ( W x D x H )135 x 95 x 50mm

WIRELESS FEATURES Wireless Standards IEEE 802.11b; IEEE 802.11g; IEEE 802.11n Frequency 2.4GHz Transmit Power 2.4G <20dbm Wireless Security Support WPA-PSK/WPA2-PSK; Black List; Enable/Disable SSID Broadcast

@16/22

Warranty Period: 3-Year

@16/22

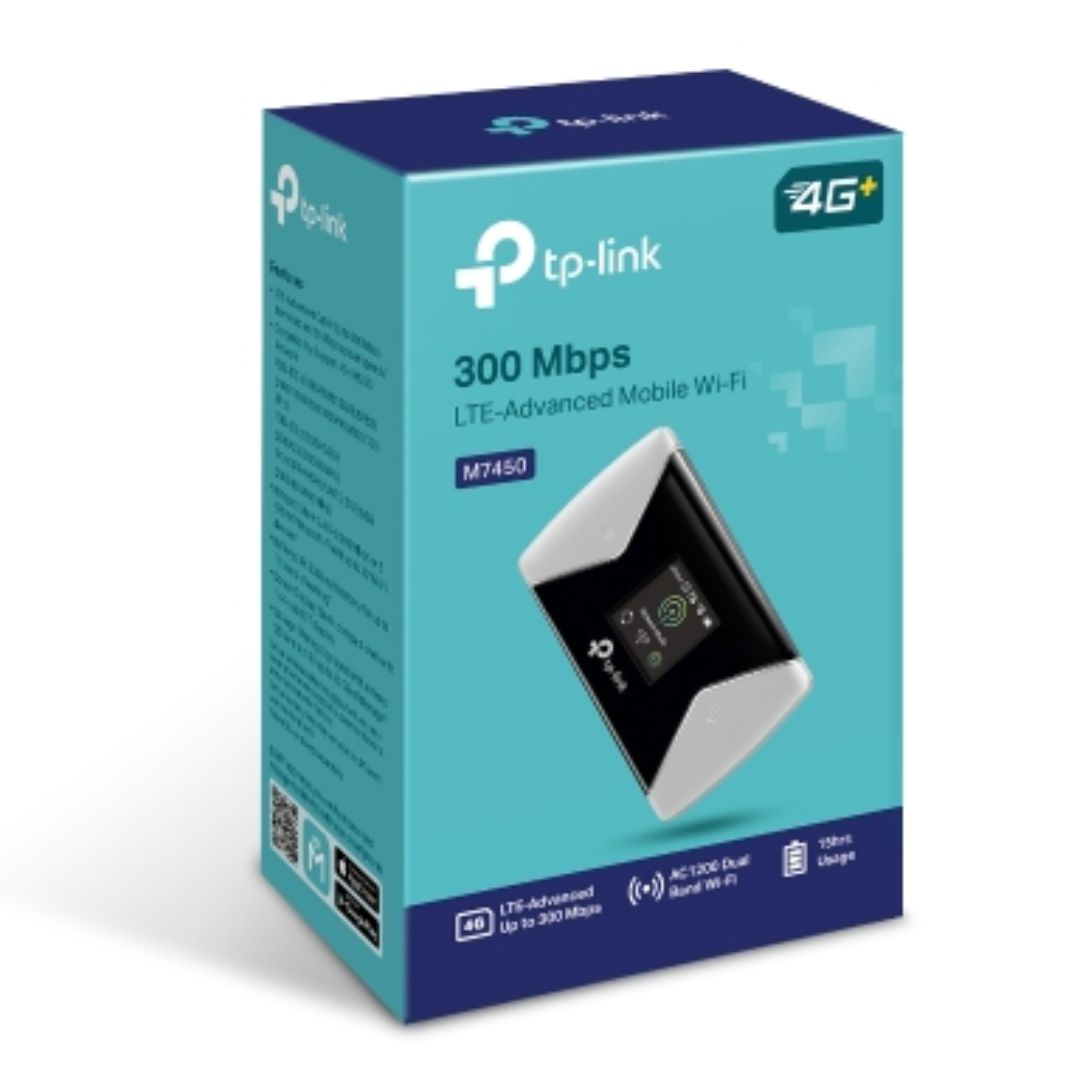

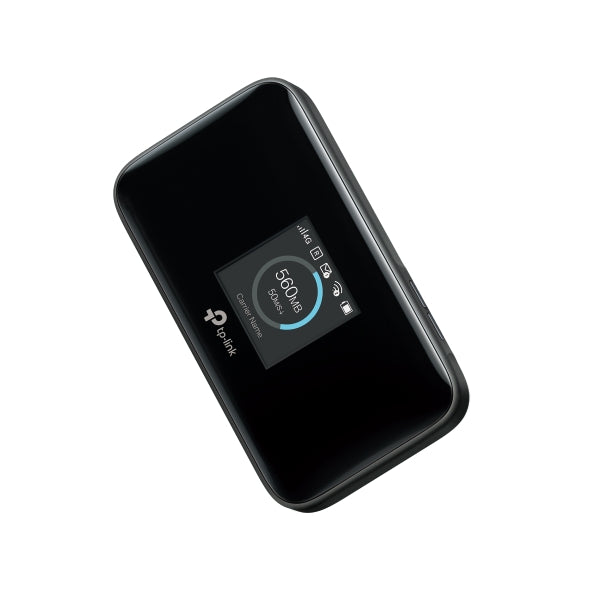

LTE-Advanced cat6 supported with up to 300Mbps download and 50Mbps upload speeds Supports up to 32 devices simultaneously Selectable 300Mbps at 2.4GHz or 867Mbps at 5GHz dual band Wi-Fi All useful information at a glance with screen display 3000mAh battery for up to 15 hours of working Equipped with a micro SD card slot for up to 32GB of optional storage Easy management with the tpMiFi App

HARDWARE FEATURES Interface 1 micro USB port for power supply 1 Micro SIM card slot 1 Micro SD card slot Button Power On/Off，Menu Power Supply 3000mAh Rechargeable Battery Antenna Internal Antenna Network Type FDD-LTE: B1/B3/B7/B8/B20(2100/1800/2600/900/800MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500MHz) DC-HSPA+/HSPA/UMTS: B1/B8(2100/900MHz) EDGE/GPRS/GSM: 850/900/1800/1900MHz Data Rates DL: 300Mbps; UL: 50Mbps Dimensions ( W x D x H ) 112.5*66.5*16mm Micro SD Card Reader Up to 32GB Screen Display 1.44 inch TFT WIRELESS FEATURES Wireless Standards IEEE 802.11a/b/g/n/ac 300Mbps at 2.4GHz or 867Mbps at 5GHz Frequency 2.4GHz&5GHz Transmit Power 2.4G <20dbm; 5G <23dbm Wireless Security Support WPA-PSK/WPA2-PSK; Wireless MAC Filtering; DHCP DHCP server; DHCP Client List OTHERS Certification CE; RoHS Package Contents 300Mbps LTE-Advanced Mobile Wi-Fi M7450 Micro USB Cable Nano to Micro SIM Card Adapter 3000mAh Battery Quick Installation Guide System Requirements Windows 10/8/7/vista/XP; Mac OS; Android; iOS; Windows Phone

@28/30

Warranty Period: 3-Year

@35/33

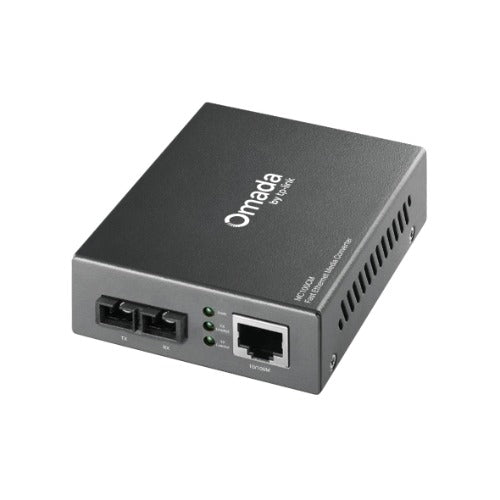

Complies with 802.3u 10/100Base-TX; 100Base-FX standards Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port Extends fiber distance up to 2km

What This Product Does

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards; the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis; Auto MDI/MDI-X for TX port; Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.

MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3x Basic Function Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Ports 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) Wave Length 1310nm Network Media 10BASE-T UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-T UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-FX Multi-mode Fiber LED Indicators PWR; FDX/Col; Link/Act; SPD Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) Power Supply External power supply

@6/21

@6/21

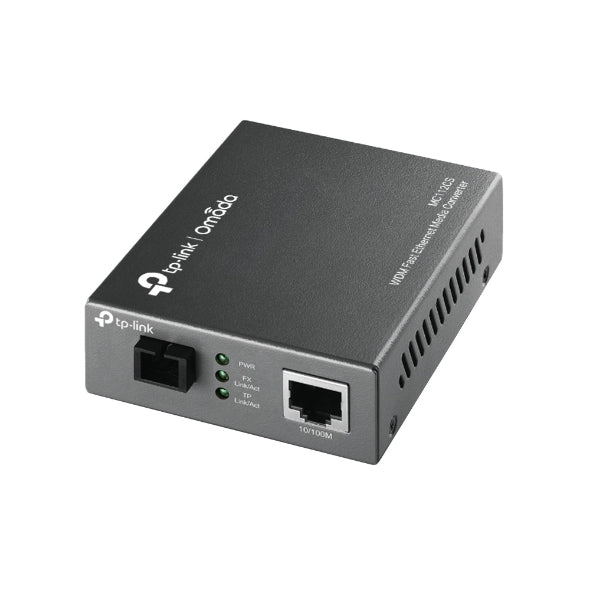

Complies with 802.3u 10/100Base-TX; 100Base-FX standards. Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Adopts WDM technology; transmitting and receiving data on one single fiber

What This Product Does The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology; MC112CS takes only one fiber cable to transmit and receive data; which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards; the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS.

MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3x Basic Function Adopts WDM technology Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely Extends fiber distance up to 20km Ports 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) Wave Length 1310nm Tx/1550nm Rx WDM TX 1310nm WDM RX 1550nm Network Media 10BASE-T UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-T UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-FX Single-mode Fiber LED Indicators PWR; FDX/Col; Link/Act; SPD Power Supply External Power Adapte

@5/20

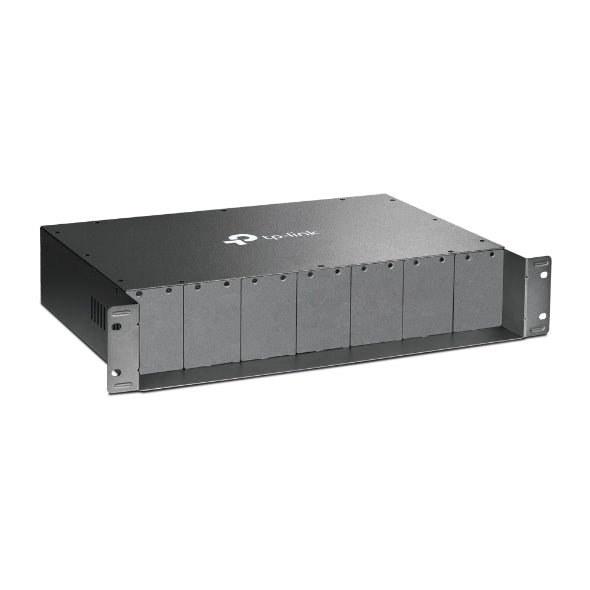

14 bays to house up to 14 media converters Optional redundant power supply to ensure non-stop reliable operation Hot-Swappable; easy & quick replacement of converter and power supply Mounted two cooling fans for better ventilation

The TL-MC1400 14-slot 19" rack-mount chassis is designed specially to accommodate 14 TP-LINK media converters.

The centralized power supply makes the installation neat and sharp. The hot-swappable redundant power supply (purchase separately) design comes with chases allows uninterrupted installation and maintenance jobs. Two cooling fans are installed to stabilize the performance and extend the lifetime

Together with MC series Gigabit or Fast Ethernet media converters; TL-MC1400 is the ideal solution for your media conversion network.

@33/32

@7/20

Works at 1000Mbps in Full-Duplex mode for both TX port and FX port Supports auto MDI/MDIX for TX port Provides switch configuration of Force /Auto transfer mode for FX port. Extends fiber distance up to 15km Easy-to-view LED indicators provide status to monitor network activity easily External power supply

What This Product Does The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards; the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis; Auto MDI/MDI-X for TX port; and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

MEDIA CONVERTER & MODULE Standards and Protocols IEEE 802.3ab; IEEE 802.3z; IEEE 802.3x Basic Function Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 15km Ports 1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX) Wave Length 1310nm Network Media 1000BASE-FX Single-mode Fiber Network Media 1000BASE-T UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) LED Indicators PWR; LINK; RX Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) Power Supply External Power Adapter Max Power Consumption 5.5W Safety & Emission FCC; CE; RoHS Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
