HARDWARE FEATURES Interface • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A) PoE Ports (RJ45) • Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W Backbound Bandwidth 1.6 Gbps Mac Address Table 2K Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Max Power Consumption • 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected) Max Heat Dissipation • 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC; CE; RoHS Package Contents • TL-SF1008LP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
@8/20
HARDWARE FEATURES Interface 8 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Consumption Maximum (PoE on): 60.2W (220V/50Hz) Maximum (PoE off): 3.2W (220V/50Hz) External Power Supply External Power Adapter(Output: 48VDC / 1.25A) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 57W Backbound Bandwidth 1.6Gbps Mac Address Table 2K Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm)
@8/20

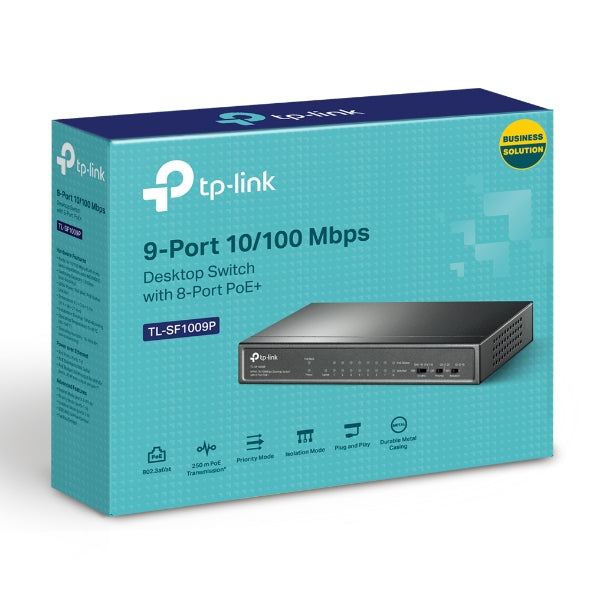

HARDWARE FEATURES Interface • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A) Packet Forwarding Rate 1.3392 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.8 Gbps Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Max Power Consumption • 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected) Max Heat Dissipation • 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8; Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
@8/20
16 10/100Mbps RJ45 ports Innovative energy-efficient technology saves power up to 75% Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
What This Product Does The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance; low-cost; easy-to-use; seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX; no need to worry about the cable type; simply plug and play. Moreover; with the innovative energy-efficient technology; the TL-SF1016 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled; making it an eco-friendly solution for your business network.
HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Interface 16 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Power Supply 100-240VAC; 50/60Hz Power Consumption Maximum: 2.23W (220V/50Hz) Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm) PERFORMANCE Switching Capacity 3.2Gbps Packet Forwarding Rate 2.38Mpps MAC Address Table 8K Buffer Memory 2Mb Green Technology Innovative energy-efficient technology saves power up to 70% Transfer Method Store-and-Forward OTHERS Certification FCC; CE; RoHS Package Contents 16-Port 10/100Mbps Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
@10/21

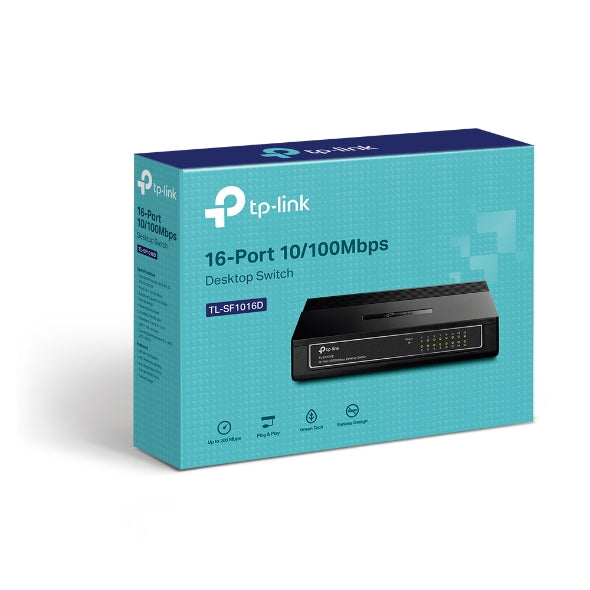

HARDWARE FEATURES Interface 16× 10/100 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Physical Security Lock No External Power Supply External Power Adapter(Output: 5.0VDC / 0.6A) Mac Address Table 2K Dimensions ( W x D x H ) 7.9*5.6*1.6 in. (200*142*40 mm) Max Power Consumption 3.23 W (220V/50Hz) Max Heat Dissipation 11.01 BTU/h
SOFTWARE FEATURES Transfer Method Store and Forward Advanced Functions Green Technology; 802.3X Flow Control;
OTHERS Certification FCC; CE; RoHs Package Contents 16-Port 10/100Mbps Desktop Switch TL-SF1016D Power Adapter User Guide System Requirements Microsoft® Windows® 98SE; NT; 2000; XP; Vista™ or Windows 7; MAC® OS; NetWare®; UNIX® or Linux.
@7/20

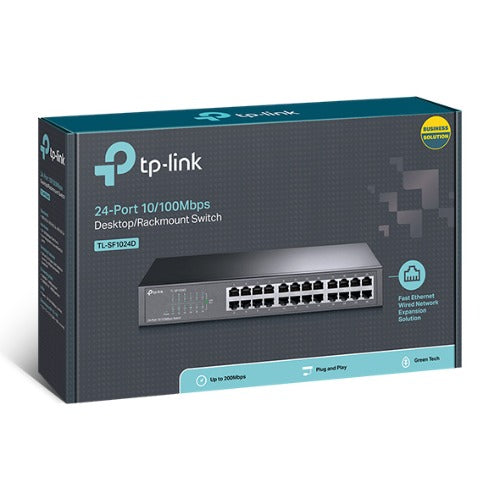

24 10/100Mbps RJ45 ports Innovative energy-efficient technology saves power up to 75% Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Interface 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Power Supply 100-240VAC; 50/60Hz Power Consumption Maximum: 3.53W (220V/50Hz) Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm) PERFORMANCE Switching Capacity 4.8Gbps Packet Forwarding Rate 3.57Mpps MAC Address Table 8K Buffer Memory 2Mb Green Technology Innovative energy-efficient technology saves power up to 75% Transfer Method Store-and-Forward OTHERS Certification FCC; CE; RoHS Package Contents 24-Port 10/100Mbps Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet System Requirements Microsoft® Windows® 8; 7;Vista™; XP or MAC® OS; NetWare®; UNIX® or Linux. Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
What This Product Does The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance; low-cost; easy-to-use; seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX; no need to worry about the cable type; simply plug and play. Moreover; with the innovative energy-efficient technology; the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled; making it an eco-friendly solution for your business network.
@12/21
@11/21
@22/27
@5/20

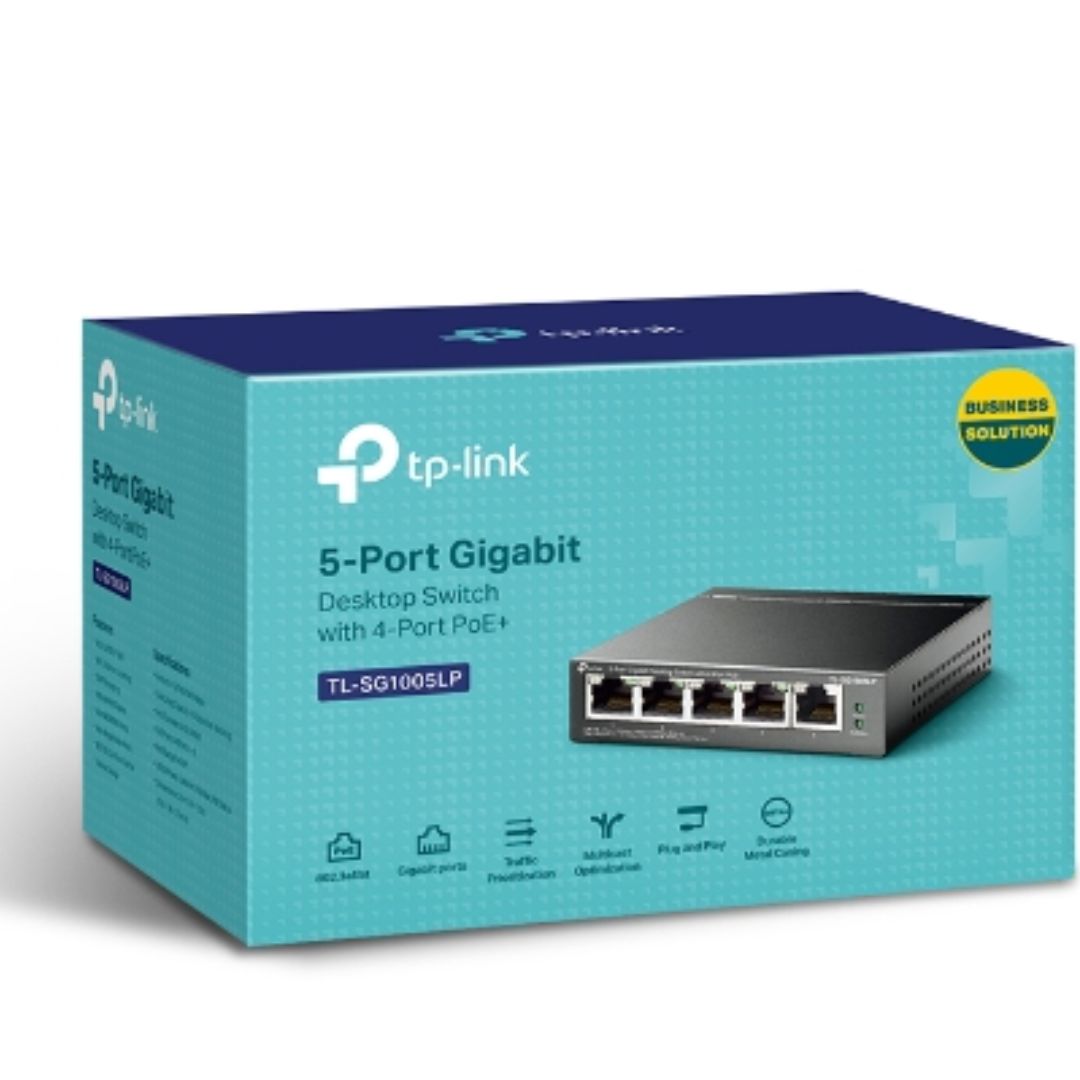

HARDWARE FEATURES Interface • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption • 4.12 W (220/50 Hz. no PD connected) • 47.5 W (220/50 Hz. with 40 W PD connected) Max Heat Dissipation • 14.05 BTU/h (no PD connected) • 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping Transfer Method Store-And-Forward
OTHERS Certification FCC; CE; RoHS Package Contents • TL-SG1005LP • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
@8/20

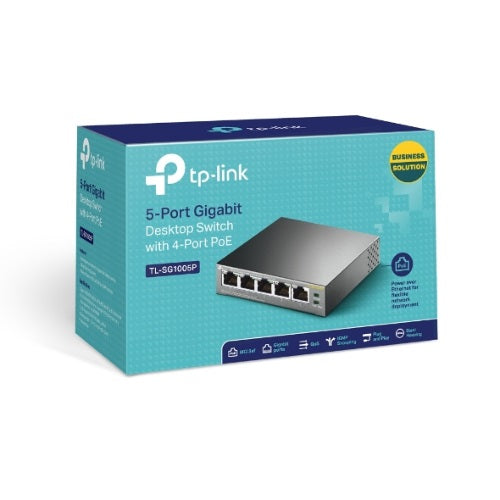

5 10/100/1000Mbps RJ45 ports With four PoE ports; transfers data and power on one single cable Working with IEEE 802.3af compliant PDs; expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 15.4W for each PoE port Supports PoE Power up to 56W for all PoE ports Requires no configuration and installation
HARDWARE FEATURES Interface • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5; 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption • 4.29 W (220/50 Hz. no PD connected) • 74.24 W (220/50 Hz. with 65 W PD connected) Max Heat Dissipation • 14.63 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
@9/21
Warranty Period: 5-Year
@8/20
Warranty Period: 5-Year
@13/21
@9/21

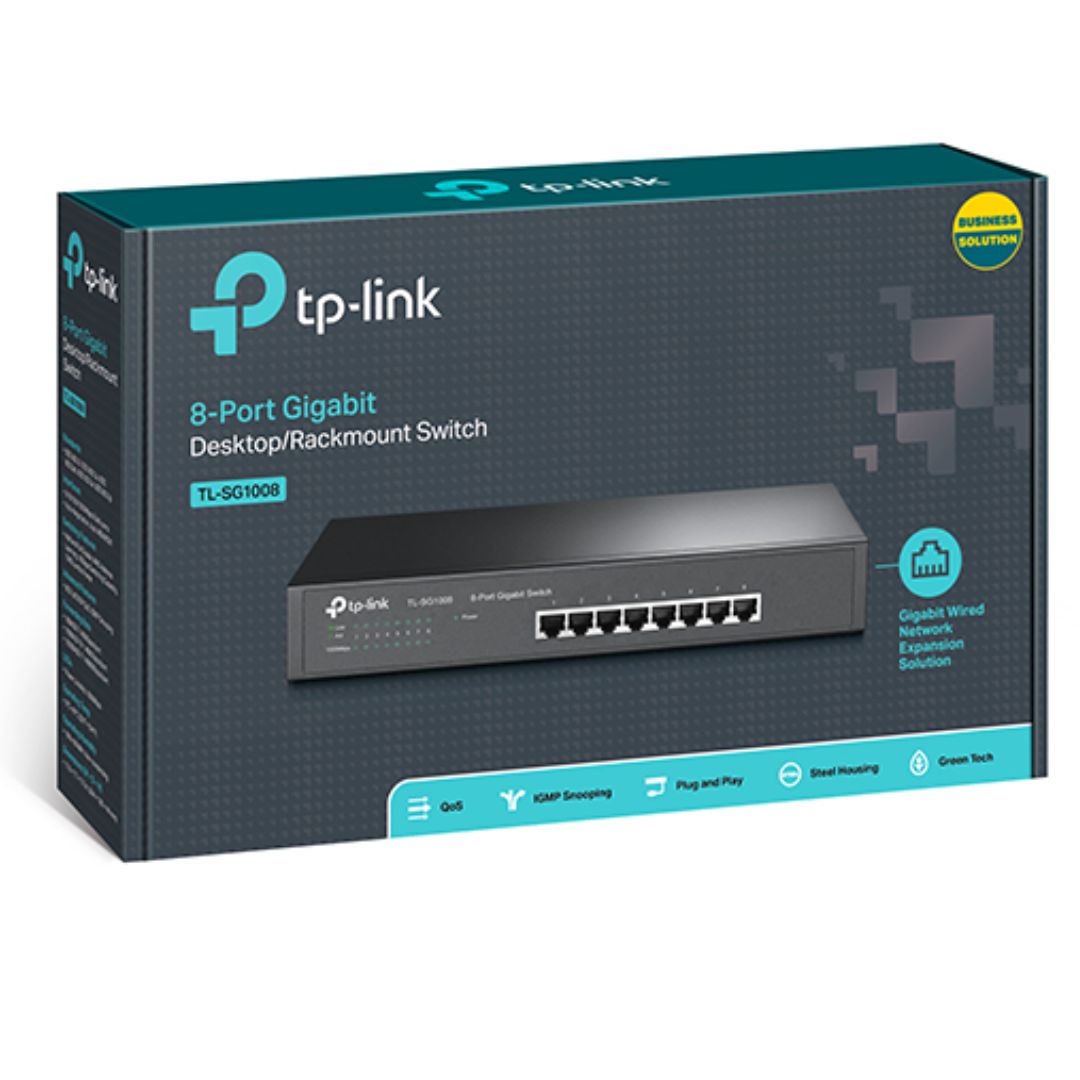

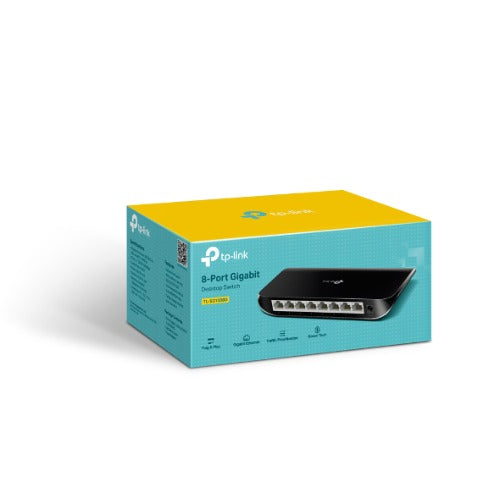

HARDWARE FEATURES Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Physical Security Lock No External Power Supply External Power Adapter (Output: 9VDC/0.6A) Jumbo Frame 15 KB Switching Capacity 16 Gbps Dimensions ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) Max Power Consumption 4.63W(220V/50Hz) Max Heat Dissipation 15.80BTU/h
SOFTWARE FEATURES Transfer Method Store and Forward MAC Address Table 4K Advanced Functions Green Technology 802.3X Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version)
OTHERS Certification FCC; CE; RoHs Package Contents 8-Port Gigabit Desktop Switch TL-SG1008D Power Adapter Installation Guide System Requirements Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty Limited 3-Year Warranty
@6/21

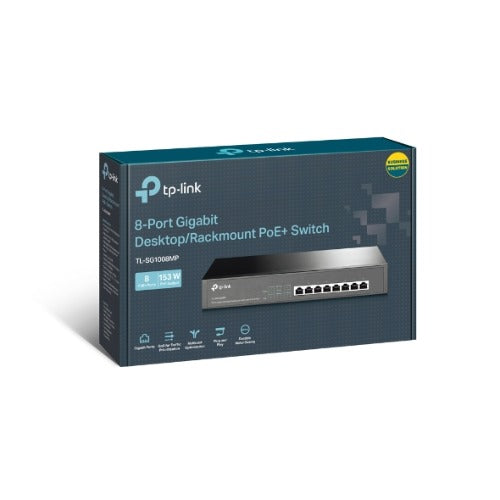

HARDWARE FEATURES Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 1 Physical Security Lock No Power Supply 100-240VAC; 50/60Hz PoE+ Ports(RJ45) Standard: 802.3at/af compliant PoE+ Ports: 8 Ports Power Supply: 126W Backbound Bandwidth 16Gbps Mac Address Table 4K Buffer Size 1.5Mbits Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm) Mounting Rack Mountable Max Power Consumption 9.89W(220V/50Hz. no PD connected) 140.67W(110V/60Hz. with 126W PD connected) Max Heat Dissipation 33.74BTU/h(no PD connected) 492.56BTU/h(with 126W PD connected ) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Transfer Method Store-And-Forward
OTHERS Certification FCC; CE; RoHS Package Contents TL-SG1008MP; Power Cord; Installation Guide; Rackmount Kit; Rubber Feet
@17/22
@10/21
16 10/100/1000Mbps RJ45 ports Innovative energy-efficient technology saves power consumption Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case
HARDWARE FEATURES Standards and Protocols IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab ; IEEE 802.3x; IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5; 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC; 50/60Hz Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm) Mounting Rack Mountable Max Power Consumption 10.44W Max Heat Dissipation 35.60BTU/h
PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.8Mpps MAC Address Table 8K Jumbo Frame 10KB QoS 802.1p/DSCP QoS*
*Only for V12 and later version Green Technology Yes Transfer Method Store-and-Forward
