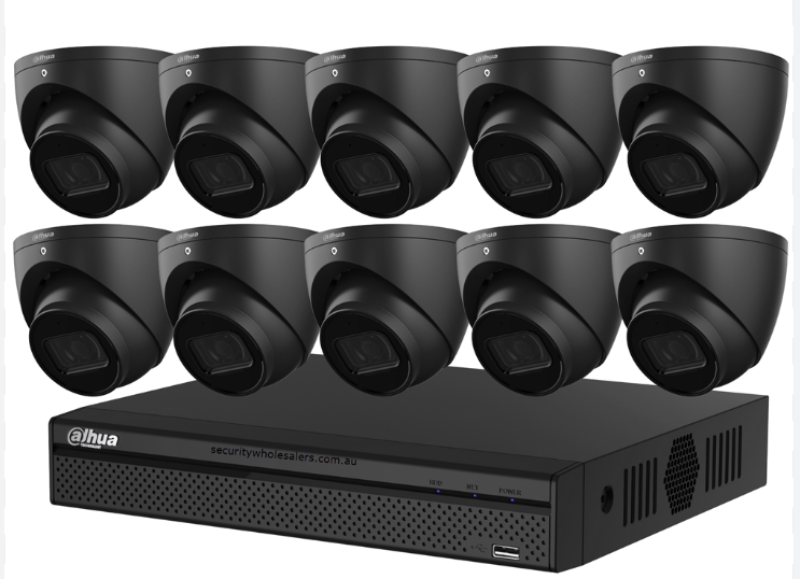

Dahua 10 x [Black] 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Kit 50m IR 2.8mm with SMD + 16CH NVR Wizsense AI + 6TB HDD
10 x 6MP [Black] cameras | Built-in Mic | 16CH NVR + 6TB HDD | Smart Motion Detection
Dahua 16ch 6MP Turret Kit includes: 1 x DHI-NVR4216-16P-4KS2, 10 x DH-IPC-HDW3666EMP-S-AUS, No HDD Installed. Add one below if you need one
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings -Outputs max.6MP (3072 × 2048) @25/30 fps | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy, reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED, up to 50 metres distance.
(Optional: Junction box PFA130, Wall Mount: PFB204W)

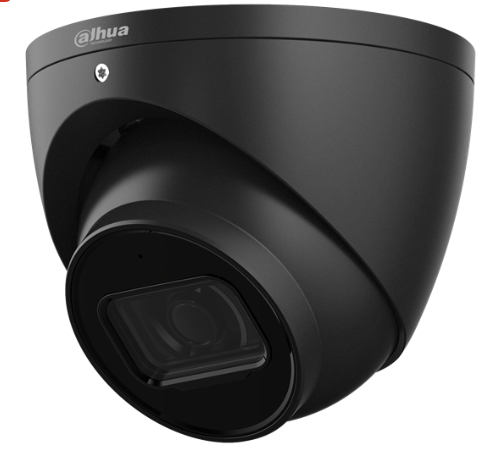

Model Code: DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive, it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Technical Camera Features:
· 6MP, 1/2.7”progressive scan CMOS, low illuminance, high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps,and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding), high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 50 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
· Handles well in varying light conditions: Wide Dynamic Range (WDR), 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Tripwire, intrusion – important for perimeter protection.
· Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
SMD 4.0 With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms. Also, SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
This camera has SMD4.0
The below Hard Drive will be pre-installed in the NVR.

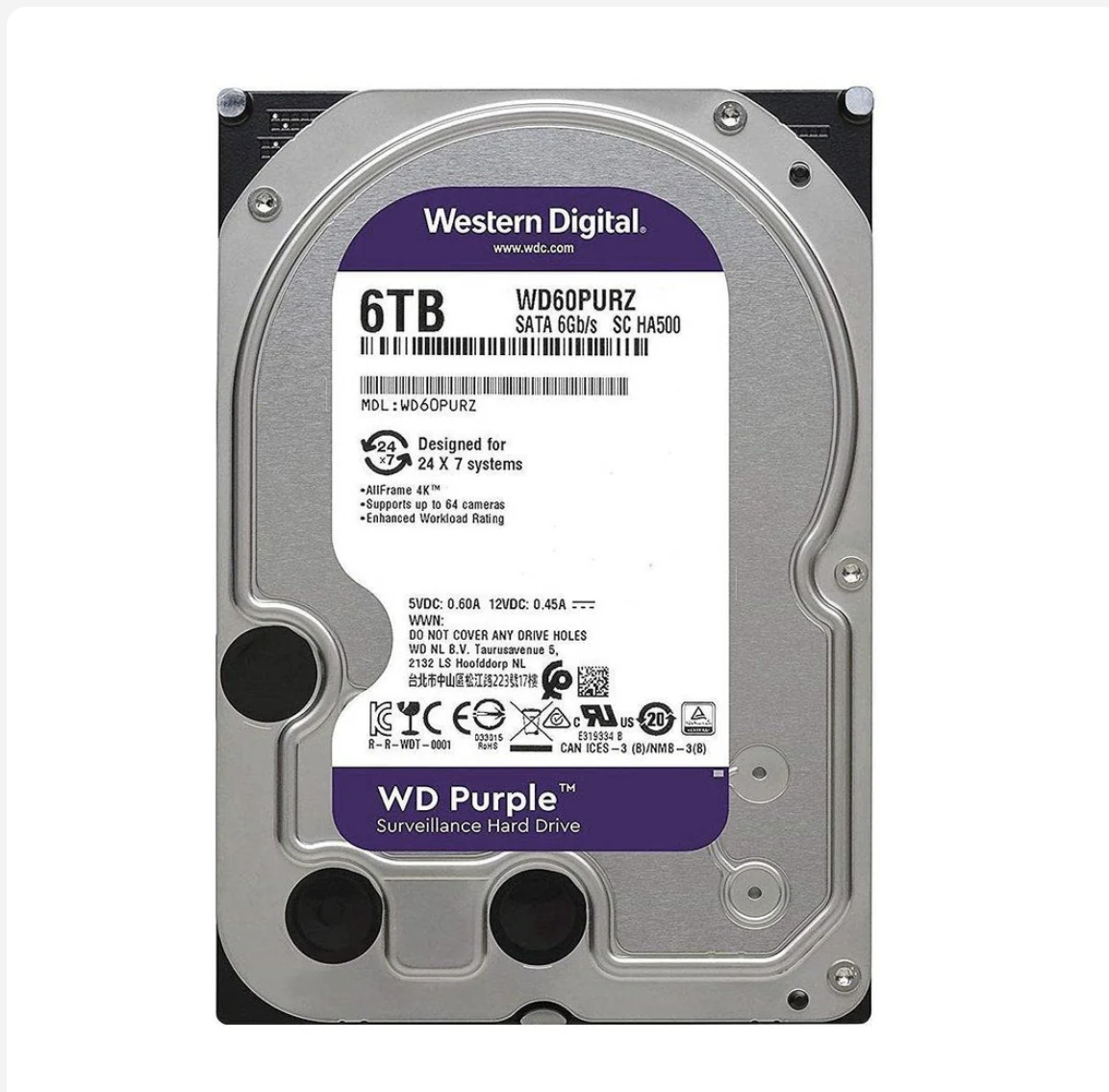

6TB HDD – WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR
High quality hard drives, specifically tested for use with Hikvision DVRs and NVRs. Simply order your additional drives with your DVR order to have them installed and formatted prior to dispatch.
This product is either a WD Purple or Seagate Skyhawk. Both are excellent surveillance grade hard drives. If you have a preference for one over another, please let us know.

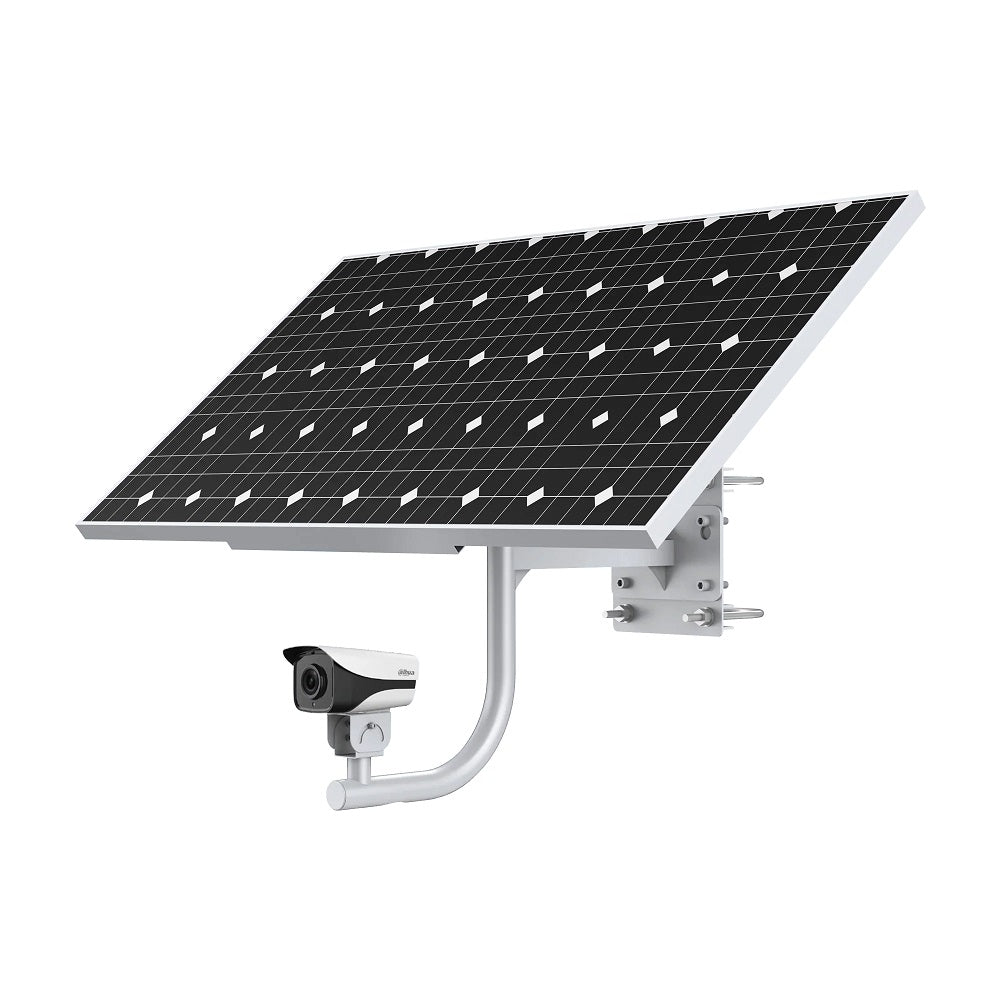

100W Integrated Solar Monitoring System(With Lithium Battery)
Dahua 100W Solar Camera System Kit Includes:
- x 1 DH-PFM378-B100-WB
- x 1 DH-IPC-DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
- x 1 PFM372-L45-4S14P
Description: The Dahua 100W Integrated Solar Monitoring System with Lithium Battery Kit is a comprehensive solution for efficient energy management. It combines solar panels- a lithium battery- and advanced monitoring technology into a single package. With 100 watts of power- it’s suitable for various applications- from residential to commercial.
Contents:
Specifications
Solar Panel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type |
Monocrystalline silicon |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Power |
100 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Voltage |
18.8 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Solar Cell Efficiency |
21% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Mechanical Load |
5400 Pa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Controller | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Type |
MPPT |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage |
12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated Charging Current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated discharge current |
10 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MPPT Tracking Efficiency |
≥ 99% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Mode |
RS485 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rated Charging Power |
130 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Over-discharge Protection Voltage |
11.1 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Others |
Over-temperature -over-discharge-overa-voltage and low-temperature protection of battery; overload and short circuit protection of load. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output |
Φ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22″ × Φ0.08″ × 0.47″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS–485 |
Red: RS485-ABlack: RS485-B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Port |
CSA authorized M15 2-core waterproof connector (connected to lithium battery) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Body Material |
Q235 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Rating |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Pole mount- Φ80mm~Φ150mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Adjustable Angle |
Solar panel: H: 360°- V: 20°/40°/60° Camera: H: 360°- V: 0°–75° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
815mm x 846.8mm x 893.3mm (32.1” x 33.3” x 35.2”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
880 mm × 765 mm × 275 mm (34.65″ × 30.12″ × 10.83″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Method |
1 pc in each carton |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
20.1 kg (44.31 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
23.8 kg (52.47 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude |
< 3000 m (9842.5 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applicable Area |
Areas with daily exposure to solar radiation for more than 3.5 hours |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
< 95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
< 95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: EN 55032:2015+A11:2020-EN 55035:2017+A11:2020-EN 55024:2010+A1:2015-EN 50130-4:2011+A1:2014 UKCA: EN 55032:2015+A11:2020-EN 55035:2017+A11:2020-EN 55024:2010+A1:2015-EN 50130-4:2011+A1:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
@0/86

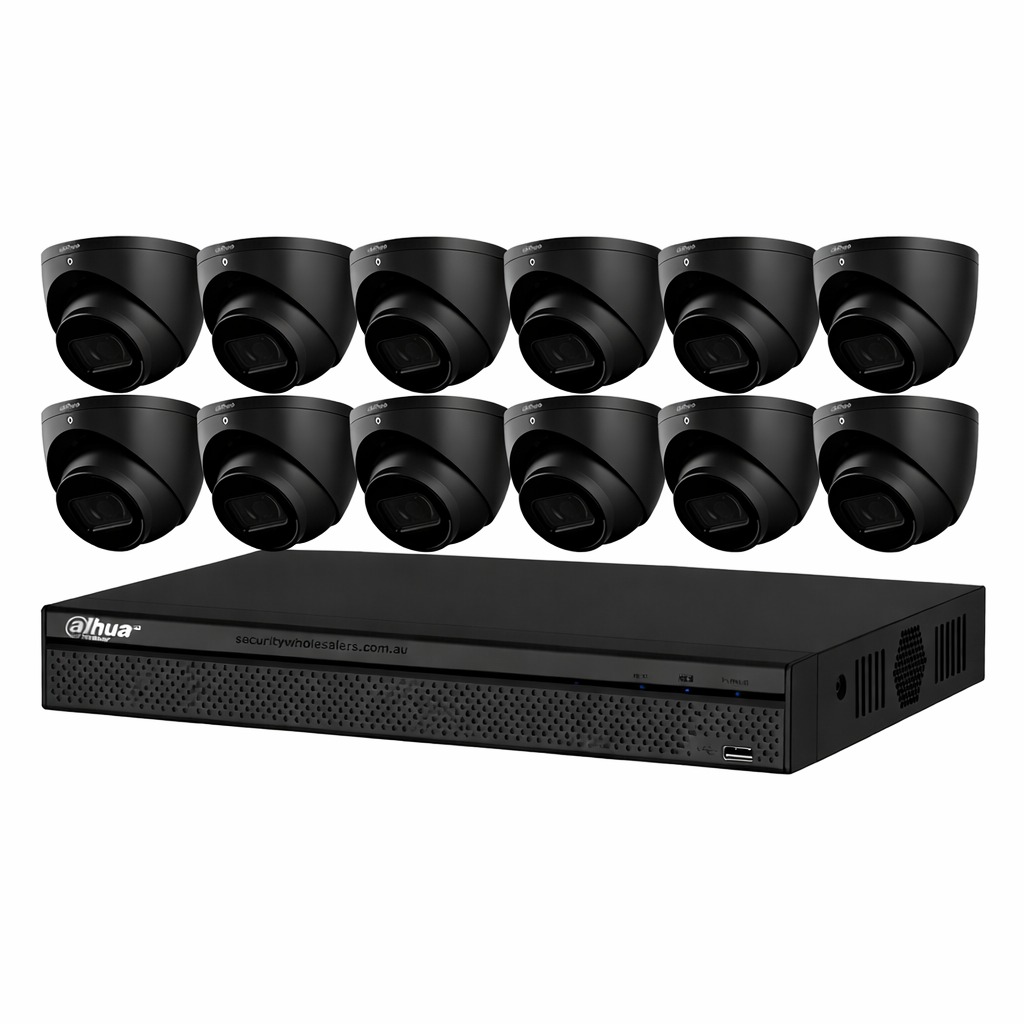

Dahua 12 x [Black] 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Kit 50m IR 2.8mm with SMD + 16CH NVR Wizsense AI
10 x 6MP [Black] cameras | Built-in Mic | 16CH NVR + NO HDD | Smart Motion Detection
Dahua 16ch 6MP Turret Kit includes:
1 x DHI-NVR4216-16P-4KS2,
12 x DH-IPC-HDW3666EMP-S-AUS,
6TB HDD Installed.
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings -Outputs max.6MP (3072 × 2048) @25/30 fps | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy, reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you to draw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED, up to 50 metres distance.
(Optional: Junction box PFA130, Wall Mount: PFB204W)
Model Code: DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive, it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Technical Camera Features:
· 6MP, 1/2.7”progressive scan CMOS, low illuminance, high image definition
· Outputs max. 6MP (3072 × 1728) @20 fps,and supports 4MP(2688 x 1520)@30fps
· H.265 codec (high efficiency encoding), high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 50 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
· Handles well in varying light conditions: Wide Dynamic Range (WDR), 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
· Intelligent detection: Tripwire, intrusion – important for perimeter protection.
· Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
· Supports max. 256 G Micro SD card, built-in Mic
· 12V DC/PoE power supply
· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
SMD 4.0 With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms. Also, SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
This camera has SMD4.0
The below Hard Drive will be pre-installed in the NVR.
6TB HDD – WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR
High quality hard drives, specifically tested for use with Hikvision DVRs and NVRs. Simply order your additional drives with your DVR order to have them installed and formatted prior to dispatch.
This product is either a WD Purple or Seagate Skyhawk. Both are excellent surveillance grade hard drives. If you have a preference for one over another, please let us know.

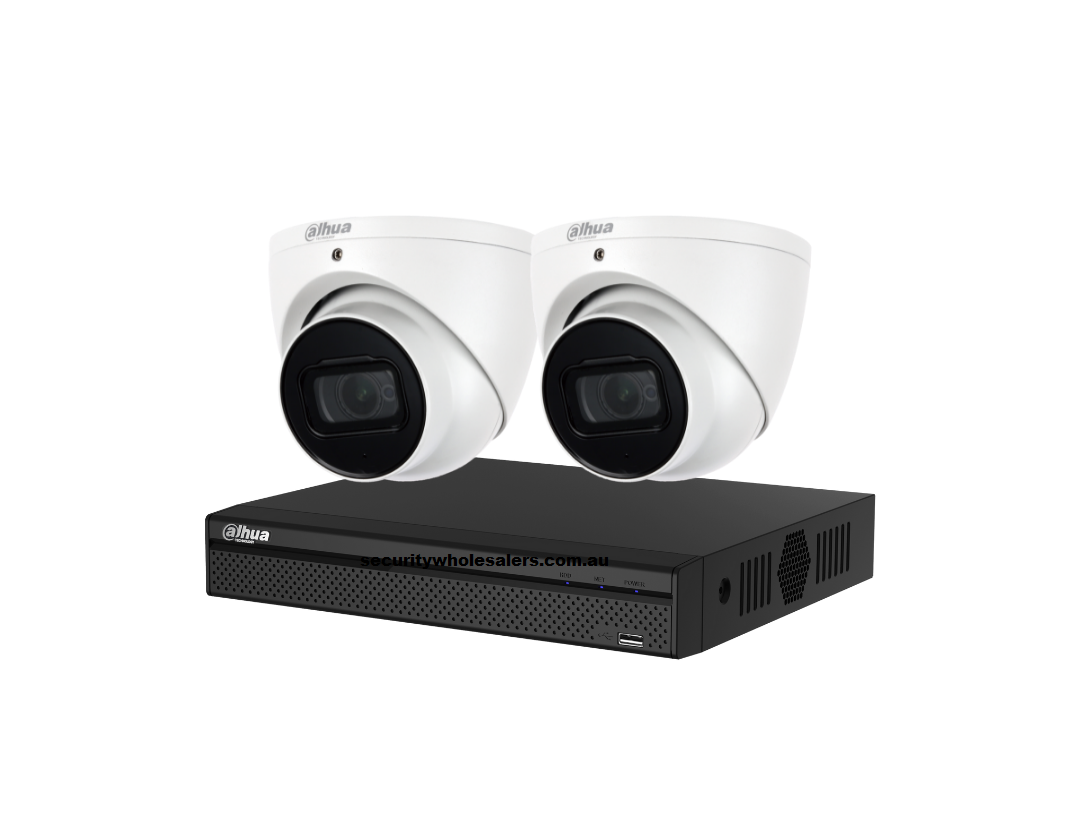

Dahua 2 x 6MP DH-IPC-HDW3666EM Turret Security Kit 50m IR 2.8mm + 4CH NVR Wizsense
$631.97
Unit price perDahua 2 x 6MP DH-IPC-HDW3666EM Turret Security Kit 50m IR 2.8mm + 4CH NVR Wizsense
$631.97
Unit price per2 x 6MP cameras | Built-in Mic | 4CH NVR| Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4104HS-P-4KS2/L- 2 x DH-IPC-HDW3641EM-AS-
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy- reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs:DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:· 6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps· H.265 codec (high efficiency encoding)- high compression rate- low bit rate· Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: includes rotation mode- Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes· Intelligent detection: Tripwire- intrusion – important for perimeter protection.· Abnormality detection: Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual- 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search- event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265-H.264-H.264B-H.264H- MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas- rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T)- CGI- Milestone- Genetec- P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS- DSS- DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%)- PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
@52/63

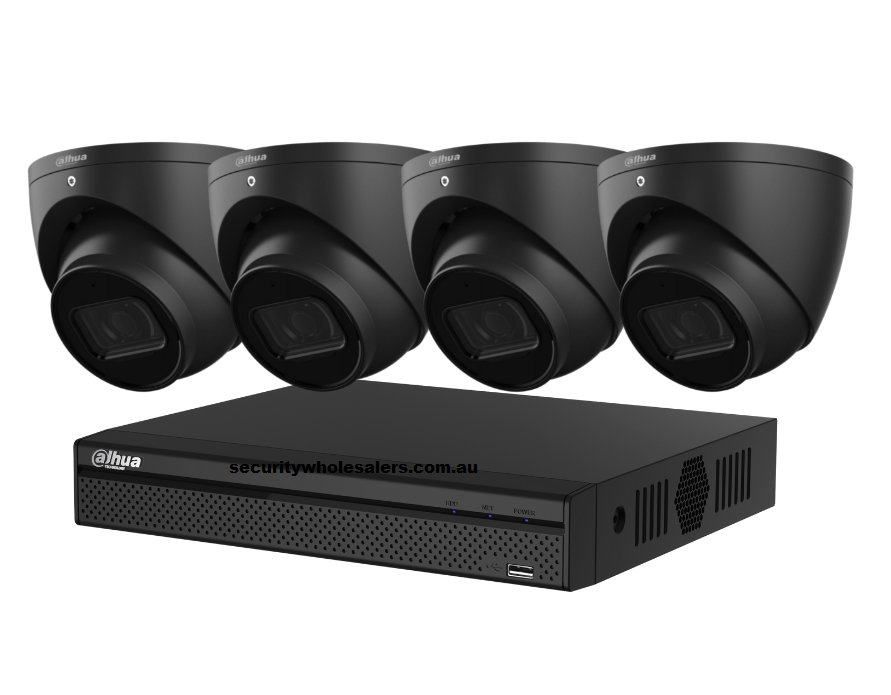

Dahua 4 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 4CH NVR/ Wizsense AI
$1,013.97
Unit price perDahua 4 x 6MP DH-IPC-HDW3641EM Turret Security Kit 50m IR 2.8mm with SMD + 4CH NVR/ Wizsense AI
$1,013.97
Unit price per4 x 6MP cameras | Built-in Mic | 4CH NVR + NO HDD INCLUDED | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4104HS-P-4KS2/L- 4 x DH-IPC-HDW3641EM-AS- Need a Hard Drive? Add one below
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy- reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
Model Codes: DH-IPC-HDW3641EMP-AS / DH-IPC-HDW3641EM-AS-0280B-AUS (same)
Download Specs:DH-IPC-HDW3641EMP-S-0280B-AUS-S2
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:· 6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps· H.265 codec (high efficiency encoding)- high compression rate- low bit rate· Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: includes rotation mode- Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes· Intelligent detection: Tripwire- intrusion – important for perimeter protection.· Abnormality detection: Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection· SMD Plus – Smart Motion Detection Plus that differentiates humans and vehicles from false targets.
Contents:
@82/65
Dahua 4 x 6MP DH-IPC-HDW3649H-AS-PV-ANZ TIOC 2.0 with Wizsense Turret 4CH Kit
Dahua 4 x 6MP DH-IPC-HDW3649H-AS-PV-ANZ TIOC 2.0 with Wizsense Turret 4CH Kit
Dahua 4ch 6MP Turret Kit | TiOC 2.0 | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection Plus
Model: 1 x DHI-NVR4104HS-P-AI/ANZ- 4 x DH-IPC-HDW3649H-AS-PV-ANZ
This Dahua 4-channel 6MP TiOC 2.0 turret kit delivers proactive surveillance with full-colour night vision- advanced deterrence- and intelligent detection. With built-in microphones- speakers- and strobe lights- these cameras are ideal for both home and business use- offering 24/7 protection and smart motion alerts.
Kit Includes:
1 x DHI-NVR4104HS-P-AI/ANZ 4CH PoE Network Video Recorder
4 x DH-IPC-HDW3649H-AS-PV-ANZ 6MP TiOC 2.0 Full-Colour IP Turret Cameras
NO HARD DRIVE. CHOOSE ONE BELOW
Key Features
6MP Ultra-HD Recording: Cameras feature 6MP 1/2.7” CMOS sensors delivering sharp 3200 × 1800 resolution with excellent clarity in all conditions.
Active Deterrence: Cameras include built-in red/blue strobe lights and speaker for real-time alarms to deter intruders before incidents occur.
Smart Dual Illuminators: Automatically switches from IR to full-colour warm light when motion is detected- delivering colour video up to 30m at night.
Smart Motion Detection Plus: Leverages SMD 4.0 for highly accurate human and vehicle detection- significantly reducing false alarms.
Built-in Audio: Dual mics and speaker in each camera enable two-way talk for communication and deterrence directly through the mobile app or NVR interface.
Weatherproof & PoE Ready: IP67-rated cameras are built for outdoor use and connect easily via PoE for simplified installation and cabling.
Highlighted Features
Description:
@0/60
Dahua 4 x 6MP DH-IPC-HDW3666EMP-S-AUS AI Turret Security Kit 50m IR 2.8mm with Wizsense + AI 4CH NVR
$1,013.97
Unit price perDahua 4 x 6MP DH-IPC-HDW3666EMP-S-AUS AI Turret Security Kit 50m IR 2.8mm with Wizsense + AI 4CH NVR
$1,013.97
Unit price per4 x 6MP cameras | Built-in Mic | 4CH AI NVR | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes:
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD4.0) – detects humans and vehicles with high accuracy- reducing false alarms. New SMD4.0 – better false alarm filtering.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
Model Code: DH-IPC-HDW3666EMP-S-AUS
Download Specs:DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:· 6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps· H.265 codec (high efficiency encoding)- high compression rate- low bit rate· Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes· Intelligent detection: Tripwire- intrusion – important for perimeter protection.· Abnormality detection: Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
Contents:
@82/65
Dahua 4 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit + 4CH NVR + 2TB HDD
$1,164.97
Unit price perDahua 4 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit + 4CH NVR + 2TB HDD
$1,164.97
Unit price per4 x 6MP cameras | Built-in Mic | 4CH NVR + 2TB | Smart Motion Detection
DH-IPC-HDW3666EMP-S-AUS
Product Overview
Dahua 4ch 6MP Turret Kit includes:1 xDHI-NVR4104HS-P-AI/ANZ-4 x DH-IPC-HDW3666EMP-S-AUS-1 x Security HD-2TB installed
Key Features
Local Storage Support: Each camera supports up to 256 GB MicroSD card for on-board backup and edge recording capabilities.
Starlight Technology: Enhanced image clarity even in low-light environments with up to 3072 × 1728 resolution at 25/30fps.
Smart Motion Detection 4.0: SMD 4.0 reduces false alarms by accurately identifying human and vehicle shapes with advanced AI.
Perimeter Protection: Draw customised digital boundaries on your NVR interface to get instant alerts for intrusions or movement across restricted zones.
Extended IR Night Vision: Built-in infrared LEDs provide up to 50 metres of visibility for continuous protection at night.
Highlighted Features
NOTE
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Additional Information
DH-IPC-HDW3666EMP-S-AUS Datasheet
Description: SKU: Dahua 4 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit + 4CH NVR + 2TB HDD
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual- 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search- event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265-H.264-H.264B-H.264H- MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas- rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T)- CGI- Milestone- Genetec- P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS- DSS- DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%)- PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
@94/66
Dahua 4 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR + 4CH NVR BLACK
$1,072.97
Unit price perDahua 4 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR + 4CH NVR BLACK
$1,072.97
Unit price per4 x 6MP cameras | Built-in Mic | 4CH NVR | Smart Motion Detection BLACK
Dahua 4ch 6MP Turret Kit includes:
4 x DH-IPC-HDW3666EMP-S-AUS- BLACK
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD4.0) – detects humans and vehicles with high accuracy- reducing false alarms. New SMD4.0 – better false alarm filtering.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
Model Code: DH-IPC-HDW3666EMP-S-AUS
Download Specs:DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:· 6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps· H.265 codec (high efficiency encoding)- high compression rate- low bit rate· Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes· Intelligent detection: Tripwire- intrusion – important for perimeter protection.· Abnormality detection: Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
Contents:
@87/65
4 x 6MP cameras | Built-in Mic | 4CH NVR + 2TB | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 xDHI-NVR4104HS-P-AI/ANZ
4 x DH-IPC-HDW3666EMP-S-AUS- 1 x Security HD-2TB installed
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – 3072 × 1728 resolution | PoE
Smart Motion Detection (SMD4.0) – detects humans and vehicles with high accuracy- reducing false alarms. New SMD4.0 – better false alarm filtering.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
Model Code: DH-IPC-HDW3666EMP-S-AUS
Download Specs:DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:· 6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps· H.265 codec (high efficiency encoding)- high compression rate- low bit rate· Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes· Intelligent detection: Tripwire- intrusion – important for perimeter protection.· Abnormality detection: Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual- 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search- event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265-H.264-H.264B-H.264H- MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas- rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T)- CGI- Milestone- Genetec- P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS- DSS- DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%)- PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
@94/66
Dahua 4 x 6MP TIOC Advanced 2.0 DH-IPC-HDW3649H-AS-PV-ANZ Turret Kit 4CH NVR
Dahua 4 x 6MP TIOC Advanced 2.0 DH-IPC-HDW3649H-AS-PV-ANZ Turret Kit 4CH NVR
6 Megapixel cameras | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0
Product Overview
This Dahua 4 Channel 6MP TiOC turret kit is designed for proactive deterrence and intelligent monitoring. Featuring four Dahua DH-IPC-HDW3649H-AS-PV-ANZ 6MP TiOC Advanced 2.0 cameras- the system offers full-colour video at night- red and blue warning lights- and a built-in microphone and speaker for two-way communication. Powered by WizSense and SMD 4.0- it filters out false alarms with remarkable precision. With a powerful 2.8mm fixed lens- IR and warm light up to 30m- and compatibility with AI-enabled motion detection- it provides an intelligent surveillance solution for homes and small businesses.
Kit Inclusions
Dahua 8ch 6MP Dahua TIOC Turret Kit includes: 1 xDHI-NVR4104HS-P-AI/ANZ- 4 x DH-IPC-HDW3649H-AS-PV-ANZ
4 of Dahua TIOC Advanced 2.0 DH-IPC-HDW3649H-AS-PV-ANZ Dahua 6MP AI Active Deterrence Full color Starlight IP Turret Camera
Additional Information
Description:
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100-000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color- 30 IRE)0.0004 lux@F1.0 (B/W- 30 IRE)0 lux (illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | ﹥ 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED)1 (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft)3.6 mm: 2.8 m (6.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 91.0 m (298.56 ft) | 36.4 m
( 119.42 ft) |
18.2 m
(59.71 ft) |
9.1 m
(29.86 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 107.6 m (353.02 ft) | 43.0 m
( 141.08 ft) |
21.5 m
(70.54 ft) |
10.8 m
(35.43 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Professional- intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD 3.0 | Less false alarm- longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search- event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream: 1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams- the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 3 kbps–20480 kbpsH.265: 3 kbps–20480 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 72 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE8/9/11ChromeFirefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15- Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE)Max. (H.265+main stream/IR intensity+warm light on): 7.8 W(12 VDC) 9.6 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 745 g (163.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 915 g (200.6 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dahua 4 x 8MP DH-IPC-HDW3866EMP-S-AUS Turret Security CCTV Kit with 4CH Wizsense NVR
Dahua 4 x 8MP DH-IPC-HDW3866EMP-S-AUS Turret Security CCTV Kit with 4CH Wizsense NVR
8MP cameras + 4CHWizsense NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
Dahua 8ch 8MP Eyeball Kit includes: 1 xDHI-NVR4104HS-P-AI/ANZ-4 x DH-IPC-HDW3866EMP-S-AUS- NO HDD IS INCLUDED- please select from the options below
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 30 metres distance.
Smart Motion Detection – ie. Human / Vehicle filtering
Resilient “Weather-Proof” Ingress Protection Rating (IP67)
SMD 4.0:With upgraded AI capabilities- the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm- SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.Also- SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
Description: Dahua 8ch 8MP Eyeball Kit includes: 1 xDHI-NVR4104HS-P-AI/ANZ- 4 xDH-IPC-HDW3866EMP-S-AUS
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) ×2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100- 000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.009 Lux@F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F2.0
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
3.6 mm: Pan 87° × Tilt 47° × Diagonal 104° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS | Tripwire; intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream:
3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 2 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas- rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest(RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A; G.711Mu; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE
Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD:EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15- Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | < 7.2W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40°C to +55°C (–40°F to +131°F)/less than ? 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 99.1mm × ?121.9 mm (3.9″ × ?4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.48 kg (1.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.65 kg (1.4 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
@0/60
Dahua 4 x 8MP DH-IPC-HDW3866EMP-S-AUS Turret Security CCTV Kit with 8CH Wizsense NVR
Dahua 4 x 8MP DH-IPC-HDW3866EMP-S-AUS Turret Security CCTV Kit with 8CH Wizsense NVR
8MP cameras + 8CHWizsense NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 4 x DH-IPC-HDW3866EMP-S-AUS- NO HDD IS INCLUDED- please select from the options below
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 30 metres distance.
Smart Motion Detection – ie. Human / Vehicle filtering
Resilient “Weather-Proof” Ingress Protection Rating (IP67)
SMD 4.0:With upgraded AI capabilities- the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm- SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.Also- SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
Description: Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 4 xDH-IPC-HDW3866EMP-S-AUS
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) ×2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100- 000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.009 Lux@F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F2.0
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
3.6 mm: Pan 87° × Tilt 47° × Diagonal 104° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS | Tripwire; intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream:
3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 2 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas- rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest(RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A; G.711Mu; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE
Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD:EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15- Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | < 7.2W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40°C to +55°C (–40°F to +131°F)/less than ? 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 99.1mm × ?121.9 mm (3.9″ × ?4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.48 kg (1.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.65 kg (1.4 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
@0/60
Dahua 4 x 8MP DH-IPC-HDW3867EM-S-IL-ANZ Turret Security CCTV Kit with 8CH Wizsense NVR
Dahua 4 x 8MP DH-IPC-HDW3867EM-S-IL-ANZ Turret Security CCTV Kit with 8CH Wizsense NVR
8MP Smart Dual Light cameras + 8CH Wizsense NVR | Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
Model Numbers
DHI-NVR4108HS-8P-AI/ANZ- DH-IPC-HDW3867EM-S-IL-ANZ
Product Overview
The Dahua 8ch 8MP Eyeball Kit is designed for smart surveillance in residential and commercial spaces. It includes an 8-channel WizSense NVR and four high-resolution eyeball cameras with intelligent dual light and advanced detection features. Local storage up to 512GB per camera adds flexibility. NO HDD IS INCLUDED—please select from the options below.
Kit Inclusions
1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE NVR
4 × Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP Smart Dual Light Eyeball Cameras
Key Features
Intelligent Detection: Includes perimeter protection and smart motion detection (human/vehicle filtering) for precise alerting with minimal false alarms. Users can draw a digital boundary and receive mobile push notifications if it’s breached.
Dual Illumination: Built-in IR and warm light provide up to 30m range each- ensuring excellent image clarity in total darkness with optional colour or B&W recording based on trigger conditions.
SMD 4.0 Technology: Powered by AI and deep learning- SMD 4.0 reduces false alarms by filtering out animals and irrelevant movement while retaining colour metadata of people and vehicles for forensic search.
Starlight Sensor & 8MP Clarity: The cameras capture high-resolution 3840 × 2160 images with enhanced low-light performance- suitable for demanding security scenarios.
IP67 Weatherproof Rating: Rugged housing makes the cameras suitable for outdoor use in all weather conditions- offering long-term durability and protection.
Audio Support: Built-in microphones capture environmental sound to complement video footage for clearer incident context.
Edge Storage: Each camera supports MicroSD cards up to 512GB- enabling localized video storage even if the NVR is temporarily disconnected.
Highlighted Features
Additional Information
Description: Product SKU: DHI-NVR4108HS-8P-AI/ANZ + DH-IPC-HDW3867EM-S-IL-ANZ
Contents:
@0/60
Dahua 4 x 8MP TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2 Turret Kit 8CH NVR
Dahua 4 x 8MP TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2 Turret Kit 8CH NVR
Dahua 8ch 4 x 8MP Turret Kit | TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2With SMD| Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0
Dahua 8ch 8MP Turret Kit includes:
1 x DHI-NVR4108HS-8P-AI/ANZ Wizsense NVR4 x TIOC Advanced 3.0 with SMD4.0 DH-IPC-HDW3849H-AS-PV-ANZ-S2
Key Features
Active Deterrence with Sound & Light Alarm: Built-in speaker and flashing red-blue lights act as a proactive deterrent against intruders when triggered.
Smart Motion Detection (SMD 4.0): AI-powered algorithm filters out irrelevant motion- only alerting for humans and vehicles.
Full-Colour Night Vision with Dual Illumination: Switches from IR to warm LED lighting on detection- delivering 24/7 colour footage in low light.
Built-in Microphone & Speaker: Enables real-time audio communication and surveillance via two-way audio support.
Perimeter Protection: Intelligent detection features include tripwire and intrusion with human/vehicle classification for accurate alerts.
Highlighted Features
Additional Information
Description:
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100-000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color- 30 IRE)0.0004 lux@F1.0 (B/W- 30 IRE)0 lux (illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | ﹥ 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED)1 (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft)3.6 mm: 2.8 m (6.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 91.0 m (298.56 ft) | 36.4 m
( 119.42 ft) |
18.2 m
(59.71 ft) |
9.1 m
(29.86 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 107.6 m (353.02 ft) | 43.0 m
( 141.08 ft) |
21.5 m
(70.54 ft) |
10.8 m
(35.43 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Professional- intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD 3.0 | Less false alarm- longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search- event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream: 1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams- the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 3 kbps–20480 kbpsH.265: 3 kbps–20480 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 72 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE8/9/11ChromeFirefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15- Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE)Max. (H.265+main stream/IR intensity+warm light on): 7.8 W(12 VDC) 9.6 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 745 g (163.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 915 g (200.6 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dahua 4 x 8MP TiOC CCTV Kit: Full Colour Night Vision/ Audible Warning 4CH PoE AI NVR
Dahua 4 x 8MP TiOC CCTV Kit: Full Colour Night Vision/ Audible Warning 4CH PoE AI NVR
8MP Cameras | TiOC 3.0 Full Colour | Built-in Mic & Speaker | 2.8mm Fixed Lens | Smart Motion Detection 4.0
Model: 4 x DH-IPC-HDW3849H-AS-PV-ANZ-S2 + 1 x DHI-NVR4104HS-P-AI/ANZ
This Dahua 4 x 8MP TiOC CCTV Kit combines intelligent deterrence and high-resolution clarity in a single package. Each 8MP turret camera captures sharp- full-colour footage day or night with powerful white light and advanced AI-based detection. Built-in microphones and loudspeakers allow for real-time two-way audio and active deterrence using red/blue strobe lights and sirens. Paired with a powerful 4-channel PoE AI NVR- this system enables smart playback- AI event filtering- and remote access through the Dahua app. Ideal for home and small business owners seeking proactive- intelligent surveillance with minimal false alerts and high reliability.
Kit Inclusions
- 4 x DH-IPC-HDW3849H-AS-PV-ANZ-S2 – 8MP TiOC 3.0 Active Deterrence IP Turret Cameras
- 1 x DHI-NVR4104HS-P-AI/ANZ – 4 Channel AI PoE Network Video Recorder
Key Features
8MP Resolution: Delivers crystal-clear Ultra HD 3840 × 2160 footage for forensic-level detail and wider coverage.
Full-Colour Night Vision: Integrated warm LED light maintains vivid colour footage even in complete darkness.
Active Deterrence: Red/blue strobe lights and siren respond to human/vehicle intrusion to stop crime before it happens.
Two-Way Audio: Built-in mic and speaker for remote communication and alerts through the Dahua app.
Smart Motion Detection 4.0: Enhanced AI filters out non-human/vehicle movement to reduce false alarms.
AI NVR Integration: SMD+- AI search- and remote access via mobile or desktop through Dahua’s WizSense platform.
PoE Setup: Easy single-cable installation for both power and data- simplifying the wiring process.
Additional Information
Description:
Contents:
@0/60
Dahua 4 x BLACK 8MP TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2 Turret Kit with 8CH NVR
Dahua 4 x BLACK 8MP TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2 Turret Kit with 8CH NVR
Dahua 8MP Kit | TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2With SMD | Built-in Mic & Speaker | 2.8mm Fixed Lens | Full-Color Night Vision | Smart Motion Detection
This Dahua 8-channel 8MP turret kit is equipped with cutting-edge surveillance technology- featuring four black DH-IPC-HDW3849H-AS-PV-ANZ TiOC Advanced 2.0 cameras with SMD 4.0. Designed to proactively detect and deter threats- each camera includes full-colour night vision- active deterrence features- and smart dual lighting. Paired with the reliable DHI-NVR4108HS-8P-AI/ANZ 8-channel NVR- this setup offers high-resolution footage- intelligent detection- and real-time audio communication- ideal for both residential and commercial protection.
Kit Inclusions
1 x DHI-NVR4108HS-8P-AI/ANZ WizSense NVR4 x DH-IPC-HDW3849H-AS-PV-ANZ 8MP Turret Cameras
Key Features
8MP Ultra HD Resolution: Capture crisp- high-definition footage with enhanced detail- perfect for accurate facial and object recognition in any lighting condition.
Smart Motion Detection 4.0: Advanced motion detection reduces false alarms by precisely distinguishing human and vehicle movements.
Full-Color Night Vision: Maintain vibrant- colour-rich video even in complete darkness- enhancing visibility and threat identification at night.
Active Deterrence: Integrated mic- speaker- and strobe light provide instant- real-time warnings to deter intruders before incidents escalate.
Weatherproof & Durable: With an IP67-rated housing- these turret cameras withstand harsh weather conditions- making them ideal for both indoor and outdoor use.
Highlighted Features
Additional Information
Description:
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100-000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color- 30 IRE)0.0004 lux@F1.0 (B/W- 30 IRE)0 lux (illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | ﹥ 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED)1 (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft)3.6 mm: 2.8 m (6.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 91.0 m (298.56 ft) | 36.4 m
( 119.42 ft) |
18.2 m
(59.71 ft) |
9.1 m
(29.86 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 107.6 m (353.02 ft) | 43.0 m
( 141.08 ft) |
21.5 m
(70.54 ft) |
10.8 m
(35.43 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Professional- intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD 3.0 | Less false alarm- longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search- event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream: 1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams- the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 3 kbps–20480 kbpsH.265: 3 kbps–20480 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 72 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE8/9/11ChromeFirefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15- Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE)Max. (H.265+main stream/IR intensity+warm light on): 7.8 W(12 VDC) 9.6 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 745 g (163.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 915 g (200.6 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dahua 6 MP + 8 Channels Kit: 2 x 6MP TiOC and 2 x 6MP Turret Cameras with 8CH AI NVR
Dahua 6 MP + 8 Channels Kit: 2 x 6MP TiOC and 2 x 6MP Turret Cameras with 8CH AI NVR
Dahua 6 MP + 8 Channels Kit:
The Dahua 6 MP + 8 Channels Kit includes a comprehensive security solution with four high-resolution cameras. It features two 6MP TiOC cameras and two 6MP turret cameras- offering exceptional image clarity. The kit is paired with an 8-channel AI NVR- providing advanced video recording and management capabilities. TiOC cameras in this kit are equipped with three-in-one features: full-color- active deterrence- and AI. This setup ensures robust surveillance- ideal for both residential and commercial properties.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
2 x 6MP Fixed Turret DH-IPC-HDW3666EMP-S-AUS
Contents:
@0/60
