Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS AI Turret Kit 50m IR + 8CH NVR + 2TB HDD
Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS AI Turret Kit 50m IR + 8CH NVR + 2TB HDD
6 x 6MP cameras | Built-in Mic | 8CH NVR + 2TB | Smart Motion Detection
Dahua 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 x DH-IPC-HDW3666EMP-S-AUS- 1 x Security HD-2TB installed
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) @25/30 fps| PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy- reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
(Optional: Junction box PFA130- Wall Mount: PFB204W)
Model Code: DH-IPC-HDW3666EMP-S-AUS
Download Specs:DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:·6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps·H.265 codec (high efficiency encoding)- high compression rate- low bit rate·Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes·Intelligent detection: Tripwire- intrusion – important for perimeter protection.·Abnormality detection:Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual- 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search- event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265-H.264-H.264B-H.264H- MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas- rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T)- CGI- Milestone- Genetec- P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS- DSS- DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%)- PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
@0/60
Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS Eyeball / Turret Kit 50m IR + 8CH NVR + 2TB HDD/ Wizsense
Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS Eyeball / Turret Kit 50m IR + 8CH NVR + 2TB HDD/ Wizsense
DH-IPC-HDW3666EMP-S-AUS
6 x 6MP cameras | Built-in Mic | 8CH NVR + 2TB | Smart Motion Detection | 50m IR | Weatherproof IP67
Dahua 8ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 x DH-IPC-HDW3666EMP-S-AUS- 1 x Security HD-2TB installed
Key Features
Localised camera footage storage capability: Supports up to 256 GB MicroSD card for in-camera video retention without requiring NVR dependency.
High clarity Starlight Technology: Captures crystal-clear 6MP (3072 × 2048) video at 25/30fps even in low-light conditions with PoE connectivity.
Smart Motion Detection (SMD 4.0): Utilises AI to detect humans and vehicles- minimising false alarms triggered by irrelevant movement.
Intelligent Detection & Perimeter Protection: Allows you to set digital tripwires or intrusion zones via the NVR and receive push alerts when breached.
Extended Infrared Night Vision: Built-in IR LED technology enables visibility up to 50 metres in complete darkness for 24/7 protection.
Highlighted Features
Additional Information
DH-IPC-HDW3666EMP-S-AUS Datasheet
Description: Product SKU: DH-IPC-HDW3666EMP-S-AUS
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual- 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search- event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265-H.264-H.264B-H.264H- MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas- rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T)- CGI- Milestone- Genetec- P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS- DSS- DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%)- PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
@0/60
Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Kit 50m IR 2.8mm with SMD + 8CH NVR
Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Kit 50m IR 2.8mm with SMD + 8CH NVR
6 x 6MP cameras | Built-in Mic | 8CH NVR | Smart Motion Detection SMD4.0
Dahua 8ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 x DH-IPC-HDW3666EMP-S-AUS
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) @25/30 fps| PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy- reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
(Optional: Junction box PFA130- Wall Mount: PFB204W)
Model Code: DH-IPC-HDW3666EMP-S-AUS
Download Specs:DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:·6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps·H.265 codec (high efficiency encoding)- high compression rate- low bit rate·Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes·Intelligent detection: Tripwire- intrusion – important for perimeter protection.·Abnormality detection:Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
Contents:
@0/60
Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Kit 50m IR 2.8mm with SMD + 8CH NVR (BLACK)
Dahua 6 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Kit 50m IR 2.8mm with SMD + 8CH NVR (BLACK)
6 x 6MP cameras | Built-in Mic | 8CH NVR | Smart Motion Detection SMD4.0
Dahua 8ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 x DH-IPC-HDW3666EMP-S-AUS BLACK
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) @25/30 fps| PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy- reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
(Optional: Junction box PFA130- Wall Mount: PFB204W)
Model Code: DH-IPC-HDW3666EMP-S-AUS
Download Specs:DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:·6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps·H.265 codec (high efficiency encoding)- high compression rate- low bit rate·Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes·Intelligent detection: Tripwire- intrusion – important for perimeter protection.·Abnormality detection:Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
Contents:
@0/60
6 x 6MP cameras | Built-in Mic | 8CH AI NVR + 2TB | Smart Motion Detection
Dahua 4ch 6MP Turret Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ 6 x DH-IPC-HDW3666EMP-S-AUS- 1 x Security HD-2TB installed
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
High clarity Starlight Technology: Let’s you see clear footage in dark settings – Outputs max.6MP (3072 × 2048) @25/30 fps| PoE
Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy- reducing false alarms.
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 50 metres distance.
(Optional: Junction box PFA130- Wall Mount: PFB204W)
Model Code: DH-IPC-HDW3666EMP-S-AUS
Download Specs:DH-IPC-HDW3666EMP-S-AUS
If the system is purchased with a hard drive- it will be pre-installed in the NVR.
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
Technical Camera Features:·6MP- 1/2.7”progressive scan CMOS- low illuminance- high image definition· Outputs max. 6MP (3072 × 1728) @20 fps-and supports 4MP(2688 x 1520)@30fps·H.265 codec (high efficiency encoding)- high compression rate- low bit rate·Built-in IR LED- max. IR distance: 50 m· ROI- SMART H.264+/H.265+- flexible coding- applicable to various bandwidth and storage environments· Handles well in varying light conditions: Wide Dynamic Range (WDR)- 3D DNR- HLC- BLC- digital watermarking- applicable to various monitoring scenes·Intelligent detection: Tripwire- intrusion – important for perimeter protection.·Abnormality detection:Motion detection- video tampering- defocus detection; scene changing- audio detection- no SD card- SD card full- SD card error- network disconnection- IP conflict- illegal access- voltage detection· Supports max. 256 G Micro SD card- built-in Mic· 12V DC/PoE power supply· Ingress Protection Weather-Proof Rating: IP67 weather resistant protection
Contents:
Specifications
| Camera | |
| Image Sensor | 1/2.7” 6Megapixel progressive scan CMOS |
| Max. Resolution | 3072(H) x 1728(V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual- 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux @F1.6 |
| S/N Ratio | ＞56 dB |
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115° |
| 3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94° | |
| Iris Type | Auto |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) |
| 3.6 mm: 1.6 m (5.3 ft) | |
| Professional and Intelligent | |
| IVS (Perimeter Protection) | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform a refined intelligent search- event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265-H.264-H.264B-H.264H- MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps) |
| Substream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |
| Third stream (1920 × 1080@1–25/30 fps) | |
| Stream Capability | 3 streams |
| Resolution | 3072 × 1728 |
| 2592 × 1944 | |
| 2688 × 1520 | |
| 2560 × 1440 | |
| 2304 × 1296 | |
| 1080p (1920 × 1080) | |
| 1.3M (1280 × 960) | |
| 720p (1280 × 720) | |
| D1 (704 × 576/704 × 480) | |
| VGA (640 × 480) | |
| CIF (354 × 288/354 × 240) | |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps | |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas- rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T)- CGI- Milestone- Genetec- P2P |
| User/Host | 20 Users |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS |
| Browser | IE: IE8 and later |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS- DSS- DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certification | EN 55032 |
| EN 61000-3-2 | |
| EN 61000-3-3 | |
| EN 55024 | |
| EN 50130-4 | |
| EN55035 | |
| Power | |
| Power Supply | 12V DC (±30%)- PoE (802.3af) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | Φ106 mm × 93.6 mm (4.17” × 3.69”) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
@0/60
Dahua 6 x 6MP TIOC DH-IPC-HDW3649H-AS-PV-ANZ Turret Kit with 8CH NVR
Dahua 6 x 6MP TIOC DH-IPC-HDW3649H-AS-PV-ANZ Turret Kit with 8CH NVR
Dahua 8ch 6 x 6MP Turret Kit|TiOC 2.0 Full Color|Built-in Mic & Speaker|2.8mm fixedlens |Smart Motion Detection 4.0
Dahua 8ch 6MP Dahua TIOC Turret Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 x DH-IPC-HDW3649H-AS-PV-ANZ Dahua TIOC Advanced 2.0 6MP AI Active Deterrence Full color Starlight IP Turret Camera
Description:
Contents:
@0/72
Dahua 6 x 8MP DH-IPC-HDW3866EMP-S-AUS SMD 4.0 Turret Security CCTV Kit with 8CH Wizsense NVR
Dahua 6 x 8MP DH-IPC-HDW3866EMP-S-AUS SMD 4.0 Turret Security CCTV Kit with 8CH Wizsense NVR
8MP cameras + 8CHWizsense NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 x DH-IPC-HDW3866EMP-S-AUS
Localised camera footage storage capability: up to 256 GB MicroSD Card storage
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in Infrared LED- up to 30 metres distance.
Smart Motion Detection – ie. Human / Vehicle filtering
Resilient “Weather-Proof” Ingress Protection Rating (IP67)
SMD 4.0：With upgraded AI capabilities- the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm- SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.Also- SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
Description: Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 xDH-IPC-HDW3866EMP-S-AUS
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) ×2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 256 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100- 000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.009 Lux@F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F2.0
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
3.6 mm: Pan 87° × Tilt 47° × Diagonal 104° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS | Tripwire; intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream:
3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 2 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas- rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest(RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711A; G.711Mu; G.726 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; Micro SD card (support max. 256 G); NAS; SFTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE
Chrome Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | IOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE-LVD:EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15- Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | < 7.2W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40°C to +55°C (–40°F to +131°F)/less than ? 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 99.1mm × ?121.9 mm (3.9″ × ?4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.48 kg (1.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.65 kg (1.4 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
@0/60
Dahua 6 x 8MP TIOC Active Deterrance Turret Kit with 8CH NVR Wizsense
Dahua 6 x 8MP TIOC Active Deterrance Turret Kit with 8CH NVR Wizsense
Dahua 8ch 6 x 8MP Turret Kit | TiOC 3.0 With SMD 4.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0
DH-IPC-HDW3849H-AS-PV-ANZ-S2
Dahua 8ch 8MP Turret Kit includes:
1 x DHI-NVR4108HS-8P-AI/ANZ Wizsense NVR-
6 x TIOC Advanced 3.0 with SMD4.0 DH-IPC-HDW3849H-AS-PV-ANZ-S2
NO HDD Installed. Add one below:
Key Features
8MP Ultra-HD Imaging: Capture exceptional detail in both day and night conditions with 3840×2160 resolution and Starlight sensor technology.
Active Deterrence: Built-in red and blue strobe lights and a speaker issue alerts when motion is detected- proactively deterring threats before entry occurs.
SMD 4.0 & AI SSA: Enhanced Smart Motion Detection reduces false alarms by intelligently identifying humans and vehicles in complex environments.
Two-Way Audio: Integrated microphone and speaker enable real-time communication for interactive deterrence and evidence recording.
Full Colour Night Vision: Dual illuminator design enables infrared or warm-light activation upon detection for full-colour night recording.
Highlighted Features
Additional Information
Description:
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100-000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color- 30 IRE)0.0004 lux@F1.0 (B/W- 30 IRE)0 lux (illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | ﹥ 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED)1 (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft)3.6 mm: 2.8 m (6.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 91.0 m (298.56 ft) | 36.4 m
( 119.42 ft) |
18.2 m
(59.71 ft) |
9.1 m
(29.86 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 107.6 m (353.02 ft) | 43.0 m
( 141.08 ft) |
21.5 m
(70.54 ft) |
10.8 m
(35.43 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Professional- intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD 3.0 | Less false alarm- longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search- event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream: 1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams- the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 3 kbps–20480 kbpsH.265: 3 kbps–20480 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 72 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE8/9/11ChromeFirefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15- Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE)Max. (H.265+main stream/IR intensity+warm light on): 7.8 W(12 VDC) 9.6 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 745 g (163.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 915 g (200.6 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dahua 6 x BLACK 8MP TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2 Turret Kit with 8CH NVR Wizsense
Dahua 6 x BLACK 8MP TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2 Turret Kit with 8CH NVR Wizsense
Dahua 8ch 6 x BLACK 8MP Turret Kit | TIOC 3.0 IPC-HDW3849H-AS-PV-ANZ-S2With SMD 4.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 4.0
Dahua 8ch 8MP Turret Kit includes:
1 x DHI-NVR4108HS-8P-AI/ANZ Wizsense NVR-
6 x TIOC Advanced 2.0 with SMD4.0 DH-IPC-HDW3849H-AS-PV-ANZ-S2
NO HDD Installed. Add one below:
Description:
Contents:
Specifications
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100-000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color- 30 IRE)0.0004 lux@F1.0 (B/W- 30 IRE)0 lux (illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | ﹥ 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) (IR)30 m (98.43 ft) (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED)1 (warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft)3.6 mm: 2.8 m (6.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.8 mm | 91.0 m (298.56 ft) | 36.4 m
( 119.42 ft) |
18.2 m
(59.71 ft) |
9.1 m
(29.86 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.6 mm | 107.6 m (353.02 ft) | 43.0 m
( 141.08 ft) |
21.5 m
(70.54 ft) |
10.8 m
(35.43 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Professional- intelligent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SMD 3.0 | Less false alarm- longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search- event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream: 1920 × 1080@(1 fps–30 fps)*The values above are the max. frame rates of each stream; for multiple streams- the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 3 kbps–20480 kbpsH.265: 3 kbps–20480 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scene Self-adaptation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | OFF/ON (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Defog | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 8 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | 20 (Total bandwidth: 72 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Browser | IE: IE8/9/11ChromeFirefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mobile Phone | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15- Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE)Max. (H.265+main stream/IR intensity+warm light on): 7.8 W(12 VDC) 9.6 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 745 g (163.1 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 915 g (200.6 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras/ AI NVR CCTV Kit
Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras/ AI NVR CCTV Kit
6 x 8MP Smart Dual Light cameras + 8CHWizsense NVR| Starlight Sensor | Built-In Mic | 3840 × 2160 resolution
Dahua 8ch 8MP Eyeball Kit includes: 1 x DHI-NVR4108HS-8P-AI/ANZ- 6 x DH-IPC-HDW3867EM-S-IL-ANZNO HDD IS INCLUDED- please select from the options below
Localised camera footage storage capability: up to 512 GB MicroSD Card storage
Intelligent Detection & Perimeter Protection – allows you todraw a digital perimeter on the NVR to define safe boundary perimeter before triggering push notification alert to your phone.
Built-in multi-core light- the max. IR distance is 30 m and the max. warm light distance is 30 m
Smart Motion Detection – ie. Human / Vehicle filtering
Resilient “Weather-Proof” Ingress Protection Rating (IP67)
SMD 4.0：With upgraded AI capabilities- the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm- SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.Also- SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
Description: Product SKU: 6xDH-IPC-HDW3867EM-S-IL-ANZ +8CHNVR
Contents:
@0/60
6MP resolution | Smart Dual-Light turret cams with 30m IR & warm light | 16-channel PoE NVR with AI (Face/Vehicle detection- SMD 4.0) | Weather resistant & built-in mic
Model Numbers DH-IPC-HDW3667EM-S-IL-ANZ cameras • DHI-NVR4216-16P-AI/ANZ recorder
Product Overview
This CCTV kit bundles Dahua 6MP Smart Dual Light Turret Cameras (DH-IPC-HDW3667EM-S-IL-ANZ) featuring built-in microphone- PoE- IP67 protection- and advanced AI analytics; paired with the Dahua DHI-NVR4216-16P-AI/ANZ 16-channel WizSense NVR that supports face & vehicle detection- SMD Plus- and efficient H.265+ compression. Perfect for large residential properties- warehouses- or small businesses requiring scalable surveillance with capacity for up to 16 cameras.
Package / Kit Inclusions
- 10× Dahua 6MP Smart Dual Light Turret – DH-IPC-HDW3667EM-S-IL-ANZ
- 1× Dahua 16-Channel WizSense NVR – DHI-NVR4216-16P-AI/ANZ
- Cables- brackets- and accessories are available separately (Not included)
- Hard drive (Not included – scroll down to choose a hard drive)
Highlighted Features
NOTE
Hard drive not included by default; add a surveillance-class HDD for local recording. Cables- brackets and accessories are sold separately.
Additional Information
Description: Product SKU: DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4216-16P-AI/ANZ
Contents:
@0/84
6MP resolution | Smart Dual-Light turret cams with 30m IR & warm light | 16-channel PoE NVR with AI (Face/Vehicle detection- SMD 4.0) | Weather resistant & built-in mic
Model Numbers DH-IPC-HDW3667EM-S-IL-ANZ cameras • DHI-NVR4216-16P-AI/ANZ recorder
Product Overview
This CCTV kit bundles eight Dahua 6MP Smart Dual Light Turret Cameras (DH-IPC-HDW3667EM-S-IL-ANZ) featuring built-in microphone- PoE- IP67 protection- and advanced AI analytics; paired with the Dahua DHI-NVR4216-16P-AI/ANZ 16-channel WizSense NVR that supports face & vehicle detection- SMD Plus- and efficient H.265+ compression. Ideal for users who want scalability with spare NVR capacity for future camera expansion.
Package / Kit Inclusions
- 8× Dahua 6MP Smart Dual Light Turret – DH-IPC-HDW3667EM-S-IL-ANZ
- 1× Dahua 16-Channel WizSense NVR – DHI-NVR4216-16P-AI/ANZ
- Cables- brackets- and accessories are available separately (Not included)
- Hard drive (Not included – scroll down to choose a hard drive)
Highlighted Features
NOTE
Hard drive not included by default; add a surveillance-class HDD for local recording. Cables- brackets and accessories are sold separately.
Additional Information
Description: Product SKU: DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4216-16P-AI/ANZ
Contents:
@0/72
6MP resolution | Smart Dual-Light turret cams with 30m IR & warm light | 4-channel PoE NVR with AI (Face/Vehicle detection- SMD 4.0) | Weather resistant & built-in mic
Model Numbers DH-IPC-HDW3667EM-S-IL-ANZ cameras • DHI-NVR4104HS-P-AI/ANZ recorder
Product Overview

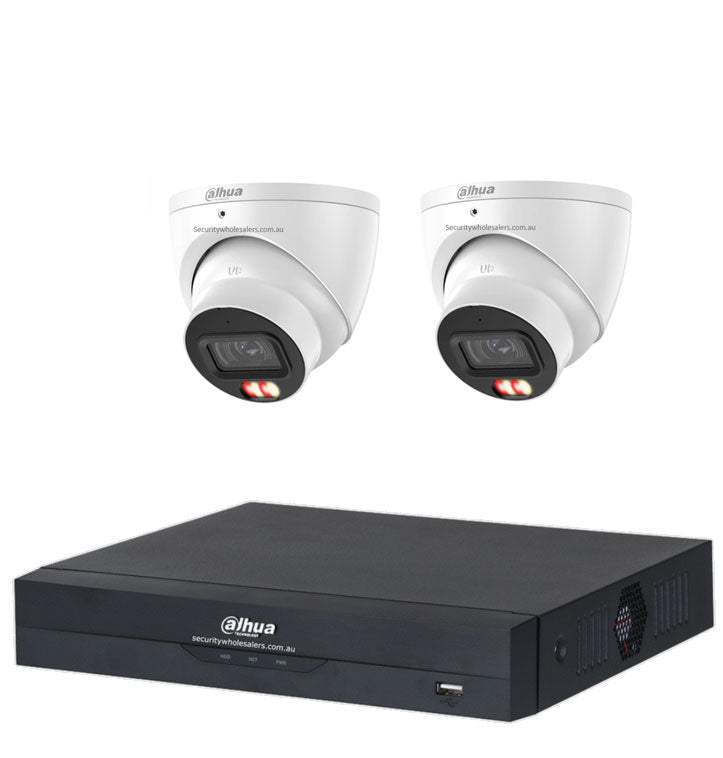

This CCTV kit bundles two Dahua 6MP Smart Dual Light Turret Cameras (DH-IPC-HDW3667EM-S-IL-ANZ) featuring built-in microphone- PoE- IP67 protection- and advanced AI analytics; paired with the Dahua DHI-NVR4104HS-P-AI/ANZ 4-channel WizSense NVR that supports face & vehicle detection- SMD Plus- and efficient H.265+ compression. Ideal for both residential and small business surveillance setups.
Package / Kit Inclusions
- 2× Dahua 6MP Smart Dual Light Turret – DH-IPC-HDW3667EM-S-IL-ANZ
- 1× Dahua 4-Channel WizSense NVR – DHI-NVR4104HS-P-AI/ANZ
Highlighted Features
Additional Information
Description: Product SKU: DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4104HS-P-AI/ANZ
Contents:
@57/63
6MP resolution | Smart Dual-Light turret cams with 30m IR & warm light | 4-channel PoE NVR with AI (Face/Vehicle detection- SMD 4.0) | Weather resistant & built-in mic
Model Numbers DH-IPC-HDW3667EM-S-IL-ANZ cameras • DHI-NVR4104HS-8P-AI/ANZ recorder
Product Overview
This CCTV kit bundles four Dahua 6MP Smart Dual Light Turret Cameras (DH-IPC-HDW3667EM-S-IL-ANZ) featuring built-in microphone- PoE- IP67 protection- and advanced AI analytics; paired with the Dahua DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense NVR that supports face & vehicle detection- SMD Plus- and efficient H.265+ compression. Ideal for medium homes and small businesses needing up to 8 camera support.
Package / Kit Inclusions
- 4× Dahua 6MP Smart Dual Light Turret – DH-IPC-HDW3667EM-S-IL-ANZ
- 1× Dahua 4-Channel WizSense NVR – DHI-NVR4104HS-4P-AI/ANZ
- Cables- brackets- and accessories are available separately (Not included)
- Hard drive (Not included – scroll down to choose a hard drive)
Highlighted Features
Additional Information
Description: Product SKU: DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4104HS-4P-AI/ANZ
Contents:
@85/65
6MP resolution | Smart Dual-Light turret cams with 30m IR & warm light | 8-channel PoE NVR with AI (Face/Vehicle detection- SMD 4.0) | Weather resistant & built-in mic
Model Numbers DH-IPC-HDW3667EM-S-IL-ANZ cameras • DHI-NVR4108HS-8P-AI/ANZ recorder
Product Overview

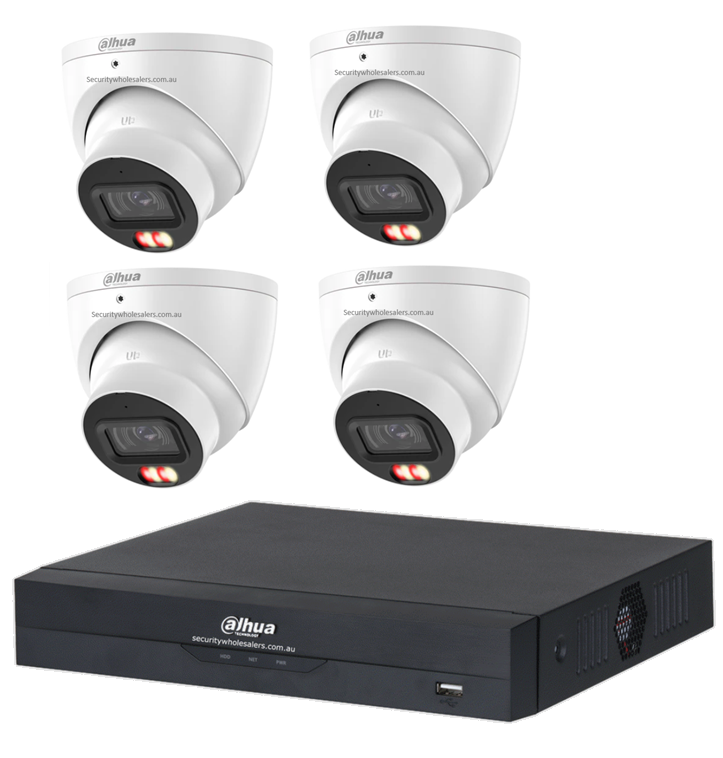

This CCTV kit bundles four Dahua 6MP Smart Dual Light Turret Cameras (DH-IPC-HDW3667EM-S-IL-ANZ) featuring built-in microphone- PoE- IP67 protection- and advanced AI analytics; paired with the Dahua DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense NVR that supports face & vehicle detection- SMD Plus- and efficient H.265+ compression. Ideal for medium homes and small businesses needing up to 8 camera support.
Package / Kit Inclusions
- 4× Dahua 6MP Smart Dual Light Turret – DH-IPC-HDW3667EM-S-IL-ANZ
- 1× Dahua 8-Channel WizSense NVR – DHI-NVR4108HS-8P-AI/ANZ
- Cables- brackets- and accessories are available separately (Not included)
- Hard drive (Not included – scroll down to choose a hard drive)
Highlighted Features
Additional Information
Description: Product SKU: DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4108HS-8P-AI/ANZ
Contents:
@91/66
6MP resolution | Smart Dual-Light turret cams with 30m IR & warm light | 8-channel PoE NVR with AI (Face/Vehicle detection- SMD 4.0) | Weather resistant & built-in mic
Model Numbers DH-IPC-HDW3667EM-S-IL-ANZ cameras • DHI-NVR4108HS-8P-AI/ANZ recorder
Product Overview
This CCTV kit bundles six Dahua 6MP Smart Dual Light Turret Cameras (DH-IPC-HDW3667EM-S-IL-ANZ) featuring built-in microphone- PoE- IP67 protection- and advanced AI analytics; paired with the Dahua DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense NVR that supports face & vehicle detection- SMD Plus- and efficient H.265+ compression. Perfect for larger homes and small businesses requiring up to 8 camera coverage.
Package / Kit Inclusions
- 6× Dahua 6MP Smart Dual Light Turret – DH-IPC-HDW3667EM-S-IL-ANZ
- 1× Dahua 8-Channel WizSense NVR – DHI-NVR4108HS-8P-AI/ANZ
- Cables- brackets- and accessories are available separately (Not included)
- Hard drive (Not included – scroll down to choose a hard drive)
Highlighted Features
Additional Information
Description: Product SKU: DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4108HS-8P-AI/ANZ
Contents:
@0/60
6MP resolution | Smart Dual-Light turret cams with 30m IR & warm light | 8-channel PoE NVR with AI (Face/Vehicle detection- SMD 4.0) | Weather resistant & built-in mic
Model Numbers DH-IPC-HDW3667EM-S-IL-ANZ cameras • DHI-NVR4108HS-8P-AI/ANZ recorder
Product Overview
This CCTV kit bundlesDahua 6MP Smart Dual Light Turret Cameras (DH-IPC-HDW3667EM-S-IL-ANZ) featuring built-in microphone- PoE- IP67 protection- and advanced AI analytics; paired with the Dahua DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense NVR that supports face & vehicle detection- SMD Plus- and efficient H.265+ compression. A complete solution for maximum coverage on homes or businesses requiring full 8-camera support.
Package / Kit Inclusions
- 8× Dahua 6MP Smart Dual Light Turret – DH-IPC-HDW3667EM-S-IL-ANZ
- 1× Dahua 8-Channel WizSense NVR – DHI-NVR4108HS-8P-AI/ANZ
- Cables- brackets- and accessories are available separately (Not included)
- Hard drive (Not included – scroll down to choose a hard drive)
Highlighted Features
Additional Information
Description: Product SKU: DH-IPC-HDW3667EM-S-IL-ANZ & DHI-NVR4108HS-8P-AI/ANZ
Contents:
@0/62

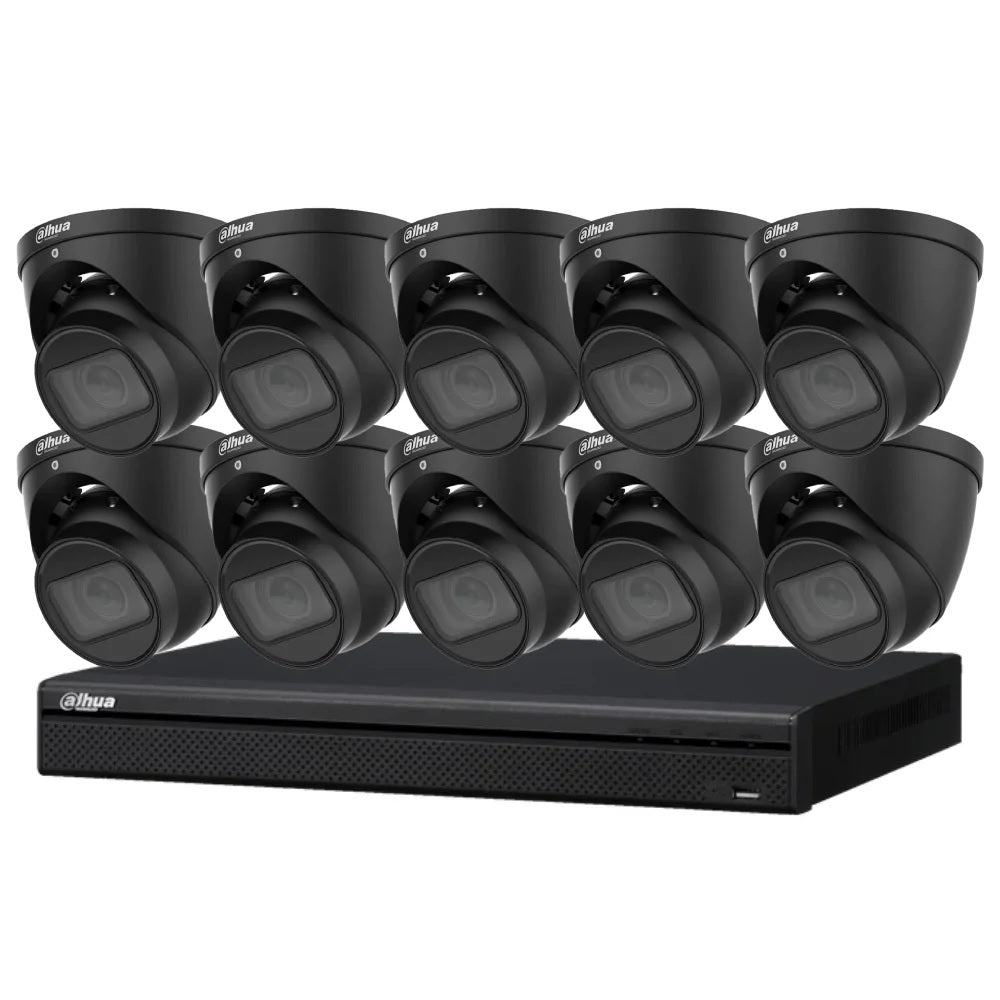

Dahua 8 MP + 16 Channels Kit: 10 x WizSense Fixed Starlight Turret Cameras/ AI NVR – Black
Dahua 8 MP + 16 Channels Kit: 10 x WizSense Fixed Starlight Turret Cameras/ AI NVR – Black
Dahua 3×66 8MP 16ch Kit includes:
- 10 x 8MP 2.8mm Fixed LensDH-IPC-HDW3866EMP-S-AUS-BLK
- 1 x 16chDHI-NVR4216-16P-AI/ANZ
Dahua 8 MP + 16 Channels Kit: 10 x WizSense Fixed Starlight Turret Cameras- AI NVR- 3X66-K81610T-B
Description:
Launched by Dahua Technology- WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy- enabling users to fast act on defined targets. Based on Dahua’s advanced technologies- WizSense provides intelligent- simple and inclusive products and solutions.
DH-IPC-HDW3866EMP-S-AUS-BLKDahua Security Camera 8MP (4K) WizSense Fixed Starlight Turret- 2.8mm- Perimeter- SMD 4.0- SD Card- WDR- IR50m- Built-in Mic- IP67- POE- Black
Contents:
@0/88
