D-Link DNR16-4802-4 Full HD Surveillance Kit

This D-Link Full HD Surveillance Kit includes a 16-channel network video recorder and 4 outdoor Full HD PoE cameras so that you can always keep an eye on your home or business. The network video will allow you to record video as well as watch it live, and you can connect it directly to your TV or monitor so there is no need to have a computer.

• The cameras will capture in Full HD with a 1920 x 1080 resolution.
• There are 4 outdoor cameras included in this kit, and the recorder can fit up to 16 cameras in total.
• The cameras are weatherproof and can film in the day and at night.
• The kit features 2 bays for an HDD and can support up to 16 TB of video storage.
• The cameras have inbuilt motion detection.
• You can set email alerts based on your needs.
• The Set-Up Wizard ensures that you can easily get your system up and run.
• You can simultaneously record and view live footage.
• It features a video out so that you can plug it directly into a monitor or TV.

Comes with

DNR-2020-04P (Hard Disk Not included)

• Live view and recording from up to 16 cameras
• Plug-and-Play installation
• Motion detection and e-mail alerts
• Video out for TV/Monitor (no computer required)
• Four built-in PoE ports
• Two bays for HDD, up to 16TB of video storage

The DNR-2020-04P JustConnect 16-Channel PoE Network Video Recorder is an all-in-one network video recorder (NVR) that can record video from up to 16 network cameras1 to its dual HDD storage2. With the integrated HDMI/VGA display output and USB port3, users can view, control and configure the DNR-2020-04P without the need to turn on their PC.

Featuring Power over Ethernet (PoE), the NVR supplies power to up to four PoE cameras, saving valuable time and electrical installation costs during setup.

Powered by an embedded system, the DNR-2020-04P supports real-time remote monitoring and playback via a web browser using the NVR's web GUI. Additionally, support for audio in/out, DI/DO triggering, and external USB 3.0 storage for video export and backups fill the needs of small businesses.

The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD. The recorded data can be backed up to external USB disks or additional storage locations such as FTP servers whenever required.

The included DCS-260 Multi-NVR Viewer is a comprehensive network surveillance software designed for SMB and enterprise users. Using an intuitive user interface, you can centrally manage up to 128 NVR devices and network cameras, allowing you to efficiently control multiple D-Link NVRs located in different areas.

Users can remotely monitor their surveillance network in real-time through the JustConnect+ mobile app for smartphones or tablets. It offers total peace-of-mind 24/7 for business owners to view live video or playback recorded footage, at any time, when connected to the Internet.

1. Please see the camera compatibility list.
2. Hard disks are not included. Supports hard disks up to 8 TB each for a total of 16 TB.
3. This port is used for firmware updates, video exports to USB drives, and backups. Connection to a USB mouse/keyboard is supported.
4. RAID 0 and RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use identical SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. Some older generation SATA drives may not be compatible.

It also comes with 4 x

Vigilance Full HD Day & Night Outdoor Turret PoE Network Camera

DCS-4802E

• Full HD 1080p resolution, up to 1920x1080 @ 30fps
• Flexible installation options with 3-axis gimbal
• IP66 weatherproof compact and robust housing
• Built-in IR LED illumination
• Wide Dynamic Range image enhancement
• 3D noise reduction filter
• Built-in 802.3af PoE
• ONVIF compliant

The D-Link DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/3” megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

Features

High-Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-4802E provides real-time video compression using the H.264 and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

The DCS-4802E’s digital wide dynamic range (WDR) video enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-4802E also has built-in IR LED illuminators with a 20m range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

PoE = Convenience

Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4802E has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4602EV can also be powered by a standard 12V DC, 1.5A power adapter (not included).

Robust Management Software

The DCS-4802E Vigilance Full HD Outdoor Mini Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

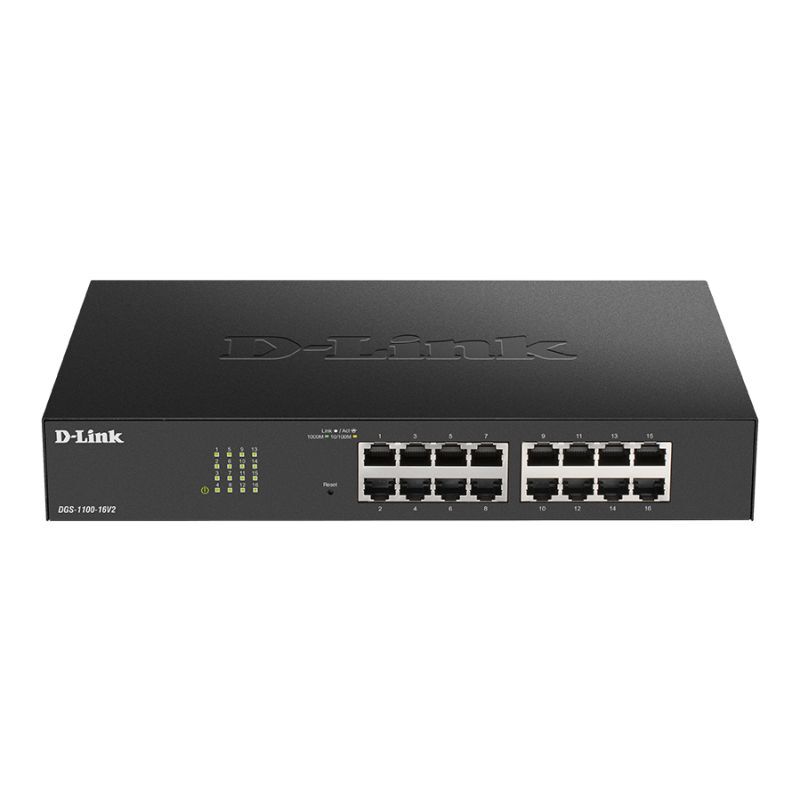

About D-Link 16-Port Gigabit Smart Managed Switch

16-Port Gigabit Smart Managed Switch designed for SMB's who expect a lot of their network including support for surveillance and VoIP.

Specifications:

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper
• Number of Ports: 5 - 16
• PoE Type Required: None
• High Speed Stacking: No
• Design: Desktop | Rackmountable | Fanless
• 1000Base-T ports: 16 Ports
• Switching Capacity: 32 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 4K Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 9216 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant | D-Link Green | RoHS 6 Compliant
• 19 Inch Rack Mountable: Yes
• Fans: Fanless
• Built-in PSU: Yes
• Dimensions (Size): 280 x 180 x 44 mm
• Web-based GUI: Yes
• Command Line Interface: No
• Types of ports: Gigabit Ports
• Static Routing: No
• Switch Series: DGS-1100 Series

Features:

• 16 x 10/100/1000BASE-T ports
• Fanless design for silent operation
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic ensuring timely delivery
• Segregate different types of traffic such as surveillance or voice with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go significantly cutting down network traffic
• Innovative energy saving features are good for your budget as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

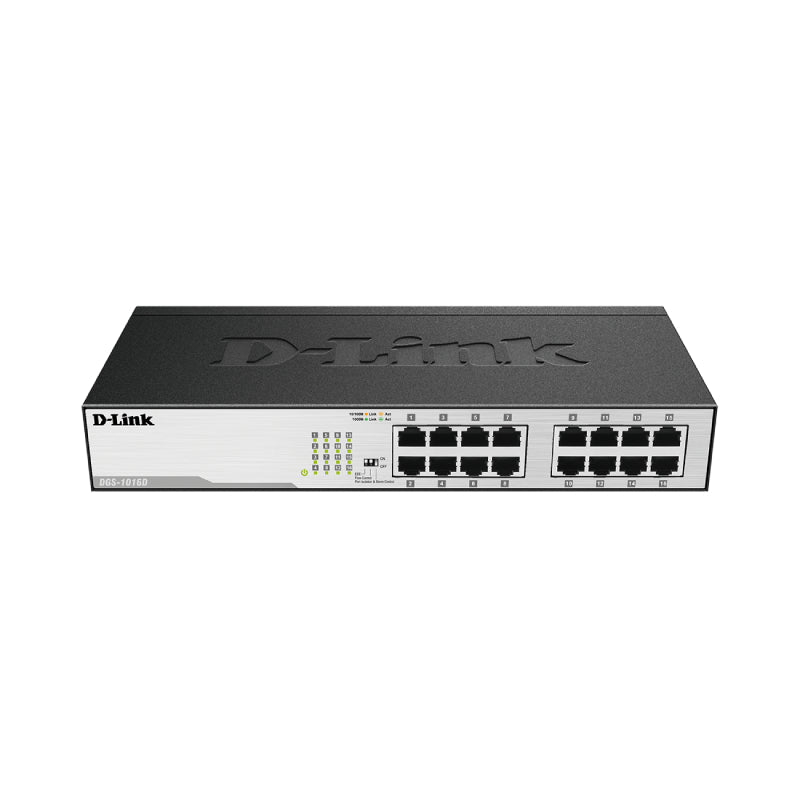

About D-Link 16-Port Gigabit Unmanaged Switch

The DGS-1016D Unmanaged Gigabit Switch brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network.

Specifications:

• Port Type: Gigabit
• Number of Ports: 16 - 24
• PoE Type Required: None
• Design: Metal | Fanless | Rackmountable
• Ethernet Speed: Gigabit
• LAN Ports: 16
• Housing: Metal
• Power Supply: Internal
• Fanless Design for Silent Operation: Yes
• Rackmountable: Yes
• Compact Design for Home and Office Use: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 280 x 125 x 44 mm
• Warranty: 3-Year Limited Warranty

Features:

• 16 Gigabit ports
• Fanless design for quiet operation
• D-Link Green power saving features
• 802.3az Energy-Efficient Ethernet (EEE)
• Metal Housing

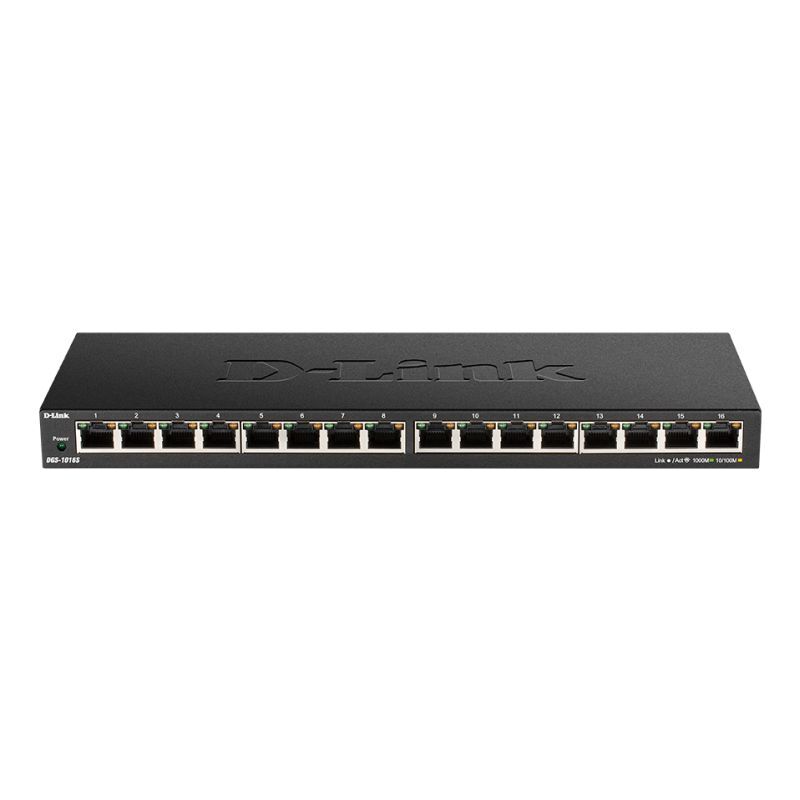

About D-Link 16-Port Low Profile Gigabit Unmanaged Switch

The DGS-1016S Low Profile Unmanaged Gigabit Switch brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network.

Specifications:

• Port Type: Gigabit
• Number of Ports: 16 - 24
• PoE Type Required: None
• Design: Metal | Fanless
• Ethernet Speed: Gigabit
• LAN Ports: 16
• Housing: Metal
• Power Supply: External Adapter
• Fanless Design for Silent Operation: Yes
• Compact Design for Home and Office Use: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 280 x 110 x 25 mm
• Warranty: 3-Year Limited Warranty

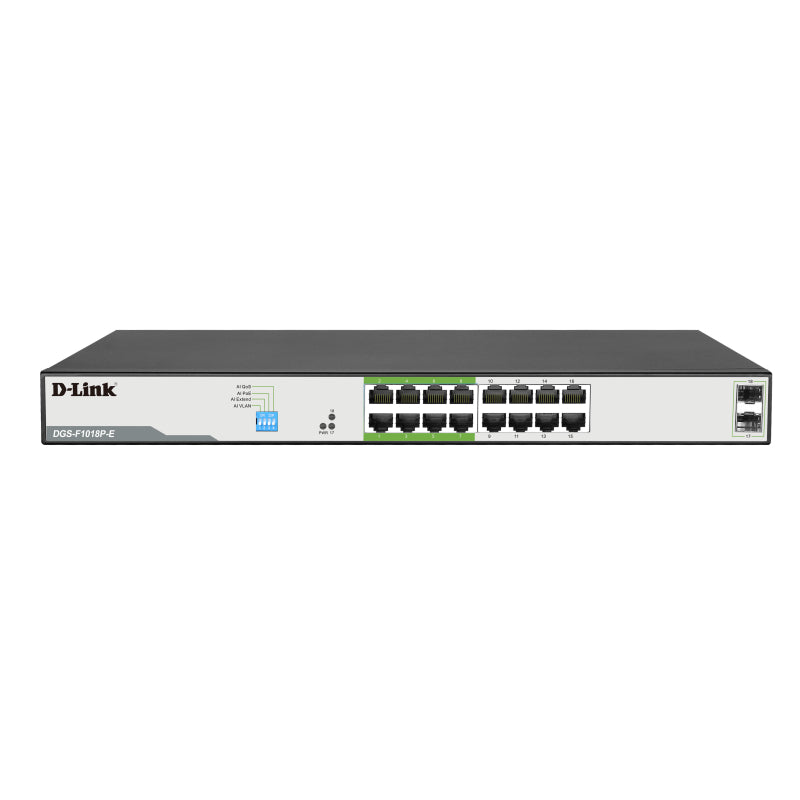

About D-Link 18-Port Gigabit PoE Switch with 16 PoE+ Ports and 2 SFP Uplinks

The D-Link DGS-F1018P-E16 Port Switch with 10/100/1000Mbps and 2 SFP Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs) IP cameras and IP phones to the network.

Specifications:

• Port Type: Gigabit
• Number of Ports: 16 - 24
• PoE Type Required: PoE | 250m Long Reach PoE
• Design: Metal | Rackmountable
• Ethernet Speed: Gigabit
• LAN Ports: 18
• PoE ports: 16 Ports
• Housing: Metal
• Power Supply: Internal
• Rackmountable: Yes
• Compact Design for Home and Office Use: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 440 x 180 x 44 mm
• Warranty: 3-Year Limited Warranty

Features:

• 16 x Gigabit PoE+ Ports
• 2 x SFP Uplink Ports
• PoE+ support - up to 30W per port
• 8 ports with Long Reach PoE support - up to 250m
• Smart Features: Extend VLAN QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 150 Watts
• Plug & Play Installation

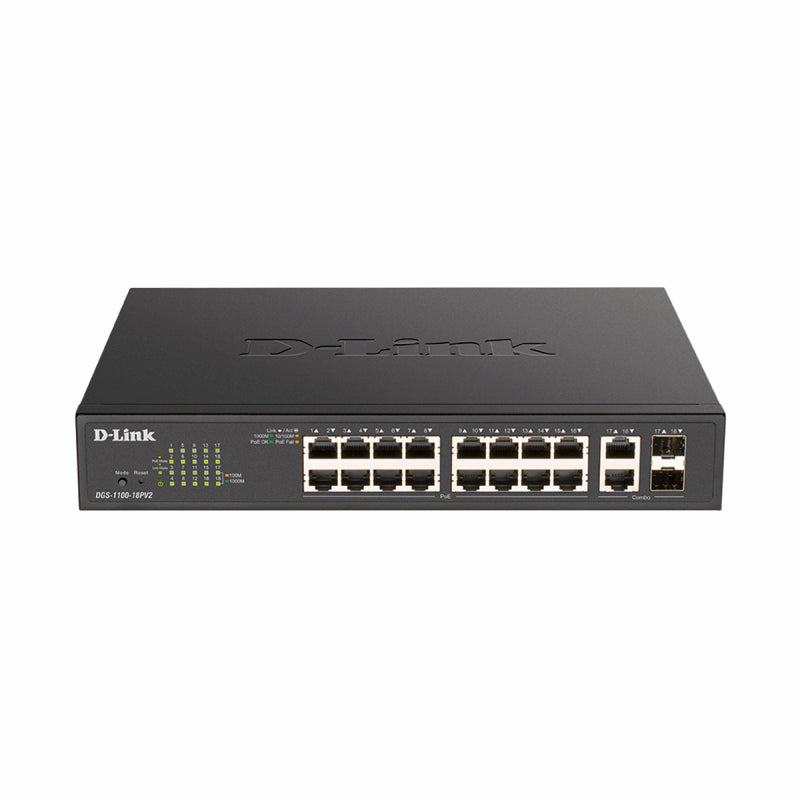

About D-Link 18-Port Gigabit Smart Managed PoE Switch with 16 PoE Ports

18-Port Gigabit Smart Managed PoE Switch with 16 PoE+ and 2 Combo RJ45/SFP Ports (130W PoE budget) designed for SMB's who expect a lot of their network including support for surveillance and VoIP.

Specifications:

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper | Gigabit Fibre
• Number of Ports: 5 - 16
• PoE Type Required: PoE | PoE+
• High Speed Stacking: No
• Design: Desktop | Rackmountable
• 1000Base-T ports: 16 Ports
• SFP ports: 2 Ports (Combo)
• PoE ports: 16 Ports
• PoE Budget: 130 Watts
• Switching Capacity: 36 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 4K Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 9216 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant | RoHS 6 Compliant
• 19 Inch Rack Mountable: Yes
• Fans: 1
• Built-in PSU: Yes
• Dimensions (Size): 280 x 230 x 44 mm
• Web-based GUI: Yes
• Command Line Interface: No
• Types of ports: SFP Ports | Gigabit Ports
• Static Routing: No
• Switch Series: DGS-1100 Series

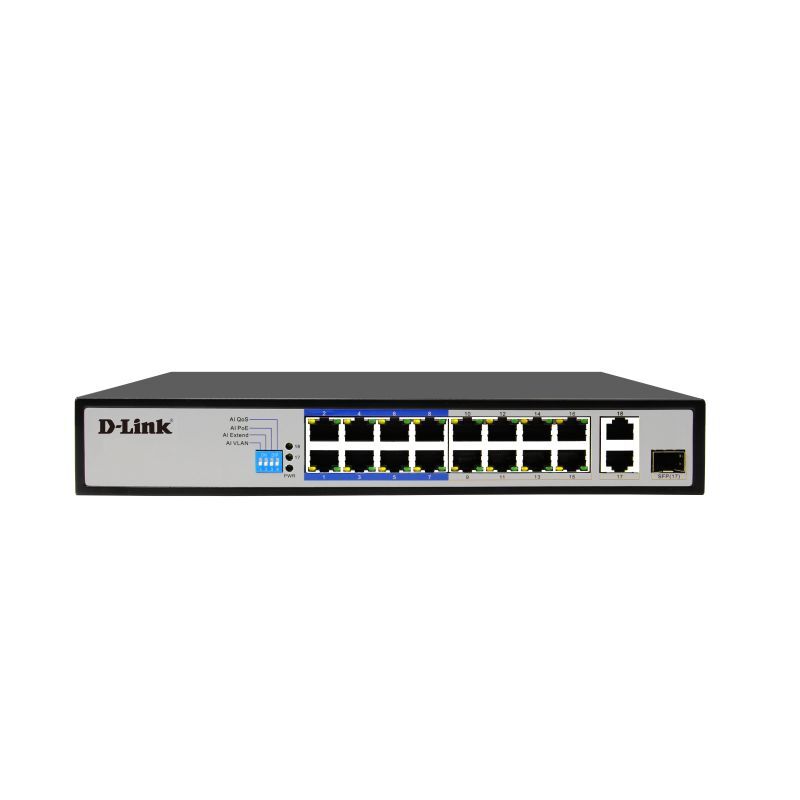

About D-Link 18-Port PoE Switch with 16 PoE Ports (8 Long Reach 250m)

Enhanced with 6KV surge protection VLAN enhanced QoS this Switch is a robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras CCTV VoIP Wi-Fi Access Points etc.

Specifications:

• Port Type: Fast Ethernet
• Number of Ports: 16 - 24
• PoE Type Required: PoE | 250m Long Reach PoE
• Design: Metal | Rackmountable
• Ethernet Speed: 10/100
• LAN Ports: 18
• PoE ports: 16 Ports
• Housing: Metal
• Power Supply: Internal
• Rackmountable: Yes
• Compact Design for Home and Office Use: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 285 x 180 x 44 mm
• Warranty: 3-Year Limited Warranty

Features:

• 16 x 10/100 Mbps Fast Ethernet PoE+ Ports
• 2 x Gigabit Uplink Ports with Combo SFP
• PoE+ support - up to 30W per port
• 8 x Long Reach PoE ports - up to 250m
• Smart Features: Extend VLAN QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 150 Watts
• Plug & Play Installation

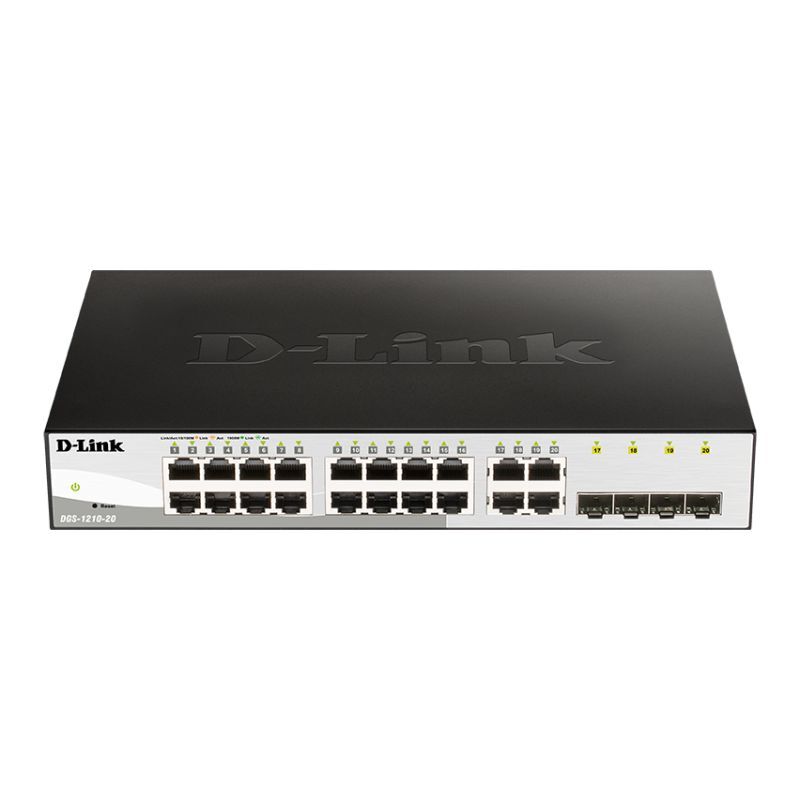

About D-Link 20-Port Gigabit Smart Managed Switch with 20 RJ45

The DGS-1210-20 Gigabit Smart Managed Switch provides an affordable and capable networking solution. The Switch features 20 Gigabit RJ45 ports with 4 Combo SFP ports.

Specifications:

• Switch Type: Layer2+ IP Routing
• Type of Port Required: Gigabit Copper | Gigabit Fibre
• Number of Ports: 24 - 28
• PoE Type Required: None
• High Speed Stacking: No
• Design: Desktop | Rackmountable | Fanless
• 1000Base-T ports: 20 Ports
• SFP ports: 4 Ports (Combo)
• Switching Capacity: 40 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 256 Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 10000 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• 802.1X Access Control: Yes
• DHCP Server Screening: Yes
• SNMP: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant | D-Link Green
• 19 Inch Rack Mountable: Yes
• Fans: Fanless
• Built-in PSU: Yes
• Dimensions (Size): 280 x 180 x 44 mm
• Web-based GUI: Yes
• Command Line Interface: Yes
• Types of ports: SFP Ports | Gigabit Ports
• Static Routing: No
• Switch Series: DGS-1210 Series

Features:

• 20 Gigabit ports: 20 RJ45 with 4 Combo SFP
• 40 Gbps Switching capacity
• True Plug & Play
• Supports IP Interfaces and Static Routes
• QoS with Auto Voice VLANs for VoIP
• Advanced Security Features
• D-Link Green Technology
• IEEE 802.3az Energy Efficient Ethernet
• Fanless Design for Quiet Operation

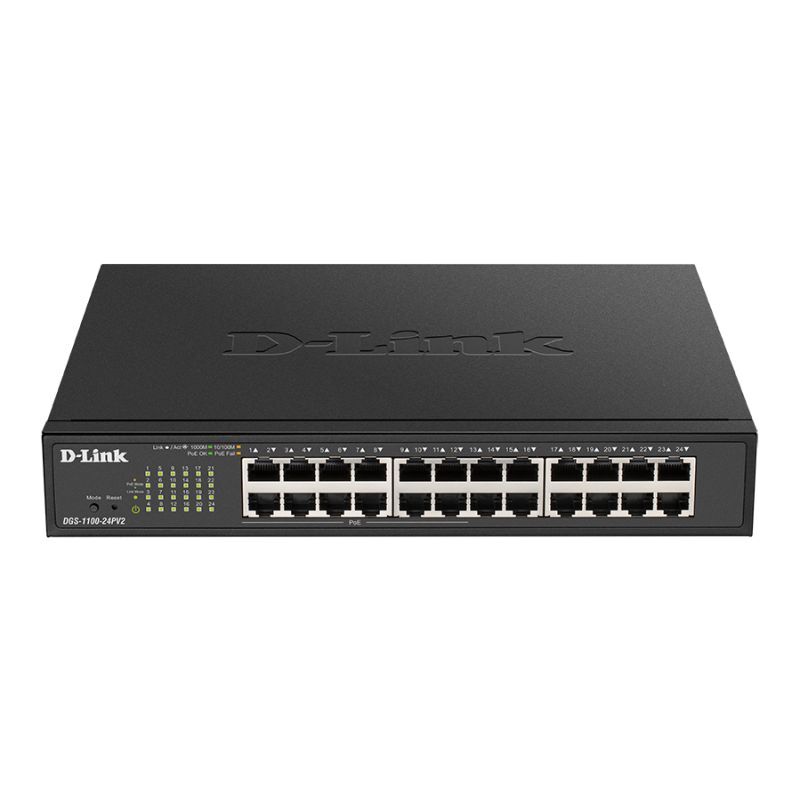

About D-Link 24-Port Gigabit Smart Managed PoE Switch with 12 PoE Ports

24-Port Gigabit Smart Managed PoE Switch with 12 PoE+ Ports (100W PoE budget) designed for SMB's who expect a lot of their network including support for surveillance and VoIP.

Specifications:

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper
• Number of Ports: 24 - 28
• PoE Type Required: PoE | PoE+
• High Speed Stacking: No
• Design: Desktop | Rackmountable | Fanless
• 1000Base-T ports: 24 Ports
• PoE ports: 12 Ports
• PoE Budget: 100 Watts
• Switching Capacity: 48 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 4K Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 9216 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant | RoHS 6 Compliant
• 19 Inch Rack Mountable: Yes
• Fans: Fanless
• Built-in PSU: Yes
• Dimensions (Size): 280 x 230 x 44 mm
• Web-based GUI: Yes
• Command Line Interface: No
• Types of ports: Gigabit Ports
• Static Routing: No
• Switch Series: DGS-1100 Series

Features:

• 12 x 10/100/1000BASE-T PoE+ ports
• 12 x 10/100/1000BASE-T ports
• PoE+ support with up to 30W per port
• 100 Watts PoE Power Budget
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic ensuring timely delivery
• Segregate different types of traffic such as surveillance or voice with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go significantly cutting down network traffic
• Innovative energy saving features are good for your budget as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

About D-Link 24-Port Gigabit Smart Managed Switch

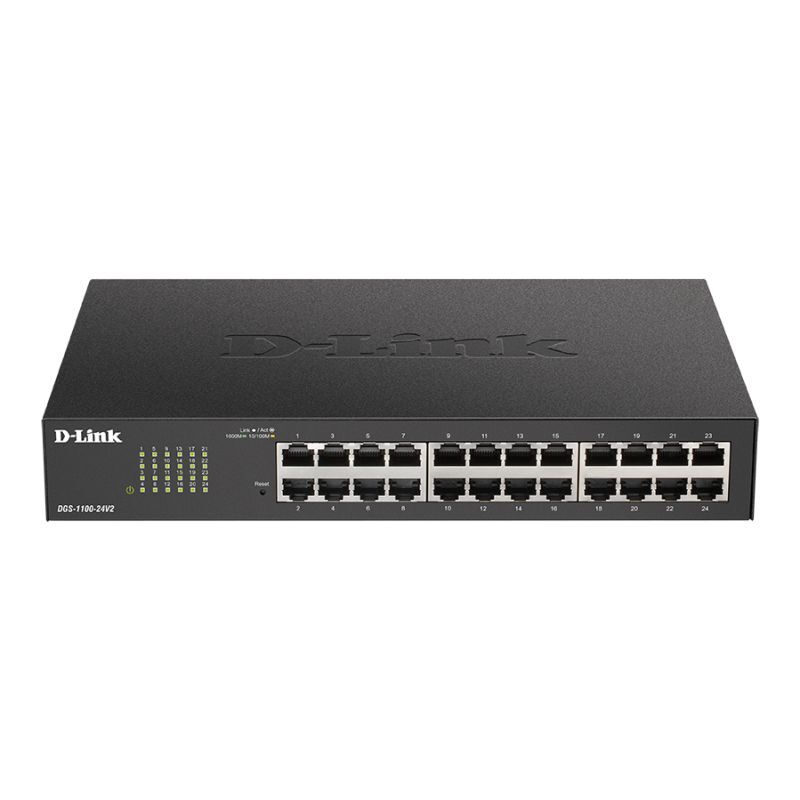

24-Port Gigabit Smart Managed Switch designed for SMB's who expect a lot of their network including support for surveillance and VoIP.

Specifications:

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper
• Number of Ports: 24 - 28
• PoE Type Required: None
• High Speed Stacking: No
• Design: Desktop | Rackmountable | Fanless
• 1000Base-T ports: 24 Ports
• Switching Capacity: 48 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 4K Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 9216 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant | RoHS 6 Compliant
• 19 Inch Rack Mountable: Yes
• Fans: Fanless
• Built-in PSU: Yes
• Dimensions (Size): 280 x 180 x 44 mm
• Web-based GUI: Yes
• Command Line Interface: No
• Types of ports: Gigabit Ports
• Static Routing: No
• Switch Series: DGS-1100 Series

Features:

• 24 x 10/100/1000BASE-T ports
• Fanless design for silent operation
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic ensuring timely delivery
• Segregate different types of traffic such as surveillance or voice with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go significantly cutting down network traffic
• Innovative energy saving features are good for your budget as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

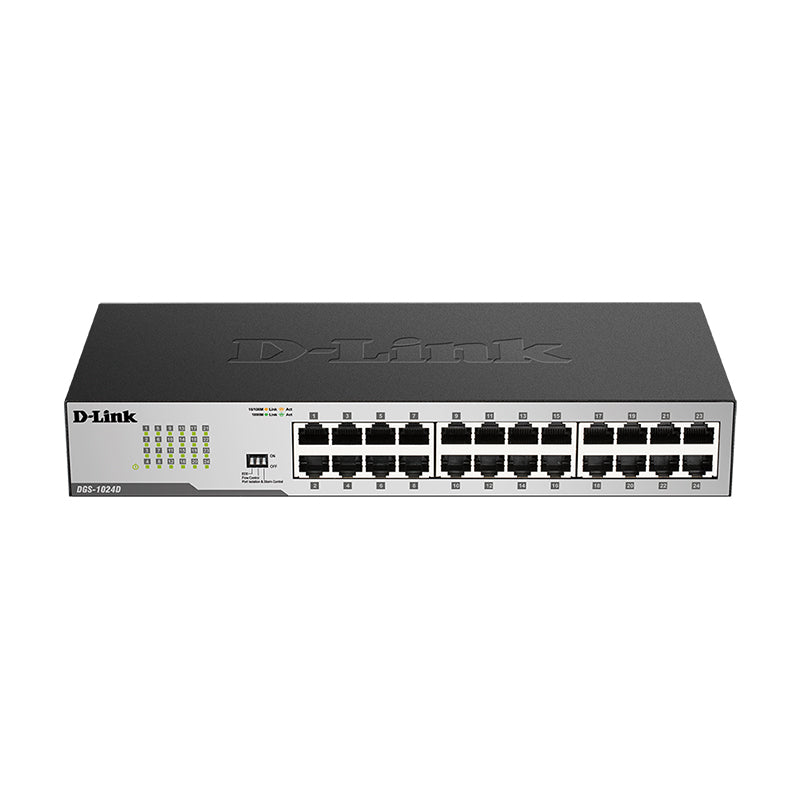

About D-Link 24-Port Gigabit Unmanaged Switch

The DGS-1024D Unmanaged Gigabit Switch brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network.

Specifications:

• Port Type: Gigabit
• Number of Ports: 16 - 24
• PoE Type Required: None
• Design: Metal | Fanless | Rackmountable
• Ethernet Speed: Gigabit
• LAN Ports: 24
• Housing: Metal
• Power Supply: Internal
• Fanless Design for Silent Operation: Yes
• Rackmountable: Yes
• Compact Design for Home and Office Use: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 280 x 180 x 44 mm
• Warranty: 3-Year Limited Warranty

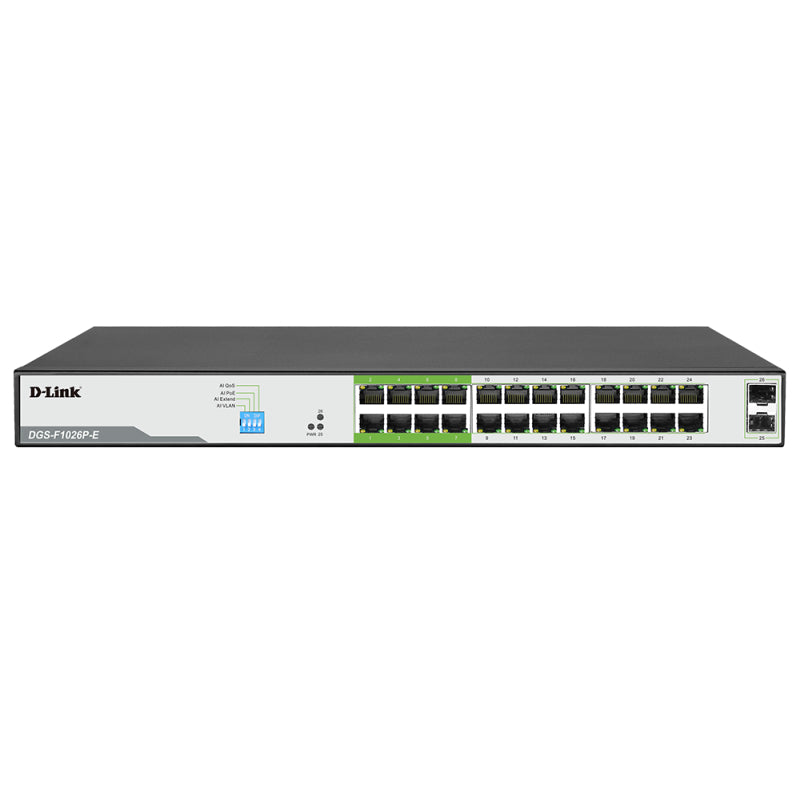

About D-Link 26-Port Gigabit PoE Switch with 24 PoE+ Ports and 2 SFP Uplinks

The D-Link DGS-F1026P-E24 Port Switch with 10/100/1000Mbps and 2 SFP Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs) IP cameras and IP phones to the network.

Specifications:

• Port Type: Gigabit
• Number of Ports: 16 - 24
• PoE Type Required: PoE | 250m Long Reach PoE
• Design: Metal | Rackmountable
• Ethernet Speed: Gigabit
• LAN Ports: 26
• PoE ports: 16 Ports
• Housing: Metal
• Power Supply: Internal
• Rackmountable: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 440 x 180 x 44 mm
• Warranty: 3-Year Limited Warranty

Features:

• 24 x Gigabit PoE+ Ports
• 2 x SFP Uplink Ports
• PoE+ support - up to 30W per port
• 8 ports with Long Reach PoE support - up to 250m
• Smart Features: Extend VLAN QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 250 Watts
• Plug & Play Installation

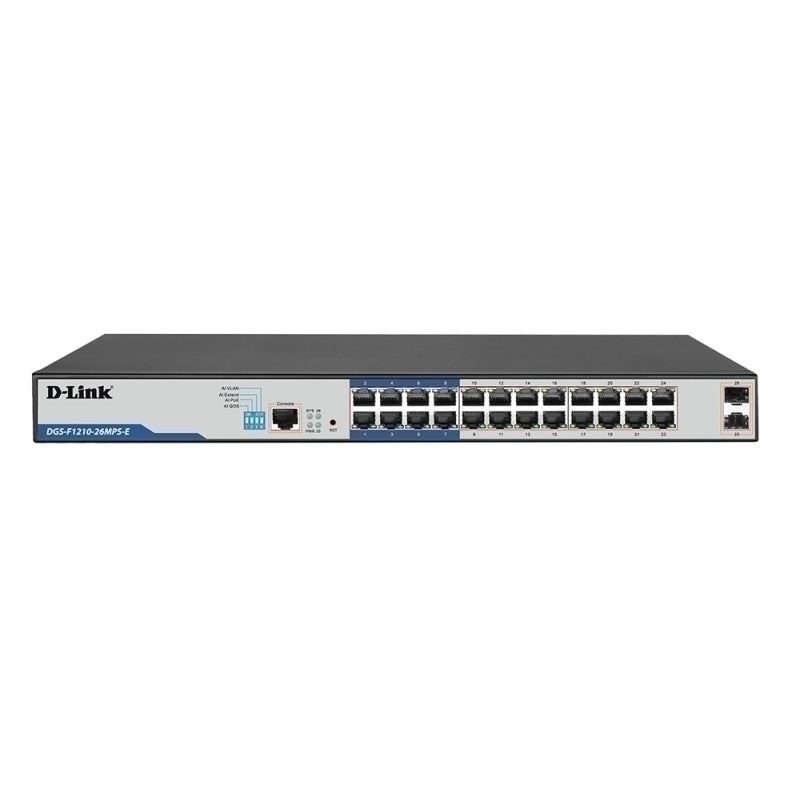

About D-Link 26-Port Gigabit Smart Managed PoE+ Switch with 24 PoE+ Ports (8 Long Reach) + 2 SFP Ports

D-Link DGS-F1210-26MPS-E Switch 26-Port Gigabit WebSmart PoE+ Switch with 24 PoE+ ports (8 with Long Reach PoE) and 2 SFP Ports. PoE budget 380W.

Specifications:

• Switch Type: Layer 2
• Type of Port Required: Gigabit Copper | Gigabit Fibre
• Number of Ports: 24 - 28
• PoE Type Required: PoE | PoE+ | Extended PoE Budget | 250m Long Reach PoE
• High Speed Stacking: No
• Design: Desktop | Rackmountable
• 1000Base-T ports: 26 ports
• SFP ports: 2 Ports
• PoE ports: 24 Ports
• PoE Budget: 380 Watts
• Switching Capacity: 52 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 4K Groups
• Voice VLAN: Yes
• IGMP Snooping: Yes
• 802.1X Access Control: Yes
• DHCP Server Screening: Yes
• SNMP: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant
• 19 Inch Rack Mountable: Yes
• Fans: 3
• Built-in PSU: Yes
• Dimensions (Size): 440 x 293 x 44mm
• Web-based GUI: Yes
• Command Line Interface: Yes
• Types of ports: SFP Ports | Gigabit Ports
• Static Routing: No
• Switch Series: DGS-F1210 Series
• Product Series: Long Reach PoE Switches

Features:

• 26 Gigabit Ports: 24 RJ45 and 2 SFP
• 24 PoE Ports with 380 Watts power budget
• 8 Ports with 250m Long Reach PoE Technology
• 52Gbps Switching capacity
• No-configuration shortcut buttons
• LACP RSTP MSTP ERPS and more
• Advanced Security Features
• 6kV Surge Protection
• Mission-Critical Resiliency
• Robust Security
• Reliable Even Under Pressure
• User Friendly Web Interface

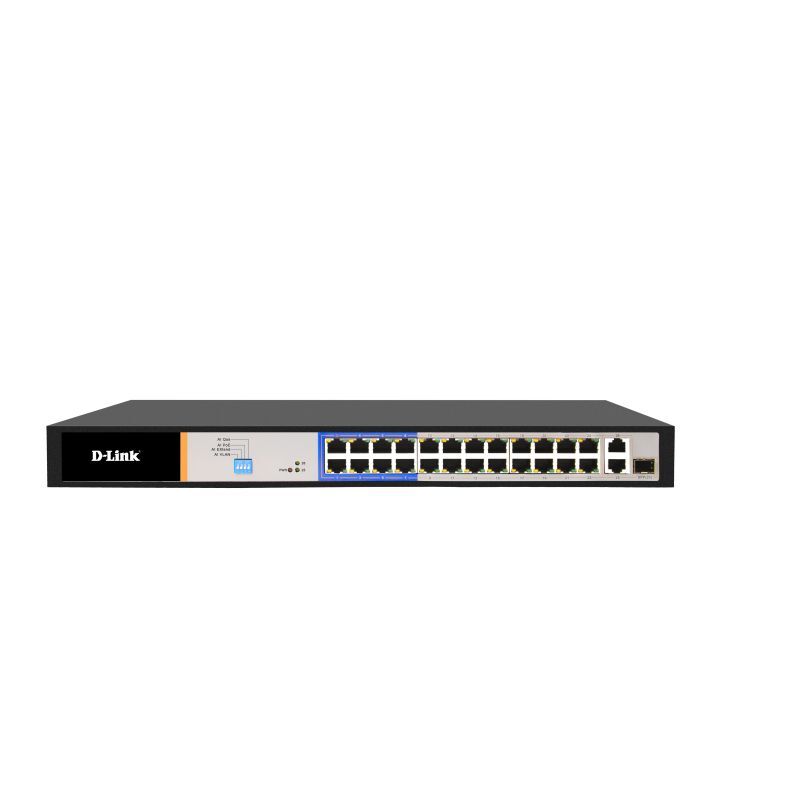

About D-Link 26-Port PoE Switch with 24 PoE Ports (8 Long Reach 250m)

Enhanced with 6KV surge protection VLAN enhanced QoS this Switch is a robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras CCTV VoIP Wi-Fi Access Points etc.

Specifications:

• Port Type: Fast Ethernet
• Number of Ports: 16 - 24
• PoE Type Required: PoE | 250m Long Reach PoE
• Design: Metal | Rackmountable
• Ethernet Speed: 10/100
• LAN Ports: 26
• PoE ports: 24 Ports
• Housing: Metal
• Power Supply: Internal
• Rackmountable: Yes
• Quick Simple Plug-and-Play Installation: Yes
• Dimensions (Size): 440 x 180 x 44 mm
• Warranty: 3-Year Limited Warranty

Features:

• 24 x 10/100 Mbps Fast Ethernet PoE+ Ports
• 2 x Gigabit Uplink Ports with Combo SFP
• PoE+ support - up to 30W per port
• 8x Long Reach PoE ports - up to 250m
• Smart Features: Extend VLAN QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 250 Watts
• Plug & Play Installation

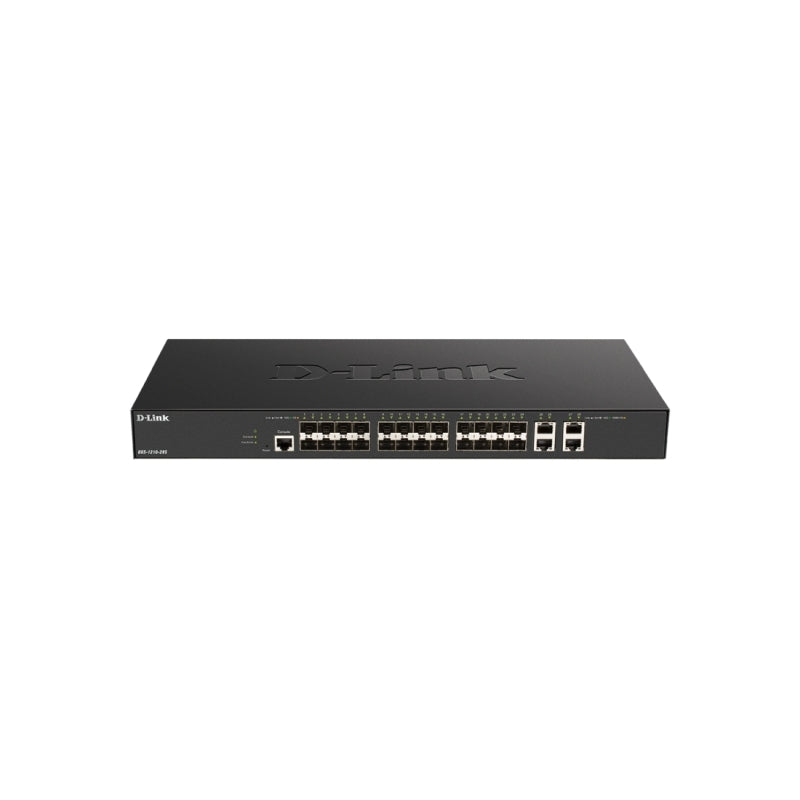

About D-Link 28-Port 10 Gigabit Smart Managed Switch with 4 10GBASE-T ports

28-Port 10 Gigabit Smart Managed Switch with 24 SFP+ ports and 4 10GBASE-T ports

Specifications:

• 802.1X Access Control: Yes
• 10Gb SFP+ ports: 24 ports
• 10GBase-T ports: 4 ports
• Static Routing: Yes
• Types of ports: 10Gb SFP+ Ports
• Built-in PSU: Yes
• Switch Series: DGS-1210 Series
• Number of Ports: 24 - 28
• PoE Type Required: None
• Type of Port Required: 10 Gigabit Fibre
• Design: Desktop | Rackmountable
• High Speed Stacking: No
• Switch Type: Layer2+ IP Routing
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size): 441 x 210 x 44 mm
• Energy Saving Technology: EEE Compliant | D-Link Green
• Fans: 2
• IGMP Snooping: Yes
• Jumbo Frame: 12K bytes
• Link Aggregation: Yes
• QoS: Yes
• SNMP: Yes
• Spanning Tree Protocol: Yes
• Surveillance VLAN: Yes
• Switching Capacity: 560 Gbps
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes

Features:

• 24x 10Gigabit SFP+ ports and Four 10GBASE-T ports
• Up to 32K MAC address table size to connect more clients
• Easy to configure with rich set of SMB features
• Automatic Voice and Surveillance VLANs
• Inter-VLAN and static routing support (IPv6 ready)
• Cable Diagnostics & Loopback Detection built-in

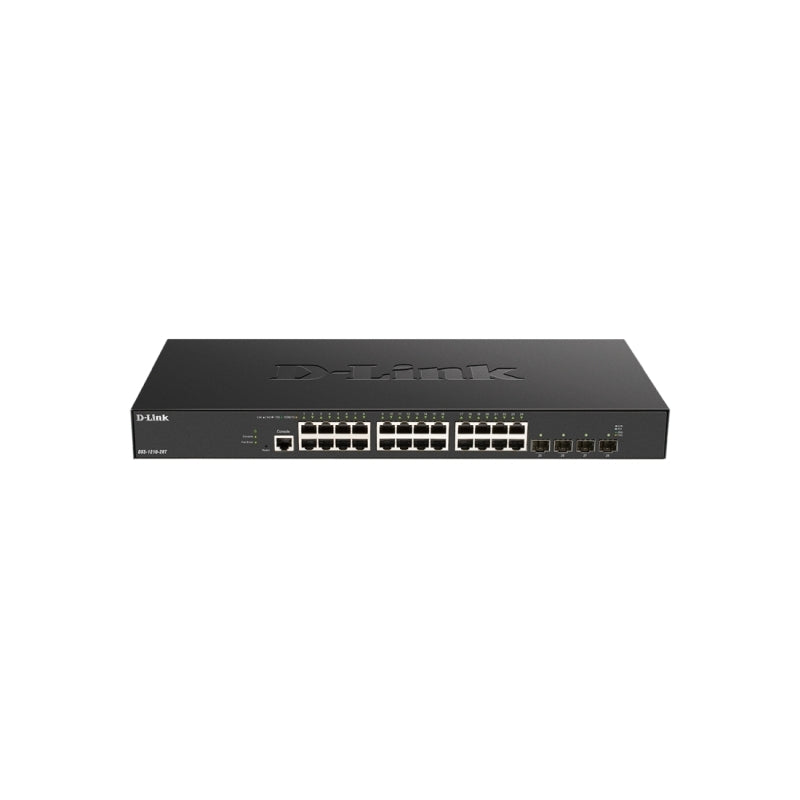

About D-Link 28-Port 10 Gigabit Smart Managed Switch with 4 25Gbps SFP28 ports

28-Port 10 Gigabit Smart Managed Switch with 24 10GBASE-T ports and 4 10/25Gbps SFP28 ports

Specifications:

• 802.1X Access Control: Yes
• 10Gb SFP+ ports: 4 10G/24G SFP28 ports
• 10GBase-T ports: 24 ports
• Static Routing: Yes
• Types of ports: 10Gb Copper Ports
• Built-in PSU: Yes
• Switch Series: DGS-1210 Series
• Number of Ports: 24 - 28
• PoE Type Required: None
• Type of Port Required: 10 Gigabit Copper
• Design: Desktop | Rackmountable
• High Speed Stacking: No
• Switch Type: Layer2+ IP Routing
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size): 441 x 210 x 44 mm
• Energy Saving Technology: EEE Compliant | D-Link Green
• Fans: 2
• IGMP Snooping: Yes
• Jumbo Frame: 12K bytes
• Link Aggregation: Yes
• QoS: Yes
• SNMP: Yes
• Spanning Tree Protocol: Yes
• Surveillance VLAN: Yes
• Switching Capacity: 680 Gbps
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes

Features:

• 24x 10GBASE-T ports and Four 10G/25G SFP28 ports
• Up to 32K MAC address table size to connect more clients
• Easy to configure with rich set of SMB features
• Automatic Voice and Surveillance VLANs
• Inter-VLAN and static routing support (IPv6 ready)
• Cable Diagnostics & Loopback Detection built-in

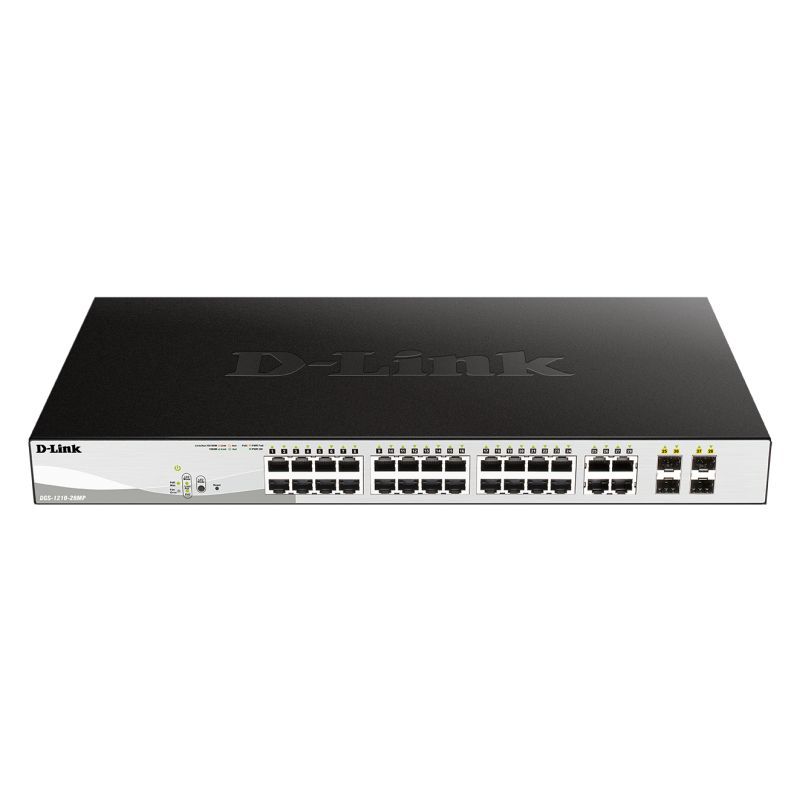

About D-Link 28-Port Gigabit Smart Managed 370W PoE Switch with 28 RJ45

The DGS-1210-28MP Gigabit Smart Managed Switch provides an affordable and capable networking solution. The Switch features 24 Gigabit RJ45 ports with 4 Combo SFP ports and 370W PoE Budget.

Specifications:

• Switch Type: Layer2+ IP Routing
• Type of Port Required: Gigabit Copper | Gigabit Fibre
• Number of Ports: 24 - 28
• PoE Type Required: PoE | PoE+ | Extended PoE Budget
• High Speed Stacking: No
• Design: Desktop | Rackmountable
• 1000Base-T ports: 28 ports
• SFP ports: 4 Ports (Combo)
• PoE ports: 24 Ports
• PoE Budget: 370 Watts
• Switching Capacity: 56 Gbps
• QoS: Yes
• Spanning Tree Protocol: Yes
• Link Aggregation: Yes
• VLAN: 256 Groups
• Surveillance VLAN: Yes
• Jumbo Frame: 10000 bytes
• Voice VLAN: Yes
• IGMP Snooping: Yes
• 802.1X Access Control: Yes
• DHCP Server Screening: Yes
• SNMP: Yes
• Cable Diagnostics: Yes
• Energy Saving Technology: EEE Compliant | D-Link Green
• 19 Inch Rack Mountable: Yes
• Fans: 2
• Built-in PSU: Yes
• Dimensions (Size): 440 x 250 x 44 mm
• Web-based GUI: Yes
• Command Line Interface: Yes
• Types of ports: SFP Ports | Gigabit Ports
• Static Routing: Yes
• Switch Series: DGS-1210 Series

Features:

• 28 Gigabit ports: 28 1000BASE-T with 4 (Combo) SFP
• 24 PoE ports with 370 Watts power budget
• Supports IP Interfaces and Static Routes
• D-Link Green Technology
• IEEE 802.3az Energy Efficient Ethernet
• 56 Gbps Switching capacity
• True Plug & Play
• QoS with Auto Voice VLANs for VoIP
• Advanced Security Features

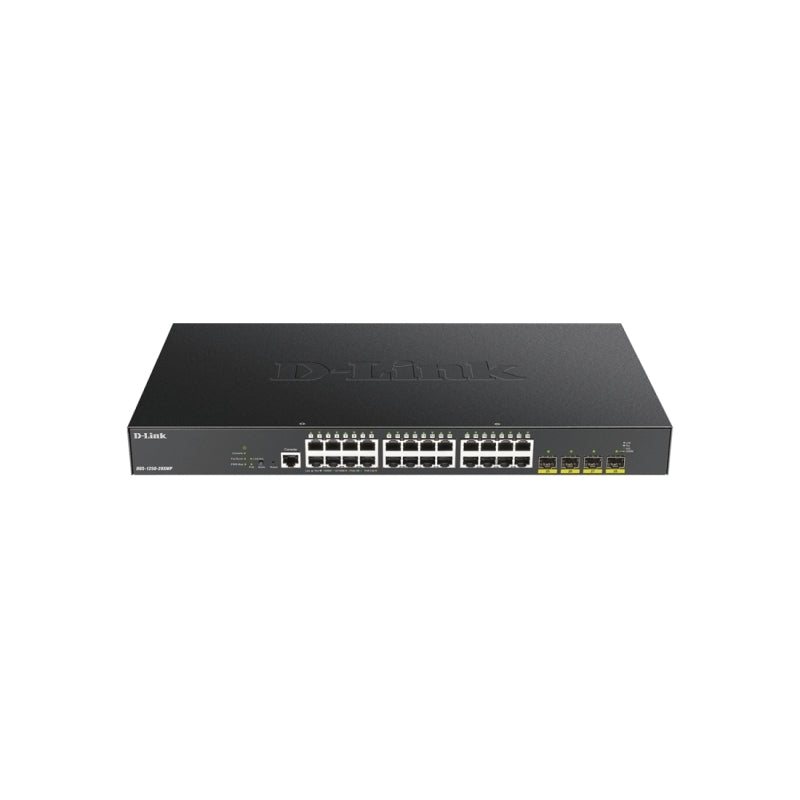

About D-Link 28-Port Gigabit Smart Managed PoE Switch with 24 RJ45 and 4 SFP+ 10G Ports

28-Port Gigabit Smart Managed PoE+ Switch with 24 PoE+ RJ45 and 4 SFP+ 10G Ports. PoE budget 370W.

Specifications:

• 802.1X Access Control: Yes
• 10Gb SFP+ ports: 4 ports
• Static Routing: Yes
• Types of ports: 10Gb SFP+ Ports | Gigabit Ports
• Built-in PSU: Yes
• Switch Series: DGS-1250 Series
• Number of Ports: 24 - 28
• PoE Type Required: PoE | PoE+ | Extended PoE Budget
• Type of Port Required: Gigabit Copper | Gigabit Fibre | 10 Gigabit Fibre
• Design: Desktop | Rackmountable
• High Speed Stacking: No
• Switch Type: Layer2+ IP Routing
• Cable Diagnostics: Yes
• Command Line Interface: Yes
• DHCP Server Screening: Yes
• Dimensions (Size): 440 x 250 x 44 mm
• Energy Saving Technology: EEE Compliant | D-Link Green | RoHS 6 Compliant
• Fans: 2
• IGMP Snooping: Yes
• Jumbo Frame: 12K bytes
• Link Aggregation: Yes
• PoE Budget: 370 Watts
• PoE ports: 24 Ports
• QoS: Yes
• SFP ports: 4 Ports
• SNMP: Yes
• Spanning Tree Protocol: Yes
• Surveillance VLAN: Yes
• Switching Capacity: 128 Gbps
• 1000Base-T ports: 24 Ports
• VLAN: 4K Groups
• Voice VLAN: Yes
• Web-based GUI: Yes

Features:

• 24 x 10/100/1000BASE-T PoE ports
• 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement
• Lite L3 Static Routing for increased network efficiency
• Advanced security features such as Access Control List IMPB 802.1X Authentication to enhance network security and protect the internet IT network
• 370W PoE Power Budget (802.3af/at) to allow more power for connected devices
• Dual Image & Configuration for reduced downtime
• Supports STP/RSTP/MSTP to maintain the quality of network
• Full CLI for for easy management
• QoS Enablement for performance improvement of critical network traffic
