RFI CDR-7100-SA-B-SMA Black Replacement Spring for CDR Series Cellular Antennas - SMA connection
RFI CDR-7100-SA-B-SMA Black Replacement Spring for CDR Series Cellular Antennas - SMA connection
RFI CDR7100-SA-B Black Replacement Spring for CDR7194 & CDR7195 Broomstick Antennas
This replacement spring assembly is compatible with the RFI CDR series whips....CDR7194 & CDR7195

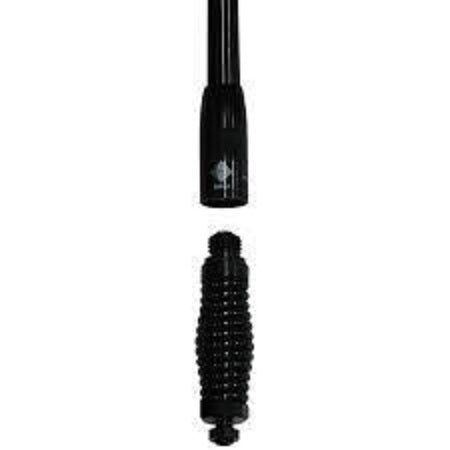

This Q-Fit® system is for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Black plated spring
- Supplied with 5m of 9006 low loss cable terminated with SMA male connector
- Protective cap included
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security
Availability
RFI CDR5000-B UHF CB Collinear Antenna 930mm -
Black with Black Chrome Spring OR
White with Bright Chrome Spring
The CRD5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises our Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
CDR5000-B Features:
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
• Totally ground plane independent
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 5 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5.0m 9006 supplied terminated with an FME female connector and supplied with an FME to UHF adapter |
| Connector: | FME female |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Guard, mirror or bull bar |
| Whip Length mm | 930 |
| Radome Diameter mm | 16 |
| Packaging | Retail style plastic bag with header card |
| VSWR | <1.5:1 |
| Mounting | 13mm threaded stud |

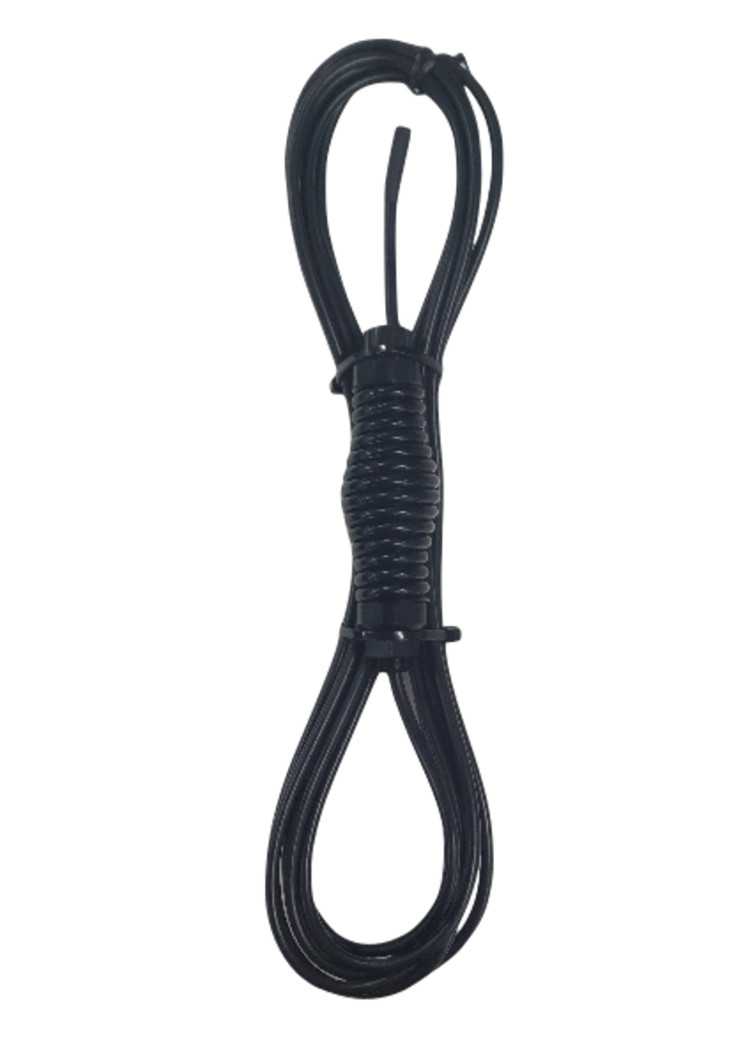

RFI CDR7100-SA-B-SMA Black Replacement Spring for CDR7100 & CDR8100 Series Antennas
RFI CDR7100-SA-B-SMA Black Replacement Spring for CDR7100 & CDR8100 Series Antennas
RFI CDR7100-SA-B-SMA Black Replacement Spring for CDR7100 & CDR8100 Series Antennas
This replacement spring assembly is compatible with the RFI CDR series whips....CDR8194/CDR7194 & CDR8195/CDR7195
This Q-Fit® system is for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Black plated spring
- Supplied with 5m of 9006 low loss cable terminated with SMA connector
- Protective cap included
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security
Availability

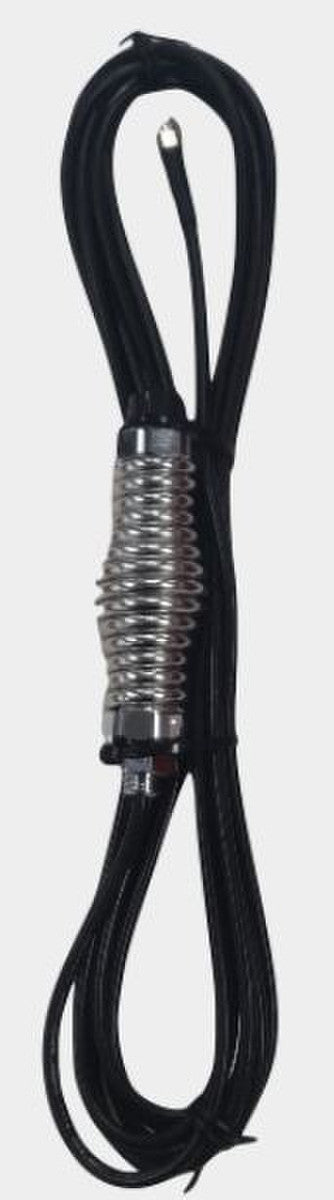

RFI CDR7100-SA-C-SMA Chrome Replacement Spring for CDR7100 & CDR8100 Series Antennas
RFI CDR7100-SA-C-SMA Chrome Replacement Spring for CDR7100 & CDR8100 Series Antennas
RFI CDR7100-SA-C-SMA Chrome Replacement Spring for CDR7100 & CDR8100 Series Antennas
This replacement spring assembly is compatible with the RFI CDR series whips....CDR8194/CDR7194 & CDR8195/CDR7195
This Q-Fit® system is for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.
Features:
- Chrome plated spring
- Supplied with 5m of 9006 low loss cable terminated with SMA connector
- Protective cap included
- Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks car wash’s or for security
Availability
RFI CDR7194-B Black Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B Black Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B 4G LTE Cellular Mobile Antenna with FME connection Q-Fit 698-960 & 1710-2700MHz (All Black) 695mm
The CDR7194 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR7100 Series antennas sits in between our market leading CD7100 and CDQ7100. It is basically a light duty CDQ7100 (i.e. using our CD7100 15.6mm parallel radome and a CD900 Series spring assemble). The CDR7100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Features :
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Specifications:
| Frequency: | 698-960 1710-2170 & 2300-2700MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 16 |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 695 |
| Mounting | 13mm thread stud & nut |
Documentation
RFI CDR7100 Series Technical Data Sheet
Related Products
RFI FME Male to SMA Male Adapter - A-88
This adaptor is the simplest way to connect an antenna with FME connection to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
RFI MK-900 Heavy Duty Magnetic Base with Suction Mount
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
RFI CDR7194-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 695mm 5.5dBi
RFI CDR7194-B-SMA 4G LTE Cellular Mobile Antenna with SMA connection Q-Fit 698-960 & 1710-2700MHz (All Black) 695mm
The CDR7194 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR7100 Series antennas sits in between our market leading CD7100 and CDQ7100. It is basically a light duty CDQ7100 (i.e. using our CD7100 15.6mm parallel radome and a CD900 Series spring assemble). The CDR7100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Specifications:
| Frequency: | 698-960 1710-2170 & 2300-2700MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with SMA connector |
| Radome Diameter mm | 16 |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 695 |
| Mounting | 13mm thread stud & nut |
Documentation
RFI CDR7100 Series Technical Data Sheet
Related Products
RFI FME Male to SMA Male Adapter - A-88
This adaptor is the simplest way to connect an antenna with FME connection to devices that use SMA male connection. (Eg Cel-Fi Go Repeaters)
MOUNTING BRACKET OPTIONS
RFI MK-900 Heavy Duty Magnetic Base with Suction Mount
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
RFI CDR7195 - 4G LTE Cellular Mobile Antenna - 698-2700MHz 930mm - Black/White Chrome Spring
The CDR7195 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The CDR7195 sits in between our market leading CD7195 and CDQ7195. It is basically a light duty CDQ7195 (i.e. uses our CD7195 16mm parallel radome and a CD900 Series spring assembly). The CDR7195 whip and be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security
Specifications:
| Frequency: | 698-960, 1710-2170 & 2300-2700MHz |
| Impedance: | 50 |
| Tunable Bandwidth | Full |
| Nominal Gain dBi | 6.5 / 4.5 / 5.5 |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector |
| Radome Diameter mm | 16 |
| Packaging | Retail Hang Sell |
| VSWR | <2.5:1 |
| Length mm | 930 |
| Mounting | 13mm thread stud & nut |
RFI CDR8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 667mm
RFI CDR8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 667mm
RFI CDR8194-B Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA (M) - Black
The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDR8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The whip can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710 - 2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 5.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Length [mm] | 667 |
| Brand | RFI |
View the CD8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as CDQ8195-B (removable whip)
Also available SMA to FME Adapter
Mounting Bracket Options
RFI CDR8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8194-B-WHIP 5G LTE 5.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
Availability
RFI CDR8195-B 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 940mm
RFI CDR8195-B 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 940mm
RFI CDR8195-B Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA (M) - Black 940mm
The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the CDR8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The whip can be removed via the integrated N male connector in the whip and N female connector on the spring ass
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
| Colour | Black |
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass |
| Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698-960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Mounting area | 13-16mm diameter hole |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800MHz |
| Length [mm] | 940mm |
| Brand | RFI |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDR8100 Series Technical Data Sheet
View CD8100 Series Specifications Matrix
Related Products
Also available as CD8195-B (non removable whip)
Also available SMA to FME Adapter
MOUNTING BRACKET OPTIONS
Availability
RFI CDR8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - Black
RFI CDR8195-B-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); Whip Only - Black
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
Availability
RFI CDR8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDR8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
RFI CDR8195-W-WHIP 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); Whip Only - White
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks car washes or for security.
Other Replacement Whip-only for RFI CDQ series mobile phone antennas - Choose between the following whips:
CDR8194-B - Black whip provides 5.5dBi gain
CDQ8194-B - Black whip provides 5.5dBi gain
CDR8195-B - Black whip provides 6.5dBi gain
CDR8195-W - White whip provides 6.5dBi gain
CDQ8195-B - Black whip provides 6.5dBi gain
CDQ8195-W - White whip provides 6.5dBi gain
CDQ8197-B - Black whip provides 7.5dBi gain
CDQ8197-W - White whip provides 7.5dBi gain
CDQ8199-B - Black whip provides 8.5dBi gain
CDQ8199-W - White whip provides 8.5dBi gain
Availability
RFI COL7195 Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX - 965mm
RFI COL7195 Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX - 965mm
RFI COL-7195 Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX - 965mm The evolution continues with the release of the COL700 Series 4G LTE cellular Meander™ collinear antenna. The secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
With a 200mm (x 19mm) stainless steel mounting tube, the COL7195 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.
Notes: In order to boost radio signal the following components are required: Antenna, antenna mount, booster and cable. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
Features:
- Patented PCB based colinear design offering teh ultimate in patter and gain stability
- Ideal for all new networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural application
Specifications:
| Frequency: | 698-960, 1710-2170 & 2300-2700 |
| Tunable Bandwidth | Full, no tuning required |
| Nominal Gain dBi | 76.5 @ 698-960MHz / 4.5 @ 1710-2170MHz / 5.5 @ 2300-2700MHz |
| Radiator Material: | Flexible PCB |
| Power W | 10 |
| Cable and Connector | 10m 9006 Low Loss Cable Terminated with FME Female Connector & supplied with FME male to SMA male adpator. |
| Construction | Black Radome, 200mm S/S mountingf tube |
| Radome Diameter mm | 15.6 |
| Packaging | Retail Hand Sell |
| Vertical Beamwidth | 25/30/20 |
| Height mm | 965mm |
RFI COL7199 Cellular Collinear Antenna with 200mm S/S Tube SMA connection 3G+4G+4GX 1730mm 8.5dBi
RFI COL7199 Cellular Collinear Antenna with 200mm S/S Tube SMA connection 3G+4G+4GX 1730mm 8.5dBi
RFI COL7199 Cellular Collinear Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX 1730mm 8.5dBi
The evolution continues with the release of the COL700 Series 4G LTE cellular Meander™ collinear antenna. The secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
With a 200mm (x 19mm) stainless steel mounting tube the COL7199 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps which have an adjustment of 27-51mm.
Also available in smaller version (COL7195) - here
Features :
- Patented PCB based collinear design offering the ultimate in patter and gain stability
- Ideal for all new networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural application
Specifications :
| Nominal Gain dBi | 8.5 @ 698-960MHz / 4.5 @ 1710-2170MHz / 5.5 @ 2300-2700MHz |
| Frequency MHz | 698-960 1710-2170 & 2300-2700 |
| Tunable Bandwidth | Full. No tuning required |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Vertical Beamwidth | 15 / 15 / 20 |
| Power W | 10 |
| Construction | Black radome 200mm S/S mounting tube |
| Length mm | 1730 |
| Radome Diameter mm | 15.6 |
| Weight (kg) | .622 |
| Termination | 10m of 9006 low loss cable terminated with SMA connection |
| Mounting Area | 200 x 19 S/S 2 x S/S hose clamps (supplied) |
| Wind Gust Rating km/h | 240 |
Mounting
With a 200mm (x 19mm) stainless steel mounting tube the COL7100 Series is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps which have an adjustment of 27-51mm.
Documentation
View the COL7100 Series Technical Spec Sheet
Related Products
Also available in smaller version (COL7195) - here
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Retail Hang Sell Pack |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170, 2300 - 2700, 3400 - 3800, 698-960 |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Construction | Black radome, 200 x 19mm stainless steel mounting tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 965mm |
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 965mm
The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz 1710-2170MHz and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters especially when signal is poor.
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Packaging | Retail Hang Sell Pack |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698-960 |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Construction | Black radome 200 x 19mm stainless steel mounting tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Operating Temperature Range [°C] | -45 to +85 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 965mm |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the COL8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as COL8199 - 1730mm
RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 1730mm
RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 1730mm
RFI COL8199 5G LTE 8.5dBi Collinear Antenna (698-3800MHz); 10m SMA(M) - Black 1730mm
The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally housed in the one unit.
The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Colour | Black |
| Cable Type | RG58 |
| Cable And Connector | 10m of RG58 (9006) low loss cable terminated with SMA male connector |
| Connector | SMA(M) |
| Frequency Range | 1710-2170 2300 - 2700 3400 - 3800 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 8.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied) |
| Construction | Black radome 200 x 19mm S/S mounting tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| IP Rating | IP65 |
| Brand | RFI |
| Height [mm] | 1730mm |
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the COL8100 Series Technical Data Sheet
View 8100 Series Specifications Matrix
Related Products
Also available as COL8195 - 965mm
RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable
RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable
RFI CSM600-MAG-4M-SMA Black Cellular Mobile Antenna with Magnetic Base with 4M RG58 Cable terminated with SMA (M)
The CSM600-MAG Series is a compact LTE magnetic base antenna and is ideal cellular applications which a removable or temporary antenna is required. The antenna uses a microstrip design radiator enclosed a an UV stable ABS radome mount on an 84mm magnetic base supplied with 4 metre RG58C/U cable terminated with an SMA male.
It's a compact low-profile omni-directional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698-960MHz and 1710-2700MHz. The antenna features an attractive compact housing that can be used for both indoor/outdoor applications and is IP65 rated.
Key Features:
- Multi-band LTE coverage
- Compact low-profile design
- IP65 rating
Specifications:
| Brand | RFI |
| Frequency MHz | 698 - 960 / 1710 - 2170 / 2300 - 2700 |
| Tuned Bandwidth | Full. No tuning required |
| Termination | SMA male connectors |
| VSWR | <2.5:1 |
| Nominal Gain [dBi] | 2.5dBi / 3.3dBi / 4.6dBi (peak) |
| Power [W] | 10 |
| Connector | SMA(M) |
| Band | LTE |
| Packaging | Clear Bag |
| Antenna Type | Omni |
| Antenna Application | Terminal Antenna |
| Antenna Configuration | SISO |
Documentation
CSM600-MAG-4M-SMA Product Data Sheet
