RFI CSM700-5M-SMA Black Cellular Mobile Antenna with SMA connection Stud Mount with 5M RG58 Cable
RFI CSM700-5M-SMA Black Cellular Mobile Antenna with SMA connection Stud Mount with 5M RG58 Cable
RFI CSM700-5M-SMA LTE Cellular Stud Mount with 5M RG58 Cable terminated with SMA connector
The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 3.8GHz. The antenna features an attractive compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 15.7mmᶲ stud mount (fits a 16mmᶲ hole) incorporating an integrated rubber O-ring seal and is IP65 rated.
Features:
- Polycarbonate radome is ideal for outdoor use
- Attractive low profile design for maximum overhead clearance
- Stud mounting offers ease of installation in the field
- Ingress protection to IP65
- Other cable/connector configurations available upon request
Specifications:
| Weight [kg] | 0.17 without cable |
| Height [mm] | 80 |
| Brand | RFI |
| IP Rating | IP65 |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3500-3800 |
| Tuned Bandwidth | Full |
| Construction | UV Stable Black Polycarbonate Radome |
| Radome Diameter Mm | 50 |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 2 / 3 / 5 / 5 |
| Frequency | 698-960 / 1710-2170 / 2300-2700 / 3300-3800 MHz |
| Connector | SMA(M) |
| Cable And Connector | 5.0m RG58 Terminated with SMA(M) |
| Antenna Type | Omni |
| Antenna Application | IoT and M2M Terminal Antenna |
| Frequency Band | Multi-Band 700 to 2700 |
| Antenna Configuration | SISO |
Documentation
CSM700-5M-SMA Product Data Sheet
RFI DAS6938-SDP150-N Low PIM SISO Directional Panel Antenna - 698-960MHz&1710-2700Mhz&3300-3800 N(F) + 10.0M cable SMA terminated
The DAS6927-SDP150-N is a PIM rated indoor/outdoor SISO directional panel antenna antenna covering 4G &5G Cellular bands 689-960 MHz 1710-2700MHz & 3300-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
Features:
RFI's Low PIM DAS range is a high performance PIM rated DAS antenna range offering indoor or outdoor panel antennas with great directional beam control and a range of indoor and outdoor Omni directional solutions to suit indoor outdoor requirements with the optional low profile aesthetic. The multi-band capability of each offering covers both 4G and 5G bands including 690-960MHz 1710-2700MHz & 3300-3800MHz therefore eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.
Features Include:
• Low Profile compact form factor
• IP55 rated • Coverage across multiple cellular and WLAN bands • Ideal for DAS deployment for in-building coverage solutions
• Excellent -150dBc PIM performance
• 1 x 300mm tail terminated with N type female connector
• 5dBi @ 698-960Mhz; 6dBi @ 1710-2700Mhz; 7bBi @ 3300-3800Mhz
This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10
Specifications:
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 5/06/2007 |
| Dimensions | 165(L) x 155(W) x 50(H) |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA IP55 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Horizontal Beamwidth | 90 / 80 / 70 |
| Brand | RFI |
| Weight [kg] | 0.33 |
Documentation
DAS6938-SDP150-N_2 Low PIM SISO Directional Panel Antenna
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz N(F)
The DAS6938-SOC150-N is a PIM rated indoor SISO Omni-directional antenna covering 4G &5G Cellular bands 689-960 MHz 1710-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
Features:
RFI's Low PIM DAS range is a high performance PIM rated DAS antenna range offering indoor or outdoor panel antennas with great directional beam control and a range of indoor and outdoor Omni directional solutions to suit indoor outdoor requirements with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-3800MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -153dBc PIM performance
• 300mm tail terminated with N type female connector*
* This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10
Specifications:
| Connector | N(F) |
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 2 / 3 / 4 / 5 |
| Dimensions | 120 x 200 mm |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA IP45 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Width [mm] | 200 |
| Operating Temperature Range [°C] | -40 ~ 70 |
| IP Rating | IP45 |
| Brand | RFI |
| Weight [kg] | 0.3 |
| Height [mm] | 18 |
Documentation
DAS6938-SOC150-N Specifications
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz with 10M cable SMA
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz with 10M cable SMA
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz N(F) + 10.0M cable SMA terminated
The DAS6938-SOC150-N is a PIM rated indoor SISO Omni-directional antenna covering 4G &5G Cellular bands 689-960 MHz 1710-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
Features:
RFI's Low PIM DAS range is a high performance PIM rated DAS antenna range offering indoor or outdoor panel antennas with great directional beam control and a range of indoor and outdoor Omni directional solutions to suit indoor outdoor requirements with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-3800MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -153dBc PIM performance
• 300mm tail terminated with N type female connector*
* This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10
Specifications:
| Connector | N(F) |
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 2 / 3 / 4 / 5 |
| Dimensions | 120 x 200 mm |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA IP45 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Width [mm] | 200 |
| Operating Temperature Range [°C] | -40 ~ 70 |
| IP Rating | IP45 |
| Brand | RFI |
| Weight [kg] | 0.3 |
| Height [mm] | 18 |
Documentation
DAS6938-SOC150-N Specifications
RFI SISO Low Profile Omni-Directional Ceiling Antenna (698-4000 MHz); N(F)
The DAS6940LC-SOC150-N is a compact PIM rated indoor SISO omni-directional antenna antenna covering 4G &5G Cellular bands 689-960 MHz & 1710-4000MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
RFI's Compact Low profile LTE DAS antenna is a high performance PIM rated DAS antenna offering Omni directional coverage solutions to suit indoor UHF & LTE coverage in a low profile aesthetic. The multi-band capability covers both UHF and 4G bands including 690-960MHz & 1710-4000MHz eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications
Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -150dBc PIM performance
• 1 x 300mm tail terminated with N type female connector

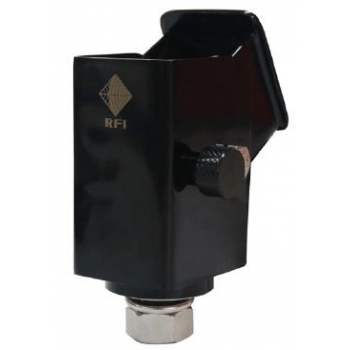

RFI FBBM-B Folding Bull Bar Bracket - Black Chrome Stainless Steel
FBBM-B is made from 304 grade stainless steel which is finished in black chrome. The mount can be folded in one of 4 positions; 0° (vertical) 33° 67° & 90° (horizontal) via a simple spring loaded pin. Includes a 6mm spacer to aid mounting on angled bull bars.
Features:
- Manufactured from 304 grade stainless steel
- Folds in one of 4 position from vertical to horizontal
- Mounts on standard 16mm antenna hole
- Design to take standard UHF CB and Mobile Phone antenna's
Specifications:
| Packaging | Heavy Duty Hang-Sell Poly Bag |
| Height mm | 86mm - not including the threaded stud |
| Mounting | 15mm threaded stud - 28mm long |
Documentation
FBBM-B Polished Chrome Bracket Flyer - click here
Related Products
Also available in Polished Chrome stainless steel - FBBM-P
ALTERNATIVE MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm

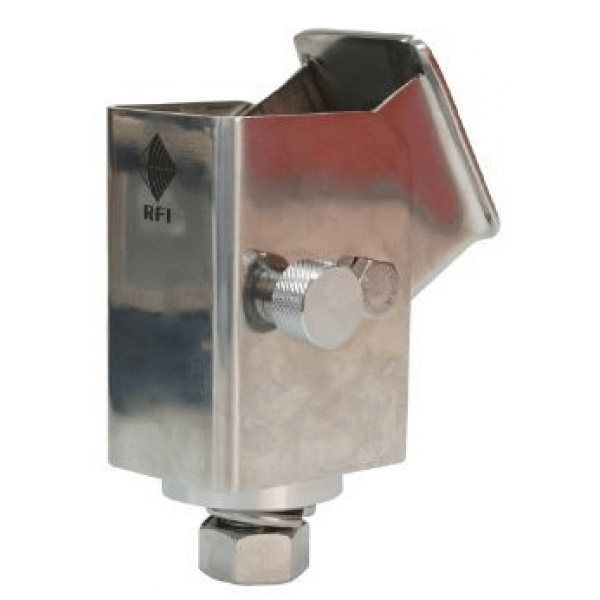

RFi FBBM-P Folding Bull Bar Bracket - Polished Chrome Stainless Steel
RFi FBBM-P Folding Bull Bar Bracket - Polished Chrome Stainless Steel
RFI FBBM-P Folding Bull bar bracket - Polished Chrome Stainless Steel
FBBM-P is made from 304 grade stainless steel which is finished a bright polished finish. The mount can be folded in one of 4 positions; 0° (vertical) 33° 67° & 90° (horizontal) via a simple spring loaded pin. Includes a 6mm spacer to aid mounting on angled bull bars.
Features:
- Manufactured from 304 grade stainless steel
- Folds in one of 4 position from vertical to horizontal
- Mounts on standard 16mm antenna hole
- Design to take standard UHF CB and Mobile Phone antenna's
Specifications:
| Packaging | Heavy Duty Hang-Sell Poly Bag |
| Height mm | 86mm - not including the threaded stud |
| Mounting | 15mm threaded stud - 28mm long |
Documentation
FBBM-P Polished Chrome Bracket Flyer - click here
Related Products
Also available in Black Chrome stainless steel - FBBM-B
ALTERNATIVE MOUNTING BRACKET OPTIONS
RFI BBM-3 Mounting Bracket Black with Stainless Steel Clamps
RFI BK-900 Adjustable Boot/Bonnet Mount - Black
RFI FBBM-B Folding Bull Bar Bracket - Black
RFI FBBM-P Folding Bull Bar Bracket - Chrome
RFI MM2-SS Heavy Duty Mirror Mount - Stainless Steel
RFI MM2 Heavy Duty Mirror Mount - Galvanised Steel
RFI BBW-M45-B Bull Bar Antenna Wrap Mount Black 45mm
RFI BBW-M45 Bull Bar Antenna Wrap Mount Stainless Steel 45mm
RFI BBW-M50-B Bull Bar Antenna Wrap Mount Black 50mm
RFI BBW-M50 Bull Bar Antenna Wrap Mount Stainless Steel 50mm
RFI BBW-M63-B Bull Bar Antenna Wrap Mount Black 63mm
RFI BBW-M63 Bull Bar Antenna Wrap Mount Stainless Steel 63mm
RFi BBW-M76-B Bull Bar Antenna Wrap Mount Black 76mm
RFI BBW-M76 Bull Bar Antenna Wrap Mount Stainless Steel 76mm
RFI FME-120 Pulse FME (M)
FME-120 Features:
A low cost lightweight threaded solution for high vibration installations the FME connector series have gained popularity worldwide in cellular mobile applications and are also known as rotating nipple connectors. They are generally used up to 1.8 GHz and can be mated to a range of adapters to match different connector series in an installation.
FME Nipple crimp male - Nickel plated
| Brand | Pulse |
| Connector | FME(M) |
| Cable Type | RG58 |
| Centre Conductor | Crimp |
| Cable Type Connectors | RG58 |
| Component Type | Connector |
Availability
RFI Galvanised U Bolt; M8 X P1.25 Thread
Galvanised U-Bolt Assembly
Availability
2-3 Days Lead Time
RFI HS72 Eave/Wall (Hockey Stick) Mount "J" Pole 1.8M for Antenna Mounting
RFI HS72 Eave/Wall (Hockey Stick) Mount "J" Pole 1.8M for Antenna Mounting
RFI HS72 Eave/Wall (Hockey Stick) Mount "J" Pole 1.8M for Antenna Mounting
An L-shaped fascia bracket with mounting tube used to mount small yagis or dipoles. Allows the vertical mast to clear guttering.
Features:
- Hot dipped galvanised finish
- Right angle steel tube to fit to the roof fascia
- Protrudes 180mm from fascia surface
- Heavy duty construction
Other RFI mounting choices - RFI Mounting Hardware Options
Documentation
RFI ITG5001 ON-GLASS CELLULAR MOBILE ANTENNA MULTIBAND 824-960MHZ/1710-2170MHZ
The Quintet™ offers incredible versatility. It can be used in almost any cellular system, will provide superior performance to externally glass mounted antennas and yet can be mounted quickly and easily inside the vehicle with no external components.
Features:
•.Superb performance – approaches a quarter wave antenna and easily out-performs external mounted glass mount antennas. Patented mixed polarity design.
• Reduce inventories – one antenna suits all systems and can be shipped globally
• Completely internal – no impact on prestige vehicles, no threat of vandalism, no car wash damage and simplified installation
• Supplied ready to go with peel and stick mounting and pre-terminated, fully shielded low loss coaxial cable
Specifications:
| Band | 824 - 960MHz / 1710 - 2170MHz |
| Tunable Bandwidth | Entire specified band @ <2.0:1 VSWR |
| Nominal Gain dBi | 1.1 @ 806 - 960MHz / 4.4 @ 1710 - 1990 / 4.5 @ 1910 - 2170 |
| Tuning | Supplied pre-tuned |
| Power W | 10 |
| Cable and Connector | Cellular feeder of 5.0m 9014 low loss, fully shielded cable terminated with SMA male and FME nipple. |
| VSWR | <2.0:1 |
| Height mm | 17 |
| Width mm | 90 |
| Length mm | 90 |
| Termination | SMA Female |
RFI ITG5001 On-Glass Cellular Mobile Antenna Multiband 824-960MHz/1710-2170MHz
RFI ITG5001 On-Glass Cellular Mobile Antenna Multiband 824-960MHz/1710-2170MHz
RFI ITG5001 On-Glass Cellular Mobile Antenna Multiband 824-960MHz/1710-2170MHz
The Quintet™ offers incredible versatility. It can be used in almost any cellular system will provide superior performance to externally glass mounted antennas and yet can be mounted quickly and easily inside the vehicle with no external components.
Features:
Superb performance – approaches a quarter wave antenna and easily out-performs external mounted glass mount antennas. Patented mixed polarity design.
• Reduce inventories – one antenna suits all systems and can be shipped globally
• Completely internal – no impact on prestige vehicles no threat of vandalism no car wash damage and simplified installation
• Supplied ready to go with peel and stick mounting and pre-terminated fully shielded low loss coaxial cable
Specifications:
| Band | 824 - 960MHz / 1710 - 2170MHz |
| Tunable Bandwidth | Entire specified band @ <2.0:1 VSWR |
| Nominal Gain dBi | 1.1 @ 806 - 960MHz / 4.4 @ 1710 - 1990 / 4.5 @ 1910 - 2170 |
| Tuning | Supplied pre-tuned |
| Power W | 10 |
| Cable and Connector | Cellular feeder of 5.0m 9014 low loss fully shielded cable terminated with SMA male and FME nipple. |
| VSWR | <2.0:1 |
| Height mm | 17 |
| Width mm | 90 |
| Length mm | 90 |
| Termination | SME Female and FME nipple |
Documentation
View the ITG5001 Technical Data Sheet
Availability
RFI LPDA7038-11-0.5NF 5G LTE 11dBi LPDA Directional Antenna (700-3800 MHz); 0.5MTR HDF195 CABLE N-TYPE (F)
This wide-band log periodic antenna offers high gain directional coverage and is suited to all global cellular and various other wireless network applications. The unique ruggedized diecast aluminium construction ensures optimum performance and reliability in all weather and operating environments. The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60mm
Pole not included - available to order click here
Features LPDA7038-11-0.5NF:
- Wide band frequency range
- Excellent front-to-back ratio
- Easy installation using supplied hardware
- 0.5Mtrs hdf195 Cable with N conn (F)
The LPDA7038 antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60mm and includes 0.5 metres of HDF 195 cable terminated with N Type female connector.
Specifications:
| Cable And Connector | 0.5 metres of HDF 195 cable terminated with N Type female connector. |
| Frequency Range | 1710 - 2170 2300 - 2700 3400 - 3800 698 - 960 |
| Frequency | 698-960 / 1710-2700 / 3400-3800 MHz |
| Wind Load (Thrust) @ 160km/h N | 160 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 10.8 / 11 / 2.3 |
| Dimensions | 1112 x 200 x 47mm |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | 55 |
| Front Back ratio dB | 20 dB |
| Brand | RFI |
| Weight [kg] | 1.85 |
Documentation
LPDA7038-11-0.5NF Technical Data Sheet
Related Products
RFI HS72 Eave/Wall (Hockey Stick) Mount "J" Pole 1.8M for Antenna Mounting
RFI LPDA7038-11-10SMA 5G LTE 11dBi LPDA DIRECTIONAL ANTENNA 10M CABLE-SMA
RFI LPDA7038-11-10SMA 5G LTE 11dBi LPDA DIRECTIONAL ANTENNA 10M CABLE-SMA
RFI LPDA7038-11-10SMA 5G LTE 11dBi LPDA Directional Antenna (700-3800 MHz); 10m SMA(M)
This wide-band log periodic antenna offers high gain directional coverage and is suited to all global cellular and various other wireless network applications. The unique ruggedized diecast aluminium construction ensures optimum performance and reliability in all weather and operating environments. The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement.
Mast mounting hardware is supplied to suite pole diameters of up to 60mm
Pole not included - available to order click here
Features LPDA7038-11-10SMA:
- Wide band frequency range
- Excellent front-to-back ratio
- Easy installation using supplied hardware
- 10Mtrs RG58 Cable with SMA male connector included
The LPDA7038 antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm.
Specifications:
| Cable And Connector | 10 meters cable terminated with male SMA connector |
| Frequency Range | 1710 - 2170 2300 - 2700 3400 - 3800 698 - 960 |
| Frequency | 698-960 / 1710-2700 / 3400-3800 MHz |
| Wind Load (Thrust) @ 160km/h N | 160 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 10.8 / 11 / 2.3 |
| Dimensions | 1112 x 200 x 47mm |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | 55 |
| Front Back ratio dB | 20 dB |
| Brand | RFI |
| Weight [kg] | 1.85 |
Documentation
LPDA7038-11-10SMA Technical Data Sheet
Related Products
RFI HS72 Eave/Wall (Hockey Stick) Mount "J" Pole 1.8M for Antenna Mounting
RFI LPDA7040-11-0.3NF LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); 0.3m N(F)
RFI LPDA7040-11-0.3NF LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); 0.3m N(F)
RFI LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); 0.3m N(F)
The LPDA7040-11-0.3NF is a high performance wide band log periodic antenna designed to operate in the LTE bands from 698 to 4000 MHz. This wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The brass & aluminium internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation and is supplied with a tilt and swivel mast mount kit.
Features :
- Broad operating frequency range
- Compact design
- IP65
- Urban and rural areas - Poor data signal reception (indoor or outdoor)
- Slow data transmission connection
- Unstable connection
- Increase system transmission reliability
- LTE fringe areas (close to an LTE area but just out of reach)
- Network operator flexibility - as the antennas is wideband a new antenna is not needed per network operator
- Works on most networks.
Also available with a 10Mtr RG58 cable terminated with SMA male connector - click here
Specifications:
| Cable And Connector | 0.3 m RG141 cable terminated with N type female connector |
| Connector | N(F) |
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Power w | 50 |
| Nominal Gain Dbi | 9.5 / 11.0 / 11.5 |
| Dimensions | 440 x 205 x 60mm |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Mounting area | Up to 52mm diameter pole |
| Tuned bandwidth | Full |
| Passive IM 3rd Order (2x20W) dBc | -153 |
| Horizontal Beamwidth | 90 / 75 / 54 |
| Front Back ratio dB | 15 |
| Frequency MHz | 698-960 / 1710-2700 / 3300-4000 |
| Brand | RFI |
| Weight [kg] | 1 |
Documentation
View LPDA7040-11-0.3NF data sheet
What’s in the box
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 52mm. (Mounting pole not included)
1 x LPDA with 0.3 metres cable terminated with N Type female connector
1 x Antenna L bracket
2 x Mounting plates
2 x M6 U-bolts (including: 4 x M6 Nuts 4 x Flat washers & 4 x Spring washers)
Related Products
Also available with a 10Mtr RG58 cable terminated with SMA male connector - click here
RFI LPDA7040-11-10SMA LTE 11dBi LPDA Directional Enclosed Antenna includes 10m Cable
RFI LPDA7040-11-10SMA LTE 11dBi LPDA Directional Enclosed Antenna includes 10m Cable
LPDA7040-11-10SMA LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); includes 10m cable RG58 / SMA male.
The RFI LPDA7040-11-10SMA is a high performance wide band log periodic antenna designed to operate in the LTE bands from 698 to 4000 MHz. This wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The brass & aluminium internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation and is supplied with a tilt and swivel mast mount kit.
LPDA7040-11-10SMA:
- Broad operating frequency range
- Compact design
- IP65
- Increase system transmission reliability
- LTE fringe areas (close to an LTE area but just out of reach)
- Network operator flexibility - as the antennas is wideband a new antenna is not needed per network operator
- Works on most networks
- 10mtr RG58 cable with SMA (m) connection included
Specifications:
| Cable And Connector | 0.3 m RG141 cable terminated with N type female connector |
| Connector | N(F) |
| Frequency Range | 1710 - 2170 2300 - 2700 3300 - 3800 698 - 960 |
| Power w | 50 |
| Nominal Gain Dbi | 9.5 / 11.0 / 11.5 |
| Dimensions | 440 x 205 x 60mm |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Mounting area | Up to 52mm diameter pole |
| Tuned bandwidth | Full |
| Passive IM 3rd Order (2x20W) dBc | -153 |
| Horizontal Beamwidth | 90 / 75 / 54 |
| Front Back ratio dB | 15 |
| Frequency MHz | 698-960 / 1710-2700 / 3300-4000 |
| Brand | RFI |
| Weight [kg] | 1 |
Documentation
View LPDA7040-11-0.3NF data sheet
What’s in the box
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 52mm. (Mounting pole not included)
1 x LPDA with 0.3 metres cable terminated with N Type female connector
1 x Antenna L bracket
2 x Mounting plates
2 x M6 U-bolts (including: 4 x M6 Nuts 4 x Flat washers & 4 x Spring washers)
1 x 10Mtrs RG58 Cable with SMA male connector
RFI LTE-MAGM-3M-SMA LTE Cellular MIMO Low Profile Magnetic Antenna - 2 x 3M RG174 / SMA Male Connector
The LTE-MAGM Series of magnetic MIMO wideband cellular antenna delivers stable omni-directional gain across all common 4G 3G & 2G global cellular bands from 698 MHz to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. The strong magnetic base is extremely robust and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.
Features:
• Magnetic mount
• High performance MIMO
• Ground plane dependent
• Customised cable & connectors (MOQ’s may apply)
• IP69K
LTE-MAMM-3M-SMA Technical Specifications - click here
Specifications:
| Frequency: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz |
| Band | MIMO LTE |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | -0.1dBi / 3.1dBi / 3.5dBi (peak) |
| Power W | 25 |
| Packaging | Clear Bag |
| VSWR | <3.0:1 |
| Cable Type / Length | 2 x 3m RG174 |
| Termination | 2 x SMA male connectors |
| Mounting | Magnetic |
Operating Temperature °C |
-40 to +85 |
| Ingress Protection Rating | IK69K |
Documentation
LTE-MAGM-3M-SMA Technical Data Sheet
Availability
RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700MHZ - 3M Cable with SMA Male
The LTE-MAGS Series of magnetic wideband cellular antenna delivers stable omni-directional gain across all common 4G & 3G global cellular bands from 698 MHz to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. The strong magnetic base is extremely robust and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.
Features:
-
Magnetic mount
-
High performance
-
Ground plane dependent
-
IP69K
Specifications:
| Frequency: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz |
| Band | SISO LTE |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 1.8dBi / 3.1dBi / 2.9dBi (peak) |
| Power W | 25 |
| Packaging | Clear Bag |
| VSWR | <3.0:1 |
| Cable Type / Length | 1 x 3m RG174 |
| Termination | 1 x SMA male connectors |
| Mounting | Magnetic |
| Operating Temperature °C | -40 to +85 |
| Ingress Protection Rating | IK69K |
Documentation
LTE-MAGS-3M-SMA Product Data Sheet
