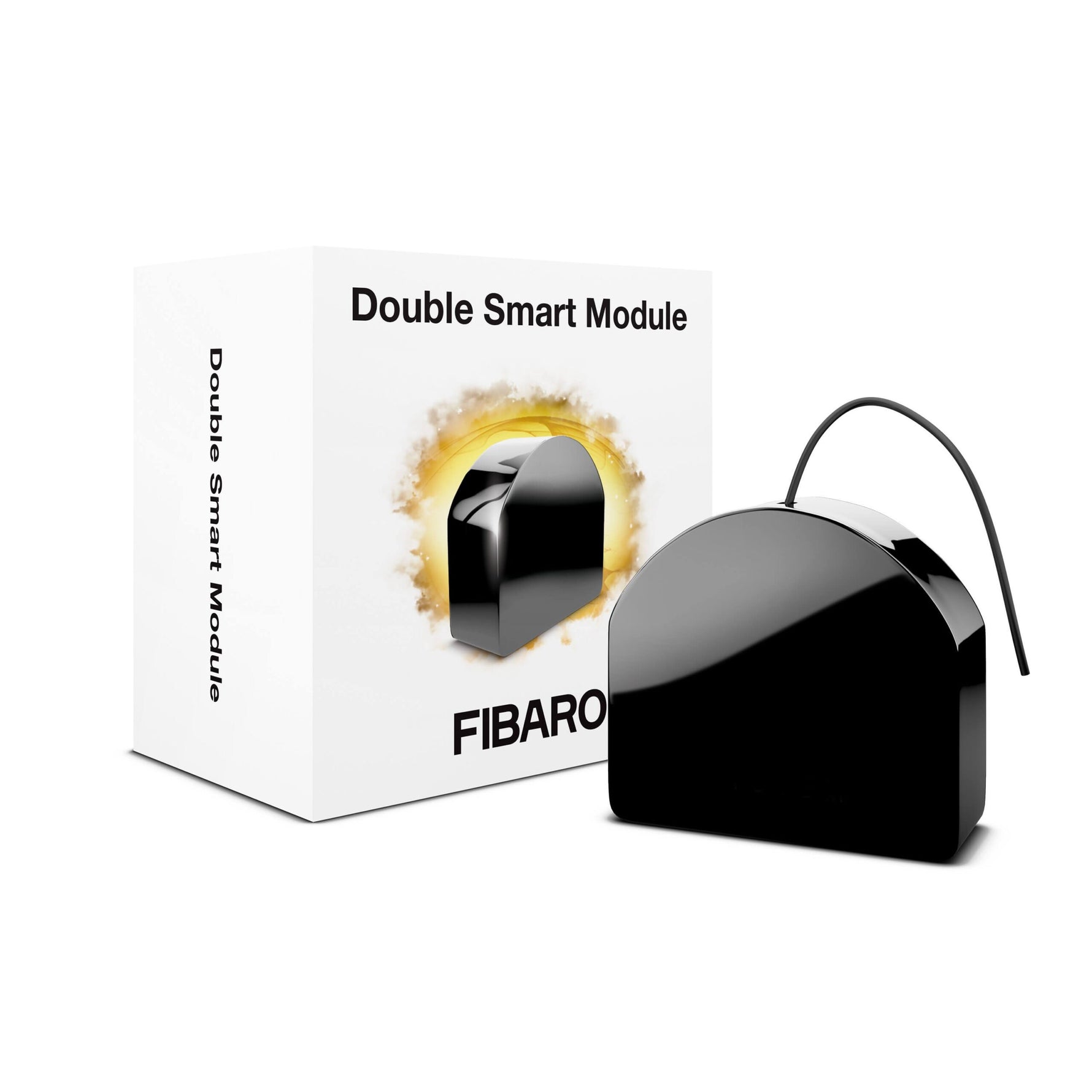

FIBARO Dbl Smart Module FGS224 for home Automation (Zwave)



This product is currently sold out

Quick Overview


 The new FIBARO Double Smart Module(FGS-224) is a smart Z-Wave wireless module which can control two circuits each with a maximum load of 6A per channel and 9.5A total load per circuit.

  • Control the ON-OFF function of two two independent circuits or appliances remotely or using a wall switch
  • Can be used as voltage free relays (dry contacts)
  • Compatible with all Z-Wave networks
  • Acts as a repeater expanding your Z-Wave network
  • Wide range of compatibility with existing light fittings and does NOT require expensive cabling
  • Latest generation Z-Wave 500 series chip
  • Z-Wave Plus certification
  • Very accurate energy measurement +/- 1 % for power above 5W
  • Supports secure mode (Z-Wave Network Security) encrypted with AES-128
  • Dry contacts - this is important. It means that the new FGS-224 can be used to control low voltage systems such as garden lights and irrigation or where you want a pure volt-free switch such as alarm panels and garage door controls.
Product Details


The FIBARO Double Smart Module(FGS-224) is a smart Z-Wave controller capable of remotely operating your existing light fittings. It works with Z-Wave enabled controllers (AUS/NZ version) and can be controlled individually or as part of a group in a pre-configured Scene.

The device is designed to operate inside your wall socket and can be easily installed by a qualified electrician.

This FIBARO Double Smart Module (FGS-224) requires 3-wire (including neutral) installation and works with an AC (230V) power supply.


The FIBARO Double Smart Module (FGS-224) also features a secondary switch input which allows it to directly control other associated Z-Wave devices. This means that by turning the switch ON/OFF you can also turn other associated devices ON/OFF even if they are not physically connected to the same Fibaro module. It also enables you to control the local load as part of 2-way and multi-way lighting circuits.

This product integrates with Australian certified (921.42 MHz) Z-Wave Controllers - Fibaro Home Center 3/2/Lite

Configuring Z-Wave Devices:

Z-Wave devices often have several configurable parameters which you can change using the Fibaro’s user interface. These parameters can include things such as the length of time a Z-Wave siren remains active for or the type of manual switch connected to a Z-Wave light controller.

Every available configurable parameter is listed in your device’s user manual. In most cases your device’s default parameters will be suitable to your needs however sometimes it may be necessary to adjust them to optimally use your device.

Please check the maximum load before installing or operating.
This installation must be done by a certified electrician in Australia and New Zealand.
Before engaging an electrician check that they provide an electrical compliance certificate.
For warranty claim you have to provide installation compliance certificate from your electrician.

Product Support



⇒ FIBARO Double Smart Module Manual

Videos / YouTube:

⇒ Fibaro Home Center 3 Presentation

Technical Specifications


RF Protocol
RF Frequency
921.42Mhz ‐ AU/NZ  approved RF for Z‐wave
Z‐Wave device type
Z-Wave Switch Routing Slave
230V ± 10% 50/60 Hz
Operation Range
Up to 20 m indoors with no obstacles
Indoor use only up to 1.5kW resistive load per circuit
6A per one channel 9.5A total
Operation temperature
0 ~ 55 °C
Storage temperature
‐10 ~ 80 °C
EN 55015 EN 60669-2-1
Regulatory Compliance Mark
(LxWxH) 42mm x 37mm x 17mm
