DHS RFID Wall Scene Controller



This product is currently sold out

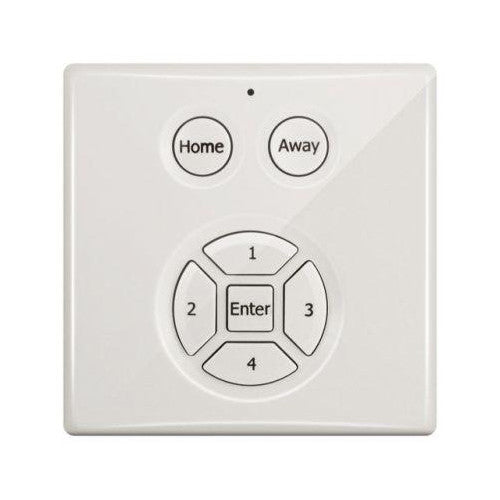

Control your Z-Wave Gateway with the wall-mount Mini Keypad RFiD. The keypad's "Home" and "Away" buttons allow you to quickly arm/disarm your security system and/or run automation scenarios. Four numbered buttons also provide scene controls. In addition to using pushbutton controls, you can wave the included keychain RFiD Key Tag in front of the keypad to arm/disarm the system.

Supported Z-Wave Gateways:

  • Vera Lite (UI7)
  • Vera 3 (UI7)

Product Details

  • Communicates via Z-Wave to arm/disarm a security system.
  • Reads RFiD key tags (one included).
  • Buzzer indicates arming/disarming.
  • Accepts manually entered codes.
  • Has indicator light.

Product Support


DHS RFID Wall Security Keypad Product Manual (Size: 432KB)

DHS RFID Wall Security Keypad Integration with Vera Manual (Size: 338KB)

DHS RFID Wall Security Keypad Technical Specification (Size: 170KB)


Technical Specifications

Product Name
RFID Wall Security Keypad
Powered by
2 x AA 1.5V batteries (from 2.3V to 4V DC)
Operation Range
Up to 30m when no obstacles
Z-Wave Device type



Radio frequency
921.42 MHz (AUS/NZ Z-Wave)
Indoor use only
Operation temperature
0oC to 40oC
Supported RF Protocols Z-Wave, ISO15693, ISO18000-3, Tag-it™, RFiD
Sound level
60dBa at 10 cm distance
Dimensions (W x H x D)
60,8 x 60,8 x 30,4mm
