STEINEL 064129 IR QUATTRO Micro KNX Presence Detector - for home automation
Estimated delivery between December 31 and January 02.
Description

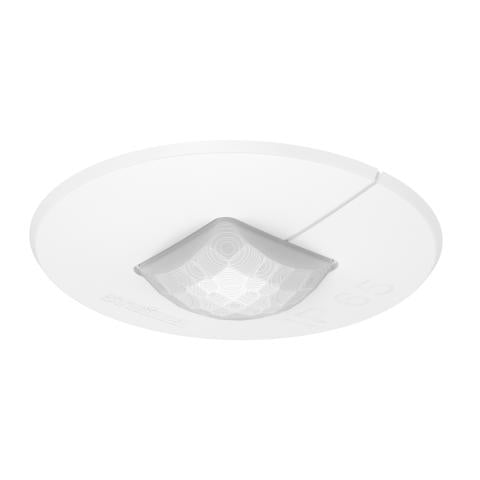

STEINEL 064129 IR QUATTRO Micro KNX Presence Detector
Quick Overview
Compact size after installation low overall height micro precision lens (15×15 mm) 360° IR presence sensing covering 36 m² IP65 certification also makes it suitable for rooms exposed to moisture.
Small sensor. Great performance. The IR Quattro MICRO satisfies the need of many architects and planners for a sensor that is as discreet as feasible. It stands out with its compact size after installation low overall height and micro precision lens (15 x 15 mm). Despite its modest size the 360° infrared presence provides excellent coverage of 36 m². It is also appropriate for moisture-prone spaces thanks to its IP65 certification.
Excellent detection quality. In smaller spaces.
Small offices as well as storage service utility and laundry rooms should be properly incorporated into a KNX system. With 1 760 switching zones the IR Quattro KNX is the ideal answer. The presence detection zone measures 16 m² and has indefinitely expandable reach. There is no degradation in quality whatsoever. Providing ultra-precise planning. Thank you Presence Control PRO.
Documents
Videos / YouTube:
⇒Introduction – Configuration – Demonstration
Technical Specifications
| Model | Presence Detector |
| Dimensions (h x w x d) concealed mounting | 120 x 120 x 76 mm |
| Power supply | KNX bus voltage |
| Sensor type | Passive infrared |
| Application | Inside buildings |
| Installation | Ceiling |
| Recommended installation height | 2.5-8 m |
| Square presence detection zone | 4 x 4 m max. (16m²) |
| Square radial detection zone | 5 x 5 m max. (25m²) |
| Square tangential detection zone | 7 x 7 m max. (49m²) |
| Reach mechanically adjustable | Yes |
| Sensor system | 13 detection levels 1760 switching zones |
| Settings | by means of ETS software remote control or bus |
| Lighting channels Light 1 – Light 4 | Switching/dimming switching mode constant lighting control stay-ON time |
| Basic brightness | Permanently ON 1 – 255 min 10-50% = all night |
| Switch-‘ON’ delay | Room surveillance 0-255 min. Stay-ON time 1-255 min. |
| Presence stay “ON” time output | 1-255 sec. or 1-255 min. |
| HVAC output | depending on presence |
| Further outputs | Light level sabotage protection |
| Light level output | in lux |
| Degree of protection (IP) | IP20 |
| IP rating with AP Box (surface-mounting box) | IP54 |
| Protection class | II |
| Temperature range | -25-+55 |
| Interface | KNX |
KNX for Every Kind of Project
KNX technology is perfect for high-end residential and light commercial installations offering incredible quality and automation options for installers and end-users.
KNX technology allows a broad range of home automation devices to communicate with each other even if they are from different manufacturers and can even be integrated with other automation systems.Ready to enjoy the full potential of a KNX smart automation?
