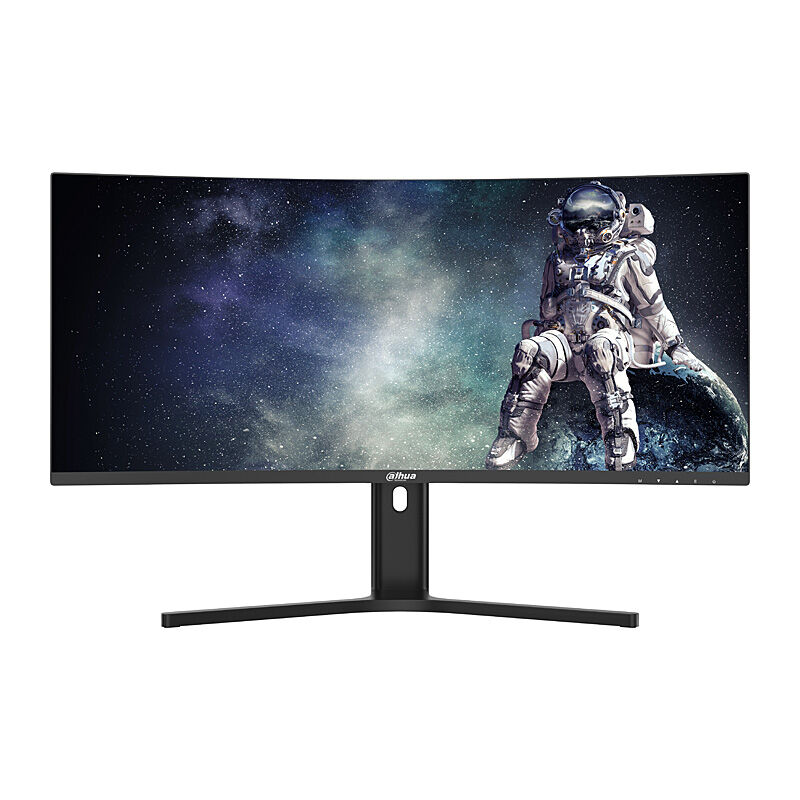

DAHUA E330CA 34'' VA Monitor(OS)

DAHUA E330CA 34'' VA Monitor(OS)

Description:

DAHUA E330CA 34'' VA Monitor

DAHUA 34'' VA Monitor, 3440*1440, 200Hz, MPRT 1ms, 2*DP+2*HDMI+Audio out

Features

• 3440 × 1440 resolution delivers clearer and more vivid picture quality
• Comfortable 1500R curvature closely matches natural human vision for an immersive viewing experience
• Wide color gamut with 120% sRGB, 85% NTSC, 85% DCI‑P3, and 85% Adobe RGB, meeting designers' demands for rich image texture
• Adaptive Sync technology effectively reduces picture lagging and tearing
• 1 ms fast response time minimizes blurring and ghosting

Specifications

• Model: DHI-LM34-E330CA
• LCD Technology: VA
• Backlight: ELED
• Curved Screen: Yes
• Curvature: 1,500 R
• Screen Size: 34 inch
• Aspect Ratio: 21:9
• Viewing Size: 797.22 (H) × 333.72 (V) mm
• Screen-to-Body Ratio: ≥85%
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.2318 mm × 0.2318 mm
• Pixels Per Inch: 109.7
• Resolution: 3440 (H) × 1440 (V)
• Refresh Rate: 200 Hz
• Display Color: 8 bit + FRC
• Color Gamut: 85% NTSC
• Brightness: 300 cd/m² (typ.)
• Contrast Ratio: 3500:1
• Response Time: MPRT 1 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 25%, 3H
• Flicker-free Technology: Yes
• Low Blue Light: Software blue light protection
• HDR: HDR10

Device Ports

• Input: 2 × HDMI 2.0 (3440 × 1440@100 Hz), 2 × DP 1.4 (3440 × 1440@200 Hz)
• Output: 1 × Audio out

Power & Environmental Conditions

• Power Supply: 19 VDC, 3.42 A
• Power Type: Power adapter
• Power Consumption: 29 W (basic), 47 W (typ.), 70 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–85% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: –5° / 15°
• Left and Right Rotation Angle: -35° / +35°
• Height Adjustment: 100 mm
• Product Dimensions (W × H × D): 810.4 mm × 361.5 mm × 132.1 mm (31.91" × 14.37" × 5.2"), without base
• Package Size (W × H × D): 1124 mm × 468 mm × 193 mm (44.25" × 18.43" × 7.6")
• Frame Width (U/L/R/D): 4.3 mm / 4.3 mm / 4.3 mm / 18.1 mm
• Net Weight: 7.3 kg (16.09 lb)
• Gross Weight: 10.2 kg (22.49 lb)
• Casing Color: Black
• Control Mode: Five‑button
• Status Indicator Light: Yes
• Wall Mount VESA: 100 mm × 100 mm (3.94" × 3.94")

Accessory

• Power adapter
• Wall‑mount bracket
• DP cable
• User's manual
• Legal and regulatory information

Optional Accessory

• Wall mount

Certification

• CE EMC
• CE LVD
• CE ERP
