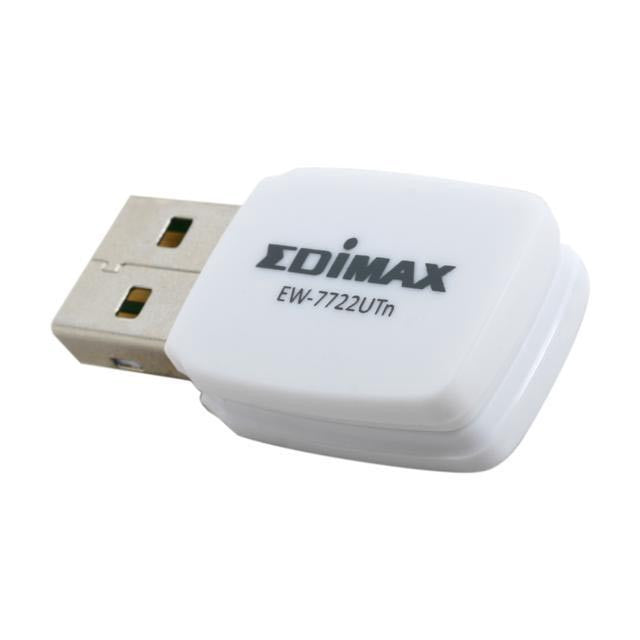

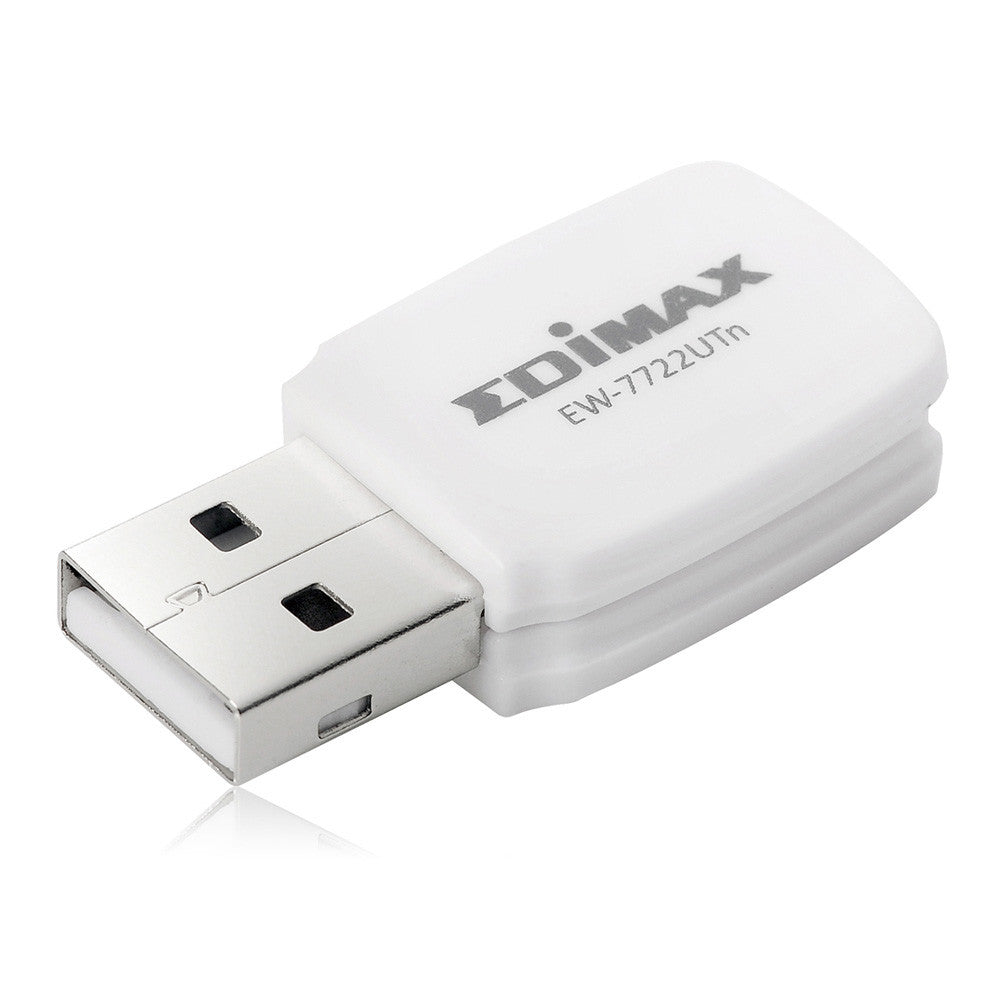

Enjoying high-speed wireless network access is as simple as plugging the Edimax EW-7722UTn into your computer's USB port. This mini wireless USB adapter is a quick and easy way to add or upgrade the wireless connectivity of your desktop, laptop, or notebook computer. You can enjoy data rates of up to 300Mbps when the Edimax EW-7722UTn is connected to 300Mbps wireless 802.11n standard devices.

Wireless 802.11n Standard (data rates up to 300Mbps)
The Edimax EW-7722UTn means increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7722UTn complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.

Features a Hardware WPS (Wi-Fi Protected Setup) Button
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. If the wireless device you wish to connect supports WPS, the Edimax EW-7722UTn will automatically set up the wireless connection with a robust WPA data encryption and authentication. The Edimax EW-7722UTn wireless USB adapter supports both hardware (push-button) WPS and software WPS configurations.

Features Multi-Language EZmax Setup Wizard*
The Edimax EW-7722UTn includes an EZmax setup wizard—an application available in 16 languages that helps you to quickly connect the adapter to your wireless network.

Portable and Compact Design
The Edimax EW-7722UTn is currently the smallest 300Mbps wireless adapter. Its lightweight and compact design makes it ultra-convenient for any mobile user to carry around.

Hardwire USB Cable for Improved Wireless Performance
EW-7722UTn comes with a free hardwire USB cable for improved wireless performance. When using EW-7722UTn with the hardwire USB cable, it provides better wireless performance at no extra cost.

SPECS

HARDWARE INTERFACE

• 1 x USB 1.0/2.0 Type A
• Hardware WPS button
• 2 x Internal Antenna

DATA RATES

• 11b: 1/2/5.5/11Mbps
• 11g:6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-15 (up to 144Mbps)
• 11n (40MHz): MCS0-15 (up to 300Mbps)

WIRELESS SECURITY

• WEP 64/128, WPA, WPA2, 802.1x
• Cisco CCX Support
• Hardware and Software WPS configuration

SYSTEM REQUIREMENTS

• Windows 2000/ XP/ Vista/ 7 / 8

STANDARD

• IEEE802.11b, 802.11g, 802.11n

INSTALLATION

• Multi-language EZmax Setup Wizard

DIMENSIONS

• 9.1(H) x 17.8 (W) x 35.8 (D) mm

OUTPUT POWER

• 11n: 12dBm±1dBm
• 11g: 17dBm±1dBm
• 11b: 17dBm±1dBm

FREQUENCY BAND

• 2.4000~2.4835GHz (Industrial  Scientific Medical Band)

LED

• Link/Activity

HUMIDITY & TEMPERATURE

• Max. 95% (Non Condensing)
• 32~104°F (0~40°C)
