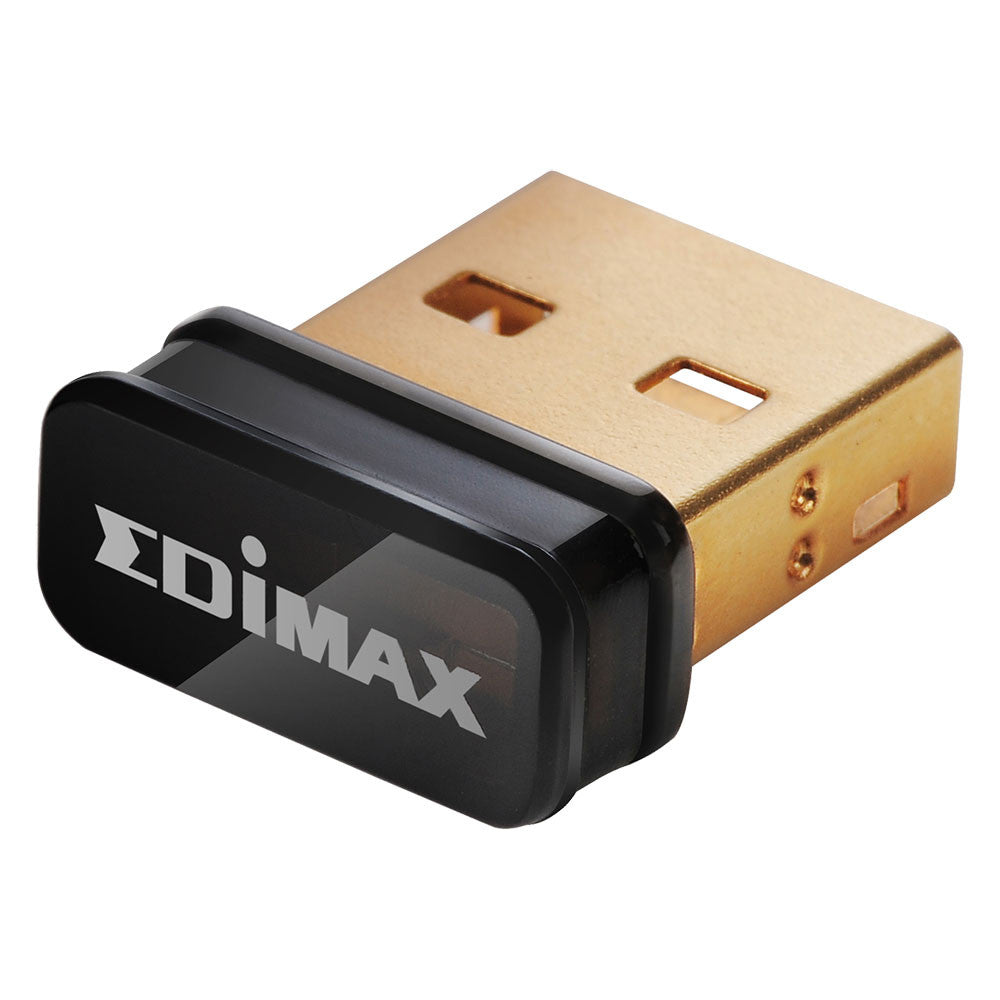

EW-7811Un is a nano USB wireless adapter that supports maximum range and speed. Despite the size, this tiny USB adapter supports higher data rate of up to 150Mbps when connecting with wireless 802.11n device which is 3 times faster than your normally 11g connection. You can just plug it into computer's USB port and enjoy incredible high-speed wireless network access.  This is for sure the trendiest piece of upgrade you can make to your wireless network.

Complies with wireless 802.11n standards with data rate up to 150Mbps
EW-7811Un complies with wireless IEEE802.11b/g/n standards. As being built with the latest wireless technology, the EW-7811Un can increase your wireless coverage up to 3 times as much and greatly help reduce “dead spots” compared to your old 11g adapter.  The transmission data rate can go up to 150Mbps when connected to a 802.11n device, with signal travel further and connection a lot more stable compared to your previous 802.11g network .

Supports Green WLAN
EW-7811Un has adapted a clever protocol  in smart transmission power control.  The adapter smartly adjust transmission output by distance and CPU offload to help reduce  power  consumption when wireless is idle. With the green WLAN technology, the power consumption can be reduced up to 20%  ~ 50%.  The adapter does not just provide you with the best wireless technology in the world, it also  care for  the environment by using less energy and your pocket by saving up on your electric bills.

Supports WPS (Wi-Fi Protected Setup)
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. This wireless USB adapter supports software WPS-compatible configuration. By pressing 2 buttons, your wireless network is immediately secured providing your wireless router will also support this great easy function.

Supports multi-language EZmax setup wizard
The included 16 languages EZmax setup wizard and friendly UI will walk you through configuring EW-7811Un to your wireless network.

Portable and compact design
EW-7811Un is currently the smallest wireless adapter. The compact design of EW-7811Un is convenient to carry  for all mobile users.   It also means you will not be able to accidentally snap your USB adapter anymore as it is hidden very well once it is plugged into the USB port.

APPLICATION DIAGRAM

• Connects the EW-7811Un wireless adapter to your computer.
• Setups the wireless connection by running the multi-language EZmax wizard.
• Connects to 802.11b/g/n wireless access point or broadband router

SPECS
HARDWARE INTERFACE

• 1 USB 1.0/2.0 Type A
• Internal Antenna

DATA RATE

• 11b: 1/2/5.5/11Mbps
• 11g:6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-7 (up to 72Mbps)
• 11n (40MHz): MCS0-7 (up to 150Mbps)

SECURITY

• WEP 64/128, WPA, WPA2, and IEEE802.1x
• Software WPS configuration

SYSTEM REQUIREMENTS

• Windows XP/Vista/7 / 8/8.1
• Linux & Mac OS

STANDARD

• IEEE802.11b, 802.11g, 802.11n

INSTALLATION

• Multi-language EZmax Setup Wizard

OUTPUT POWER

• 11b:17 ± 1.5dbm
• 11g:b:15 ± 1.5dbm
• 11n:14 ± 1.5dbm

RECEIVE SENSITIVITY

• 11n(20MHz)@MCS7: -68dBm±2dBm
  11n(40MHz)@MCS7: -64dBm±2dBm
• 11g@54Mbps: -71dBm±2dBm
• 11b@11Mbps: -81dBm±2dBm

FREQUENCY BAND

• 2.4000~2.4835GHz (Industrial  Scientific Medical Band)

LED & DIMENISONS

• Link/Activity
• 7.1(H) x 14.9 (W) x 18.5 (D) mm

HUMIDITY & REMPERATURE

• Operating : 10~90% (Non Condensing)
  Storage : Max. 95% (Non Condensing)
• Operating : 32~104°F (0~40°C)
  Storage : -4~140°F (-20~60°C)
