For anyone who’s experienced video streaming interruptions or online gaming lag, the Edimax Gemini RG21S is designed to ensure games and movies run smooth and fast. With the latest 11ac Wave 2 technology and a host of other features the RG21S offers enormous improvements in Wi-Fi speed, quality and reliability. Featuring AC2600 high speed Wi-Fi and MU-MIMO technology for simultaneous connections to multiple devices, as well as smart-roaming support – the Gemini RG21S brings better performance, lower latency and super dependable high-speed Wi-Fi for your movies and games.

It’s an ultra-fast 802.11ac Wi-Fi router with dual-band data rates of 1733Mbps at 5GHz and 800Mbps at 2.4GHz perfect for smooth 4K streaming and lightning fast file transfers. MU-MIMO (Multiple User - Multiple Input Multiple Output) technology serves multiple devices simultaneously and is ideal for busy networks, providing better efficiency and less buffering. And with Edimax add-on roaming devices, the RG21S’s smart roaming function automatically detects and switches your device to the best available Wi-Fi signal – for a seamless Wi-Fi experience as you move around your home.

AC2600 Super High-Speed Wi-Fi
Next generation Wi-Fi router with 802.11a/b/g/n/ac standards and speeds of up to 800Mbps at 2.4GHz and 1733Mbps at 5GHz. Upgrade your home Wi-Fi to super high-speed 802.11ac and enjoy faster video streaming, online gaming and data transfers.

Multi-Device Efficiency
MU-MIMO (Multiple User - Multiple Input Multiple Output) technology serves multiple devices simultaneously instead of one at a time, for better performance and efficiency on networks with multiple devices. Four streams with blistering 11ac Wave 2.

Smarter Wi-Fi Roaming
A seamless connection while you move around your home without hassle of switching SSIDs (network name). Your extender and router use the same SSID for seamless roaming* that automatically switches your Wi-Fi device to the best signal. (*Use with an Edimax Gemini RE11S add-on extender for always-connected Wi-Fi.)

Flexible Concurrent Dual-Band Connectivity
Providing simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility of use and the best of both worlds.

VPN Remote Network Access for Privacy & Security
Built-in Virtual Private Network (VPN) support for easy VPN access on all your devices. VPNs enable you to access secure, remote networks from anywhere and can offer privacy and security online. Log in to your work/school network remotely or avoid geoblocking, protect privacy on public Wi-Fi and bypass Internet censorship.

Home Users: Avoid regional restrictions and access geoblocked content such as Netflix or iPlayer from anywhere. Ensure your privacy and anonymity online and defeat censorship and other location-based content restrictions. You can also remotely access your home network when you’re away, and use your encrypted VPN for security when out and about using potentially unsafe public Wi-Fi hotspots.

Small Office Users: Enable your employees to access company resources remotely such as email, documents saved on the company server and any programs/systems when they are outside the office.

Guest Network
Supports a guest network to provide connectivity while isolating guests from your primary network.

Smart iQ Setup
Features iQ Setup for smart, automatic and quick installation with no CD required.



APPLICATION DIAGRAM

SPECS

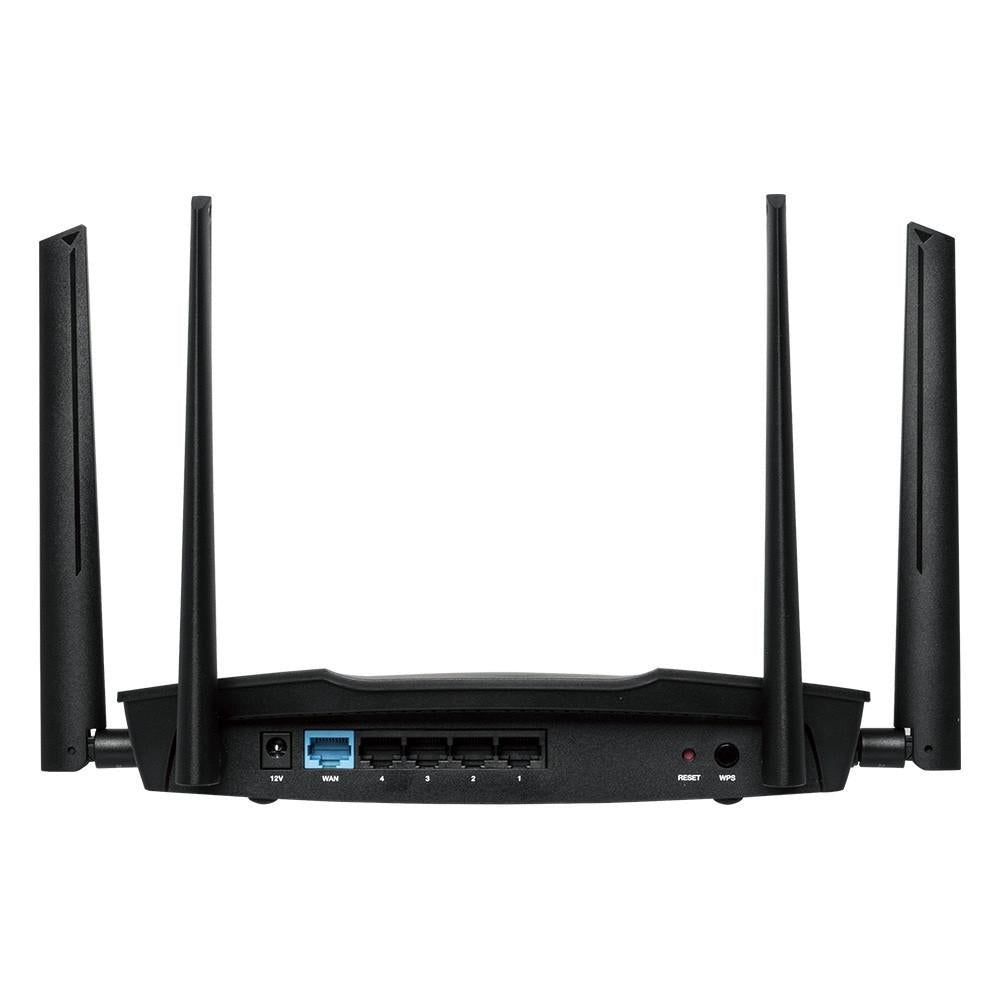

Interface

• 1 x RJ-45 10/100/1000Mbps WAN port
• 4 x RJ-45 10/100/1000Mbps LAN port

Button

• WPS/Reset buttons

LED indicator

• Power

Antenna

• 4 x detachable antennas (2 x 2.4GHz and 2 x 5GHz)

Memory

• 16MB NOR Flash
• 64MB RAM

Power Adapter

• DC 12V, 1.5A

Dimensions

• 160(W)mm x 115(D)mm x 31(H)mm

Wireless
Standards

• 802.11 a/b/g/n/ac

Frequency

• 5GHz and 2.4GHz concurrent dual-band

Maximum Data Speed

• 5GHz: 1733Mbps
• 2.4GHz: 800Mbps

Receive Sensitivity

5GHz:

• 11a(6Mbps): ‐89±2dBm
• 11a(54Mbps): ‐72±2dBm
• 11n(20MHz, MCS7): ‐70±2dBm
• 11n(40MHz, MCS7): ‐68±2dBm
• 11ac(80MHz, MCS9): -56±2dBm

2.4GHz:

• 11b(1Mbps): ‐93±2dBm
• 11b(11Mbps): ‐82±2dBm
• 11g (6Mbps): ‐90±2dBm
• 11g (54Mbps): ‐72±2dBm
• 11n(20MHz, MCS7): ‐70±2dBm
• 11n(40MHz, MCS7): ‐68±2dBm

Output Power

5GHz:

• 11a(6Mbps): 17±1.5dBm
• 11a(54Mbps): 15±1.5dBm
• 11n(20MHz, MCS7): 15±1.5dBm
• 11n(40MHz, MCS7): 15±1.5dBm
• 11ac(80MHz, MCS9): 14±1.5dBm

2.4GHz:

• 11b (1Mbps): 17±1.5dBm
• 11b (11Mbps): 17±1.5dBm
• 11g (6Mbps): 17±1.5dBm
• 11g (54Mbps): 15±1.5dBm
• 11n (20MHz, MCS7): 15±1.5dBm
• 11n (40MHz, MCS7): 15±1.5dBm

Guest Network

• 5GHz guest network × 1
• 2.4GHz guest network × 1

Security

• 64/128-bit WEP, WPA and WPA2 security
• Hardware & software WPS configuration
• QoS for critical operations, SPI anti-DoS firewall

Software Features

Management

• Multi-language user interface
• Remote management, access control
• System status and security log
• Firmware upgradable
• Smart iQ Setup, no CD required

WAN

• Protocol: PPPoE, Static IP, Dynamic IP, PPTP and L2TP
• Supports WISP connection mode
• Supports RJ-45 cable

iQoS

• Intelligent Quality of Service for smart bandwidth management, WMM

VPN Pass-Through

• IPSec, PPTP

Port Forwarding

• Virtual Server, IGMP Proxy, UPnP, DMZ

DHCP

• Server, Client, DHCP Client List, Address Reservation

Dynamic DNS

• DynDns, DHS, Zoneedit

Access Control

• IP/Mac Filter

Firewall Security

• DoS, SPI Firewall, IP Address Filter

Protocols

• Supports IPv4 and IPv6

Guest Network

• 5GHz guest network x 1, 2.4GHz guest network x 1

SSID

• Up to 4 SSIDs (2.4GHz x 2 and 5GHz x 2) in Wi-Fi router mode (Each mode with 1 main SSID and 1 guest SSID)
• Up to 10 SSIDs (2.4GHz x 5 and 5GHz x 5) in access point modem (Each band with 1 main SSID and 4 multiple SSIDs)

Schedule

• Wi-Fi scheduling

Operation Mode

• Wi-Fi router or access point

Environmental Condition

• Operating humidity: 10-90% (non-condensing)
• Operating temperature: 32 - 104°F (0 - 40°C)

System Requirement

• Cable or xDSL Internet connection (RJ-45 cable modem or RJ-45 ADSL modem)
• Computer (with Fast Ethernet adapter or wireless adapter) running Windows, Mac OS or Linux
• Smartphone, tablet or laptop running iOS 4 or Android 4 and above
• Web browser (Internet Explorer, Google Chrome, Firefox, Opera or Safari)

Package Content

• RG21S Wi-Fi router
• Quick installation guide
• CD-ROM (including setup wizard, multi-language quick installation guide and user manual)
• Power adapter
• Ethernet cable
