• 24/7 easy remote monitoring.

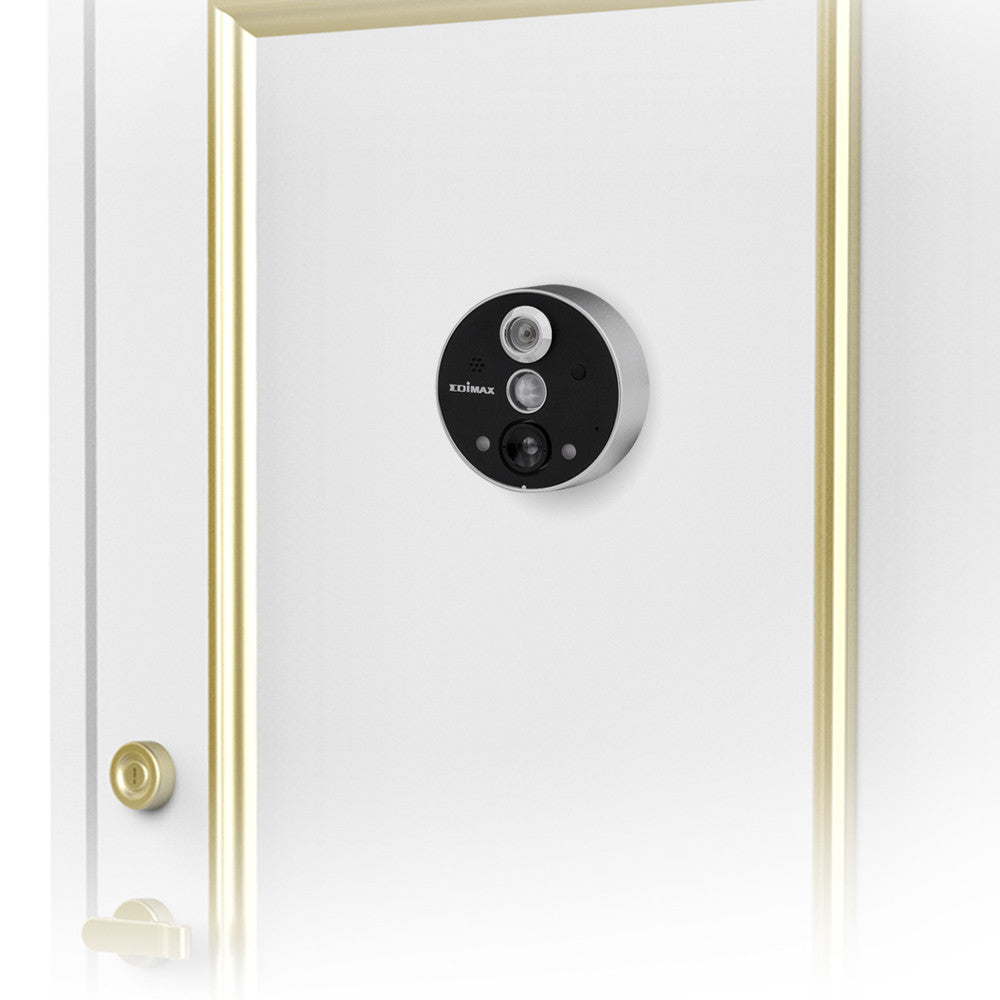

• Fits securely to door peepholes and features push notification alerts.
• PIR, sound or motion detection triggered snapshots and recording.
• \See and answer your door and speak to visitors from anywhere.

Live view and two-way audio
Built-in high-quality microphone and speaker for two-way voice communication, so you can view & talk with whoever’s there from anywhere.

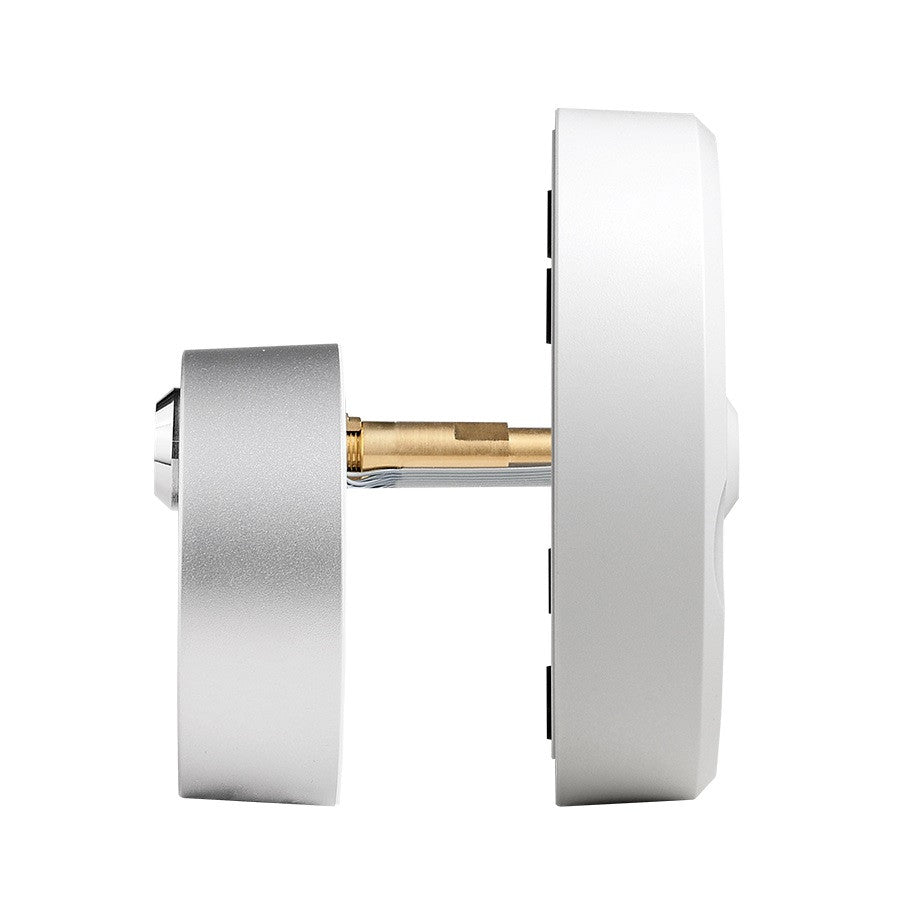

Hassle Free DIY Installation - Unique design fits any door thickness

• Digital view or peephole view at the same time.
• Installation has never been so easy. Just a few DIY steps and clicks on your smart phone.

SPECS
DIMENSIONS

• Camera: Oudoor Unit: Φ120 x 32.5mm(D), Indoor Unit: Φ75 x 25.5mm(D)
• Wireless Receiver: 105mm(H) x 30.5mm(W)x 21mm (D)

CAMERA

• Min Illumination: Daylight < 5 Lux to turn on IR light, 0 Lux when IR on
• Sensor: 1/6.5" CMOS
• Lens: 2.59mm / F2.8
• Viewing Angle: Digital 90° / Peephole 150°
• Night View: IR LED * 2, upto 3 meters (1.5M for clear image)

CONNECTIVITY

• IEEE 802.3/802.3u
• 2.4G FHSS / 1 detachable antenna

VIDEO

• MJPEG video compression
• 640 x 480 up to 15 fps / 320 x 240 up to 30 fps
• Resolution: VGA (640 x480), QVGA (320 x 240)
• Frame rate: 5, 10, 15, 20, 24 or 30 fps

AUDIO

• Built-in microphone & speaker
• Two-way audio

MANAGEMENT

• EdiLife: free mobile app for iPhone, iPad & Android
• EdiVeiw Finder: web management interface fro Windows/Mac
• Firmware upgradable

FEATURES

• PIR sensor, motion/sound detection triggered recording and alerts to MicroSD/SDHC card, email and FTP
• Supports 64G microSD/SDHC card slot for local storage
• Extend free cloud storage to personal accounts or other 3rd party storage options

POWER

• Wireless Receiver- 12VDC/1A
• Camera: AA Battery x 4

OPERATING CONDITIONS

• 0–40°C, Humidity: 20–80% RH (non-condensing)
