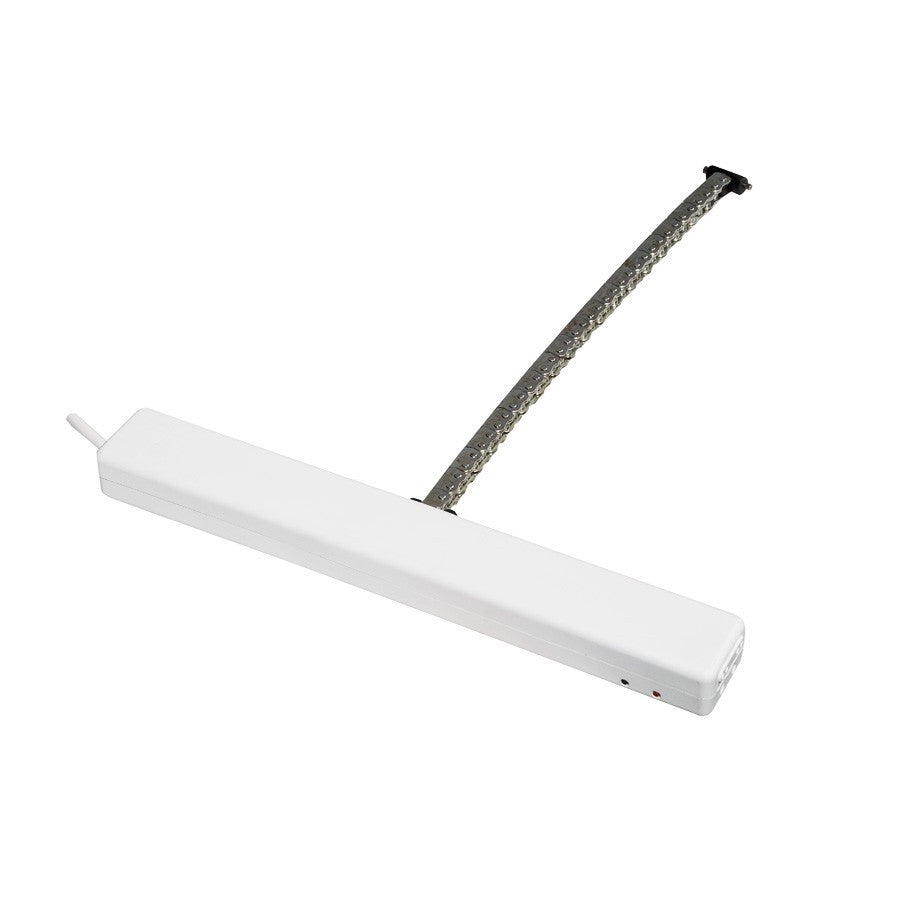

For the most convenient use of your motorized window system, the FAKRO Z-Wave Chain Winder allows for remote accessibility anywhere around the home. Featuring an intuitive button prompt command process, this Z-Wave Chain Winder can easily be included into any existing Z-Wave system.
From skylights, awnings, tilted fixtures to bottom-hung/top-hung windows, the Chain Winder can be installed into many common window fittings. For the best results and consideration for your safety, always rely on a qualified electrician to install the Z-Wave Chain Winder device for you. The Chain Winder interacts with other Z-Wave products through a two-way radio communication system, which allows for uninterrupted operation on a consistent basis. The catch holder comfortably connects to the actuator chain for a strong and durable fitting, while the programming and manual operation buttons allow for easy inclusion with other Z-Wave devices.
The FAKRO Z-Wave W/Chain Winder 12V is highly recommended for rooms with hard to reach windows. An automated system that controls ventilation openings can contribute significantly to maintaining a healthy and comfortable indoor climate. The European engineered, manufactured and certified FAKRO Z-Wave Chain Winder is the perfect solution to inaccessible windows and centralised managed buildings with automated natural ventilation.
- Program in conjunction with the FAKRO ZWMP Weather Module, for automated window closing upon detecting rain and windfall
- Remote control functionality for ease of use
- Overload protection
- Easily programmable to communicate with compatible Z-Wave gateways
- Automatic switch off once fully extended
Technical Specifications |
RF Protocol
|
Z‐Wave™
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
Z‐Wave device type
|
Z-wave binary opener, routing slave
|
Status Indicator
|
LED Lights
|
Operation Range
|
Up to 40m without obstacles
|
Application | Indoor use only |
Power supply
|
12-15V DC (power supply not included) |
Rated current | 0.72A |
Standby current | 0.03A |
Connection type | Flying leads wires 2 x 0.75mm2 (0.4m) |
Operation temperature
|
-5 ~ 50 °C
|
Dimensions L x W x H
|
262mm x 47mm x 33.5mm
|
Opening / Closing force | 200 N |
Chain reach | 240mm |
Weight
|
0.85 kg
|
Housing
|
Metal Alloy
|
Limit stop | Micro switches |
