Powerful Features |
|
|
•
|
1/2.9" 6 Megapixel Progressive Scan CMOS
|
|
•
|
Max. 20 fps @ 6 MP (3072 x 2048)
|
|
•
|
2.7~12mm Motorized (view: 88° ~ 27°) lens
|
|
•
|
H.265+ / H.265 / H.264+ / H.264 / MJPEG Triple Streams
|
|
•
|
WDR (120dB Wide Dynamic Range)
|
|
•
|
Day/Night(ICR) AWB AGC BLC
|
|
•
|
3D Digital Noise Reduction
|
|
•
|
EXIR Smart IR LEDs range: up to 50m night vision
|
|
•
|
Support on-board storage up to 120 GB
|
|
•
|
Line Crossing Intrusion Face Detection Unattended Baggage Object Removal
|
|
•
|
IP67 DC12V PoE (802.3at)
|
|
•
|
Ø144.13 x 332.73 mm 1.893 Kg
|
Technical Specifications

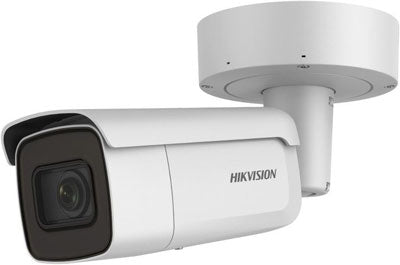

| DS-2CD2655FWD-IZS | |
| Image Sensor | 1/2.9" 6 Megapixel Progressive Scan CMOS |
| Effective Pixels | 6 MP (3072 x 2048) |
| Electronic Shutter | 1/3 s to 1/100 000 s |
| Synchronization | Internal |
| Min. Illumination | 0.01Lux 0Lux IR on |
| Camera Features | |
| Max. IR LEDs Length | 50m Smart IR |
| Day/Night | Auto(ICR) / Color / B/W |
| Noise Reduction | 3D |
| Lens | |
| Focal Length | 2.7~12mm Motorized (view: 88° ~ 27°) Lens |
| Mount Type | Board-in Type |
| Video | |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG Triple Streams |
| Resolution | Up to 6 MP (3072 x 2048) |
| Frame Rate | 20fps@6 MP (3072 x 2048) |
| Network | |
| Ethernet | 1 x RJ-45 (10/100Base-T) |
| Protocol | TCP/IP UDP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP PPPoE NTP UPnP SMTP SNMP IGMP 802.1X QoS IPv6 |
| ONVIF | ONVIF (Profile S Profile G) PSIA CGI ISAPI |
| Client | iVMS-4200 Hik-Connect iVMS-5200 iVMS-4500 |
| Smart Feature-set | |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage purse dangerous materials |
| Object Removal | Objects removed from the pre-defined region such as the exhibits on display |
| Recognition | Face Detection |
| Auxiliary Interface | |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot up to 120GB |
| General | |
| Power Supply | DC12V PoE (802.3at) |
| Power Consumption | Max 19W |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
| Ingress Protection | IP67 |
| Dimensions | Ø144.13 x 332.73 mm |
| Weight | 1.893 Kg |
