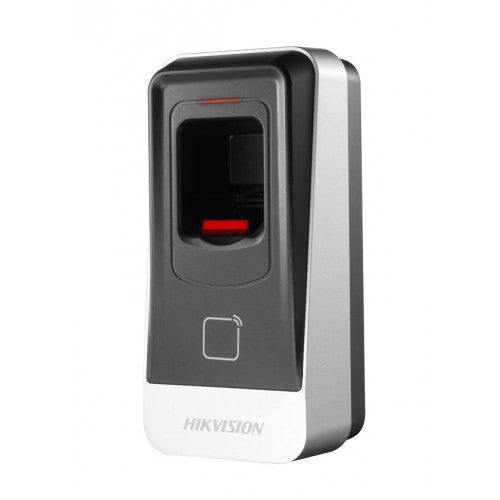

Hikvision DS-K1201MF Biometric Fingerprint Reader with Inbuilt Card Reader.
The Hikvision DS-K1201MF Fingerprint and card reader, designed with a 32 bit high-speed processor, contains the optical fingerprint recognition module. It communicates with Hikvision access controller via the RS-485 protocol. And a built-in tamper-proof module helps to protect the card reader from malicious damage. The protective level is IP65, which is suited for outdoor installation.
- A group of encrypted code data for the security of fingerprint storage. (Stores an encrypted template, not a fingerprint Image)
- Supports RS485 communication with 19200bps-N-8-1 transmission rate.
- Supports Mifare card reading (DS-K1201MF)
- Card reading range ≤50mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1≤1s, 1:1000≤1s; FRR≤0.01%, FAR≤0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
- Build-in buzzer for status indication
| System Parameters | ||
|---|---|---|
| Comparison Mode: | 1:1/1:N | |
| Comparison Time: | 1:1≤1s; 1:3000≤1.5s | |
| Fingerprint Module: | Optical, Red Backlight | |
| FRR (False Rejection Rate): | ≤0.01% | |
| Card Reading Distance: | Mifare Card:≤50 mm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Card Reading Mode: | Mifare Reading Module | |
| Fingerprint Capacity: | 5,000 | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | RS-485 | |
| Transmission Rate: | 19200bps-N-8-1 | |
|
General |
||
|---|---|---|
| Mounting Method: | Surface Mounting | |
| Alarm: | Tamper Alarm × 1 | |
| Power Supply: | 12VDC | |
| Prompt: | Buzzer | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Protection Level: | IP 65 | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
| Dimensions (L×W×H): | 62mm × 132mm × 44mm (2.44" × 5.20" × 1.73") | |
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function.
