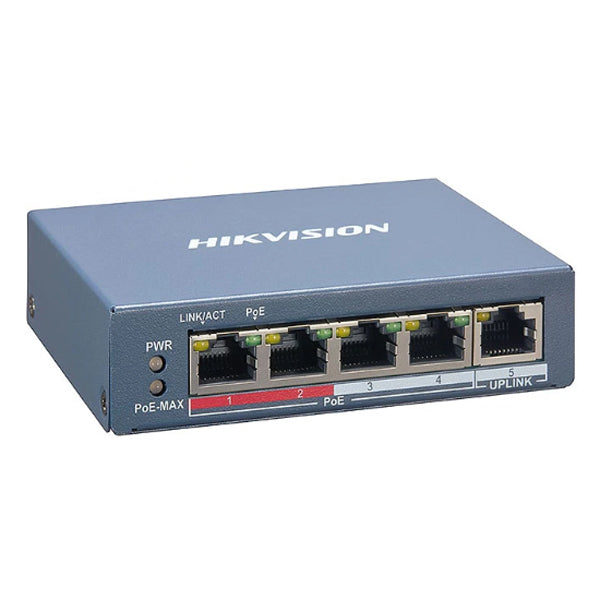

Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch

Hikvision

$139.00

Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch
  • Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch
  • Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch
This product is currently sold out

  • Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch
  • Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch

The Hikvision DS-3E1105P-EI  4-Port Managed PoE Switch is a user-configurable network switch. Although it can plug and play if connected to a DHCP service, it needs configuring to operate to your requirements. The benefits of setting up a managed switch are higher security configuration, remote programming and monitoring. Designed video transmission supports power over ethernet supply to four ports can be set up to receive data over 300m using extend mode. The device also offers 6KV surge protection



Manufacturers Part Number
Model Number DS-3E1105P-EI
POE Interface
Max. port power 30 W
Max. power consumption 60 W
PoE port Ports 1 to 4
PoE power budget 60 W
PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE standard Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
Network Capabilities
Forwarding mode Store-and-forward switching
High priority ports Ports 1 to 2
Internal cache 768 Kbits
MAC address table 2 K
Packet forwarding rate .744 Mpps
Port number 4 × 100 Mbps PoE RJ45 ports, and 1 × 100 Mbps network RJ45 port.
Port type RJ45 port, full-duplex, MDI/MDI-X adaptive
Ports for long-distance transmission Ports 1 to 4
Standard IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
Switching capacity 1 Gbps
Working mode Standard mode (default); Extend mode
Network management Support client management.
Software function
Device maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
Device status alarm Support the device status, PoE_MAX and PoE status alarm.
PoE function IEEE 802.3at/af device provides power supply.
Port configuration Support rate, flow control, and switch configuration
Port statistics Support port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving peak rate statistics.
Typology display Support typology display.
General Specifications
Material Construction Metal material
Operating humidity 5% to 95% (no condensation)
Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage humidity 5% to 95% (no condensation)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply 48 VDC, 1.35 A
Power Consumption Max. power consumption 65 W Power source 65 W
Weight Net weight 0.265 kg (0.58 lb) Gross weight 0.759 kg (1.67 lb)
Dimensions 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Approval
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch Hikvision DS-3E1105P-EI 4-Port Managed PoE Switch
