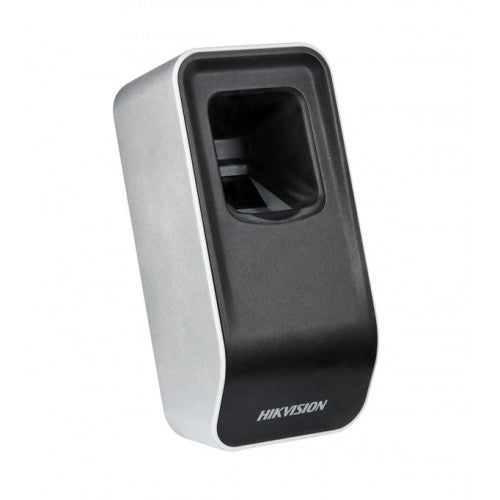

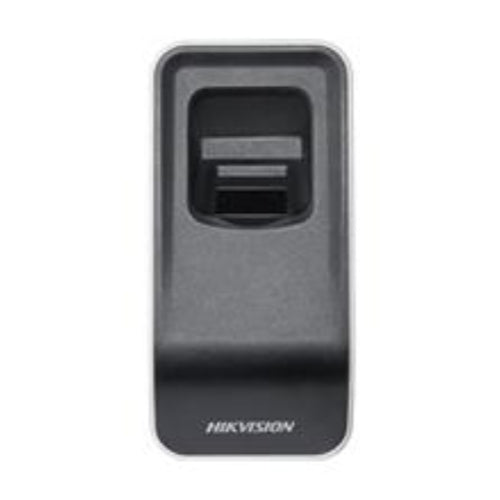

Hikvision Fingerprint Recorder supports living fingerprint registration and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.
| System Parameters | ||
|---|---|---|
| Operation System: | Windows XP, Windows7, and Windows 10 | |
| Fingerprint Template Size: | 256 × 288 (pixel) | |
| Fingerprint Module: | Optical, Red Backlight | |
| Resolution: | 508 dpi | |
| Device Interfaces | ||
|---|---|---|
| USB Interface: | USB2.0 | |
|
General |
||
|---|---|---|
| CPU: | 32bit MCU | |
| Working Voltage: | 5 VDC, 200mA | |
| Dimensions (L×W×H): | 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”) | |
| Working Humidity: | 20% to 80% (Non-Condensing) | |
| Working Temperature : | -30°C to +70°C (-22°F to 158°F) | |
