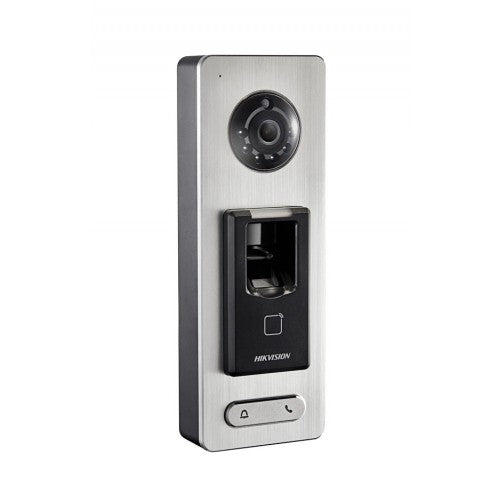

Video Access Control Terminal with Fingerprint Module"
DS-K1T500SFN is a video access control terminal, which is equipped with HD camera (2 MP/1080p) and fingerprint recognition module (supporting 1:1 mode and 1:N mode). It supports multiple advanced technologies including face detection, smart card recognition, two-way intercom audio, remote live view, picture capture, video recording through NVR, and so on.
Access Can be granted via either Card, Fingerprint or QR code.
* Brushed metal surface
* Communication via TCP/IP and Wi-Fi
* Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, Included)
* Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Seperatly)
* QR code authentication; Generates QR code via iVMS-4200 client software or other systems
* Two way-audio
* Open door remotely via iVMS-4200 client software
* Max. 50,000 cards No., Max. 200,000 access control event records
* Supports Mifare card reading
* Multiple authentication modes: QR code, card, fingerprint, card + fingerprint.
* Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
* Communication via TCP/IP and Wi-Fi
* Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, Included)
* Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card (SD Card Sold Seperatly)
* QR code authentication; Generates QR code via iVMS-4200 client software or other systems
* Two way-audio
* Open door remotely via iVMS-4200 client software
* Max. 50,000 cards No., Max. 200,000 access control event records
* Supports Mifare card reading
* Multiple authentication modes: QR code, card, fingerprint, card + fingerprint.
* Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
Programmed and managed by iVMS4200 Software.
| System Parameters | ||
|---|---|---|
| Fingerprint Recognition Duration: | ≤ 1.5s | |
| Micro SD Card: | Max. 128G | |
| Storage: | 50,000 cards 200,000 events |
|
| FRR (False Rejection Rate): | ≤0.01% | |
| Card Reading Distance: | ≥2cm | |
| FAR (False Accept Rate): | ≤0.001% | |
| Card Reading Mode: | Mifare Card | |
| Video Storage: | Record and Save Video through NVR | |
| Camera: | 2MP/1080P, IR Light | |
| Fingerprint Recognizer: | Optical Fingerprint Recognizer Module | |
| Fingerprint Capacity: | 5,000 | |
| Processor: | 32 Bit High-performance Processor | |
|
Device Interfaces |
||
|---|---|---|
| Communication Mode: | Terminal Mode: Uplink(TCP/IP), Downlink(RS485) Card Reader Mode: Uplink (Wiegand 26/34, RS-485) |
|
| Output Interface: | Lock × 1, Alarm Output (Doorbell) × 1 | |
| Input Interface: | Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1 | |
|
General |
||
|---|---|---|
| Working Current: | 600mA (max) | |
| Power Supply: | DC 12V/1A | |
| Audio: | Audio Input: Build-in Micro Phone( Sensitivity: -25±3DB) Audio Output: Build-in Loudspeaker(1W) |
|
| Dimensions (L×W×H): | 218mm × 78mm × 41mm (8.58" × 3.07" × 1.61") | |
| Protection Level: | IP 65 | |
| Installation: | Wall Mounting | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -40°C to +70°C (-40°F to +158°F) | |
