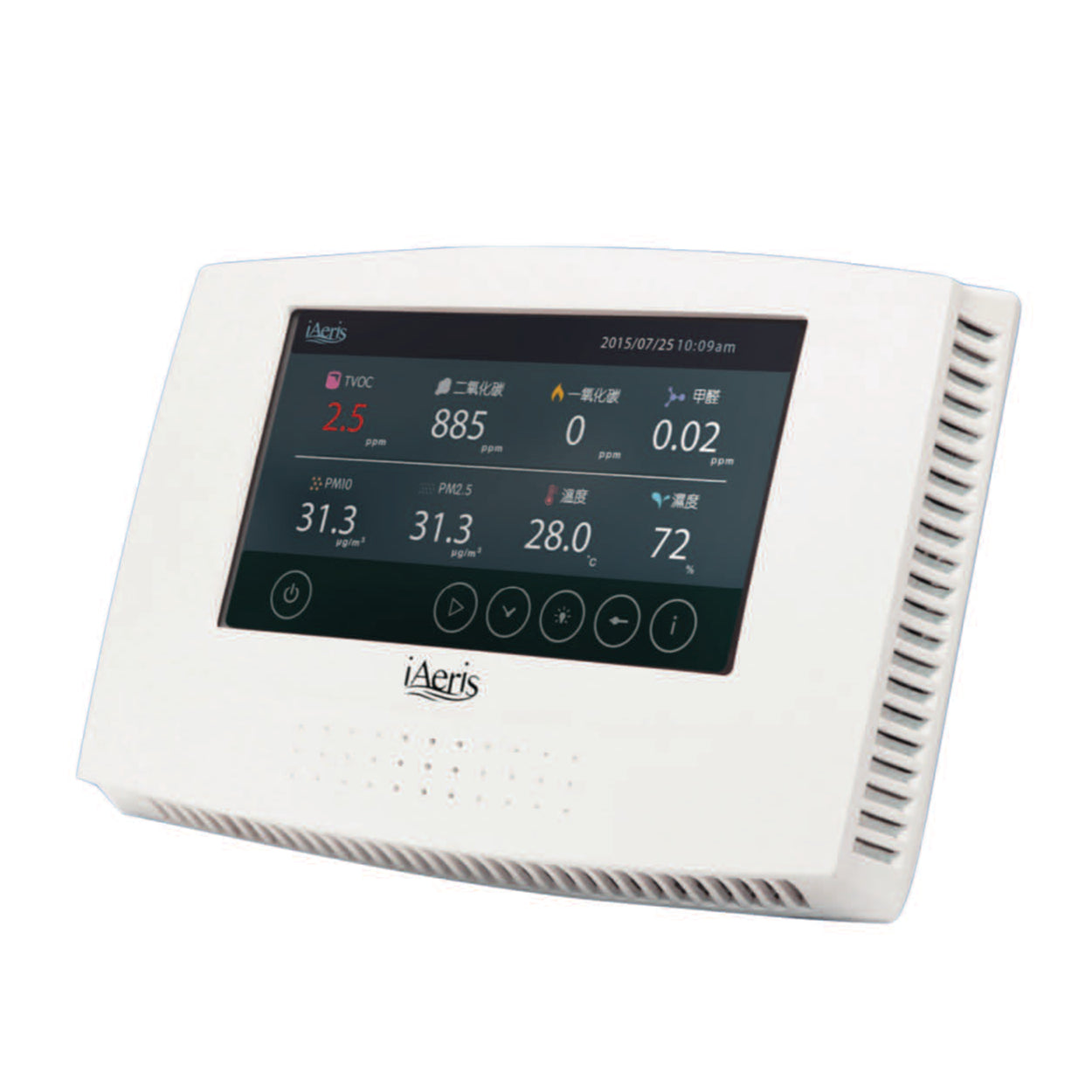

The iAeris is a real-time air quality monitor that can indicate the concentration of multiple indoor air quality. This monitor can provide the status of temperature, humidity, CO2, CO, particulate matter (PM10), PM2.5, total volatile Organic compound (TVOC ), formaldehyde (HCHO) and Ozone(O3) at the same time.
-

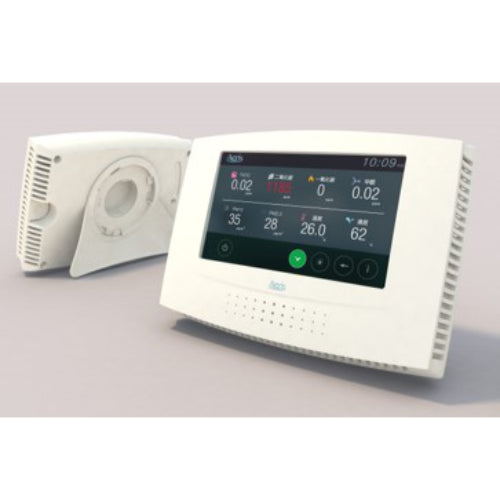

Using 7” touch TFT LCD screen, professional air flow convection design, can install with wall-mounted or stand alternatively.
-
Independent, modularized sensor design, not simulated sensing value, can choose air factor according to demand.
-
Using Sysinno’s professional algorithm, each sensor can be calibrated independently.
-
Provide RS485, WiFi (optional) and Bluetooth (optional), which can support multiple communication protocols.
-
Built-in two sets of dry contact, which can be linked to HVAC equipment and improve the air quality in time.
-
Support the alert function, can set the criterion according to the requirements of different environments.
-
Built-in memory to store the sensing data, the records can be easily downloaded via software or cloud platforms. (option)

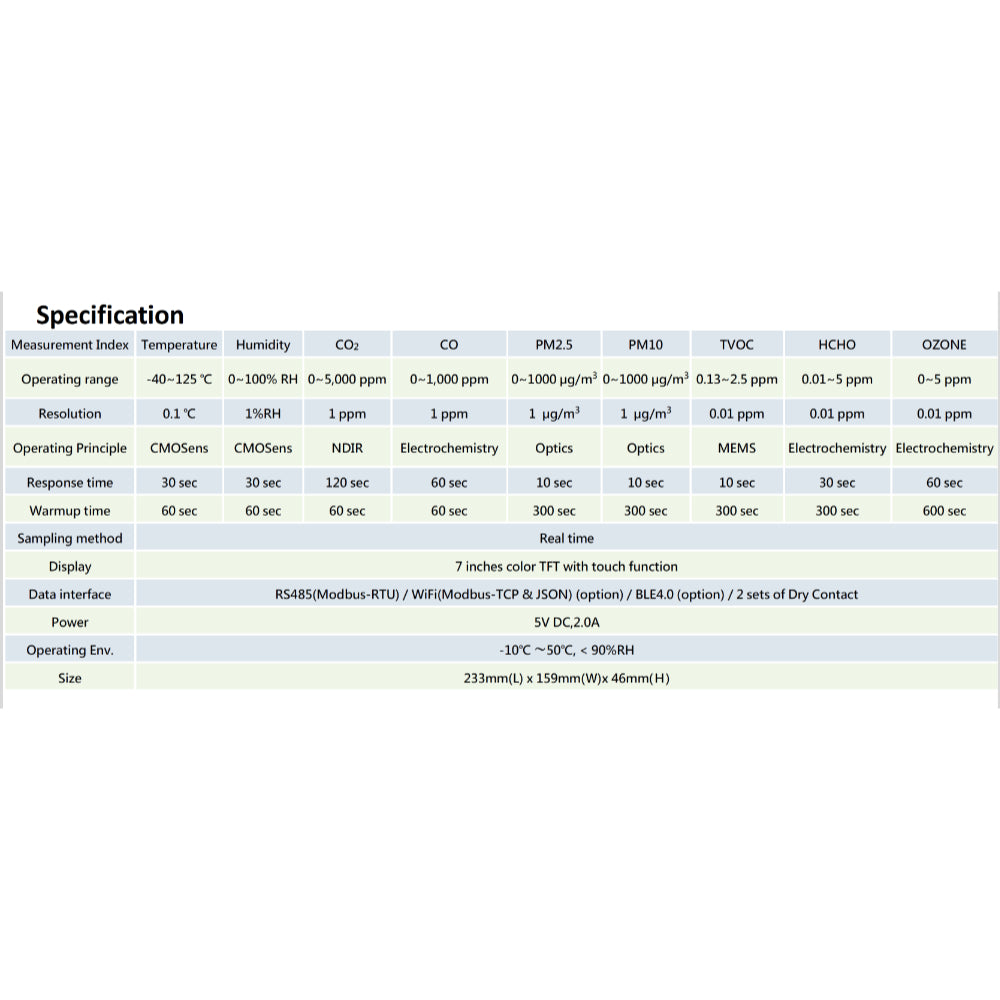

Specification
| Measurement Index | Temperature | Humidity | CO2 | CO | PM2.5 | PM10 | TVOC | HCHO | OZONE | |||||||
| Operating range | -40~125 ℃ | 0~100% RH | 0~5,000 ppm | 0~1,000 ppm | 0~1000 μg/m3 | 0~1000 μg/m3 | 0.13~2.5 ppm | 0.01~5 ppm | 0~5 ppm | |||||||
| Resolution | 0.1 ℃ | 1%RH | 1 ppm | 1 ppm | 1 μg/m3 | 1 μg/m3 | 0.01 ppm | 0.01 ppm | 0.01 ppm | |||||||
| Operating Principle | CMOSens | CMOSens | NDIR | Electrochemistry | Optics | Optics | MEMS | Electrochemistry | Electrochemistry | |||||||
| Response time | 30 sec | 30 sec | 120 sec | 60 sec | 10 sec | 10 sec | 10 sec | 30 sec | 60 sec | |||||||
| Warmup time | 60 sec | 60 sec | 60 sec | 60 sec | 300 sec | 300 sec | 300 sec | 300 sec | 600 sec | |||||||
| Sampling method | Real-time | |||||||||||||||
| Display | 7 inches colour TFT with touch function | |||||||||||||||
| Data interface | RS485(Modbus-RTU) / WiFi(Modbus-TCP & JSON) (option) / BLE4.0 (option) / 2 sets of Dry Contact | |||||||||||||||
| Power | 5V DC,2.0A | |||||||||||||||
| Operating Env. | -10℃ ～50℃, < 90%RH | |||||||||||||||
| Size | 233mm(L) x 159mm(Ｗ)x 46mm(Ｈ) | |||||||||||||||
5 models to choose from:
iAeris11 - includes Temperature, Humidity and CO2 sensors
iAeris12 - includes Temperature, Humidity, C02, and PM2.5 sensors
iAeris13 - includes Temperature, Humidity, C02, PM2.5, HCHO and PM10 sensors
iAeris14 - includes Temperature, Humidity, C02, PM2.5, HCHO, PM10, TVOC, and CO sensors
iAeris15 - includes Temperature, Humidity, C02, PM2.5, HCHO, PM10, TVOC, CO, and OZONE sensors
Package: 32x 22x10cm 1.8 KG
