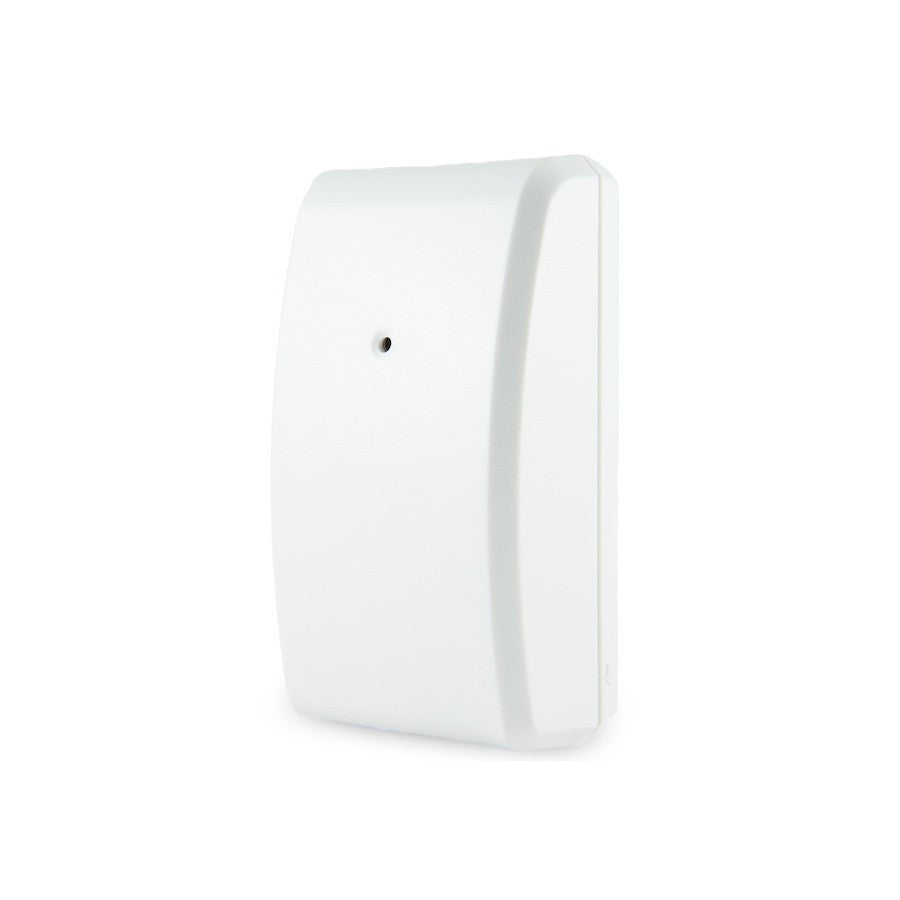

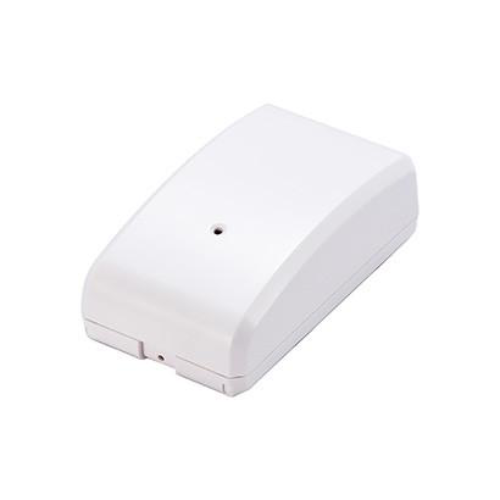

The VISION Z-Wave Shock Sensor is a smart, battery-powered sensor which detects any shocks and vibrations on the door or window which it is attached to.
- Easy to use and install
- Completely wireless
- Adjustable sensitivity
- Hidden tamper prevention trigger
- Low battery alarm notification
- Supports one Z-Wave group and up to 5 devices
Product Details
The VISION Z-Wave Shock Sensor is a smart, battery-powered shock and vibration sensor. This device is capable of sending Z-Wave commands to any associated Z-Wave devices within its Z-Wave network when it detects an excessive shock or vibration on a door/window.
This sensor includes a manual calibration and adjustment element to adapt its sensitivity to different applications.
The VISION Z-Wave Shock Sensor also features a hidden tamper prevention switch which will notify an associated Z-Wave gateway if it is tampered with as well as low battery notifications.
This device can easily be fitted to any door, window or other item using screws or double sided tape (included).
Integrates with all Australian certified (921.42MHz) Z-Wave controllers including:
- Vera 3
- Vera Lite
- Fibaro Home Center 2
Technical Specifications
|
RF Protocol
|
Z‐Wave (Mulitlevel Command Class)
|
|
RF Frequency
|
921.42Mhz ‐ AU/NZ approved RF for Z‐wave
|
|
Z‐Wave device type
|
Z-Wave multiple level, routing slave
|
|
Operating Voltage
|
2 AA batteries
|
|
Status Indicator
|
LED Light
|
|
Operation Range
|
Up to 30m without obstacles
|
|
Application
|
Indoor
|
|
Operation temperature
|
-10 ~ 50 °C
|
|
Storage temperature
|
‐10 ~ 70 °C, humidity 5 ~ 95% RH (max)
|
|
Weight
|
110g
|
|
Housing
|
ABS
|
|
Dimensions
|
(HxWxD) 75 mm x 42mm x 26mm
|
|
Compliance
|
Certified for USA, EU and AU/NZ markets (FCC, CE, ROHS, C-TICK)
|
