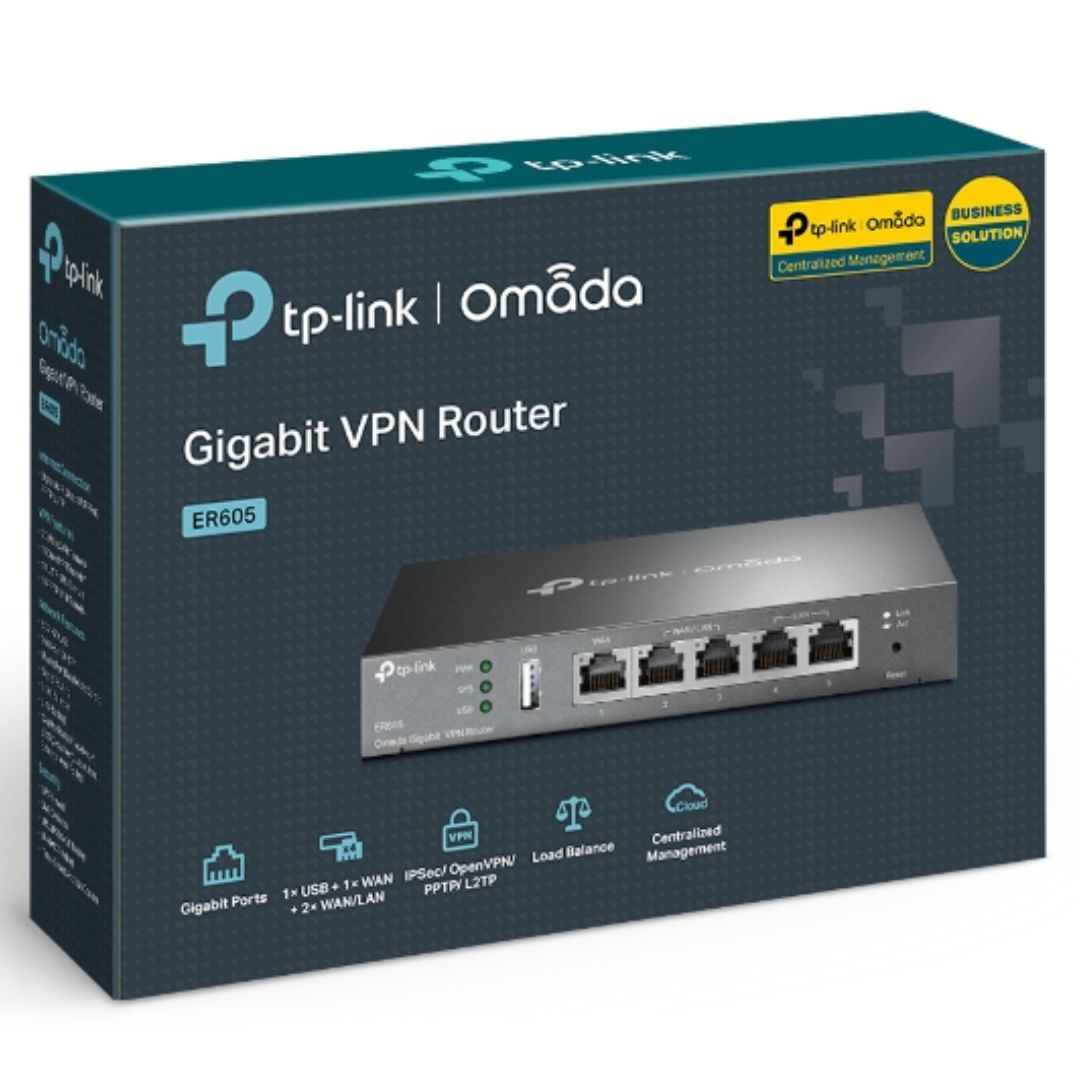

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN/LAN Ports 10BASE-T/Centralised Cloud/Omada

* Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡ Centralized Cloud Management and Intelligent Monitoring. * Centralised Management: Cloud access and Omada app for ultra convenience and easy management. * Five Gigabit Ports: High-speed wired connectivity. * Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage. * Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec 16× OpenVPN* 16× L2TP and 16× PPTP VPN connections. * Abundant Security Features: Advanced firewall policies DoS defence IP/MAC/URL filtering and more security functions protect your network and data.

HARDWARE FEATURES Standards and Protocols * IEEE 802.3 802.3u 802.3ab IEEE 802.3x IEEE 802.1q * TCP/IP DHCP ICMP NAT PPPoE NTP HTTP HTTPS DNS IPSec PPTP L2TP OpenVPN SNMP Interface * 1 Fixed Gigabit WAN Port * 1 Fixed Gigabit LAN Port * 3 Changeable Gigabit WAN/LAN Ports Network Media * 10BASE-T: UTP category 3 4 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) * 100BASE-TX: UTP category 5 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) * 1000BASE-T: UTP category 5 5e 6 cable (Max 100m) Button Reset Button Power Supply External 9V/0.85A DC Adapter Flash SPI 16MB DRAM 128 MB LED PWR SYS WAN LAN Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PERFORMANCE Concurrent Session 25 000 IPsec VPN Throughput 41.5 Mbps BASIC FUNCTIONS WAN Connection Type * Static/Dynamic IP * PPPoE * PPTP * L2TP DHCP * DHCP Server/Client * DHCP Address Reservation * Multi-net DHCP* * Multi-IP Interfaces*

*Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode MAC Clone Modify WAN/LAN MAC Address*
