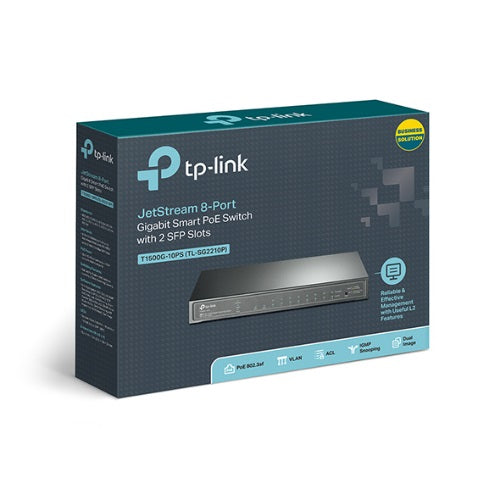

TP-Link SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots L2/L3/L4 QoS and IGMP Snooping WEB/CLI Managed 53W/Fanless/Omada SDN

Features 8 PoE ports with total PoE power budget of 53W and useful PoE power management features Gigabit Ethernet connections on all ports provide full speed of data transferring Advanced security features include IP-MAC-Port Binding ACL Port Security DoS Defend Storm Control DHCP Snooping 802.1X and Radius Authentication L2/L3/L4 QoS and IGMP snooping optimize voice and video applications WEB/CLI managed modes SNMP RMON bring abundant management features Dual Firmware Image improves reliability and up-time of your network

ARDWARE FEATURES Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE802.3z IEEE 802.3ad IEEE 802.3x IEEE 802.3af IEEE 802.1d IEEE 802.1s IEEE 802.1w IEEE 802.1q IEEE 802.1x IEEE 802.1p Interface 8 10/100/1000Mbps RJ45 Ports Port8 obtain power from PoE source (Auto-Negotiation/Auto MDI/MDIX) Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100~240VAC 50/60Hz External Power Adapter(Output: 48VDC/1.25A) Power Consumption Maximum (PoE on): 64.9W Maximum (PoE off): 9.9W PoE Ports (RJ45) Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W Dimensions ( W x D x H ) 209 * 126 * 26mm Max Power Consumption 9.92W (220V/50Hz with no PD connected) 64.89W (110V/60Hz with 53W PD connected) Max Heat Dissipation 33.85 BTU/h (with no PD connected) 221.40 BTU/h (with 53W PD connected)

PERFORMANCE Bandwidth/Backplane 20Gbps Packet Forwarding Rate 14.9Mpps MAC Address Table 8K Jumbo Frame 9KB
