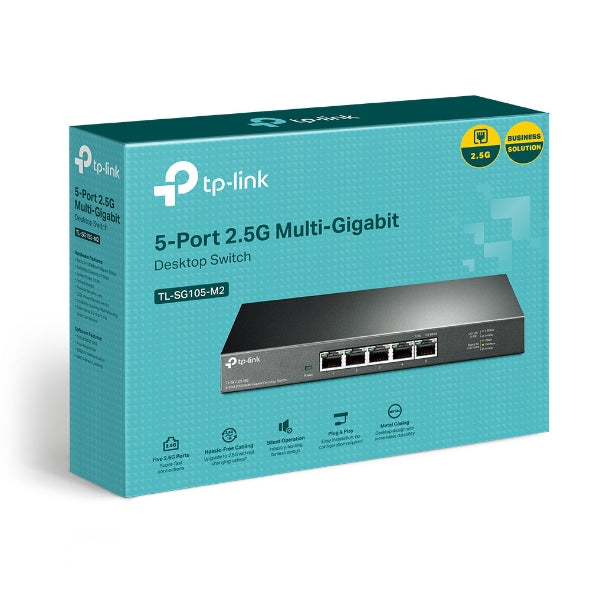

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch/Up To 25G Switching Capacity/Connects 2.5G NAS/Server/2.5G WiFi 6 AP/4K Video/Wall-Mountable/5YW

* Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices and provide up to 25 Gbps of switching capacity. * Super-Fast Connections. Provides super-fast connections to 2.5G NAS 2.5G Server gaming computer 2.5G WiFi 6 AP 4K video and more. * Ideal for Various Scenarios. Built for LAN parties home entertainment small and home offices and instant transfer for workstations * Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring reducing wiring costs and hassle.** * Silent Operation. Industry-leading fanless design ensures silent operation ideal for any home or business. * Plug and Play. Allows for easy deployment without the need for a technician. * Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

HARDWARE FEATURES Standards and Protocols IEEE 802.3 802.3u 802.3ab 802.3x 802.1p 802.3bz Interface 5× 100Mbps/1Gbps/2.5Gbp Ports Auto-Negotiation Auto-MDI/MDIX Fan Quantity Fanless External Power Supply External Power Adapter (Output: 12 VDC / 1 A) LED Indicator * System Power: 1 * Link/Act Indicators: 5 1 indicator per port built into each RJ-45 port Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm) Max Power Consumption 12.11 W Max Heat Dissipation 41.32 BTU/h

PERFORMANCE Switching Capacity 25 Gbps Packet Forwarding Rate 18.6 Mpps MAC Address Table 16 K Packet Buffer Memory 1.5 Mb Jumbo Frame 10 KB

SOFTWARE FEATURES Advanced Features * 802.3X Flow Control * 802.1p/DSCP QoS Transfer Method Store and Forward

OTHERS Certification CE FCC RoHS Package Contents * 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 * Power Adapter * Installation Guide * Rubber Feet Environment * Operating Temperature: 0–40 °C (32–104 °F) * Storage Temperature: -40–70 °C (-40–158 °F) * Operating Humidity: 10–90% RH non-c
