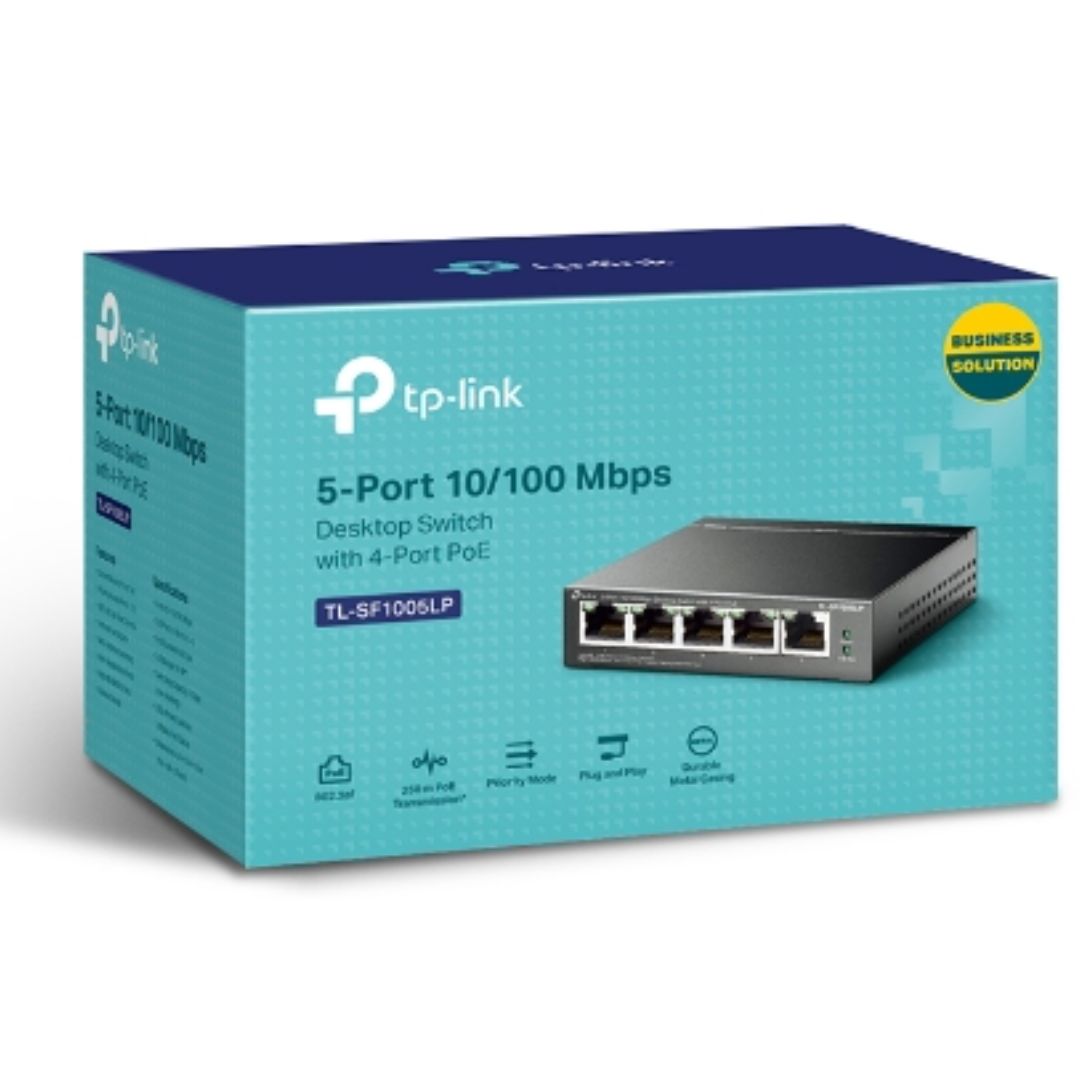

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE * 5× 10/100 Mbps RJ45 ports * 4× PoE ports transfer data and power on individual cables * Works with IEEE 802.3af compliant PDs * Up to 250 m data and power transmitting range under Extend Mode** * Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application * Supports PoE Power up to 41 W for all PoE ports* * Plug and play with no configuration required

HARDWARE FEATURES Interface * 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A) Packet Forwarding Rate 0.744 Mpps PoE Ports (RJ45) * Standard: 802.3 af compliant * PoE Ports: Ports 1–4 * Power Supply: 41 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm) Max Power Consumption * 1.9 W (220 V / 50 Hz no PD connected) * 47 W (220 V / 50 Hz with 41 W PD connected) Max Heat Dissipation * 6.48 BTU/h(no PD connected) * 160.27 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4) * Priority Mode Button (Ports 1–2) * Mac Address Auto-Learning And Auto-Aging * IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS Certification FCC CE RoHS Package Contents * TL-SF1005LP * Power Adapter * Installation Guide Environment * Operating Temperature: 0–40 ℃ (32–104 ℉) * Storage Temperature: -40–70 ℃ (-40–158 ℉) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH
