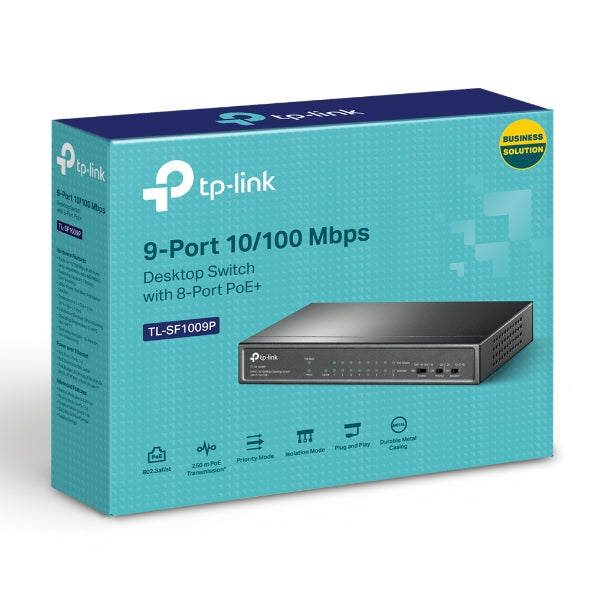

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+/Up to 65W for 8 PoE ports/Up to 30W for each PoE port

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ * 9× 10/100 Mbps RJ45 ports * 8× PoE+ ports transfer data and power on individual cables * Works with IEEE 802.3af/at compliant PDs * Supports PoE Power up to 30 W for each PoE port * Supports PoE Power up to 65 W for 8 PoE ports* * Up to 250 m data and power transmitting range under Extend Mode** * Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application * Isolation Mode allows one-click client traffic separation for higher security and performance * Plug and play with no configuration required

HARDWARE FEATURES Interface * 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A) Packet Forwarding Rate 1.3392 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–8 * Power Supply: 65 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.8 Gbps Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Max Power Consumption * 3.6 (220/50 Hz. no PD connected) * 77.08 (220/50 Hz. with 65 W PD connected) Max Heat Dissipation * 12.28 BTU/h (no PD connected) * 262.84 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions * Compatible With IEEE 802.3af/at Compliant PDs * Extend Mode Button (Ports 1–4 and Ports 1–8 Up to 250 m PoE power supply and data transmission) * Priority Mode Button (Ports 1–2) * Isolation Mode Button (Ports 1–8) * Mac Address Auto-Learning and Auto-Aging * IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
