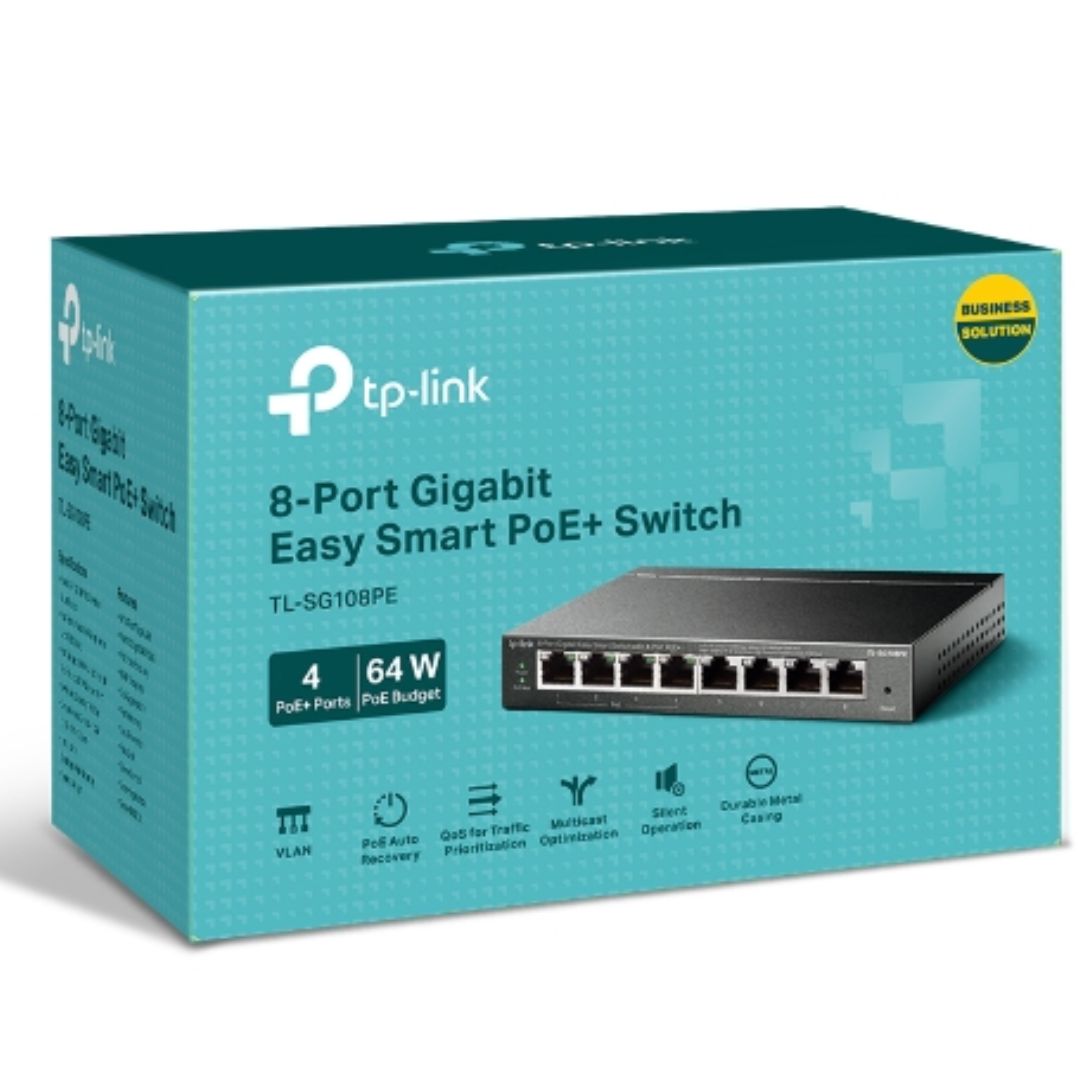

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE 55W IEEE 802.3af Fanless VLAN Features

8 10/100/1000Mbps RJ45 ports With 4 PoE ports data and power can be transferred on one single cable Provides network monitoring traffic prioritization and VLAN features Simple network set-up on top of plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify configuration

What This Product Does The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports representing a powerful upgrade from an unmanaged switch. It is designed specifically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices such as wireless access points (APs) IP cameras and IP phones. Through its web-based user interface and management utility the TL-SG108PE offers a variety of useful features including network monitoring traffic prioritization and enhanced QoS. Additionally with port-based tag-based and MTU VLAN TL-SG108PE can improve security and meet more network segmentation requirements.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3x IEEE 802.1q IEEE 802.1p

Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3 4 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter (Output: 48VDC / 1.25A)

Power Consumption Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz)

PoE+ Ports (RJ45) Standard: 802.3af compliant PoE Ports: Port 1 - Port 4 PoE Power Budget: 55W

PERFORMANCE

Switching Capacity 16Gbps

Packet Forwarding Rate 11.9Mpps

MAC Address Table 4K

Packet Buffer Memory 1.5Mb
