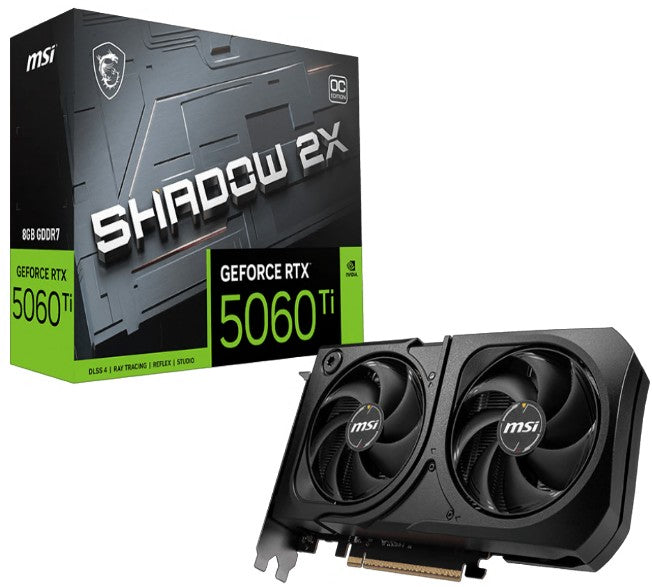

MSI nVidia / Boost: 2482 MHz / CUDA 8960 Units / 8GB GDDR7 / HDMI x 1 (embargo)

DESCRIPTION

MSI nVidia GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS Boost: 2482 MHz CUDA 8960 Units 8GB GDDR7 HDMI x 1 (embargo)

SPECIFICATION

Marketing Name GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS
Model Name G506T-8S2CP
Graphics Processing UnitNVIDIA® GeForce RTX 5060 Ti
InterfacePCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2617 MHz (MSI Center)
Boost:2602 MHz
CUDA® CORES4608 Units
Memory Speed 28 Gbps
Memory 8GBGDDR7
Memory Bus128-bit
OutputDisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC Gaming VRR HDR)
HDCP Support Y
Power consumption 180 W
Power connectors8-pin x 1
Recommended PSU600 W
Card Dimension (mm)226 x 126 x 41 mm
Weight (Card / Package) TBD
DirectX Version Support 12 Ultimate
OpenGL Version Support4.6
Maximum Displays4
G-SYNC® technologyY
Digital Maximum Resolution 7680 x 4320

FEATURES

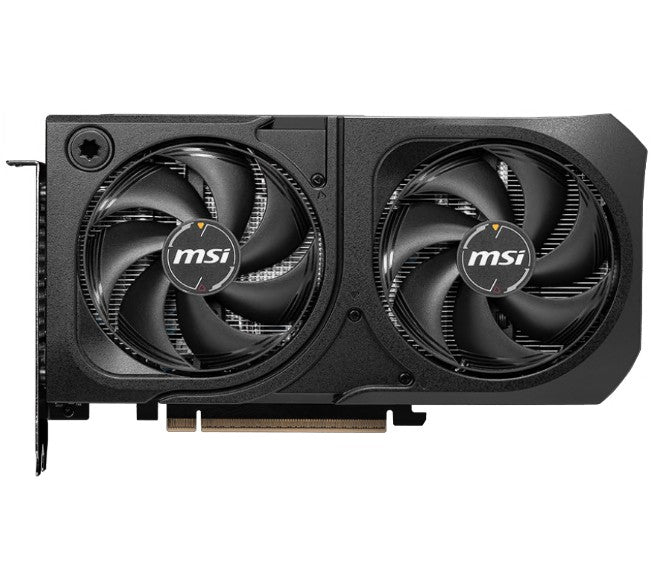

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
STORMFORCE FAN
Seven fan blades claw texturing and a circular arc are designed
for optimal airflow with minimal noise.

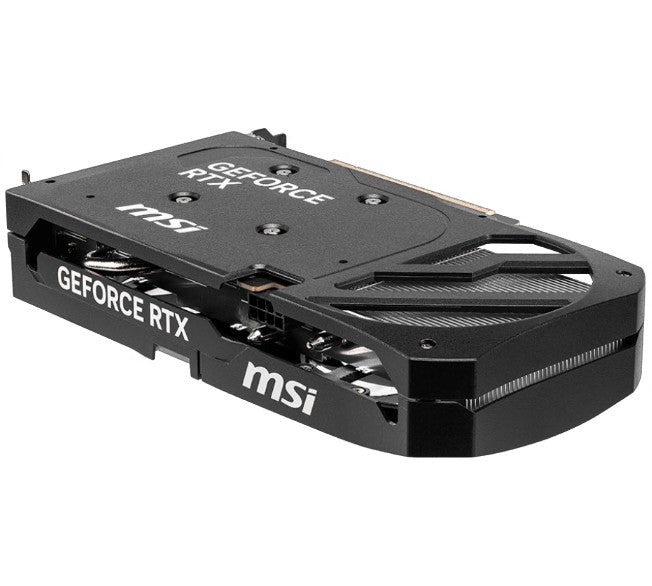

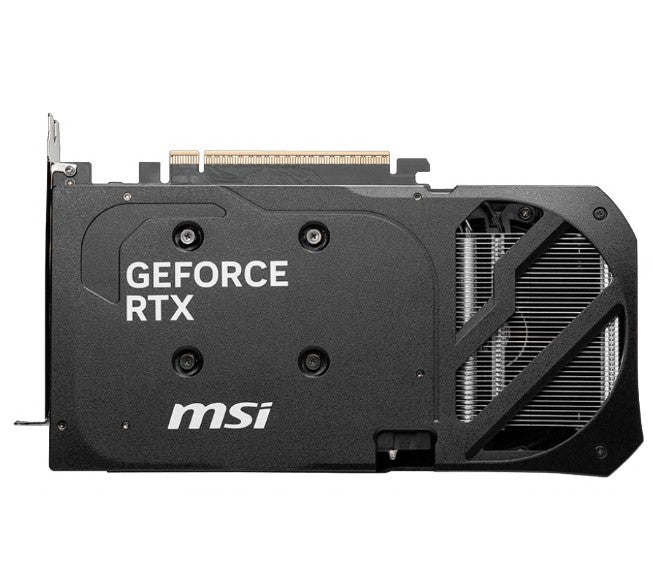

Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low
eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
