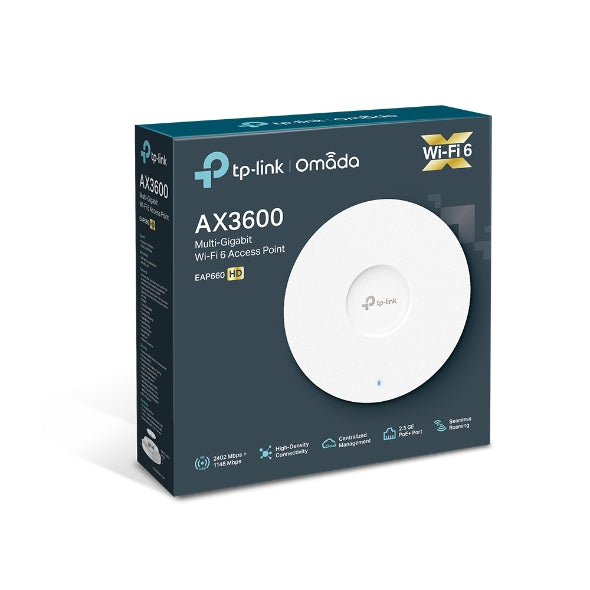

TP-Link EAP660 HD Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point/2402Mbps @ 5GHz POE+/SNMP/MU-MIMO/QoS/Mountable

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.† • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡ • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§; Centralised Cloud Management; and Intelligent Monitoring. • Centralised Management: Cloud access and Omada app for ultra convenience and easy management. • 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput. • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△ • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation. • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher; etc.) and abundant wireless security technologies.

HARDWARE FEATURES Interface 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE) Button Reset Power Supply • 802.3at PoE • 12 V DC Power Consumption • EU: 18.5 W • US: 21.5 W Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) Antenna Type Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps

MANAGEMENT Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes (Through OC300; OC200; Omada Cloud-Based Controller; or Omada Software Controller) Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1; v2c; v3

Package Contents • EAP660 HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide
