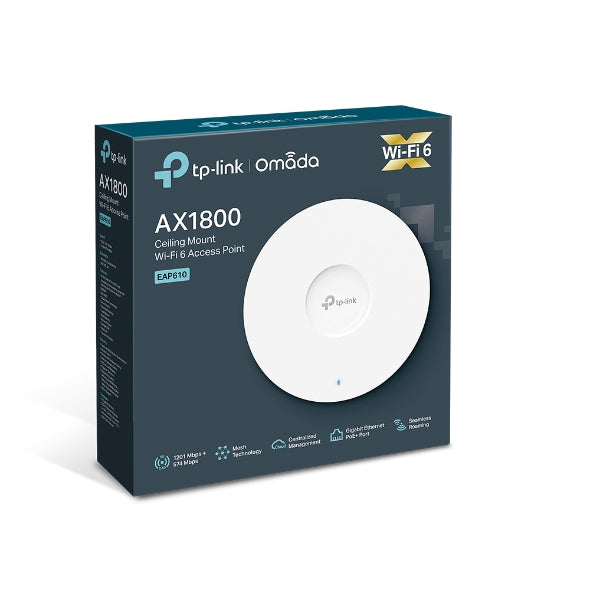

TP-Link EAP610 Omada AX1800 Wireless Dual Band Ceiling Mount Access Point/WiFi 6/1201 Mbps 5GHz/Omada/Centralised Cloud/PoE+ Powered

* Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.† * High-Efficiency WiFi 6: More connected devices can enjoy faster speeds. * Centralised Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app. * Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§ * Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§ * PoE+ Powered: Supports both Powers over Ethernet (802.3at) and DC power supply for flexible installations. * Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher etc.) and abundant wireless security technologies.

HARDWARE FEATURES Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset Power Supply * 802.3at PoE * 12 V / 1 A DC Power Consumption * EU: 12.8 W (For PoE); 10.8 W (for DC) * US: 13.9W (For PoE); 11.8 W (for DC) Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) Antenna Type Internal Omni * 2.4 GHz: 2× 4 dBi * 5 GHz: 2× 5 dBi Mounting Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps

MANAGEMENT Omada App Yes Centralized Management * Omada Hardware Controller (OC300) * Omada Hardware Controller (OC200) * Omada Software Controller Cloud Access Yes (Through OC300 OC200 or Omada Software Controller) Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1 v2c v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes
