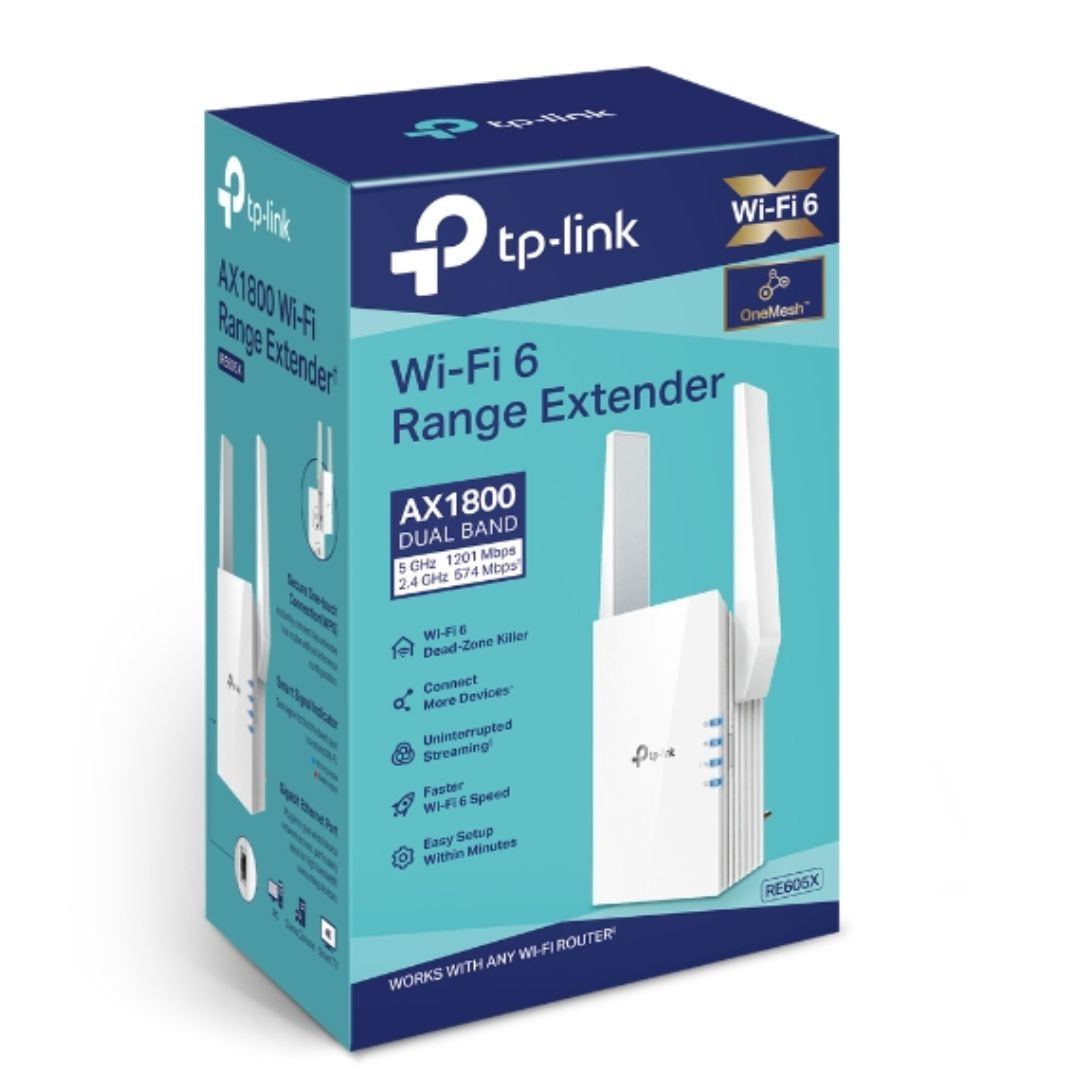

TP-Link RE605X AX1800 Wi-Fi Range Extender 574Mbps@2.4GHz 1201Mbps@5GHz 1x1GBps WPS 2xAntenna 2x2 MI-MIMO Dual Band Access Point

* RE605X comes equipped with the latest wireless technology Wi-Fi 6 for faster speeds greater capacity and reduced network congestion. * Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage. * Gigabit Ethernet Port – Provide faster-wired connections to smart TVs computers and gaming consoles * Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement * AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability * TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device * Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES Ports 1 Gigabit Ethernet Port Button WPS Button Reset Button Power Consumption 10W Dimensions ( W x D x H ) 2.9×1.8×4.9 in. (74.0×46×124.8 mm) Antenna 2 External Antennas

WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11b/g/n/ax 2.4GHz Frequency 2.4GHz and 5GHz Signal Rate 574 Mbps at 2.4GHz 1201 Mbps at 5GHz Reception Sensitivity 5 GHz: 11ax HE80 MCS0: -87dBm 11ax HE80 MCS11: -56dBm 11a 6Mbps: -93dBm 11a 54Mbps: -75dBm

2.4 GHz: 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -63dBm 11g 54Mbps: -77dBm 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm Transmit Power CE: 2.4 GHz ≤15dBm 5 GHz ≤21dBm Wireless Functions Enable/Disable Wireless Radio Wireless Statistics Wireless Security 64/128-bit WEP WPA/WPA-PSK2 encryptions OTHERS Package Contents Wi-Fi Range Extender RE605X Quick Installation Guide System Requirements Microsoft Windows 98SE NT 2000 XP Vista™ or Windows 7 8 8.1 10 MAC OS NetWare UNIX or Linux
