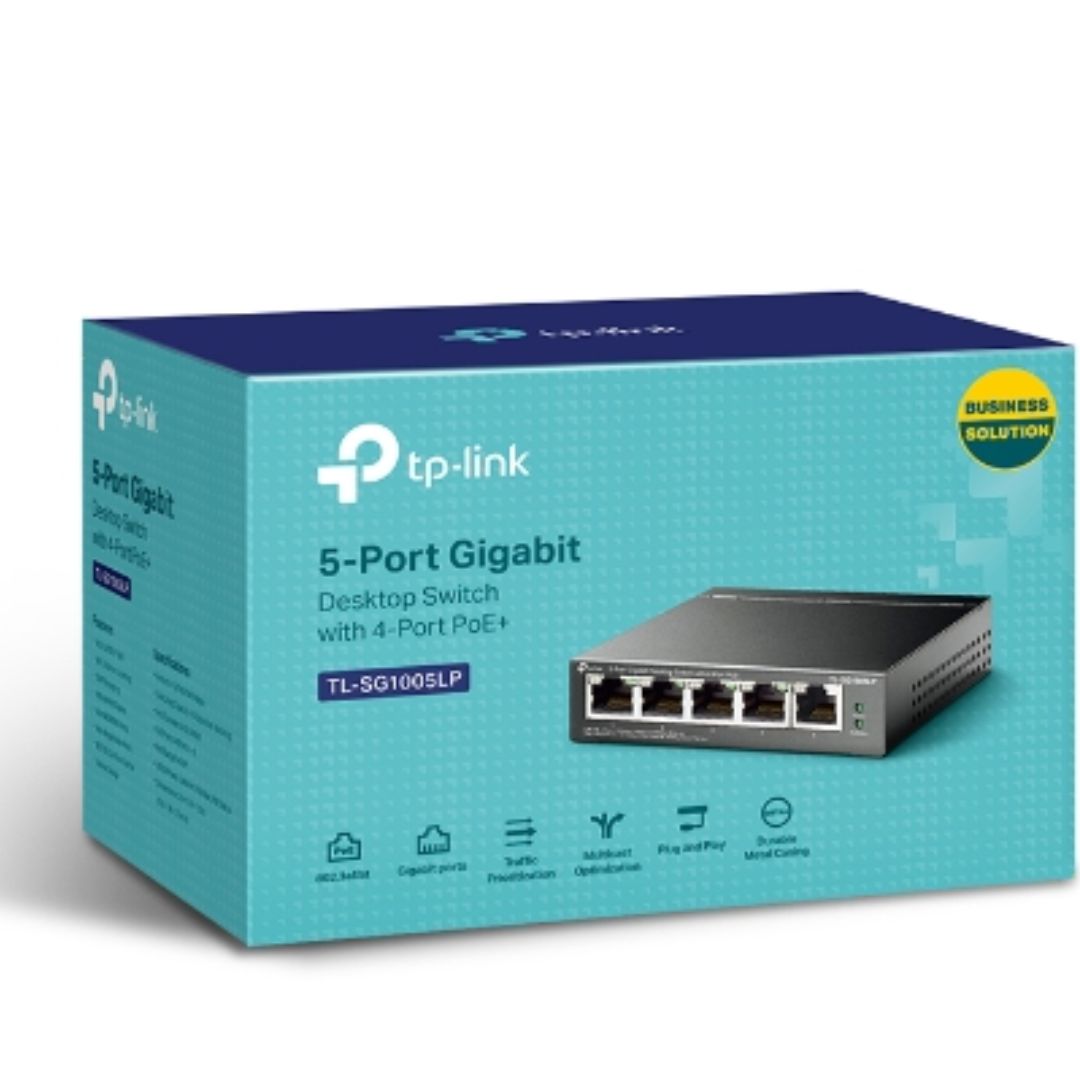

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+/Up To 40W For all PoE Ports/Up To 30W Each Port

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+ * 5× 10/100/1000 Mbps RJ45 ports * With four PoE+ ports transfers data and power on one single cable * Works with IEEE 802.3af/at compliant PDs * 802.1p/DSCP QoS enable smooth latency-sensitive traffic * Supports PoE Power up to 30 W for each PoE port * Supports PoE Power up to 40 W for all PoE ports* * Plug and play no configuration and installation required

HARDWARE FEATURES Interface * 5× 10/100/1000Mbps RJ45 Ports * AUTO Negotiation * AUTO MDI/MDIX Network Media * 10BASE-T: UTP category 3 4 5 cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 100BASE-TX: UTP category 5 5e cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) * 1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m) * EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A) Packet Forwarding Rate 7.44 Mpps PoE Ports (RJ45) * Standard: 802.3 af/at compliant * PoE Ports: Ports 1–4 * Power Supply: 40 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 10 Gbps Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm) Max Power Consumption * 4.12 W (220/50 Hz. no PD connected) * 47.5 W (220/50 Hz. with 40 W PD connected) Max Heat Dissipation * 14.05 BTU/h (no PD connected) * 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES Advanced Features * Compatible With IEEE 802.3af/at Compliant PDs * Mac Address Auto-Learning And Auto-Aging * IEEE 802.3x Flow Control * 802.1p/DSCP QoS * IGMP Snooping Transfer Method Store-And-Forward

OTHERS Certification FCC CE RoHS Package Contents * TL-SG1005LP * Power Adapter * Installation Guide Environment * Operating Temperature: 0–40 ℃ (32–104 ℉); * Storage Temperature: -40–70 ℃ (-40–158 ℉) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH non-condensing
