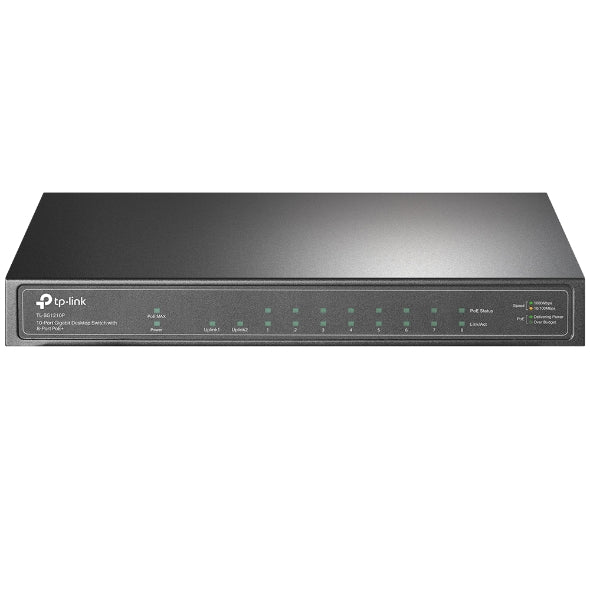

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ IGMP Snooping 1 Gigabit SFP Slot/Fanless

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ 10-Port Gigabit Desktop Switch with 8-Port PoE+ 9 10/100/1000Mbps RJ45 ports; 1 Gigabit SFP port With 8 PoE+ ports; transfers data and power on one single cable Working with IEEE 802.3af/at compliant PDs; expands home and office network 802.1p/DSCP QoS enable smooth latency-sensitive traffic High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports Easy to use; with no configuration and installation needed

HARDWARE FEATURES Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot Network Media 10BASE-T: UTP category 3; 4; 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5; 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5; 5e; 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF; SMF Fan Quantity Fanless Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) Backup Bandwidth 20 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W Mac Address Table 4K Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) Max Heat Dissipation 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Transmission Method Store-And-Forward OTHERS Certification CE; FCC; RoHS Package Contents TL-SG1210P; Power Adapter; Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing
