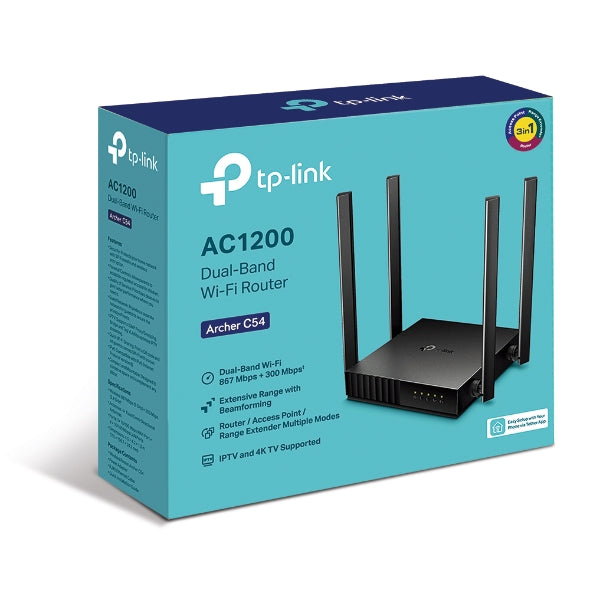

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 867Mbps 4xLAN 1xWAN 4xAntennas/WPS/Router Access Point and Range Extender Modes

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router * Faster AC Wi-Fi—AC1200 dual-band is ideal for 4K video streaming and high-speed downloading. * Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections. * Multi-Mode 3-in-1—Supports Router Access Point and Range Extender modes for added flexibility. * Parental Controls—Manages when and how connected devices can access the internet. * Guest Network—Provides separate access for guests in order to secure the host network. * Smooth HD Streaming—Supports IGMP Proxy/Snooping Bridge and Tag VLAN to optimize IPTV streaming. * IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6). * Compact and Mountable—Designed to conserve space and complement any décor.

WIRELESS Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) WiFi Range 3 Bedroom Houses 4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity Medium Dual-Band Allocate devices to different bands for optimal performance

MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Working Modes Router Mode Access Point Mode Range Extender Mode

HARDWARE Processor Single-Core CPU Ethernet Ports 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports Buttons WPS Button Reset Button Power 5 V ⎓ 0.6 A

PHYSICAL Dimensions (W×D×H) (115 x 106.7 x 24.3 mm)

WiFi Reception Sensitivity 5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm；
