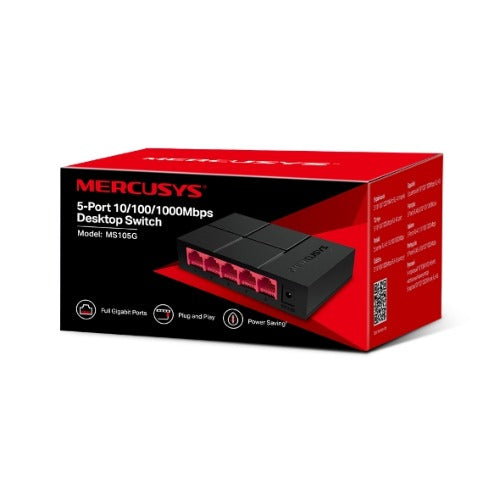

Mercusys MS105G 5-Port Gigabit Desktop Switch/5x Gigabit Ports/Compact Design/Plug N Play/Green Ethernet Technology

Five 10/100/1;000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported Easily wired network expansion Compact design for flexible arrangement Plug and play setup; no configuration required Green Ethernet technology saves power by up to 82%

Cool; Ultra-Compact Design A sleek; square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone; MS105G sits anywhere in your home.

MS105G is flexible and fully compatible with 4K Ultra HD TVs; computers; printers; IP cameras; game consoles; and more. This makes it perfect for use in home; small office; and even dormitory environments. Reliable Performance With Half/Full Duplex and MAC Address Learning Technology; MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable; uninterrupted connections for years to come. Go Green with Your Ethernet You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power.

5 10/100/1000Mbps Ports; Auto-Negotiation; Auto-MDI/MDIX

LED Ethernet Ports (1; 2; 3; 4; 5); Power

External Power Supply 5V/0.6A

Dimensions (W X D X H) 105×70×24.9 mm

Standards and Protocols IEEE 802.3; IEEE 802.3u; IEEE 802.3x CSMA/CD

Data Rates 10/100/1000 Mbps at Half Duplex 20/200/2000 Mbps at Full Duplex

Buffer Capacity 512 Kbit

Jumbo Frame 9 KB

Transfer Method Store and Forward

Package Contents 1. 5-Port 10/100/1000Mbps Desktop Switch (MS105G) 2. Power Adapter 3. Quick Installation Guide
