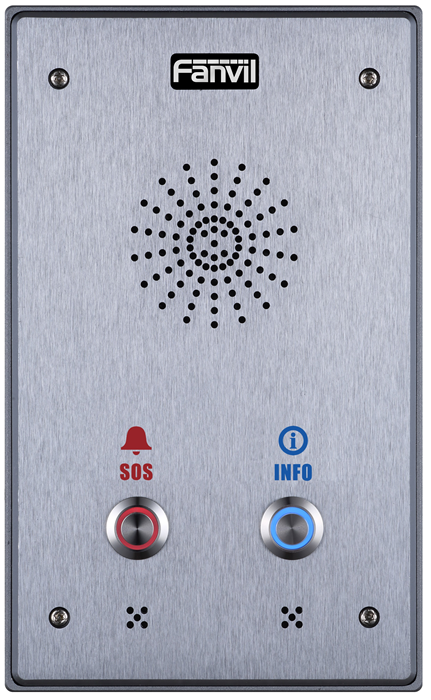

Fanvil I12D 2 Outdoor Audio Intercom/2 SIP Lines/2 Button/2 SIP Lines/PoE/Full-duplex speakerphone/AIO: door access/intercom and paging service

2 SIP Lines PoE enabled(Power over Ethernet) Full-duplex speakerphone Intelligent DSS Keys (Speed dial) Wall-mount installation Special integrated noise reduction module Omnidirectional voice pickup 2 embedded short-circuit input interfaces 2 embedded short-circuit output interfaces. Support 4 controlled events: remote DTMF; remote server’s commands; interaction with short circuit input; talking status Output interface for active speaker Audio record output interface External Power Supply Multicast All in ONE: door access; intercom and paging service Industrial standard certifications: IP65; IK10; CE/FCC

Call Features: Intercom Speed dial(speed dial key) Auto-answering (per line) Voice message (on the server) Local 3-way Conference Phone Features: Call log (900 entries; in/out/missed) Programmable DSS keys Network time synchronization Action URL / Active URI Audio: Narrowband CODEC: G.711a/u; G.723.1; G.726-32K; G.729AB Wideband CODEC: G.722 Full-duplex Acoustic Echo Canceller (AEC) ‚ Handsfree mode; 96ms tail-length Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic adaptive jitter buffer up to 300ms DTMF: In-band; Out-of-Band ‚Äì DTMF-Relay (RFC2833)/ SIP INFO Omnidirectional voice pickup: pickup distance to 5 m. Networking Physical: RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Enabled); LAN x1 (Bridged to Network) IP configuration: Static / DHCP / PPPoE Network access control: 802.1x VPN: L2TP (Basic Unencrypted) / OpenVPN VLAN QoS Protocols: SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP 802.1x L2TP (Basic Unencrypted) OpenVPN SNTP FTP/TFTP HTTP/HTTPS Tr069 Physical

Specification:
