MSI Micro ATX Case / 1x USB 3.2 / 2x USB 2.0 / 1x Audio / 1x Mic / 4x PCI-E / 2x 2.5" / 2x 3.5" / Micro ATX / Mini ITX(LS)
$187.94
Unit price perEstimated delivery between June 18 and June 20.
DESCRIPTION

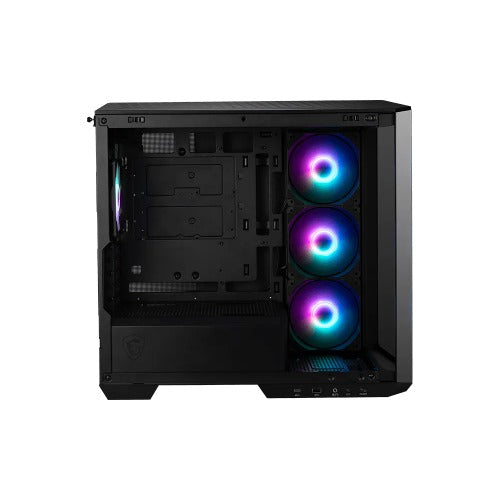

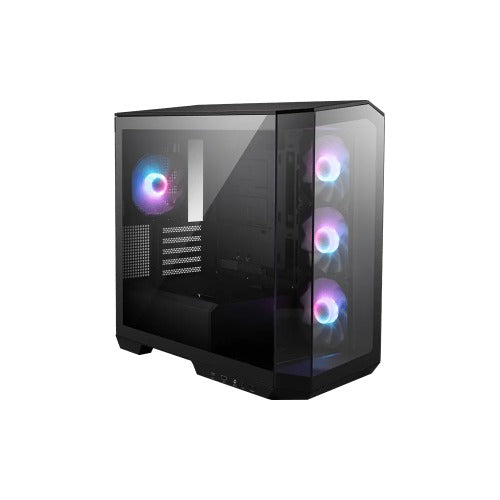

MSI MAG PANO M100R PZ BLACK Micro ATX Case 1x USB 3.2 2x USB 2.0 1x Audio 1x Mic 4x PCI-E 2x 2.5" 2x 3.5" Micro ATX / Mini ITX(NEW)
Product Name
MAG PANO M100R PZ
Case Form Factor
Micro- ATX Tower
Motherboard Form Factor Support
M-ATX(Back-connect supported) / ITX
I/O Ports
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2x2 Type-C
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
Drive Mount Support
1 x 2.5”
1 x 2.5”/3.5” combo
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
Expansion Slots
5
Maximum GPU Length
390 mm / 15.35 inches
*Support horizontal installation only.
Maximum CPU Cooler Height
175 mm / 6.9 inches
Power Supply Support
ATX
Maximum PSU Length
200 mm / 7.87 inches
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm / 1 x 140 mm
Side: 3 x 120 mm
Bottom: 1 x 120 mm
PSU Shroud: 2 x 120 mm
Pre-installed Fan Size
Side: 3 x 120 mm
Rear: 1 x 120 mm
Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse-blade)
Rear: 1 x ARGB Fan
Radiator Size Support
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 / 140 mm
Side: NA
Bottom: NA
Dimensions (DxWxH)
440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches
Net Weight
8.66 kg
Gross Weight
11.29 kg
