DESCRIPTION

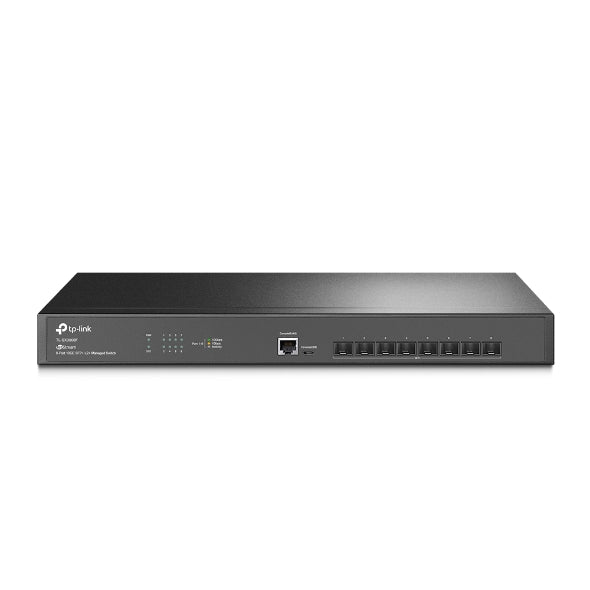

TP-Link TL-SX3008F JetStream 8-Port 10GE SFP+ L2+ Managed Switch SFP+ Omada SDN Static Routing L2/L3/L4 QoS IGMP snooping Standalone Management

JetStream 8-Port 10GE SFP+ L2+ Managed Switch
10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)* Centralized Cloud Management and Intelligent Monitoring.
Centralised Management: Easy and convenient management with cloud access and Omada app.
Static Routing: Route internal traffic for the efficient use of network resources.
Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding ACL Port Security DoS Defend Storm control DHCP Snooping 802.1X and Radius Authentication.
Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web CLI (Console Port Telnet SSH) SNMP RMON and Dual Image bring powerful management capabilities
HARDWARE FEATURES
Interface • 8× 10GE SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 15.46 W (220 V / 50 Hz)
Max Heat Dissipation 52.75 BTU/hr (220 V / 50 Hz)
PERFORMANCE
Switching Capacity 160 Gbps
Packet Forwarding Rate 119.04 Mpps
MAC Address Table 32 K
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features • Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups containing 8 ports per g
