DESCRIPTION

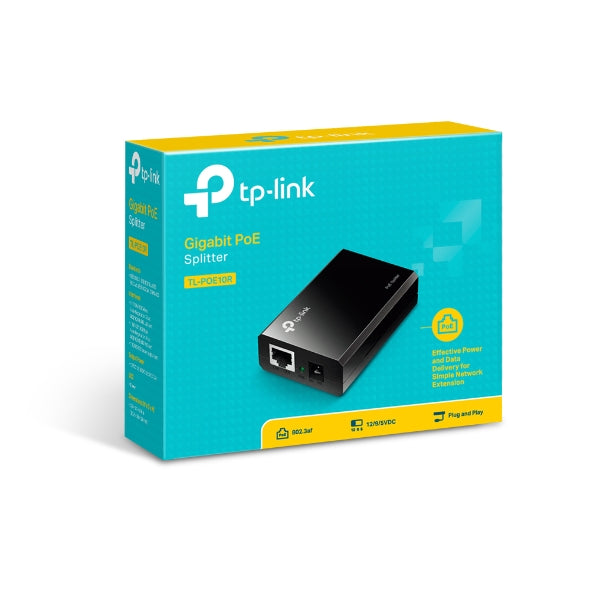

TP-Link TL-POE10R PoE Splitter
IEEE 802.3af compliant
Delivers power up to 100 meters
Gigabit speed support
Optional 12V DC 9V DC or 5V DC power supply
Plug-and-Play requires no configuration
HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 POWER OUTPUT PORT
Network Media 10BASE-T: UTP category 3 4 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5 5e 6 cable (Max 100m)
Power Supply 12VDC 1A 9VDC 1A 5VDC 2A
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
SOFTWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC 9VDC or 5VDC Power Supply
